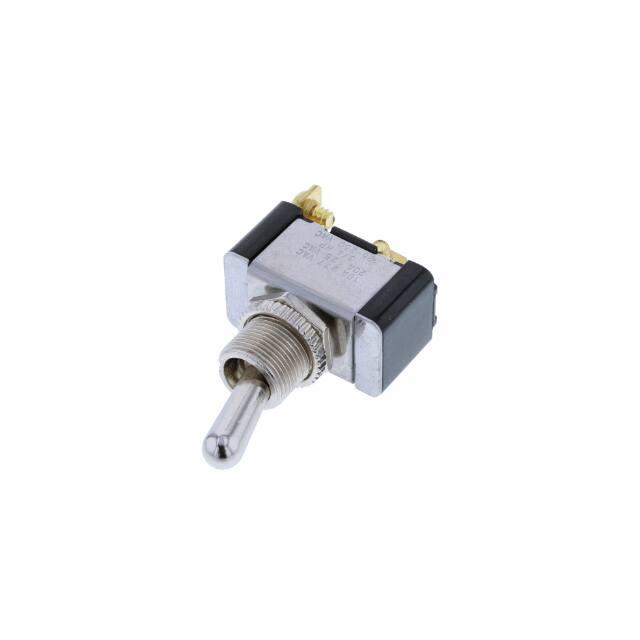

TA2-1B-DC-6

Toggle Switch TA2-1B-DC-6 Mechanical Dimensions: Inches [mm] Tolerances ±0.012 [0.3] Unless Otherwise Specified Mounting Hole Circuit Diagram 2P SPST OFF-(ON) Thickness: 0.2 [6 mm]max Electrical Specifications Material Specifications Rating 21A 14V DC Operation Force Contact Resistance 50m ohm Max 1 hex nut assy Insulation Resistance DC 500V 100M ohm Min 1 knurl nut assy Dielectric Strength AC 1500V 1 minute Operation Temperature -20°C ~ 85°C Rev A 02/2019 1100gf ± 400 gf Toggle Switch Rev A TA2-1B-DC-6 Designed Approved Date of issue Revision Notes 02-18-2019 Initial Drawing RC Rev A 02/2019 OH
