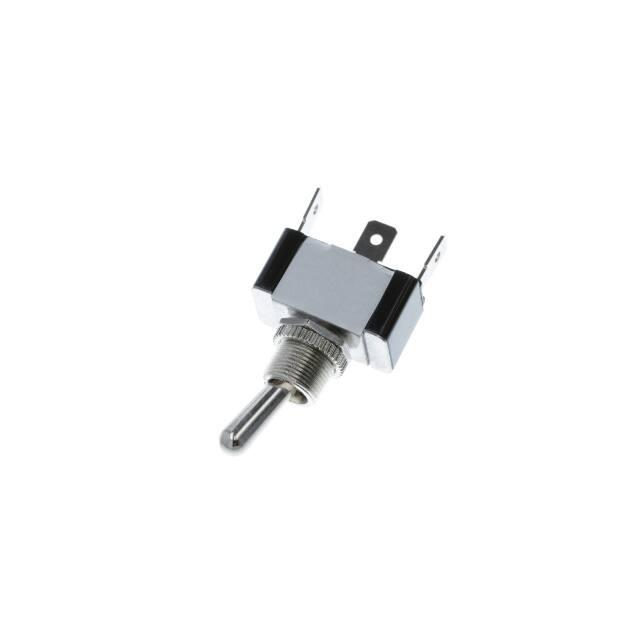

TA2-1G-DC-1

Toggle Switch TA2-1G-DC-1 Mechanical Dimensions: Inches [mm] Tolerances ±0.012 [0.3] Unless Otherwise Specified Mounting Hole Circuit Diagram 3P SPDT (ON)-OFF-(ON) Thickness: 0.2 [6 mm]max Electrical Specifications Material Specifications Rating 21A 14V DC Operation Force Contact Resistance 50m ohm Max 1 hex nut assy Insulation Resistance DC 500V 100M ohm Min 1 knurl nut assy Dielectric Strength AC 1500V 1 minute Operation Temperature -20°C ~ 85°C Rev A 02/2019 1500gf ± 300 gf Toggle Switch Rev A TA2-1G-DC-1 Designed Approved Date of issue Revision Notes 02-13-2019 Initial Drawing RC Rev A 02/2019 OH
