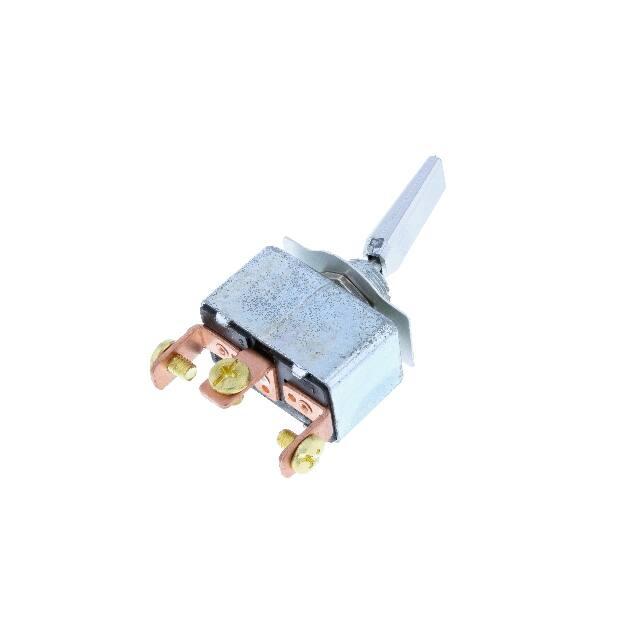

TD1-1F-DC-3-P

Toggle Switch TD1-1F-DC-3-P Mechanical Dimensions: Inches [mm] Tolerances ±0.012 [0.3] Unless Otherwise Specified Mounting Hole Circuit Diagram 3P SPDT ON-OFF-ON Thickness:0.1 [3.0 ]max Electrical Specifications Material Specifications Rating 50A 12V DC 2 hex nut assy Contact Resistance 50m ohm Max 1 ON/OFF/ON face plate assy Insulation Resistance DC 500V 100M ohm Min Dielectric Strength AC 1500V 1 minute Operation Temperature -20°C ~ 85°C Rev A 02/2019 Toggle Switch Rev A TD1-1F-DC-3-P Designed Approved Date of issue Revision Notes 02-28-2019 Initial Drawing RC Rev A 02/2019 OH
