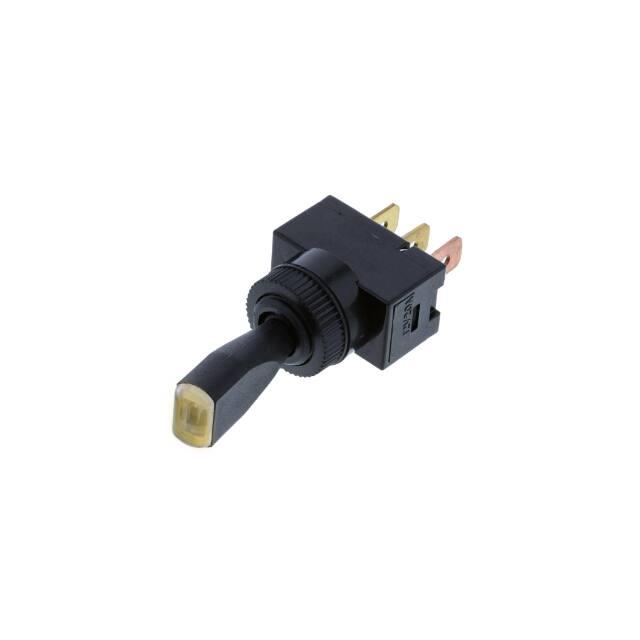

Toggle Switch
TE2-1A-DC-1-AL
Mechanical Dimensions (mm)
Tolerances ±0.3 Unless Otherwise Specified
Circuit Diagram
Mounting Hole
3P SPST OFF-ON (LED-D)
Thickness: 2mm max
Electrical Specifications
Material Specifications
Rating
20A 12V DC
Handle color
Black
Contact Resistance
50m ohm Max.
LED
Yellow (Dependent)
Insulation Resistance
DC 500V 100M ohm Min.
Dielectric Strength
AC 1500V 1 minute
