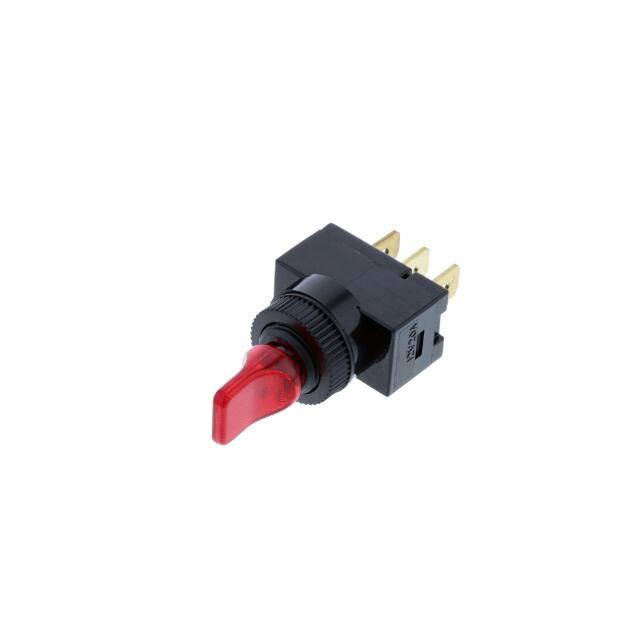

Toggle Switch
TE7-1A-DC-1-RL
Mechanical Dimensions (mm)
Tolerances ±0.3 Unless Otherwise Specified
Circuit Diagram
Mounting Hole
3P SPST OFF-ON (LED-D)
Thickness: 2mm max
Electrical Specifications
Material Specifications
Rating
20A 12V DC
Frame
Black, PC
Contact Resistance
50m ohm Max.
Toggle
Red, PC
Insulation Resistance
DC 500V 100M ohm Min.
LED
Red (Dependent)
Dielectric Strength
AC 1500V 1 minute
