NUP1301
Low Capacitance Diode
Array for ESD Protection in a Single Data Line
NUP1301 is a MicroIntegration device designed to provide
protection for sensitive components from possible harmful
electrical transients; for example, ESD (electrostatic discharge).
SOT−23
CASE 318
STYLE 11
Features
• Low Capacitance (0.9 pF Maximum)
• Single Package Integration Design
• Provides ESD Protection for JEDEC Standards JESD22
•
•
•
•
•
•
CATHODE
2
ANODE
1
Machine Model = Class C
Human Body Model = Class 3B
Protection for IEC61000−4−2 (Level 4)
8.0 kV (Contact)
15 kV (Air)
Ensures Data Line Speed and Integrity
Fewer Components and Less Board Space
Direct the Transient to Either Positive Side or to the Ground
SZ Prefix for Automotive and Other Applications Requiring Unique
Site and Control Change Requirements; AEC−Q101 Qualified and
PPAP Capable
Pb−Free Package is Available
3
CATHODE/ANODE
Applications
•
•
•
•
•
•
•
T1/E1 Secondary IC Protection
T3/E3 Secondary IC Protection
HDSL, IDSL Secondary IC Protection
Video Line Protection
Microcontroller Input Protection
Base Stations
I2C Bus Protection
MAXIMUM RATINGS (Each Diode) (TJ = 25°C unless otherwise noted)
Rating
Symbol
Value
Unit
Reverse Voltage
VR
70
Vdc
Forward Current
IF
215
mAdc
IFM(surge)
500
mAdc
Repetitive Peak Reverse Voltage
VRRM
70
Average Rectified Forward Current (Note 1)
(averaged over any 20 ms period)
IF(AV)
Repetitive Peak Forward Current
IFRM
Non−Repetitive Peak Forward Current
t = 1.0 ms
t = 1.0 ms
t = 1.0 S
IFSM
Peak Forward Surge Current
715
450
2.0
1.0
0.5
V
mA
mA
A
Stresses exceeding those listed in the Maximum Ratings table may damage the device. If any of these limits are exceeded, device functionality
should not be assumed, damage may occur and reliability may be affected.
1. FR−5 = 1.0 0.75 0.062 in.
www.umw-ic.com
1
友台半导体有限公司
NUP1301
Low Capacitance Diode
Array for ESD Protection in a Single Data Line
THERMAL CHARACTERISTICS
Characteristic
Thermal Resistance Junction−to−Ambient
Symbol
Max
Unit
RqJA
625
°C/W
Lead Solder Temperature
Maximum 10 Seconds Duration
TL
Junction Temperature
TJ
−65 to 150
°C
Storage Temperature
Tstg
−65 to +150
°C
°C
260
ELECTRICAL CHARACTERISTICS (TJ = 25°C unless otherwise noted) (Each Diode)
Characteristic
Symbol
Min
Typ
Max
70
−
−
−
−
−
−
−
−
2.5
30
50
−
−
0.9
−
−
−
−
−
−
−
−
715
855
1000
1250
Unit
OFF CHARACTERISTICS
V(BR)
Reverse Breakdown Voltage
(I(BR) = 100 mA)
Reverse Voltage Leakage Current
(VR = 70 Vdc)
(VR = 25 Vdc, TJ = 150°C)
(VR = 70 Vdc, TJ = 150°C)
IR
Diode Capacitance (between I/O and ground)
(VR = 0, f = 1.0 MHz)
CD
Forward Voltage
(IF = 1.0 mAdc)
(IF = 10 mAdc)
(IF = 50 mAdc)
(IF = 150 mAdc)
VF
Vdc
mAdc
pF
mVdc
Product parametric performance is indicated in the Electrical Characteristics for the listed test conditions, unless otherwise noted. Product
performance may not be indicated by the Electrical Characteristics if operated under different conditions.
2. FR−5 = 1.0 0.75 0.062 in.
3. Alumina = 0.4 0.3 0.024 in, 99.5% alumina.
4. Include SZ-prefix devices where applicable.
ESD Input Signal
Figure 1. ESD Test Circuit
APPLICATION NOTE
Electrostatic Discharge
A common means of protecting high−speed data lines is
to employ low−capacitance diode arrays in a rail−to−rail
configuration. Two devices per line are connected between
two fixed voltage references such as VCC and ground. When
the transient voltage exceeds the forward voltage (VF) drop
of the diode plus the reference voltage, the diodes direct the
www.umw-ic.com
surge to the supply rail or ground. This method has several
advantages including low loading capacitance, fast response
time, and inherent bidirectionality (within the reference
voltages). See Figure 1 for the test circuit used to verify the
ESD rating for this device.
2
友台半导体有限公司
NUP1301
Low Capacitance Diode
Array for ESD Protection in a Single Data Line
PACKAGE DIMENSIONS
SOT−23 (TO−236)
CASE 318−08
ISSUE AR
D
0.25
3
E
1
2
T
HE
NOTES:
1. DIMENSIONING AND TOLERANCING PER ASME Y14.5M, 1994.
2. CONTROLLING DIMENSION: MILLIMETERS.
3. MAXIMUM LEAD THICKNESS INCLUDES LEAD FINISH.
MINIMUM LEAD THICKNESS IS THE MINIMUM THICKNESS OF
THE BASE MATERIAL.
4. DIMENSIONS D AND E DO NOT INCLUDE MOLD FLASH,
PROTRUSIONS, OR GATE BURRS.
DIM
A
A1
b
c
D
E
e
L
L1
HE
T
L
3X b
L1
VIEW C
e
TOP VIEW
A
A1
SIDE VIEW
c
SEE VIEW C
MIN
0.89
0.01
0.37
0.08
2.80
1.20
1.78
0.30
0.35
2.10
0_
MILLIMETERS
NOM
MAX
1.00
1.11
0.06
0.10
0.44
0.50
0.14
0.20
2.90
3.04
1.30
1.40
1.90
2.04
0.43
0.55
0.54
0.69
2.40
2.64
−−−
10 _
MIN
0.035
0.000
0.015
0.003
0.110
0.047
0.070
0.012
0.014
0.083
0_
INCHES
NOM
MAX
0.039
0.044
0.002
0.004
0.017
0.020
0.006
0.008
0.114
0.120
0.051
0.055
0.075
0.080
0.017
0.022
0.021
0.027
0.094
0.104
−−−
10 _
STYLE 11:
PIN 1. ANODE
2. CATHODE
3. CATHODE−ANODE
END VIEW
RECOMMENDED
SOLDERING FOOTPRINT*
3X
2.90
3X
0.90
0.95
PITCH
0.80
DIMENSIONS: MILLIMETERS
*For additional information on our Pb−Free strategy and soldering
details, please download the ON Semiconductor Soldering and
Mounting Techniques Reference Manual, SOLDERRM/D.

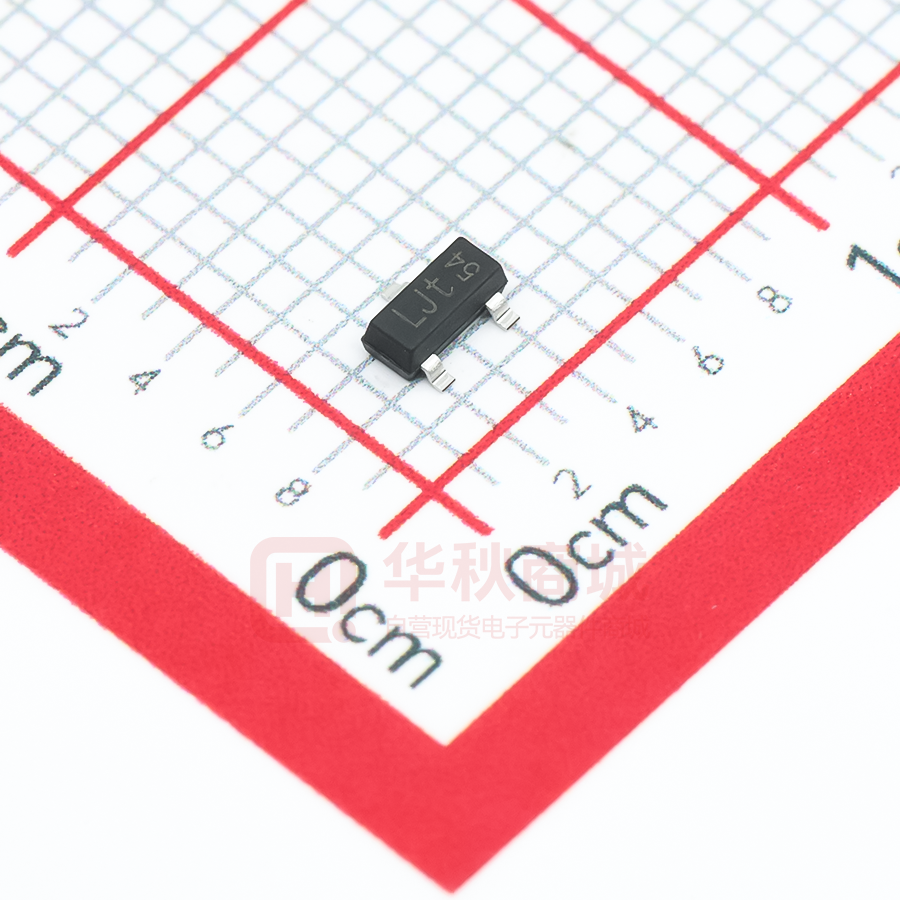

Marking
LJt 82
ORDERING INFORMATION
Order code
UMW NUP1301
www.umw-ic.com
Package
Base qty
Delivery mode
SOT-23
3000
Tape and reel
3
友台半导体有限公司
