LFXTAL009706

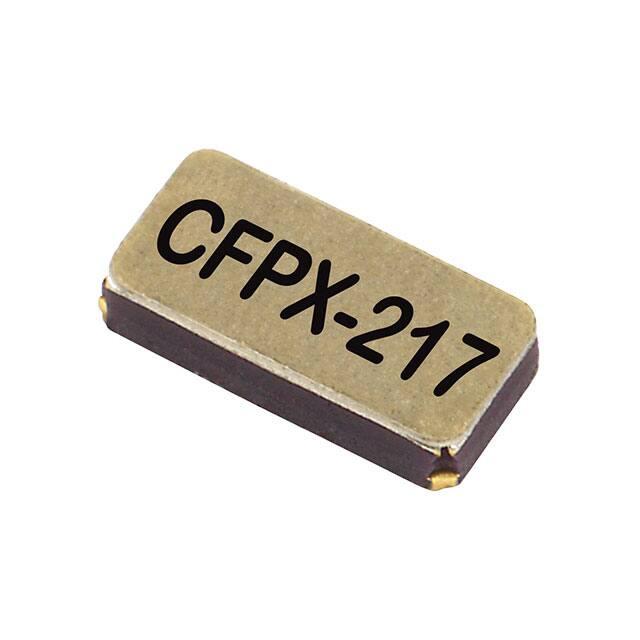

Quartz Crystal Specification Part No.: LFXTAL009706 Description 3.2 x 1.5mm SMD crystal in a ceramic package with a seam sealed metal lid, hermetically sealed. Model CFPX-217 Model Issue number 6 Frequency Parameters Frequency 32.7680kHz Frequency Tolerance Tolerance Condition Overtone Order Ageing ±20.00ppm @ 25°C ±5°C Fundamental ±3ppm max in 1st year @ 25°C Electrical Parameters Load Capacitance (CL) Shunt Capacitance (C0) Drive Level ESR 9.00pF 1.0pF typical 1.0µW max 70.00kΩ max Outline (mm) Environmental Parameters Storage Temperature Range: –55 to 125°C Drop: 100g dummy, 150cm drop (3 directions x 10 times) onto concrete Vibration: 1.5mm amplitude, 10Hz-60Hz with cycle time 2-3 minutes in 3 directions (X, Y and Z axis) each for 2 hours *Measure after 2 hours left at room temperature Manufacturing Details RoHS Terminations RoHS Reflow Temp NiAu 260°C max for 10s max Compliance RoHS Status (2015/863/EU) REACh Status MSL Rating (JDEC-STD-033): Recommended Solder Pad Layout Compliant Compliant Not Applicable Packaging Details Tape & reel in accordance with EIA-481 Quantities below the standard reel size to be supplied on cut tape. Standard Quantity: 3,000 Pieces Sales Office Contact Details: UK: +44 (0)1460 270200 USA: +1.760 668 8935 Printed on 2 May 23 23:47 using Part Data Sheet V1.0021 Email: info@iqdfrequencyproducts.com Web: www.iqdfrequencyproducts.com Page 1 of 2 Quartz Crystal Specification Part No.: LFXTAL009706 Typical Frequency Stability Characteristics Sales Office Contact Details: UK: +44 (0)1460 270200 USA: +1.760 668 8935 Printed on 2 May 23 23:47 using Part Data Sheet V1.0021 Email: info@iqdfrequencyproducts.com Web: www.iqdfrequencyproducts.com Page 2 of 2
