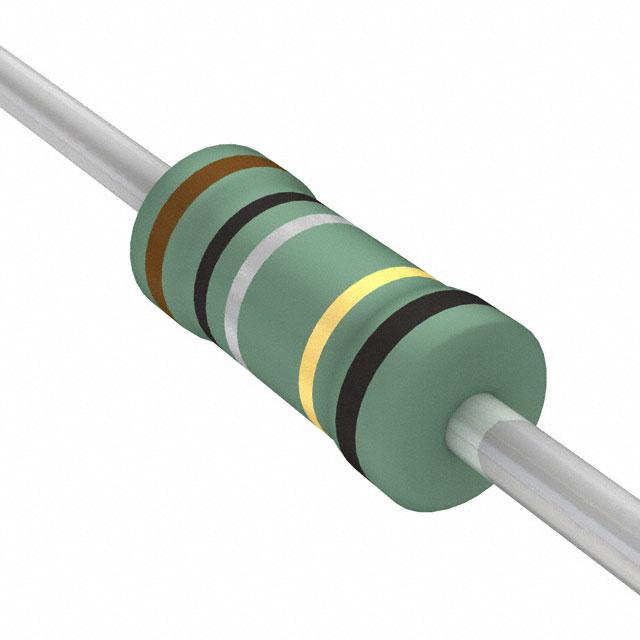

leaded resISTORS Flame-Proof & Non Inductive Type Wirewound Resistors Normal & Miniature Style [ NKN Series ] FEATURES INTRODUCTION Power Rating 1/2W, 1W, 2W, 3W, 4W, 5W, 7W Resistance Tolerance ±1%, ±5% T.C.R. ±300ppm/°C Flameproof Multi-layer Coating Meets UL-94V-0 Flameproof Feature Meets Overload Test UL-1412 DERATING CURVE The resistor element is a resistive wire which is wound in a single layer on a ceramic rod, tinned connecting wires of electrolytic copper are welded to the end-caps. The ends of the resistance wire and the leads are connected to the caps by welding. The resistors are coated with layers of green color flame proof lacquer. The 5th color band is black to represent NKN series. For resistors operated in ambient temperatures above 40°C, power rating must be derated in accordance with the curve below. Rated Load (%) 40 70 200 275 °C 100 3W-7W 80 1/4W-3WS 60 40 20 50 100 150 200 250 300 Ambient Temperature (°C) DIMENSIONS Unit: mm STYLE ød H L 5th color code: black øD DIMENSION Normal Miniature L øD H ød NKN-50 NKN1WS 9.0±0.5 3.3±0.3 26±2.0 0.55±0.05 NKN100 NKN2WS 11.5±1.0 4.5±0.5 35±2.0 0.8±0.05 NKN200 NKN3WS 15.5±1.0 5.0±0.5 33±2.0 0.8±0.05 NKN5WS 17.5±1.0 6.5±0.5 32±2.0 0.8±0.05 NKN7WS 24.5±1.0 8.0±0.5 38±2.0 0.8±0.05 NKN300 NKN400 NKN500 51 ELECTRICAL CHARACTERISTICS NORMAL STYLE STYLE NKN-50 NKN100 NKN200 NKN300 NKN400 NKN500 Power Rating at 70°C 1/2W 1W 2W 3W 4W 5W Dielectric Withstanding Voltage 250V 400V Resistance Range 0.1 Ω - 5 Ω 0.1 Ω - 10 Ω 0.1 Ω - 22 Ω 0.1 Ω - 27 Ω Operating Temp. Range -40°C to +200°C Temperature Coefficient ±300ppm/°C 0.1 Ω - 33 Ω MINIATURE STYLE STYLE NKN1WS NKN2WS NKN3WS NKN5WS NKN7WS Power Rating at 70°C 1W 2W 3W 5W 7W Dielectric Withstanding Voltage 250V 400V Resistance Range 0.1 Ω - 5 Ω 0.1 Ω - 10 Ω 0.1 Ω - 22 Ω 0.1 Ω - 27 Ω 0.1 Ω - 33 Ω Operating Temp. Range - 40°C to +200°C Temperature Coefficient ±300ppm/°C Note: Special value is available on request ENVIRONMENTAL CHARACTERISTICS PERFORMANCE TEST TEST METHOD Short Time Overload JIS-C-5202 5.5 2.5 times RCWV for 5 Sec. ±2.0%+0.05 Ω Dielectric Withstanding Voltage JIS-C-5202 5.7 in V-Block for 60 Sec. By type Temperature Coefficient JIS-C-5202 5.2 -40°C to +200°C By type Insulation Resistance JIS-C-5202 5.6 in V-Block >100M Ω Solderability JIS-C-5202 6.5 260±5°C for 5±0.5 Sec. 95% Min. coverage Resistance to Solvent JIS-C-5202 6.9 IPA for 1 Min. with ultrasonic No deterioration of coatings and markings Terminal Strength JIS-C-5202 6.1 Direct load for 10 Sec. in the direction of the terminal leads ≥2.5kg (24.5N) Load Life in Humidity JIS-C-5202 7.9 40±2°C, 90-95% RH at RCWV for 1,000 Hr. (1.5 Hr. on, 0.5 Hr. off) ±5.0%+0.05 Ω Load Life JIS-C-5202 7.10 20°C at RCWV for 1,000 Hr. (1.5 Hr. on, 0.5 Hr. off) ±5.0%+0.05 Ω Temperature Cycling JIS-C-5202 7.4 -55°C  Room Temp.  +155°C  Room Temp. (5 cycles) ±1.0%+0.05 Ω Resistance to Soldering Heat JIS-C-5202 6.4 350±10°C for 3±0.5 Sec. ±1.0%+0.05 Ω Overload Flame Retardant JIS-C-5202 7.12 4 times RCWV for 1 Min. No evidence of flaming or arcing Note: Rated Continuous Working Voltage (RCWV) =  APPRAISE Power Rating x Resistance Value
