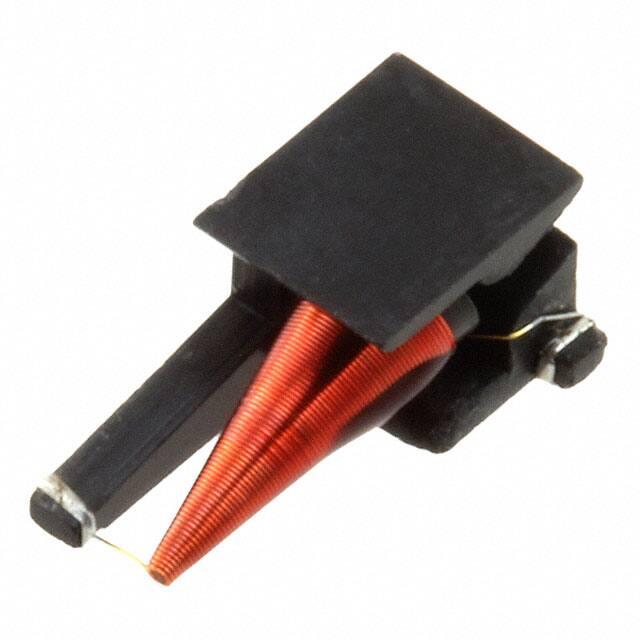

AT C 5 0 6 W L S S E R I E S U B L S M T I N D U C T O R S ATC 506WLSN6R00KT236T Ultra-Broadband SMT Inductor Features: • Inductance: 6.00 µH • Operating Frequency: 700 KHz (-3 dB roll-off) through 40+ GHz, typ. • Insertion Loss (shunt mounted): 18 dB, typ. • Operating Temperature Range: -55°C to +125°C New Design • Lead-Free, RoHS Compliant Terminations ATC, the industry leader, is introducing the new 506WLS Series High Frequency Ultra-Broadband Inductor (UBL). This unique component provides low insertion loss and an excellent match over multiple octaves of frequency spectrum. Advantages: The 506WLS is ideal for ultra-broadband DC decoupling networks and bias tee applications in optical communications systems and equipment using highspeed digital logic. • Excellent Return Loss Through 40 GHz Electrical Specifications: • Ultra-Low Insertion Loss • Flat Frequency Response • Unit-to-Unit Performance Repeatability • Rugged Powdered Iron Core *Inductance: measured at 1 MHz, 0.1 Vrms, 0 mA dc with HP4291A impedance analyzer • Inductance: 6.00 µH ±10%* • Rated DC Current (IDC max.): 236 mA** • DC Resistance (RDC typ.): 2.85 𝛀, typ. at +20°C, 10 mA current. 0 • Ultra-Broadband Performance **Current Rating: based on a 100 °C temperature rise from a 25°C ambient. ATC 506WLSN6R00 Insertion Loss (S21) -0.2 -10 -0.6 Magnitude (dB) Magnitude (dB) -0.4 -0.8 -1 dB -1.2 -1.4 -1.6 -1.8 -2 0 ATC 506WLSN6R00 Return Loss (S11) 0 -20 -30 -40 -50 Typical Typical 5 10 15 20 25 Frequency (GHz) 30 35 40 -60 0 5 10 15 20 25 30 35 40 Frequency (GHz) ATC # 001-1121 Rev. G; 8/17 AT C 5 0 6 W L S S E R I E S U B L S M T I N D U C T O R S Outline Dimensions Recommended Foot Print .032 (.813) .025 (.635) .197 (5.004) Note .025 (.635) .117 (2.972) .055±.005 (1.397 ±.127) .055 (1.397) .061 (1.549) .225 (5.715) .245 (6.223) .113 (2.870) .133 (3.378) Note: Terminal is configured to facilitate attachment close to inductor tip. inches (mm) Wire is copper plated with gold 20 µ in. ±5 µ in. Mechanical Configurations Size Length (L) Width (W) Height (H) N 0.245 (6.223) 0.133 (3.378) 0.117 (2.972) Cu Wire Size (AWG) Number of Turns 44 78 inches (mm) Unless noted otherwise, all dimensions are held to ±0.10 (.254) ATC PART NUMBER CODE ATC 506WLS N 6R00 K T 236 T Packaging T = Tape and Reel Series Case Size Current (mA) Inductance Code (µH) 3 significant digits for inductance R = Decimal point T=Tin Termination Inductance Tolerance, (±10%) The above part number refers to a 506WLS Series, Case Size N, 6.00 µH inductor, K tolerance (±10%, typ.), with Tin Termination (T), 236 mA, tape and reel packaging. ATC accepts orders for our parts using designations with or without the “ATC” prefix. Consult factory for additional performance data. Sales of ATC products are subject to the terms and conditions contained in American Technical Ceramics Corp. Terms and Conditions of Sale (ATC document #001-992). Copies of these terms and conditions will be provided upon request. They may also be viewed on ATC's website at www.atceramics.com/productfinder/default.asp. Click on the link for Terms and Conditions of Sale. ATC has made every effort to have this information as accurate as possible. However, no responsibility is assumed by ATC for its use, nor for any infringements of rights of third parties which may result from its use. ATC reserves the right to revise the content or modify its product line without prior notice. © 2012 American Technical Ceramics Corp. All Rights Reserved. ATC # 001-1121 Rev. G; 8/17
