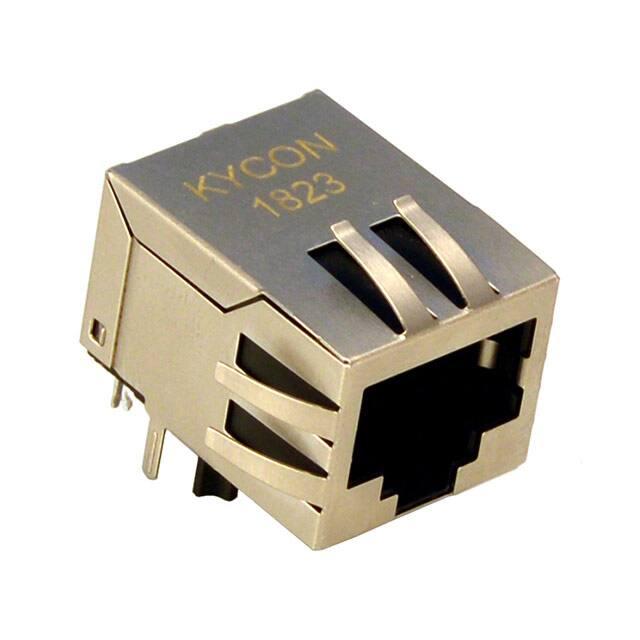

G8X-188S7-BP

2D Drawing IGES STEP 3D PDF Solder Profile CofC RoHS Compliant CofC REACH Compliant UL Plastic File Certificate of Origin Check Stock Request a Sample Send Us An Email Generated Part Number G8X-188S7-BP Part Number Builder MODULAR JACKS WITH MAGNETICS: G8X Series G8X 1 Series No. of Port RJ45 Modular Jack with 10/100 magnetics and POE BP Shield Option Option No. of Positions Contacts Series G8X - RJ45 Modular Jack with 10/100 magnetics and POE Product Features Includes magnetics to support 10/100 Base-T applications POE compatible LEDs for status indicators Shielded for EMI suppression PCB guide pegs Number of Ports 1 - 1 Port Performance Specifications Shield Options S7 - Shielded Materials and Finish Housing Material PBT Thermoplastic, UL 94V-0 Rated, Black Color Shield Material Brass, Nickel Plated Number of Positions / Contacts 88 - 8 Positions / 8 Contacts Magnetics Package BP - 10/100 with POE Contact Material Phosphor Bronze Plating Contact Kycon for Schematics Options Nickel Underplating, 6μ" Gold Plate on Contact Area, Tin Plated on Solder Area Electrical Characteristics S7 88 G8X Series Insulation Resistance 500 Megohms Min. Contact Resistance 20 milliohms Max. Dielectric Withstanding Voltage 1200V AC for 1 Minute Dimensions in mm Mechanical Characteristics Durability Rating 750 Cycles Min. Mating Force 30 N Max. Operating Temperature -40°C to +85°C Storage Temperature -40°C to +85°C Phone: +1.408.494.0330 l Fax: +1.408.494.0325 l WWW.KYCON.COM l 0523
