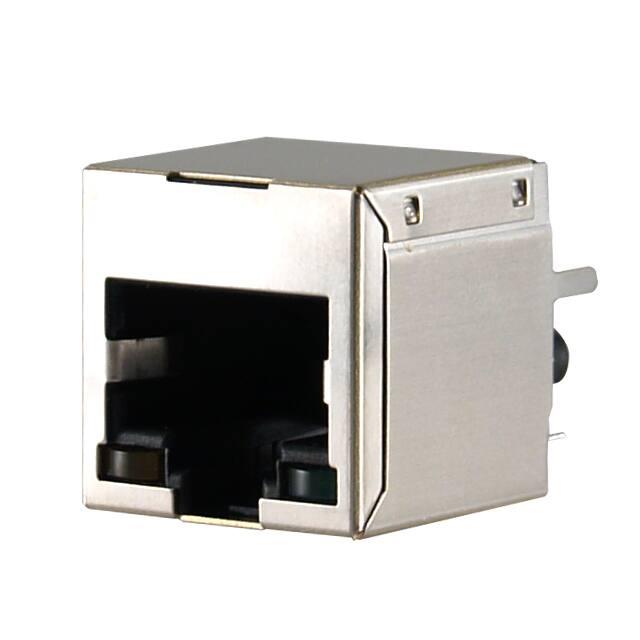

GDWLX-PNS-88-G/Y

2D Drawing IGES STEP 3D PDF Solder Profile CofC RoHS Compliant CofC REACH Compliant UL Plastic File Certificate of Origin Check Stock Request a Sample Send Us An Email Generated Part Number GDWLX-PNS-88-G/R Part Number Builder LR78160 GDWLX PNS 88 G/R Series Shield Option No. of Positions & Contacts LED Color Option MODULAR JACKS AND PLUGS: GDWLX Series Vertical PCB Mount Series GDWLX - Vertical PCB Mount Modular Jack Product Features Easy Viewing LEDs to Act as Power/Transmit Indicators Available Fully Shielded for EMI/RFI Protection Available Through Hole CSA/NRTL Certified File No. LR78160 Performance Specifications Materials and Finish Housing Housing Material PBT Thermoplastic, Glass Filled, UL 94V-0 Rated, Black Color Contact Material Phosphor Bronze Shield Material Copper Alloy, Nickel Plated Shield Option PNS - Shielded Number of Positions/Contacts 88 - 8 Positions / 8 Contacts LED Color G/G - Green, Green G/GY - Green,Green - Yellow G/R - Green, Red G/Y - Green, Yellow Y/G - Green, Yellow Contact Kycon for Other Options GDWLX Series Dimensions in mm Electrical Characteristics Insulation Resistance 500 Megohms Min. Dielectric Withstanding Voltage 1000V rms, 60Hz Contact Resistance 20 milliohms Max. Current Rating 1.5A Voltage Rating 125V DC Phone: +1.408.494.0330 l Fax: +1.408.494.0325 l WWW.KYCON.COM l 02/20
