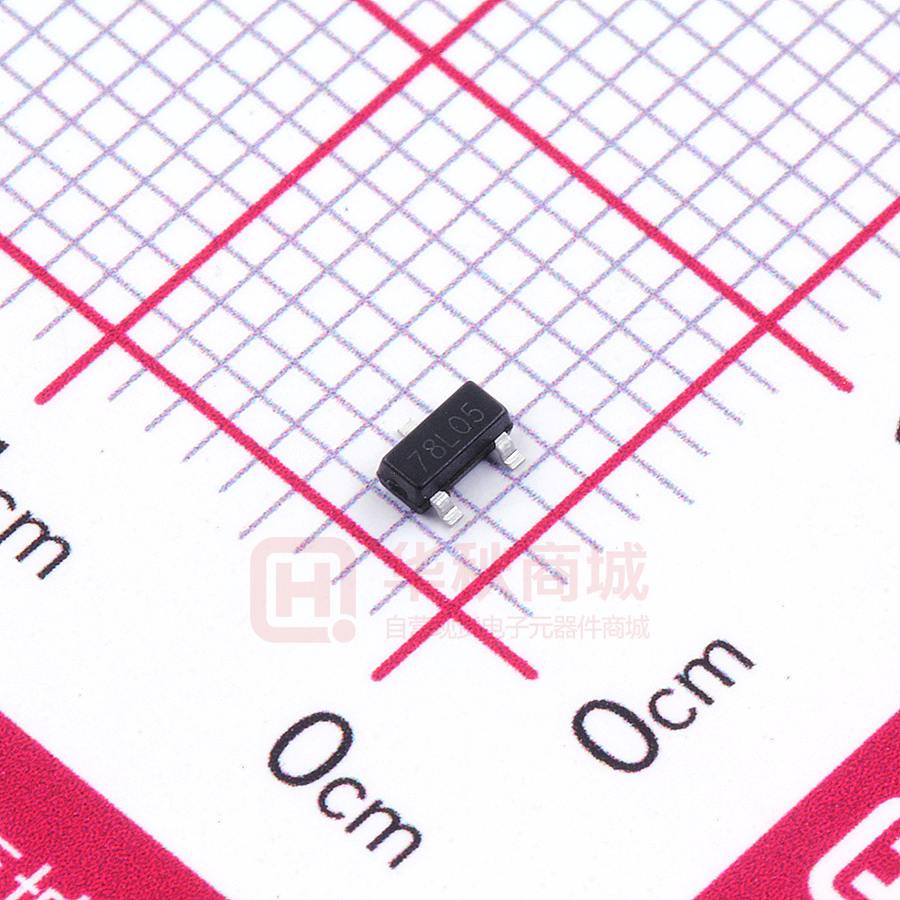

78L05

FEATURES Maximum Output current IO: 0.1 A Output voltage VO: 5 V Continuous total dissipation PD:0.35 W (Ta = 25 ) ABSOLUTE MAXIMUM RATINGS (Operating temperature range applies) Parameter Symbol Value Unit Input Voltage VI 30 V Operating Junction Temperature Range TOPR 0-125 Storage Temperature Range TSTG -65-150 1.OUT SOT-23 2.IN 3.GND ELECTRICAL CHARACTERISTICS AT SPECIFIED VIRTUAL JUNCTION TEMPERATURE (Vi=10V,Io=40mA,Ci=0.33μF,Co=0.1μF, unless otherwise specified ) Parameter Symbol Output voltage Vo Test conditions 7V≤Vi≤20V, Io=1mA~40mA Min Typ Max Unit 25 4.8 5.0 5.2 V 0-125 4.75 5.0 5.25 V 4.75 5.0 5.25 V Io=1mA~70mA Load Regulation Line regulation ΔVo ΔVo Io=1mA~100mA 25 15 60 mV Io=1mA~40mA 25 8 30 mV 32 150 mV 25 26 100 mV 25 3.8 6 mA 7V≤Vil≤20V 8V≤Vi≤20V Quiescent Current Iq ΔIq 8V≤Vi≤20V 0-125 1.5 mA ΔIq 1mA≤V l≤40mA 0-125 0.1 mA Output Noise Voltage VN 10Hz≤f≤100KHz 25 Ripple Rejection RR 8V≤Vi≤20V,f=120Hz Dropout Voltage Vd Quiescent Current Change 0-125 25 41 42 uV 49 dB 1.7 V 1 of 3 Copyright © All right reserved： Heyuan China Base Electronics Technology Co., Ltd. 2 of 3 Copyright © All right reserved： Heyuan China Base Electronics Technology Co., Ltd. PACKAGE OUTLINE Plastic surface mounted package; 3 leads SOT-23 3 of 3 Copyright © All right reserved: Heyuan China Base Electronics Technology Co., Ltd.
