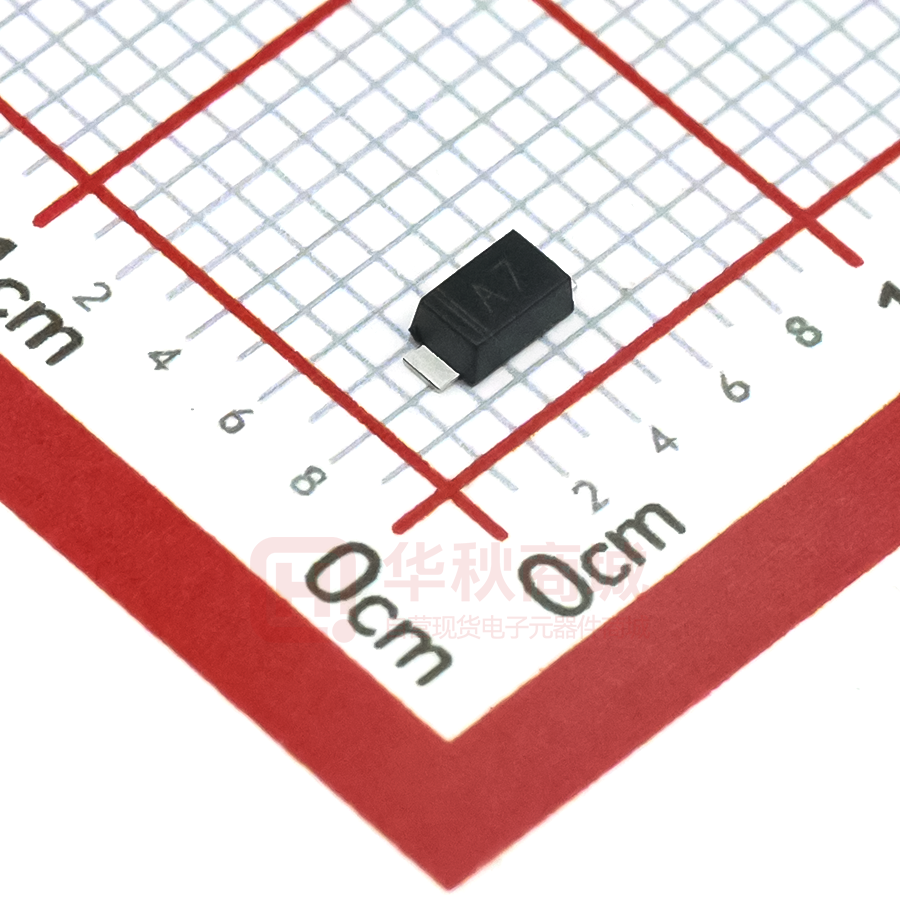

1N4007

1N4001 THRU 1N4007 Reverse Voltage - 50 to 1000 Volts Forward Current - 1.0 Ampere SURFACE MOUNT GENERAL RECTIFIER Features PINNING PIN DESCRIPTION 1 Cathode 2 Anode  Glass passivated device  Ideal for surface mouted applications  Low reverse leakage  Metallurgically bonded construction  High temperature soldering guaranteed:  250°C/10 seconds,0.375”(9.5mm) lead length, 5 SOD-123FL lbs. (2.3kg) tension 2 1 Mechanical Data  Case : JEDEC 6OD-123FL molded plastic body  Terminals: Solderable per MIL-STD-750,Method 2026  Polarity: Polarity symbol marking on body  Mounting Position: Any Unipolar  Weight : 0.007 ounce, 0.02 grams Maximum Ratings And Electrical Characteristics Ratings at 25 C ambient temperature unless otherwise specified. Single phase half-wave 60Hz,resistive or inductive load,for capacitive load current derate by 20%. Parameter 1N4001 1N4002 1N4003 1N4004 1N4005 1N4006 1N4007 UNITS SYMBOLS Marking Code Maximum repetitive peak reverse voltage Maximum RMS voltage Maximum DC blocking voltage VRRM VRMS VDC A1 A2 A3 A4 A5 A6 A7 50 35 50 100 70 100 200 140 200 400 280 400 600 420 600 800 560 800 1000 700 1000 V V V Maximum average forward rectified current at TL(see fig.1) I(AV) 1.0 A Peak forward surge current 8.3ms single half sine-wave superimposed onrated load (JEDEC Method) IFSM 25 A Maximum instantaneous forward voltage at 1.0A VF 1.1 V Maximum DC reverse current at rated DCblocking voltage IR 10 50 uA TA=25℃ TA=125℃ Typical junction capacitance (NOTE 1) Typical thermal resistance (NOTE 2) Operating junction temperature range Storage temperature range CJ RJA 4 pF 180.0 ℃/W TJ -55 to +125 ℃ TSTG -55 to +150 ℃ Note: 1.Averaged over any 20ms period. 2.Measured at 1MHz and applied reverse voltage of 4.0V D.C. 3.Thermal resistance from junction to ambient at 0.375” (9.5mm)lead length,P.C.B. mounted www.tw-gmc.com 1 1N4001 THRU 1N4007 Reverse Voltage - 50 to 1000 Volts Fig.2 Typical Instaneous Reverse Characteristics Fig.1 Forward Current Derating Curve Instaneous Reverse Current ( μ A) Average Forward Current (A) 1.2 1.0 0.8 0.6 0.4 0.2 Single phase half-wave 60 Hz resistive or inductive load 0.0 25 50 75 100 125 150 175 100 T J=150°C T J=125°C 10 1.0 T J=75°C 0.1 T J =25°C 1N4007 0.01 0 Junction Capacitance ( pF) TJ = 2 5° C TJ = 10 15 0°C 0°C 0.5 TJ = Instaneous Forward Current (A) 1.0 0.9 0.2 0.7 1.0 1.1 Peak Forward Surage Current (A) 35 25 20 15 10 8.3 ms Single Half Sine Wave (JEDEC Method) 10 100 Number of Cycles www.tw-gmc.com T J=25°C 10 1.0 10 Reverse Voltage (V) 30 1 100 0.1 Fig.5 Maximum Non-Repetitive Peak Forward Surage Current 00 800 1 0.6 Instaneous Forward Voltage (V) 05 600 Fig.4 Typical Junction Capacitance Fig.3 Typical Forward Characteristic 0.8 400 200 Instaneous Reverse Voltage (V) Case Temperature (°C) 0.1 0.5 Forward Current - 1.0 Ampere 2 100 1N4001 THRU 1N4007 Reverse Voltage - 50 to 1000 Volts Forward Current - 1.0 Ampere PACKAGE OUTLINE Plastic surface mounted package; 2 leads SOD-123FL ∠ALL ROUND C A ∠ALL ROUND HE VM g g pad e E A pad D E A Top View A C D E e g HE max 1.1 0.20 2.9 1.9 1.1 0.9 3.8 min 0.9 0.12 2.6 1.7 0.8 0.7 3.5 max 43 7.9 114 75 43 35 150 min 35 4.7 102 67 31 28 138 UNIT mm mil Bottom View 7° The recommended mounting pad size 1.2 (47) 2.0 (79) 1.2 (47) 1.2 (47) Unit： mm (mil) www.tw-gmc.com ∠ 3
