深 圳 市 星 通 时 频 电 子 有 限 公 司
SHENZHEN SCTF ELECTRONICS CO.,LTD
编号
日期
版本
SCTF202403278
2024/3/21
B01
承 认 书
SPECIFICATION FOR APPROVAL
客户名称
Customer Name:
供应商物料名称 Part Name:
产品描述
Description:
石英晶体振荡器

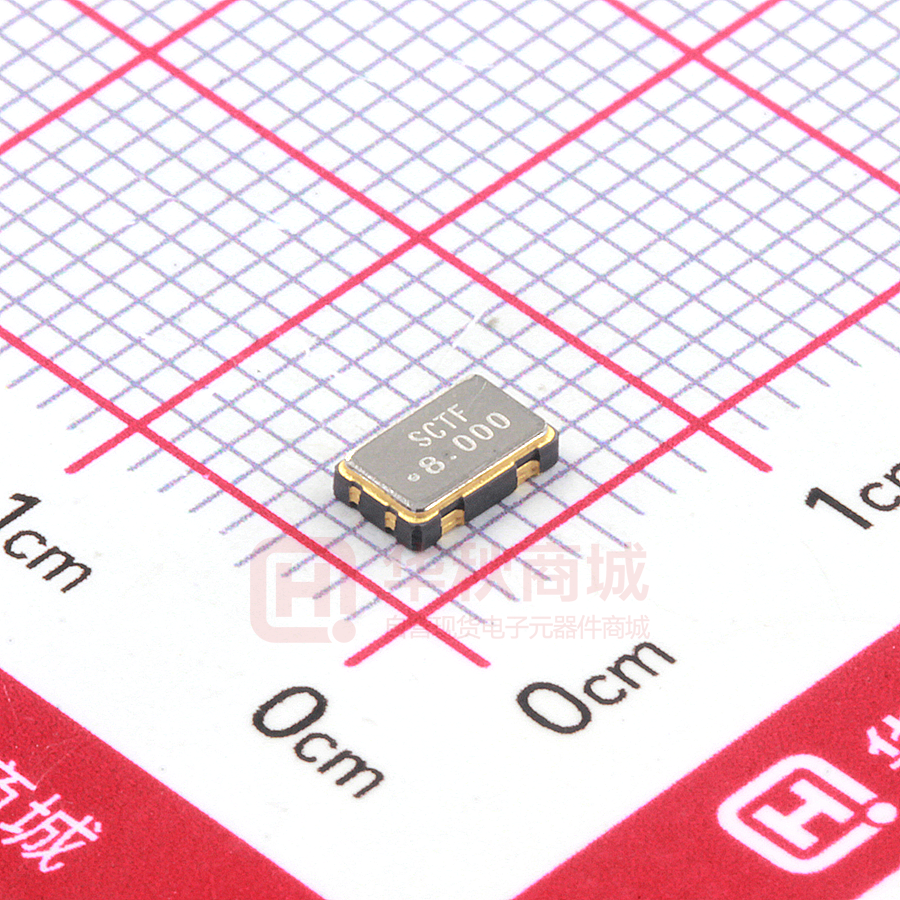

OSC SMD5032 8.000MHz/3.3V
S5M8.000B20F30T
供应商物料料号 Part NO.:
供应商名称
Supplier Name :
深圳市星通时频电子有限公司
PLEASECONFIRMOURSPECIFICATION。敬请确认规格书之内容。
CUSTOMER APPROVAL 客户审批
物料代号 PART NO.
使用于机型 USED IN MODEL:
工程部
品质部
采购部
(敬请承认后返回一份,谢谢!)
SUPPLIER APPROVAL 供应商审批
DGN.制表人
CKD. 校对
APPD. 审核、签章
地址: 深圳市南山区龙珠四路方大城T2栋10楼
Add: 10 / F, Building T2, Fangdacheng, Longzhu 4th Road, Nanshan District, Shenzhen, China.
Website: www.sctf-crystal.com
Email:info@sctf-crystal.com
TEL: 0755-86097430
FAX:0755-86097259
Page:1
深 圳 市 星 通 时 频 电 子 有 限 公 司
SHENZHEN SCTF ELECTRONICS CO.,LTD
RoHS Compliant
Revision Record
Rev.
Revise page
修订页
A02
N/A
A03
N/A
B01
Page2
Revise contents
修订内容
Initial released.
The version is upgraded and the content
remains unchanged.
The version is upgraded and add revision
record page.
Rev. Date
修订日期
Reviser
修订人
2013/1/1
Martin.Hu
2018/2/25
Martin.Hu
2021/2/24
Martin.Hu
SHENZHEN SCTF ELECTRONICS CO.,LTD
DATE
2024/3/21
Specification of quartz crystal oscillator
石英晶体振荡器规格书
P/N: S5M8.000B20F30T
Spec.NO.: SCTF202403278
Page:
2
■ Electrical Specification 电气参数
N0.
Item
Electrical Spec.
1
Holder Type
封装
SMD5032
2
Nominal Frequency
标称频率
3
Frequency stability
常温频差
±20ppm
at 25℃±2℃
4
Temperature Drift
温度频差
±30ppm
at -40~85℃
5
Operating voltage
工作电压
3.3V
8.000000 MHz
7
Output
输出模式
Output load condition
负载
8
Current consumption
消耗电流
10 mA max.
9
Operating temperature range
工作温度范围
-40~85℃
10
Storage Temperature Range
存储温度范围
-55~125℃
11
Duty Cycle
占空比
45%-55%
12
Rise / Fall Time
上升/下降沿时间
5 nS max.
13
High output voltage
高电平
0.9Vdd min.
6
15pF
15
16
Enable Voltage High (Logic 1)
使能高电平
70%VDD min.
17
Enable Voltage Low (Logic 0)
使能低电平
30%VDD max.
18
19
Enable Delay Time
使能延迟
Aging
老化
±10% max.
CMOS
Low output voltage
低电平
Start-up Time
起振时间
14
Notes
0.1Vdd max.
5mS max.
To 90% of Final Amplitude
Output will be enable if OE is Logic 1 or open ;
Output will be disable if OE is Logic 0.
输出使能OE是高电平1或者悬空,频率输出;输
出使能OE是低电平0,则无频率输出。
150 uS max..
±3ppm
1st. Year at 25℃
SHENZHEN SCTF ELECTRONICS CO.,LTD
DATE
2024/3/21
Specification of quartz crystal oscillator
石英晶体振荡器规格书
P/N: S5M8.000B20F30T
Spec.NO.: SCTF202403278
Page:
3
■ DIMENSIONS 产品尺寸
Units (单位):mm(毫米)
Pad Functions:
1. ENABLE CONTROL
2. GND
3. OUT PUT
4. VDD
Bottom View
仰视图
■ TESTING CIRCUIT测试电路
※ Notes: PIN 1 connected to Vdd or floating, the product is working properly;connected to GND,stops working.
SHENZHEN SCTF ELECTRONICS CO.,LTD
DATE
2024/3/21
Specification of quartz crystal oscillator
石英晶体振荡器规格书
P/N: S5M8.000B20F30T
Spec.NO.: SCTF202403278
Page:
4
■ WAVEFORM CONDITIONS 输出波形
Waveform measurement system should have a min. bandwidth of 5 times the frequency being tested.
■ Product Structure产品结构
■ Marking印字
Logo
SCTF
8.000
Nominal Frequency (MHz)
Pin 1 Location
SHENZHEN SCTF ELECTRONICS CO.,LTD
DATE
2024/3/21
Specification of quartz crystal oscillator
石英晶体振荡器规格书
P/N: S5M8.000B20F30T
Spec.NO.: SCTF202403278
Page:
5
■ REFLOW PROFILES 回流焊条件
Profile Feature
Preheat/Soak
●Temperature Min(Ts min)
●Temperature Max (Ts max)
●Time (Ts min to Ts max)
Ramp-up rate (TL to Tp)
Time maintained above
●Liquidous temperature (TL)
●Time (tL) maintained above TL
Peak package body temperature (Tp)
Time within 5 °C of the specified
classification temperature (Tp)
Ramp-down rate (Tp to TL)
Time 25 °C to peak temperature
Suggust reflow times
Sn-Pb Eutectic Assembly
Pb-Free Assembly
100 °C
150 °C
60-120 seconds
3 °C/second max.
150 °C
200 °C
60-120 seconds
3 °C/second max.
183 °C
60-150 seconds
235℃
217 °C
60-150 seconds
20 seconds
30 seconds
6 °C/second max.
6 minutes max.
6 °C/second max.
8 minutes max.
260℃
3 Times max.
SHENZHEN SCTF ELECTRONICS CO.,LTD
DATE
2024/3/21
Specification of quartz crystal oscillator
石英晶体振荡器规格书
P/N: S5M8.000B20F30T
Spec.NO.: SCTF202403278
Page:
6
■ RELIABILITY SPECIFICATION可靠性参数
序号
NO.
项目
ITEM
1
跌落
Drop
振动
Vibration
2
条件
CONDITIONS
合格标准
BASIS OF VERDICT
100cm高处自由跌落到3cm厚木板上,3次
High:100cm;Thickness:3cm;3 times.
△FL≤±5ppm
频率 Frequency:10~500Hz:
速度 speed : 11min/cycle
幅度 Amplitude:1.5mm (10~55Hz)
加速度幅度acceleration rate:200m/s2(55~500Hz)
振动方向 Direction:X,Y, Z
测试周期 Test cycle : 10cycles
△FL≤±5ppm
3
温度:-40℃±2℃;时间:96小时
低温存储
Low Temperature Storage Temp:-40℃±2℃;Times:96h
△FL≤±5ppm
4
温度:125℃±2℃;时间:96小时
高温存储
High Temperature Storage Temp:125℃±2℃;Times:96h
△FL≤±5ppm
5
6
高温高湿
High
Temp&Homidity
High Temp&Homidit
冷热冲击
Thermal Shock
温度:85℃±2℃;湿度85%±5%;时间:1000小时
Temp:80℃±2℃;Humidity:85%±5%;Times:1000h
△FL≤±5ppm
-40℃±2℃(30min)←→85℃±2℃(30min);循环100次
-40℃±2℃(30min)←→85℃±2℃(30min);For 100 cycles
△FL≤±5ppm
150℃±5℃保持120s后升到260℃±5℃保持10s,升温和保温时
间小于200s,常温放置1~2h后测定
Keep 150 ℃ ± 5 ℃ 120s and then rose to 265 ℃ ± 5 ℃ for
10s, warming and holding time is less than the 200s, placed at
room temperature 1 ~ 2h after test
△FL≤±5ppm
7
回流焊
Reflow
8
盐雾
Salt Spray
9
老化
Aging
10
气密性
Leakage Test
使用氦谱检测设备。
Measured by the helium leak detector.
11
可焊性
Soldering Test
在245℃±5℃的锡槽中浸渍3±0.5秒。
Dipping in solder bath at 245deg.C ±5deg.C for 3±0.5 sec.
盐雾浓度:5%;温度:35℃;时间:24小时
Salt density:5%;Temp:35℃;Times:24h
温度:85℃;时间:30天
Temp:85℃;Times:30days
目测无明显腐蚀现象
Visual no significant
corrosion.
△FL≤±5ppm
漏气小于1.0x10-9Pa
3
m
