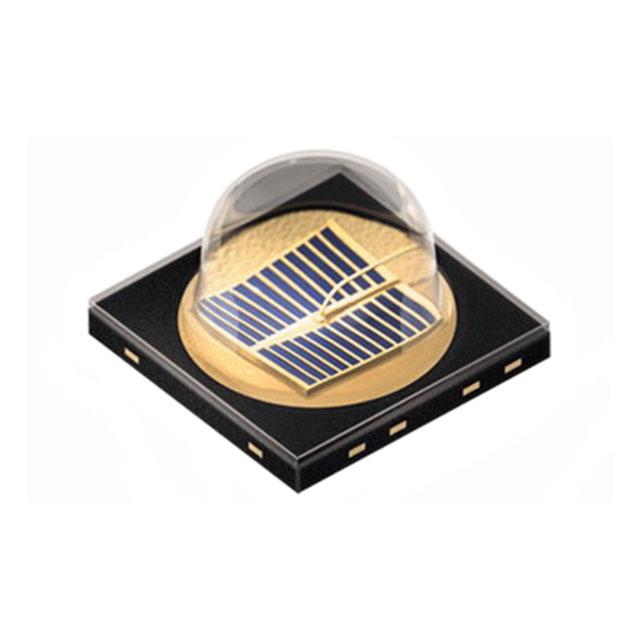

SFH 4725S

www.osram-os.com SFH 4725S DATASHEET SFH 4725S Datasheet  Discontinued Discontinued Published by ams-OSRAM AG Tobelbader Strasse 30, 8141 Premstaetten, Austria Phone +43 3136 500-0 ams-osram.com © All reserved | Version 1.10 | 2023-02-22 1 rights SFH 4725S DATASHEET OSLON® Black SFH 4725S OSLON Black Series (940 nm) - 80° Applications - Access Control & Security - Factory Automation - Authentication - Home & Building Automation - Body Tracking - Medical Lighting Features - Package: clear silicone  - Corrosion Robustness Class: 3B - Qualifications: The product qualification test plan is based on the guidelines of AEC-Q101-REV-C, Stress Test Qualification for Automotive Grade Discrete Semiconductors. - ESD: 2 kV acc. to ANSI/ESDA/JEDEC JS-001 (HBM, Class 2) - IR lightsource with high efficiency - Double stack emitter - Low thermal resistance (Max. 9 K/W) - Centroid wavelength 940 nm Discontinued - Optimized for high current pulse operation 2 | Version 1.10 | 2023-02-22 SFH 4725S DATASHEET Ordering Information  Type Radiant intensity  1)2) IF = 1000 mA; tp = 10 ms Ie Radiant intensity 1) typ. IF = 1000 mA; tp = 10 ms Ie Ordering Code SFH 4725S 560 ... 1120 mW/sr 760 mW/sr Q65111A2800 SFH 4725S R33 560 ... 1120 mW/sr 760 mW/sr Q65113A3206 Discontinued  3 | Version 1.10 | 2023-02-22 SFH 4725S DATASHEET Maximum Ratings TA = 25 °C Parameter Symbol Values Operating temperature Top min. max. -40 °C 125 °C Storage temperature Tstg min. max. -40 °C 125 °C Junction temperature Tj max. 145 °C Forward current IF max. 1A Forward current pulsed tp ≤ 500 µs; D ≤ 0.005  IF pulse max. 5A Reverse current 3) IR max. 200 mA Power consumption Ptot max. 3.2 W ESD withstand voltage acc. to ANSI/ESDA/JEDEC JS-001 (HBM, Class 2) VESD max. 2 kV For the forward current and power consumption please see “maximum permissible forward current” diagram Discontinued  4 | Version 1.10 | 2023-02-22 SFH 4725S DATASHEET Characteristics IF = 1000 mA; tp = 10 ms; TA = 25 °C Parameter Symbol Peak wavelength λpeak typ. 950 nm Centroid wavelength λcentroid typ. 940 nm Spectral bandwidth at 50% Irel,max (FWHM) ∆λ typ. 37 nm Half angle φ typ. 40 ° Dimensions of active chip area LxW typ. 1 x 1 mm x mm Rise time (10% / 90%) IF = 5 A; RL = 50 Ω tr typ. 10 ns Fall time (10% / 90%) IF = 5 A; RL = 50 Ω tf typ. 15 ns Forward voltage 4) IF = 1 A; tp = 100 µs VF typ. max. 2.65 V 3.1 V Forward voltage 4) IF = 5 A; tp = 100 µs VF typ. max. 3.2 V 4.2 V Reverse voltage 3) IR = 20 mA VR max. 1.2 V Reverse voltage (ESD device) 3) VR ESD min. 5V Total radiant flux 5) IF = 1 A; tp = 100 µs Φe typ. 1340 mW Temperature coefficient of voltage TCV typ. -2 mV / K Temperature coefficient of brightness TCI typ. -0.3 % / K Temperature coefficient of wavelength TCλ typ. 0.3 nm / K Thermal resistance junction solder point real 6) RthJS real typ. max. 6.0 K / W 9.0 K / W Discontinued  5 | Version 1.10 | 2023-02-22 Values SFH 4725S DATASHEET Brightness Groups  Group Radiant intensity 1)2) IF = 1000 mA; tp = 10 ms min. Ie Radiant intensity 1)2) IF = 1000 mA; tp = 10 ms max. Ie DB 560 mW/sr 710 mW/sr EA 710 mW/sr 900 mW/sr EB 900 mW/sr 1120 mW/sr Only one group in one packing unit. Discontinued  6 | Version 1.10 | 2023-02-22 SFH 4725S DATASHEET Relative Spectral Emission 7), 8) Ie,rel = f (λ); IF = 1000 mA; tp = 10 ms OHF04133 100 I rel % 80 60 40 20 0 800 850 900 950 nm 1050 λ Radiation Characteristics 7), 8) Ie,rel = f (φ) φ[ ] : 0°  -40° -50° -60° -70° -20° -30° -10° 0° 10° 20° 30° 40° 50° 60° 70° 80° 90° 1.0 0.9 0.8 0.7 0.6 0.5 0.4 0.3 -80° 0.2 0.1 Discontinued -90° 7 | Version 1.10 | 2023-02-22 0.0 SFH 4725S DATASHEET Relative Total Radiant Flux 7), Forward current 8) Φe/Φe(1000mA) = f (IF); single pulse; tp = 100 µs Φ 5 Φ 7), 8) IF = f (VF); single pulse; tp = 100 µs [ ] 5 1 1 0.5 0.5 0.1 0.1 0.05 0.05 0.01 0.01 0.005 0.01 0.05 0.5 1 5 [ ] 2.4 2.6 2.8 3.0 3.2 [ ] Max. Permissible Forward Current Permissible Pulse Handling Capability IF = f (TS); Rthjs = 9 K / W IF = f (tp); duty cycle D = parameter; TS = 85°C [ ] 1.0 [ ]  0.8 5 4 0.6 3 0.4 2 0.2 1 0.0 Discontinued 2.2 0 20 40 60 8 | Version 1.10 | 2023-02-22 80 100 120 [ ] :D=1 : D = 0,5 : D =0,2 : D =0,1 : D =0,05 : D =0,02 : D =0,01 : D =0,005 0 -6 -5 -4 -3 10 10 10 10 0.01 0.1 1 10 100 [ ] SFH 4725S DATASHEET Dimensional Drawing 9) Further Information: Approximate Weight: 31.0 mg Package marking: Cathode Corrosion test: Class: 3B Test condition: 40°C / 90 % RH / 15 ppm H2S / 14 days (stricter than IEC 60068-2-43) ESD advice: The device is protected by ESD device which is connected in parallel to the Chip. Discontinued  9 | Version 1.10 | 2023-02-22 SFH 4725S DATASHEET Recommended Solder Pad 9) For superior solder joint connectivity results we recommend soldering under standard nitrogen atmosphere. Package not suitable for ultra sonic cleaning. Discontinued  10 | Version 1.10 | 2023-02-22 SFH 4725S DATASHEET Reflow Soldering Profile Product complies to MSL Level 2 acc. to JEDEC J-STD-020E OHA04525 300 ˚C T 250 Tp 245 ˚C 240 ˚C tP 217 ˚C 200 tL 150 tS 100 50 25 ˚C 0 0 50 100 150 200 250 s 300 t Profile Feature Symbol Pb-Free (SnAgCu) Assembly Minimum Recommendation Maximum Ramp-up rate to preheat*) 25 °C to 150 °C tS Time tS TSmin to TSmax Ramp-up rate to peak*) TSmax to TP Liquidus temperature  60 2 3 100 120 2 3 K/s s K/s TL 217 Time above liquidus temperature tL 80 100 s Peak temperature TP 245 260 °C Time within 5 °C of the specified peak temperature TP - 5 K tP 20 30 3 6 Ramp-down rate* TP to 100 °C 10 Time 25 °C to TP Discontinued Unit All temperatures refer to the center of the package, measured on the top of the component * slope calculation DT/Dt: Dt max. 5 s; fulfillment for the whole T-range 11 | Version 1.10 | 2023-02-22 °C 480 s K/s s SFH 4725S DATASHEET Taping 9) Discontinued  12 | Version 1.10 | 2023-02-22 SFH 4725S DATASHEET Tape and Reel 10) Reel Dimensions A W Nmin W1 W2 max Pieces per PU 180 mm 12 + 0.3 / - 0.1 mm 60 mm 12.4 + 2 mm 18.4 mm 600 330 mm 12 + 0.3 / - 0.1 mm 60 mm 12.4 + 2 mm 18.4 mm 3000 Discontinued  13 | Version 1.10 | 2023-02-22 SFH 4725S DATASHEET Barcode-Product-Label (BPL) Dry Packing Process and Materials 9) Moisture-sensitive label or print L E E V l e be sela ). k, H de L If an bl r co ba (R id m ity . H R hu 0% e e /6 tiv ˚C la ared ag ck re fr 30 _ < in pa % k of to 90 rs ea s d ). rs ou or te (p on rs H de , ou iti H an bjec ng ou rs co ˚C 72 si nd H ou 5 te 48 ˚C su es e H co ± 24 6 da e y 40 be oc tim ˚C e or < ith tim ill pr). or ct w O w nt 23 tim e at lo or fa M TO F s al tim at le ˚C at lo at or e. P th F l tic th va lo or ur O F lo s ui on be if: read en w ed l 4 5 F m la ce eq id lo g, n oc l ve vi 5a is in or be 24 de pr ve l 6 Le de , nt whe e te co g: , w e Le ve l ke r ou se da ba ed flo ur e Le ve m % ba e ba al st ur e Le r en re ed e re> 10 oi st e e fo tim ur se al op fo M se oi st ur as k, is or . 33 se is M oi st bed k, lo H an , g ph -0 M oi in an in F R ng ar rbl D M e ba T r po If bl ith % lif ki r C. (if S is p. w ea r ks lf J10 ba to et th va Y ea m rs m _ r w, < he ed 1 ee te Y d, EC iredicat S fte at nt > 1 W Hou D A flody qu In no ire 1. d e ou 4 8 re reity is qu/JE re 2. bo e M tim to es id 2b re C 16 : e a) S tim is IP ic ed loor tim e b) ev Humor or e en F tim lo or D 2a king nc te F op a) lo or 3. b) ba re F lo da e fe l 1 2 F If al re tim ve l 4. se d l 2a ve Le 3 an ve l ag e Le e B ve ur e Le at st ur e Le D oi st ur e M oi st ur M oi st M oi M N E RS s in IV O IT T S C nta N U TIO U coSEND Ais bUagRMEICO T E CThIS S d Barcode label < M RA OS  Humidity indicator Barcode label Please check the HIC immidiately after bag opening. Discard if circles overrun. Avoid metal contact. Do not eat. Comparator check dot WET If wet, examine units, if necessary bake units 15% If wet, examine units, if necessary bake units 10% 5% If wet, parts still adequately dry. change desiccant Humidity Indicator MIL-I-8835 Discontinued Desiccant AM OSR OHA00539 Moisture-sensitive product is packed in a dry bag containing desiccant and a humidity card according JEDEC-STD-033. 14 | Version 1.10 | 2023-02-22 SFH 4725S DATASHEET Notes The evaluation of eye safety occurs according to the standard IEC 62471:2006 (photo biological safety of lamps and lamp systems). Within the risk grouping system of this IEC standard, the device specified in this data sheet falls into exempt risk group - Exempt. Subcomponents of this device contain, in addition to other substances, metal filled materials including silver. Metal filled materials can be affected by environments that contain traces of aggressive substances. Therefore, we recommend that customers minimize device exposure to aggressive substances during storage, production, and use. Devices that showed visible discoloration when tested using the described tests above did show no performance deviations within failure limits during the stated test duration. Respective failure limits are described in the IEC60810. For further application related information please visit www.osram-os.com/appnotes Discontinued  15 | Version 1.10 | 2023-02-22 SFH 4725S DATASHEET Disclaimer Attention please! The information describes the type of component and shall not be considered as assured characteristics. Terms of delivery and rights to change design reserved. Due to technical requirements components may contain dangerous substances. For information on the types in question please contact our Sales Organization. If printed or downloaded, please find the latest version on our website. Packing Please use the recycling operators known to you. We can also help you – get in touch with your nearest sales office. By agreement we will take packing material back, if it is sorted. You must bear the costs of transport. For packing material that is returned to us unsorted or which we are not obliged to accept, we shall have to invoice you for any costs incurred. Product and functional safety devices/applications or medical devices/applications Our components are not developed, constructed or tested for the application as safety relevant component or for the application in medical devices. Our products are not qualified at module and system level for such application. In case buyer – or customer supplied by buyer – considers using our components in product safety devices/ applications or medical devices/applications, buyer and/or customer has to inform our local sales partner immediately and we and buyer and /or customer will analyze and coordinate the customer-specific request between us and buyer and/or customer. Discontinued  16 | Version 1.10 | 2023-02-22 SFH 4725S DATASHEET Glossary 1) Radiant intensity: Measured at a solid angle of Ω = 0.01 sr 2) Brightness: The brightness values are measured with a tolerance of ±11%. 3) Reverse Operation: This product is intended to be operated applying a forward current within the specified range. Applying any continuous reverse bias or forward bias below the voltage range of light emission shall be avoided because it may cause migration which can change the electro-optical characteristics or damage the LED. 4) Forward Voltage: The forward voltages are measured with a tolerance of ±0.1 V. 5) Total radiant flux: Measured with integrating sphere. 6) Thermal resistance: junction - soldering point, of the device only, mounted on an ideal heatsink (e.g. metal block) 7) Typical Values: Due to the special conditions of the manufacturing processes of semiconductor devices, the typical data or calculated correlations of technical parameters can only reflect statistical figures. These do not necessarily correspond to the actual parameters of each single product, which could differ from the typical data and calculated correlations or the typical characteristic line. If requested, e.g. because of technical improvements, these typ. data will be changed without any further notice. 8) Testing temperature: TA = 25°C (unless otherwise specified) 9) Tolerance of Measure: Unless otherwise noted in drawing, tolerances are specified with ±0.1 and dimensions are specified in mm. 10) Tape and Reel: All dimensions and tolerances are specified acc. IEC 60286-3 and specified in mm. Discontinued  17 | Version 1.10 | 2023-02-22 SFH 4725S DATASHEET Revision History Version Date Change 1.8 2020-08-26 Schematic Transportation Box Dimensions of Transportation Box 1.9 2021-05-25 Ordering Information Reel Dimensions Characteristics 1.10 2023-02-22 Discontinued Characteristics New Layout Applications Discontinued  18 | Version 1.10 | 2023-02-22 SFH 4725S DATASHEET  Discontinued Discontinued Published by ams-OSRAM AG Tobelbader Strasse 30, 8141 Premstaetten, Austria Phone +43 3136 500-0 ams-osram.com © All rights reserved 19 | Version 1.10 | 2023-02-22
