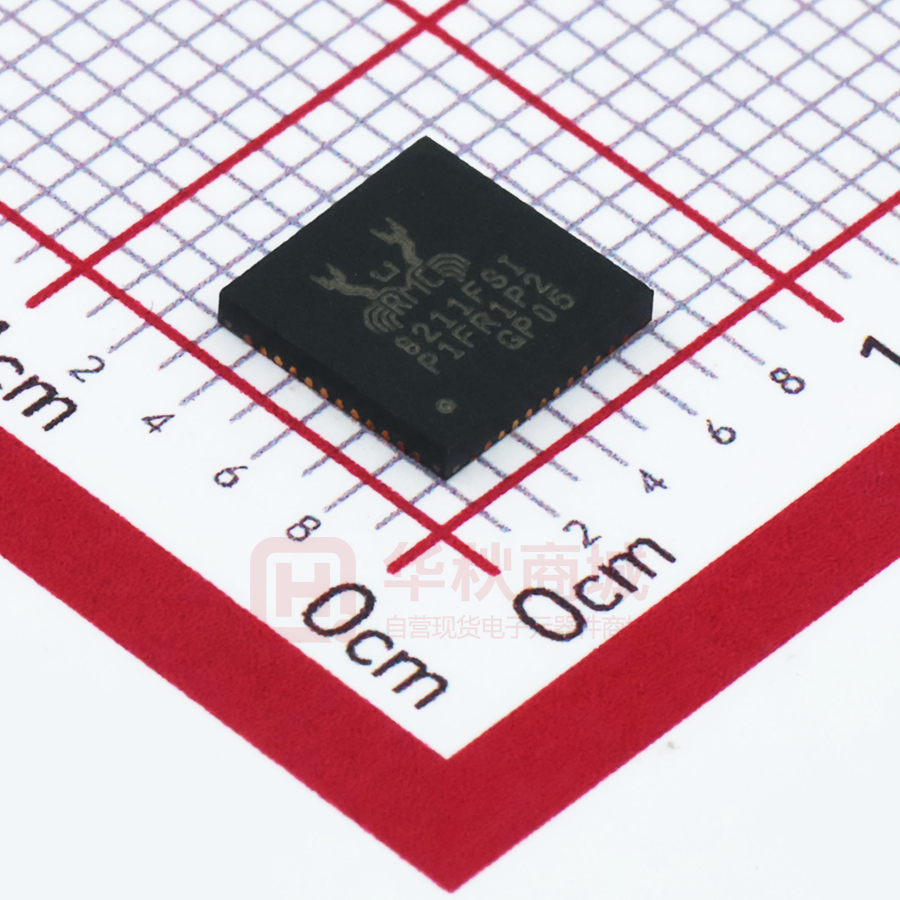

RTL8211FSI-CG

RTL8211FSI-CG

  • 厂商:

    REALTEK(瑞昱)

  • 封装:

    QFN-48

  • 描述:

    以太网芯片 QFN-48

  • 数据手册
  • 价格&库存
RTL8211FSI-CG 数据手册
k e t l a RTL8211FS-CG RTL8211FSI-CG RTL8211FS-VS-CG RTL8211FSI-VS-CG L INTEGRATED 10/100/1000M ETHERNET A I PRECISION TRANSCEIVER T N E D D E I T I F M I L N H O C E C T GE e R DATASHEET (CONFIDENTIAL: Development Partners Only) A N for GO A D L Rev. 1.3 28 December 2016 Track ID: JATR-8275-15 Realtek Semiconductor Corp. No. 2, Innovation Road II, Hsinchu Science Park, Hsinchu 300, Taiwan Tel.: +886-3-578-0211 Fax: +886-3-577-6047 www.realtek.com RTL8211FS(I)(-VS) Datasheet COPYRIGHT ©2016 Realtek Semiconductor Corp. All rights reserved. No part of this document may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language in any form or by any means without the written permission of Realtek Semiconductor Corp. DISCLAIMER Realtek provides this document ‘as is’, without warranty of any kind. Realtek may make improvements and/or changes in this document or in the product described in this document at any time. This document could include technical inaccuracies or typographical errors. k e t TRADEMARKS Realtek is a trademark of Realtek Semiconductor Corporation. Other names mentioned in this document are trademarks/registered trademarks of their respective owners. l a LICENSE L IA This product is covered by one or more of the following patents: US5,307,459, US5,434,872, US5,732,094, US6,570,884, US6,115,776, and US6,327,625. e R USING THIS DOCUMENT T N This document is intended for the software engineer’s reference and provides detailed programming information. E ID Though every effort has been made to ensure that this document is current and accurate, more information may have become available subsequent to the production of this guide. F N O C H C E D E IT M I L T E G A N A D L O G or f Integrated 10/100/1000M Ethernet Precision Transceiver ii Track ID: JATR-8275-15 Rev. 1.3 RTL8211FS(I)(-VS) Datasheet REVISION HISTORY Revision 1.0 1.1 Release Date 2014/04/09 2014/07/13 1.2 2014/07/25 1.3 Summary First release. Corrected minor typing errors. Revised section 2 Features, page 2. Revised section 7.13.4 Change Page, page 27. Revised section 7.16 LED Configuration, page 33. Revised section 7.19 PHY Reset (Hardware Reset), page 36. Revised section 8 Register Descriptions, page 37. Added section 8.5.24 FLCR (Fiber LED Control Register, Page 0xd04, Address 0x12), page 54. Revised section 9 Switching Regulator, page 75. Revised Table 97 Oscillator/External Clock Requirements, page 78. Revised section 10.8.2 RGMII Timing Modes, page 85. Revised section 12 Ordering Information, page 91. Corrected minor typing errors. Revised section 3 System Applications, page 3. Revised section 4 Block Diagram, page 7. Revised section 6 Pin Descriptions, page 10. Revised section 7.7 Interrupt, page 21. Added section 7.13.2 SGMII, page 25. Revised section 8 Register Descriptions, page 37. Added section 8.5.25 MIICR (MII Control Register, Page 0xd08, Address 0x15), page 54. Revised section 7.19 PHY Reset (Hardware Reset), page 36. Revised Table 93 Power Sequence Parameters, page 76. Revised Table 97 Oscillator/External Clock Requirements, page 78. Revised Table 103 MDC/MDIO Management Timing Parameters, page 84. l a e R 2016/12/28 k e t T N E ID F N O C L IA H C E D E IT M I L T E G A N A D L O G or f Integrated 10/100/1000M Ethernet Precision Transceiver iii Track ID: JATR-8275-15 Rev. 1.3 RTL8211FS(I)(-VS) Datasheet Table of Contents 1. GENERAL DESCRIPTION..............................................................................................................................................1 2. FEATURES.........................................................................................................................................................................2 3. SYSTEM APPLICATIONS...............................................................................................................................................3 3.1. 3.2. 3.3. 3.4. 3.5. 3.6. UTP (UTPÅÆRGMII; UTPÅÆSGMII) APPLICATION DIAGRAM ...........................................................................4 FIBER (FIBERÅÆRGMII) APPLICATION DIAGRAM ..................................................................................................4 UTP/FIBER TO RGMII (UTP/FIBER MEDIA AUTO DETECTION ÅÆRGMII) APPLICATION DIAGRAM......................5 SGMII TO RGMII (SGMIIÅÆRGMII BRIDGE MODE) APPLICATION DIAGRAM .......................................................5 FIBER TO UTP (UTPÅÆFIBER MEDIA CONVERTER) APPLICATION DIAGRAM .........................................................6 PTP AND SYNC ETHERNET APPLICATION DIAGRAM (RTL8211FS(I)-VS ONLY) ........................................................6 k e t l a 4. BLOCK DIAGRAM...........................................................................................................................................................7 5. PIN ASSIGNMENTS .........................................................................................................................................................8 5.1. 5.2. 5.3. 5.4. 6. L IA RTL8211FS(I) PIN ASSIGNMENTS ...............................................................................................................................8 PACKAGE IDENTIFICATION ...........................................................................................................................................8 RTL8211FS(I)-VS PIN ASSIGNMENTS ........................................................................................................................9 PACKAGE IDENTIFICATION ...........................................................................................................................................9 e R T N PIN DESCRIPTIONS ......................................................................................................................................................10 6.1. 6.2. 6.3. 6.4. 6.5. 6.6. 6.7. 6.8. 6.9. 6.10. 7. TRANSCEIVER INTERFACE ..........................................................................................................................................10 CLOCK .......................................................................................................................................................................10 RGMII.......................................................................................................................................................................11 SERDES ......................................................................................................................................................................11 RESET ........................................................................................................................................................................11 MODE SELECTION (HARDWARE CONFIGURATION) ....................................................................................................12 LED DEFAULT SETTINGS ...........................................................................................................................................12 REGULATOR AND REFERENCE ....................................................................................................................................13 POWER AND GROUND ................................................................................................................................................13 MANAGEMENT AND PTP APPLICATION INTERFACE ...................................................................................................14 E ID F N O C D E IT M I L FUNCTION DESCRIPTION ..........................................................................................................................................16 H C E 7.1. TRANSMITTER ............................................................................................................................................................16 7.1.1. 1000Mbps Mode...................................................................................................................................................16 7.1.2. 100Mbps Mode.....................................................................................................................................................16 7.1.3. 10Mbps Mode.......................................................................................................................................................16 7.2. RECEIVER...................................................................................................................................................................16 7.2.1. 1000Mbps Mode...................................................................................................................................................16 7.2.2. 100Mbps Mode.....................................................................................................................................................16 7.2.3. 10Mbps Mode.......................................................................................................................................................16 7.3. PRECISION TIME PROTOCOL (PTP) (RTL8211FS(I)-VS ONLY).................................................................................17 7.3.1. Synchronized PTP Clock ......................................................................................................................................17 7.3.2. Packet Time Stamping ..........................................................................................................................................18 7.3.3. Time Application Interface (TAI) .........................................................................................................................18 7.4. SYNCHRONOUS ETHERNET (SYNC-E).........................................................................................................................19 7.5. ENERGY EFFICIENT ETHERNET (EEE)........................................................................................................................19 7.6. WAKE-ON-LAN (WOL)............................................................................................................................................19 7.7. INTERRUPT .................................................................................................................................................................21 7.8. INTB/PMEB PIN USAGE ...........................................................................................................................................21 T E G A N A D L O G or f Integrated 10/100/1000M Ethernet Precision Transceiver iv Track ID: JATR-8275-15 Rev. 1.3 RTL8211FS(I)(-VS) Datasheet 7.9. MDI INTERFACE ........................................................................................................................................................21 7.10. HARDWARE CONFIGURATION ....................................................................................................................................22 7.11. LED AND PHY ADDRESS/LDO CONFIGURATION ......................................................................................................23 7.12. GREEN ETHERNET (1000/100MBPS MODE ONLY) .....................................................................................................24 7.12.1. Cable Length Power Saving ............................................................................................................................24 7.12.2. Register Setting................................................................................................................................................24 7.13. MAC/PHY INTERFACE ..............................................................................................................................................25 7.13.1. RGMII..............................................................................................................................................................25 7.13.2. SGMII ..............................................................................................................................................................25 7.13.3. Management Interface.....................................................................................................................................25 7.13.4. Change Page ...................................................................................................................................................27 7.13.5. Access to MDIO Manageable Device (MMD).................................................................................................27 7.14. AUTO-NEGOTIATION ..................................................................................................................................................27 7.14.1. Auto-Negotiation Priority Resolution..............................................................................................................30 7.14.2. Auto-Negotiation Master/Slave Resolution .....................................................................................................31 7.14.3. Auto-Negotiation PAUSE/ASYMMETRIC PAUSE Resolution........................................................................31 7.15. CROSSOVER DETECTION AND AUTO-CORRECTION ....................................................................................................32 7.16. LED CONFIGURATION................................................................................................................................................33 7.16.1. Customized LED Function...............................................................................................................................33 7.16.2. EEE LED Function..........................................................................................................................................35 7.17. POLARITY CORRECTION .............................................................................................................................................35 7.18. POWER .......................................................................................................................................................................35 7.19. PHY RESET (HARDWARE RESET) ..............................................................................................................................36 k e t l a e R 8. L IA T N REGISTER DESCRIPTIONS.........................................................................................................................................37 8.1. UTP REGISTER MAPPING AND DEFINITIONS ..............................................................................................................37 8.2. UTP MMD REGISTER MAPPING AND DEFINITION .....................................................................................................39 8.3. FIBER REGISTER MAPPING AND DEFINITIONS ............................................................................................................39 8.4. SERDES REGISTERS MAPPING AND DEFINITIONS .....................................................................................................39 8.5. REGISTER TABLES ......................................................................................................................................................40 8.5.1. BMCR (Basic Mode Control Register, Address 0x00) .........................................................................................40 8.5.2. BMSR (Basic Mode Status Register, Address 0x01).............................................................................................41 8.5.3. PHYID1 (PHY Identifier Register 1, Address 0x02) ............................................................................................42 8.5.4. PHYID2 (PHY Identifier Register 2, Address 0x03) ............................................................................................43 8.5.5. ANAR (Auto-Negotiation Advertising Register, Address 0x04) ...........................................................................43 8.5.6. ANLPAR (Auto-Negotiation Link Partner Ability Register, Address 0x05) .........................................................44 8.5.7. ANER (Auto-Negotiation Expansion Register, Address 0x06) .............................................................................44 8.5.8. ANNPTR (Auto-Negotiation Next Page Transmit Register, Address 0x07) .........................................................45 8.5.9. ANNPRR (Auto-Negotiation Next Page Receive Register, Address 0x08) ...........................................................45 8.5.10. GBCR (1000Base-T Control Register, Address 0x09).....................................................................................46 8.5.11. GBSR (1000Base-T Status Register, Address 0x0A) .......................................................................................46 8.5.12. MACR (MMD Access Control Register, Address 0x0D) .................................................................................47 8.5.13. MAADR (MMD Access Address Data Register, Address 0x0E)......................................................................47 8.5.14. GBESR (1000Base-T Extended Status Register, Address 0x0F) .....................................................................48 8.5.15. INER (Interrupt Enable Register, Page 0xa42, Address 0x12) .......................................................................49 8.5.16. PHYCR1 (PHY Specific Control Register 1, Page 0xa43, Address 0x18).......................................................50 8.5.17. PHYCR2 (PHY Specific Control Register 2, Page 0xa43, Address 0x19).......................................................51 8.5.18. PHYSR (PHY Specific Status Register, Page 0xa43, Address 0x1A) ..............................................................51 8.5.19. INSR (Interrupt Status Register, Page 0xa43, Address 0x1D) ........................................................................52 8.5.20. PAGSR (Page Select Register, Page 0xa43, Address 0x1F) ...........................................................................53 8.5.21. PHYSCR (PHY Special Config Register, Page 0xa46, Address 0x14) ............................................................53 8.5.22. LCR (LED Control Register, Page 0xd04, Address 0x10) ..............................................................................53 8.5.23. EEELCR (EEE LED Control Register, Page 0xd04, Address 0x11)...............................................................54 8.5.24. FLCR (Fiber LED Control Register, Page 0xd04, Address 0x12) ..................................................................54 E ID F N O C H C E D E IT M I L T E G A N A D L O G or f Integrated 10/100/1000M Ethernet Precision Transceiver v Track ID: JATR-8275-15 Rev. 1.3 RTL8211FS(I)(-VS) Datasheet 8.5.25. 8.5.26. 8.5.27. 8.5.28. 8.5.29. 8.5.30. 8.5.31. 8.5.32. 8.5.33. 8.5.34. 8.5.35. 8.5.36. 8.5.37. 8.5.38. 8.5.39. 8.5.40. 8.5.41. 8.5.42. 8.5.43. 8.5.44. 8.5.45. 8.5.46. 8.5.47. 8.5.48. 8.5.49. 8.5.50. 8.5.51. 8.5.52. 8.5.53. 8.5.54. 8.5.55. 8.5.56. 8.5.57. 8.5.58. 8.5.59. 8.5.60. 8.5.61. 8.5.62. 8.5.63. 8.5.64. 8.5.65. 8.5.66. 8.5.67. 8.5.68. MIICR (MII Control Register, Page 0xd08, Address 0x15) ............................................................................54 INTBCR (INTB Pin Control Register, Page 0xd40, Address 0x16) ................................................................55 PTP_CTL (PTP Control Register, Page 0xe40, Address 0x10) ......................................................................55 PTP_INER (PTP Interrupt Enable Register, Page 0xe40, Address 0x11) ......................................................56 PTP_INSR (PTP Interrupt Status Register, Page 0xe40, Address 0x12) ........................................................56 SYNCE_CTL (Sync-E Control Register, Page 0xe40, Address 0x13) .............................................................57 PTP_CLK_CFG (PTP Clock Config Register, Page 0xe41, Address 0x10) ...................................................57 PTP_CFG_NS_LO (PTP Time Config Nano-Sec Low Register, Page 0xe41, Address 0x11)........................58 PTP_CFG_NS_HI (PTP Time Config Nano-Sec High Register, Page 0xe41, Address 0x12)........................58 PTP_CFG_S_LO (PTP Time Config Sec Low Register, Page 0xe41, Address 0x13).....................................58 PTP_CFG_S_MI (PTP Time Config Sec Mid Register, Page 0xe41, Address 0x14) .....................................59 PTP_ CFG_S_HI (PTP Time Config Sec High Register, Page 0xe41, Address 0x15) ...................................59 PTP_TAI_CFG (PTP Application I/F Config Register, Page 0xe42, Address 0x10)......................................59 PTP_TRIG_CFG (PTP Trigger Config Register, Page 0xe42, Address 0x11) ...............................................60 PTP_TAI_STA (PTP Application I/F Status Register, Page 0xe42, Address 0x12) ........................................61 PTP_TAI_TS_NS_LO (PTP TAI Timestamp Nano-Sec Low Register, Page 0xe42, Address 0x13) ...............61 PTP_TAI_TS_NS_HI (PTP TAI Timestamp Nano-Sec High Register, Page 0xe42, Address 0x14)...............62 PTP_TAI_TS_S_LO (PTP TAI Timestamp Sec Low Register, Page 0xe42, Address 0x15)............................62 PTP_TAI_TS_S_HI (PTP TAI Timestamp Sec High Register, Page 0xe42, Address 0x16) ...........................62 PTP_TRX_TS_STA (PTP TxRx Timestamp Status Register, Page 0xe43, Address 0x10) ..............................62 PTP_TRX_TS_INFO (PTP TxRx Timestamp Info Register, Page 0xe44, Address 0x10) ...............................63 PTP_TRX_TS_SH (PTP TxRx Timestamp Source Hash Register, Page 0xe44, Address 0x11) .....................63 PTP_TRX_TS_SID (PTP TxRx Timestamp Seq ID Register, Page 0xe44, Address 0x12)..............................64 PTP_ TRX_TS NS_LO (PTP TxRx Timestamp Nano-Sec Low Register, Page 0xe44, Address 0x13)............64 PTP_ TRX_TS NS_HI (PTP TxRx Timestamp Nano-Sec High Register, Page 0xe44, Address 0x14)............64 PTP_ TRX_TS S_LO (PTP TxRx Timestamp Sec Low Register, Page 0xe44, Address 0x15) ........................64 PTP_ TRX_TS S_MI (PTP TxRx Timestamp Sec Mid Register, Page 0xe44, Address 0x16) .........................65 PTP_ TRX_TS S_HI (PTP TxRx Timestamp Sec High Register, Page 0xe44, Address 0x17) ........................65 PC1R (PCS Control 1 Register, MMD Device 3, Address 0x00) ....................................................................65 PS1R (PCS Status1 Register, MMD Device 3, Address 0x01) ........................................................................65 EEECR (EEE Capability Register, MMD Device 3, Address 0x14)................................................................66 EEEWER (EEE Wake Error Register, MMD Device 3, Address 0x16) ..........................................................66 EEEAR (EEE Advertisement Register, MMD Device 7, Address 0x3c) ..........................................................66 EEELPAR (EEE Link Partner Ability Register, MMD Device 7, Address 0x3d) ............................................67 Fiber BMCR (Fiber Basic Mode Control Register, Address 0x00).................................................................68 Fiber BMSR (Basic Mode Status Register, Address 0x01) ..............................................................................69 1000Base-X ANAR (1000Base-X Auto-Negotiation Advertising Register, Address 0x04)..............................70 1000Base-X ANLPAR (1000Base-X Auto-Negotiation Link Partner Ability Register, Address 0x05) ...........71 Fiber ESR (Fiber Extended Status Register, Address 0x0F) ...........................................................................71 SERDES INER (SERDES Interrupt Enable Register, Page 0xde1, Address 0x11) .........................................72 SERDES INSR (SERDES Interrupt Status Register, Page 0xde1, Address 0x12) ...........................................72 SGMII ANARSEL (SGMII Auto-Negotiation Advertising Register Select, Page 0xd08, Address 0x14).........73 SGMII ANAR (SGMII Auto-Negotiation Advertising Register, Page 0xd08, Address 0x10) ..........................73 SGMII ANLPAR (SGMII Auto-Negotiation Link Partner Ability Register, Page 0xdc0, Address 0x15) ........74 l a e R L IA T N E ID F N O C 9. k e t H C E D E IT M I L T E G A N SWITCHING REGULATOR..........................................................................................................................................75 9.1. A D L POWER SEQUENCE .....................................................................................................................................................75 O G or 10. 10.1. 10.2. 10.3. 10.4. 10.5. f CHARACTERISTICS.................................................................................................................................................77 ABSOLUTE MAXIMUM RATINGS.................................................................................................................................77 RECOMMENDED OPERATING CONDITIONS .................................................................................................................77 CRYSTAL REQUIREMENTS ..........................................................................................................................................78 OSCILLATOR/EXTERNAL CLOCK REQUIREMENTS ......................................................................................................78 DC CHARACTERISTICS ...............................................................................................................................................79 Integrated 10/100/1000M Ethernet Precision Transceiver vi Track ID: JATR-8275-15 Rev. 1.3 RTL8211FS(I)(-VS) Datasheet 10.6. SGMII CHARACTERISTICS .........................................................................................................................................80 10.6.1. SGMII Differential Transmitter Characteristics .............................................................................................80 10.6.2. SGMII Differential Receiver Characteristics ..................................................................................................81 10.7. 1000BASE-X CHARACTERISTICS................................................................................................................................82 10.7.1. 1000Base-X Differential Transmitter Characteristics.....................................................................................82 10.7.2. 1000Base-X Differential Receiver Characteristics..........................................................................................83 10.8. AC CHARACTERISTICS ...............................................................................................................................................84 10.8.1. MDC/MDIO Timing ........................................................................................................................................84 10.8.2. RGMII Timing Modes......................................................................................................................................85 10.8.3. SGMII Timing Modes ......................................................................................................................................88 11. k e t MECHANICAL DIMENSIONS.................................................................................................................................90 11.1. 12. MECHANICAL DIMENSIONS NOTES ............................................................................................................................90 ORDERING INFORMATION...................................................................................................................................91 l a e R L IA List of Tables TABLE 1. TRANSCEIVER INTERFACE ............................................................................................................................................10 TABLE 2. CLOCK..........................................................................................................................................................................10 TABLE 3. RGMII .........................................................................................................................................................................11 TABLE 4. SERDES ........................................................................................................................................................................11 TABLE 5. RESET...........................................................................................................................................................................11 TABLE 6. MODE SELECTION ........................................................................................................................................................12 TABLE 7. LED DEFAULT SETTINGS .............................................................................................................................................12 TABLE 8. REGULATOR AND REFERENCE ......................................................................................................................................13 TABLE 9. POWER AND GROUND ...................................................................................................................................................13 TABLE 10. MANAGEMENT INTERFACE ..........................................................................................................................................14 TABLE 11. CONFIG PINS VS. CONFIGURATION REGISTER ............................................................................................................22 TABLE 12. CONFIGURATION REGISTER DEFINITIONS ....................................................................................................................22 TABLE 13. MANAGEMENT FRAME FORMAT ..................................................................................................................................25 TABLE 14. MANAGEMENT FRAME DESCRIPTION ...........................................................................................................................25 TABLE 15. 1000BASE-T BASE AND NEXT PAGE BIT ASSIGNMENTS ..............................................................................................28 TABLE 16. LED DEFAULT DEFINITIONS ........................................................................................................................................33 TABLE 17. LED REGISTER TABLE .................................................................................................................................................33 TABLE 18. LED CONFIGURATION TABLE 1 ...................................................................................................................................34 TABLE 19. LED CONFIGURATION TABLE 2 ...................................................................................................................................34 TABLE 20. REGISTER ACCESS TYPES ............................................................................................................................................37 TABLE 21. UTP REGISTER MAPPING AND DEFINITIONS ................................................................................................................37 TABLE 22. MMD REGISTER MAPPING AND DEFINITION ...............................................................................................................39 TABLE 23. FIBER REGISTERS MAPPING AND DEFINITIONS ............................................................................................................39 TABLE 24. SERDES REGISTERS MAPPING AND DEFINITIONS .......................................................................................................39 TABLE 25. BMCR (BASIC MODE CONTROL REGISTER, ADDRESS 0X00) ......................................................................................40 TABLE 26. BMSR (BASIC MODE STATUS REGISTER, ADDRESS 0X01)..........................................................................................41 TABLE 27. PHYID1 (PHY IDENTIFIER REGISTER 1, ADDRESS 0X02) ...........................................................................................42 TABLE 28. PHYID2 (PHY IDENTIFIER REGISTER 2, ADDRESS 0X03) ...........................................................................................43 TABLE 29. ANAR (AUTO-NEGOTIATION ADVERTISING REGISTER, ADDRESS 0X04)....................................................................43 TABLE 30. ANLPAR (AUTO-NEGOTIATION LINK PARTNER ABILITY REGISTER, ADDRESS 0X05) ...............................................44 TABLE 31. ANER (AUTO-NEGOTIATION EXPANSION REGISTER, ADDRESS 0X06)........................................................................44 TABLE 32. ANNPTR (AUTO-NEGOTIATION NEXT PAGE TRANSMIT REGISTER, ADDRESS 0X07).................................................45 T N E ID F N O C H C E D E IT M I L T E G A N A D L O G or f Integrated 10/100/1000M Ethernet Precision Transceiver vii Track ID: JATR-8275-15 Rev. 1.3 RTL8211FS(I)(-VS) Datasheet TABLE 33. ANNPRR (AUTO-NEGOTIATION NEXT PAGE RECEIVE REGISTER, ADDRESS 0X08) ...................................................45 TABLE 34. GBCR (1000BASE-T CONTROL REGISTER, ADDRESS 0X09) .......................................................................................46 TABLE 35. GBSR (1000BASE-T STATUS REGISTER, ADDRESS 0X0A)..........................................................................................46 TABLE 36. MACR (MMD ACCESS CONTROL REGISTER, ADDRESS 0X0D) ..................................................................................47 TABLE 37. MAADR (MMD ACCESS ADDRESS DATA REGISTER, ADDRESS 0X0E) ......................................................................47 TABLE 38. GBESR (1000BASE-T EXTENDED STATUS REGISTER, ADDRESS 0X0F)......................................................................48 TABLE 39. INER (INTERRUPT ENABLE REGISTER, PAGE 0XA42, ADDRESS 0X12) ........................................................................49 TABLE 40. PHYCR1 (PHY SPECIFIC CONTROL REGISTER 1, PAGE 0XA43, ADDRESS 0X18)........................................................50 TABLE 41. PHYCR2 (PHY SPECIFIC CONTROL REGISTER 2, PAGE 0XA43, ADDRESS 0X19)........................................................51 TABLE 42. PHYSR (PHY SPECIFIC STATUS REGISTER, PAGE 0XA43, ADDRESS 0X1A) ...............................................................51 TABLE 43. INSR (INTERRUPT STATUS REGISTER, PAGE 0XA43, ADDRESS 0X1D) ........................................................................52 TABLE 44. PAGSR (PAGE SELECT REGISTER, PAGE 0XA43, ADDRESS 0X1F) ..............................................................................53 TABLE 45. PHYSCR (PHY SPECIAL CONFIG REGISTER, PAGE 0XA46, ADDRESS 0X14) ..............................................................53 TABLE 46. LCR (LED CONTROL REGISTER, PAGE 0XD04, ADDRESS 0X10) .................................................................................53 TABLE 47. EEELCR (EEE LED CONTROL REGISTER, PAGE 0XD04, ADDRESS 0X11) .................................................................54 TABLE 48. FLCR (FIBER LED CONTROL REGISTER, PAGE 0XD04, ADDRESS 0X12).....................................................................54 TABLE 49. MIICR (MII CONTROL REGISTER, PAGE 0XD08, ADDRESS 0X15)...............................................................................54 TABLE 50. INTBCR (INTB PIN CONTROL REGISTER, PAGE 0XD40, ADDRESS 0X16) ..................................................................55 TABLE 51. PTP_CTL (PTP CONTROL REGISTER, PAGE 0XE40, ADDRESS 0X10) .........................................................................55 TABLE 52. PTP_INER (PTP INTERRUPT ENABLE REGISTER, PAGE 0XE40, ADDRESS 0X11)........................................................56 TABLE 53. PTP_INSR (PTP INTERRUPT STATUS REGISTER, PAGE 0XE40, ADDRESS 0X12) ........................................................56 TABLE 54. SYNCE_CTL (SYNC-E CONTROL REGISTER, PAGE 0XE40, ADDRESS 0X13) .............................................................57 TABLE 55. PTP_CLK_CFG (PTP CLOCK CONFIG REGISTER, PAGE 0XE41, ADDRESS 0X10) ......................................................57 TABLE 56. PTP_CFG_NS_LO (PTP TIME CONFIG NANO-SEC LOW REGISTER, PAGE 0XE41, ADDRESS 0X11)...........................58 TABLE 57. PTP_CFG_NS_HI (PTP TIME CONFIG NANO-SEC HIGH REGISTER, PAGE 0XE41, ADDRESS 0X12)...........................58 TABLE 58. PTP_CFG_S_LO (PTP TIME CONFIG SEC LOW REGISTER, PAGE 0XE41, ADDRESS 0X13).........................................58 TABLE 59. PTP_CFG_S_MI (PTP TIME CONFIG SEC MID REGISTER, PAGE 0XE41, ADDRESS 0X14)..........................................59 TABLE 60. PTP_S_HI (PTP TIME CONFIG SEC HIGH REGISTER, PAGE 0XE41, ADDRESS 0X15) ..................................................59 TABLE 61. PTP_TAI_CFG (PTP APPLICATION I/F CONFIG REGISTER, PAGE 0XE42, ADDRESS 0X10) ........................................59 TABLE 62. PTP_TRIG_CFG (PTP TRIGGER CONFIG REGISTER, PAGE 0XE42, ADDRESS 0X11) ..................................................60 TABLE 63. PTP_TAI_STA (PTP APPLICATION I/F STATUS REGISTER, PAGE 0XE42, ADDRESS 0X12) ........................................61 TABLE 64. PTP_TAI_TS_NS_LO (PTP TAI TIMESTAMP NANO-SEC LOW REGISTER, PAGE 0XE42, ADDRESS 0X13) ................61 TABLE 65. PTP_TAI_TS_NS_HI (PTP TAI TIMESTAMP NANO-SEC HIGH REGISTER, PAGE 0XE42, ADDRESS 0X14) ................62 TABLE 66. PTP_S_LO (PTP TIME CONFIG SEC LOW REGISTER, PAGE 0XE41, ADDRESS 0X13) ..................................................62 TABLE 67. PTP_S_MI (PTP TIME CONFIG SEC MID REGISTER, PAGE 0XE41, ADDRESS 0X14) ...................................................62 TABLE 68. PTP_TRX_TS_STA (PTP TXRX TIMESTAMP STATUS REGISTER, PAGE 0XE43, ADDRESS 0X10)..............................62 TABLE 69. PTP_TRX_TS_INFO (PTP TXRX TIMESTAMP INFO REGISTER, PAGE 0XE44, ADDRESS 0X10).................................63 TABLE 70. PTP_TRX_TS_SH (PTP TXRX TIMESTAMP SOURCE HASH REGISTER, PAGE 0XE44, ADDRESS 0X11)......................63 TABLE 71. PTP_TRX_TS_SID (PTP TXRX TIMESTAMP SEQ ID REGISTER, PAGE 0XE44, ADDRESS 0X12) ................................64 TABLE 72. PTP_ TRX_TS NS_LO (PTP TXRX TIMESTAMP NANO-SEC LOW REGISTER, PAGE 0XE44, ADDRESS 0X13) ............64 TABLE 73. PTP_ TRX_TS NS_HI (PTP TXRX TIMESTAMP NANO-SEC HIGH REGISTER, PAGE 0XE44, ADDRESS 0X14) ............64 TABLE 74. PTP_ TRX_TS S_LO (PTP TXRX TIMESTAMP SEC LOW REGISTER, PAGE 0XE44, ADDRESS 0X15) ..........................64 TABLE 75. PTP_ TRX_TS S_MID (PTP TXRX TIMESTAMP SEC MID REGISTER, PAGE 0XE44, ADDRESS 0X16) ........................65 TABLE 76. PTP_ TRX_TS S_LO (PTP TXRX TIMESTAMP SEC HIGH REGISTER, PAGE 0XE44, ADDRESS 0X17) .........................65 TABLE 77. PC1R (PCS CONTROL 1 REGISTER, MMD DEVICE 3, ADDRESS 0X00)........................................................................65 TABLE 78. PS1R (PCS STATUS 1 REGISTER, MMD DEVICE 3, ADDRESS 0X01) ...........................................................................65 TABLE 79. EEECR (EEE CAPABILITY REGISTER, MMD DEVICE 3, ADDRESS 0X14) ...................................................................66 TABLE 80. EEEWER (EEE WAKE ERROR REGISTER, MMD DEVICE 3, ADDRESS 0X16).............................................................66 TABLE 81. EEEAR (EEE ADVERTISEMENT REGISTER, MMD DEVICE 7, ADDRESS 0X3C) ...........................................................66 TABLE 82. EEELPAR (EEE LINK PARTNER ABILITY REGISTER, MMD DEVICE 7, ADDRESS 0X3D)............................................67 TABLE 83. FIBER BMCR (FIBER BASIC MODE CONTROL REGISTER, ADDRESS 0X00)..................................................................68 TABLE 84. FIBER BMSR (FIBER BASIC MODE STATUS REGISTER, ADDRESS 0X01) .....................................................................69 TABLE 85. 1000BASE-X ANAR (AUTO-NEGOTIATION ADVERTISING REGISTER, ADDRESS 0X04) ..............................................70 TABLE 86. 1000BASE-X ANLPAR (AUTO-NEGOTIATION LINK PARTNER ABILITY REGISTER, ADDRESS 0X05)..........................71 k e t l a e R T N E ID F N O C L IA H C E D E IT M I L T E G A N A D L O G or f Integrated 10/100/1000M Ethernet Precision Transceiver viii Track ID: JATR-8275-15 Rev. 1.3 RTL8211FS(I)(-VS) Datasheet TABLE 87. FIBER ESR (FIBER EXTENDED STATUS REGISTER, ADDRESS 0X0F) ............................................................................71 TABLE 88. SERDES INER (SERDES INTERRUPT ENABLE REGISTER, PAGE 0XDE1, ADDRESS 0X11).........................................72 TABLE 89. SERDES INSR (SERDES INTERRUPT STATUS REGISTER, PAGE 0XDE1, ADDRESS 0X12) .........................................72 TABLE 90. SGMII ANARSEL (SGMII AUTO-NEGOTIATION ADVERTISING REGISTER SELECT, PAGE 0XD08, ADDRESS 0X14)..73 TABLE 91. SGMII ANAR (SGMII AUTO-NEGOTIATION ADVERTISING REGISTER, PAGE 0XD08, ADDRESS 0X10)......................73 TABLE 92. SGMII ANLPAR (SGMII AUTO-NEGOTIATION LINK PARTNER ABILITY REGISTER, PAGE 0XDC0, ADDRESS 0X15) .74 TABLE 93. POWER SEQUENCE PARAMETERS .................................................................................................................................76 TABLE 94. ABSOLUTE MAXIMUM RATINGS ..................................................................................................................................77 TABLE 95. RECOMMENDED OPERATING CONDITIONS ...................................................................................................................77 TABLE 96. CRYSTAL REQUIREMENTS ............................................................................................................................................78 TABLE 97. OSCILLATOR/EXTERNAL CLOCK REQUIREMENTS ........................................................................................................78 TABLE 98. DC CHARACTERISTICS .................................................................................................................................................79 TABLE 99. SGMII DIFFERENTIAL TRANSMITTER CHARACTERISTICS ............................................................................................80 TABLE 100. SGMII DIFFERENTIAL RECEIVER CHARACTERISTICS ................................................................................................81 TABLE 101. 1000BASE-X DIFFERENTIAL TRANSMITTER CHARACTERISTICS ................................................................................82 TABLE 102. 1000BASE-X DIFFERENTIAL RECEIVER CHARACTERISTICS .......................................................................................83 TABLE 103. MDC/MDIO MANAGEMENT TIMING PARAMETERS ..................................................................................................84 TABLE 104. RGMII TIMING PARAMETERS ....................................................................................................................................87 TABLE 105. DIFFERENTIAL TRANSMITTER OUTPUT AC TIMING ...................................................................................................89 TABLE 106. DIFFERENTIAL RECEIVER INPUT AC TIMING .............................................................................................................89 TABLE 107. ORDERING INFORMATION ..........................................................................................................................................91 k e t l a e R L IA T N List of Figures E ID FIGURE 1. UTP (UTPÅÆRGMII; UTPÅÆSGMII) APPLICATION DIAGRAM ............................................................................4 FIGURE 2. FIBER (FIBERÅÆRGMII) APPLICATION DIAGRAM ...................................................................................................4 FIGURE 3. UTP/FIBER TO RGMII (UTP/FIBER MEDIA AUTO DETECTIONÅÆRGMII) APPLICATION DIAGRAM .......................5 FIGURE 4. SGMII TO RGMII (SGMIIÅÆRGMII BRIDGE MODE) APPLICATION DIAGRAM ........................................................5 FIGURE 5. FIBER TO UTP (UTPÅÆFIBER MEDIA CONVERTER) APPLICATION DIAGRAM ..........................................................6 FIGURE 6. PTP AND SYNC ETHERNET APPLICATION DIAGRAM .....................................................................................................6 FIGURE 7. BLOCK DIAGRAM ..........................................................................................................................................................7 FIGURE 8. RTL8211FS(I) PIN ASSIGNMENTS (48-PIN QFN).........................................................................................................8 FIGURE 9. RTL8211FS(I)-VS PIN ASSIGNMENTS (48-PIN QFN) ..................................................................................................9 FIGURE 10. LED AND PHY ADDRESS/LDO CONFIGURATION.......................................................................................................23 FIGURE 11. MDC/MDIO READ TIMING ........................................................................................................................................26 FIGURE 12. MDC/MDIO WRITE TIMING ......................................................................................................................................26 FIGURE 13. EEE LED BEHAVIOR ..................................................................................................................................................35 FIGURE 14. PHY RESET TIMING....................................................................................................................................................36 FIGURE 15. POWER SEQUENCE ......................................................................................................................................................75 FIGURE 16. SGMII DIFFERENTIAL TRANSMITTER EYE DIAGRAM .................................................................................................80 FIGURE 17. SGMII DIFFERENTIAL RECEIVER EYE DIAGRAM .......................................................................................................81 FIGURE 18. 1000BASE-X DIFFERENTIAL TRANSMITTER EYE DIAGRAM .......................................................................................82 FIGURE 19. 1000BASE-X DIFFERENTIAL RECEIVER EYE DIAGRAM ..............................................................................................83 FIGURE 20. MDC/MDIO SETUP, HOLD TIME, AND VALID FROM MDC RISING EDGE TIME DEFINITIONS ....................................84 FIGURE 21. MDC/MDIO MANAGEMENT TIMING PARAMETERS ...................................................................................................84 FIGURE 22. RGMII TIMING MODES (FOR TXC) ...........................................................................................................................85 FIGURE 23. RGMII TIMING MODES (FOR RXC) ...........................................................................................................................86 FIGURE 24. SGMII TIMING MODES ...............................................................................................................................................88 F N O C H C E D E IT M I L T E G A N A D L O G or f Integrated 10/100/1000M Ethernet Precision Transceiver ix Track ID: JATR-8275-15 Rev. 1.3 RTL8211FS(I)(-VS) Datasheet 1. General Description The Realtek RTL8211FS-CG/RTL8211FS-VS-CG/RTL8211FSI-CG/RTL8211FSI-VS-CG is a highly integrated Ethernet transceiver that complies with 10Base-T, 100Base-TX, and 1000Base-T IEEE 802.3 standards. It provides all the necessary physical layer functions to transmit and receive Ethernet packets over CAT.5 UTP cable. The RTL8211FSI and RTL8211FSI-VS are manufactured to industrial grade standards. k e t The RTL8211FS(I)-VS provides full hardware support for high-precision clock synchronization based on the Precision Time Protocol (PTP) of IEEE 1588 and 802.1AS standard. The integrated PTP functionality accurately timestamps each PTP packet on the Tx/Rx path, and the upper layer software can use this timing information to determine the timing offset to the PTP master’s clock. The device also provides GPIOs as PTP application interfaces. l a The RTL8211FS(I)(-VS) uses state-of-the-art DSP technology and an Analog Front End (AFE) to enable high-speed data transmission and reception over UTP cable. Functions such as Crossover Detection & Auto-Correction, polarity correction, adaptive equalization, cross-talk cancellation, echo cancellation, timing recovery, and error correction are implemented in the RTL8211FS(I)(-VS) to provide robust transmission and reception capabilities at 10Mbps, 100Mbps, or 1000Mbps. e R L IA T N Data transfer between MAC and PHY is via the Reduced Gigabit Media Independent Interface (RGMII), or Serial Gigabit Media Independent Interface (SGMII) for 1000Base-T, 10Base-T, and 100Base-TX. The RTL8211FS(I)(-VS) supports various RGMII signaling voltages, including 3.3, 2.5, 1.8, and 1.5V. E ID The RTL8211FS(I)(-VS) also supports a SerDes interface that can be configured as SGMII, 1000Base-X, or 100Base-FX. F N O C H C E D E IT M I L T E G A N A D L O G or f Integrated 10/100/1000M Ethernet Precision Transceiver 1 Track ID: JATR-8275-15 Rev. 1.3 RTL8211FS(I)(-VS) Datasheet 2. Features „ 1000Base-T IEEE 802.3ab Compliant „ 100Base-TX IEEE 802.3u Compliant „ 10Base-T IEEE 802.3 Compliant „ Supports RGMII „ Supports IEEE 802.3az-2010 (Energy Efficient Ethernet) „ Built-in Wake-on-LAN (WOL) over UTP/Fiber „ Supports Interrupt function over UTP/Fiber „ Supports Parallel Detection „ Crossover Detection & Auto-Correction „ Automatic polarity correction „ Supports PHYRSTB core power Turn-Off „ Baseline Wander Correction „ Supports 120m for CAT.5 cable in 1000Base-T „ „ Industrial grade manufacturing process (RTL8211FSI(-VS)) „ Supports SERDES (SGMII/Fiber) „ Supports Fiber-to-UTP Media Convertor mode or SGMII-to-RGMII Bridge mode k e t „ „ l a e R „ „ Supports UTP/Fiber Auto Detection Complete hardware support for Synchronous Ethernet and Precision Time Protocol (PTP) including IEEE 1588v1, v2, and 802.1AS (RTL8211FS(I)-VS only) L IA PTP Packet parser supports Layer 2 Ethernet, IPv4/UDP, IPv6/UDP packets (RTL8211FS(I)-VS only) T N PTP One-Step operation supported (RTL8211FS(I)-VS only) E ID „ PTP clock synchronization (RTL8211FS(I)-VS only) „ PTP timestamp with 8ns resolution (RTL8211FS(I)-VS only) Selectable 3.3/2.5/1.8/1.5V signaling for RGMII „ Deterministic and low transmission latency for PTP mechanism (RTL8211FS(I)-VS only) „ Supports 25MHz external crystal or OSC „ „ Provides 125MHz clock source for MAC Adjustable PTP clock (RTL8211FS(I)-VS only) „ Two PTP GPIOs as programmable Time Application Interfaces (RTL8211FS(I)-VS only) „ Low-jitter synchronized PTP clock output (RTL8211FS(I)-VS only) „ Selectable PTP clock input from the external reference clock source (RTL8211FS(I)-VS only) F N O C „ Provides 3 network status LEDs „ Supports Link Down power saving „ Green Ethernet (1000/100Mbps mode only) „ Built-in Switching Regulator and LDO „ 48-pin QFN Green Package „ f O G or 55 nm process with ultra-low power consumption Integrated 10/100/1000M Ethernet Precision Transceiver M I L T E G A N A D L H C E D E IT 2 Track ID: JATR-8275-15 Rev. 1.3 RTL8211FS(I)(-VS) Datasheet 3. System Applications „ DTV (Digital TV) „ MAU (Media Access Unit) „ CNR (Communication and Network Riser) „ Game Console „ Printer and Office Machine „ DVD Player and Recorder „ Ethernet Hub „ Ethernet Switch „ PTP-featured Equipment with Ethernet Ports „ Base Stations and Controllers „ Routers, DSLAMs, PON Equipment „ Test and Measurement Systems „ Industrial and Factory Automation Equipment „ Multimedia synchronization and Real Time Networking k e t e R l a T N E ID F N O C L IA D E IT M I L In addition, the RTL8211FS(I)(-VS) can be used in any embedded system with an Ethernet MAC that needs a UTP physical connection. H C E T E G A N A D L O G or f Integrated 10/100/1000M Ethernet Precision Transceiver 3 Track ID: JATR-8275-15 Rev. 1.3 RTL8211FS(I)(-VS) Datasheet 3.1. UTP (UTPÅÆRGMII; UTPÅÆSGMII) Application Diagram k e t l a e R L IA T N E ID Figure 1. UTP (UTPÅÆRGMII; UTPÅÆSGMII) Application Diagram F N 3.2. Fiber (FIBERÅÆRGMII) Application Diagram O C H C E D E IT M I L T E G A N A D L Figure 2. Fiber (FIBERÅÆRGMII) Application Diagram O G or f Integrated 10/100/1000M Ethernet Precision Transceiver 4 Track ID: JATR-8275-15 Rev. 1.3 RTL8211FS(I)(-VS) Datasheet 3.3. UTP/Fiber to RGMII (UTP/FIBER Media Auto Detection ÅÆRGMII) Application Diagram k e t l a Figure 3. UTP/Fiber to RGMII (UTP/FIBER Media Auto DetectionÅÆRGMII) Application Diagram e R L IA 3.4. SGMII to RGMII (SGMIIÅÆRGMII Bridge Mode) Application Diagram MAC E ID F N O C MAC/PHY T N RTL8211FS(I)(-VS) SerDes RGMII (SGMII MAC side) RTL8211FS(I)(-VS) Link information H C E (SGMII PHY side) T E G A N D E IT M I L SerDes RGMII Media PHY MAC Link information Figure 4. SGMII to RGMII (SGMIIÅÆRGMII Bridge Mode) Application Diagram A D L O G or f Integrated 10/100/1000M Ethernet Precision Transceiver 5 Track ID: JATR-8275-15 Rev. 1.3 RTL8211FS(I)(-VS) Datasheet 3.5. Fiber to UTP (UTPÅÆFIBER Media Converter) Application Diagram RJ- 45 Magnet ics k e t l a Figure 5. Fiber to UTP (UTPÅÆFIBER Media Converter) Application Diagram e R L IA T N 3.6. PTP and Sync Ethernet Application Diagram (RTL8211FS(I)-VS Only) E ID O C MDC MDIO RGMII/ SGMII F N H C E D E IT M I L T E G A N A D L O G or f Figure 6. PTP and Sync Ethernet Application Diagram Integrated 10/100/1000M Ethernet Precision Transceiver 6 Track ID: JATR-8275-15 Rev. 1.3 RTL8211FS(I)(-VS) Datasheet 4. Block Diagram k e t l a e R T N E ID F N O C L IA D E IT Figure 7. Block Diagram H C E M I L T E G A N A D L O G or f Integrated 10/100/1000M Ethernet Precision Transceiver 7 Track ID: JATR-8275-15 Rev. 1.3 RTL8211FS(I)(-VS) Datasheet 5. Pin Assignments 5.1. RTL8211FS(I) Pin Assignments k e t l a e R T N E ID F N O C L IA H C E D E IT M I L T E G A N Figure 8. RTL8211FS(I) Pin Assignments (48-Pin QFN) A D 5.2. PackageLIdentification O G for Green package is indicated by the ‘G’ in GXXXV (Figure 8). Integrated 10/100/1000M Ethernet Precision Transceiver 8 Track ID: JATR-8275-15 Rev. 1.3 RTL8211FS(I)(-VS) Datasheet 5.3. RTL8211FS(I)-VS Pin Assignments k e t l a e R T N E ID F N O C L IA H C E D E IT M I L T E G A N Figure 9. RTL8211FS(I)-VS Pin Assignments (48-Pin QFN) A D L 5.4. Package Identification O G or Green package is indicated by the ‘G’ in GXXXV (Figure 9). The version number is shown in the location marked ‘V’. f Integrated 10/100/1000M Ethernet Precision Transceiver 9 Track ID: JATR-8275-15 Rev. 1.3 RTL8211FS(I)(-VS) Datasheet 6. Pin Descriptions Some pins have multiple functions. Refer to the Pin Assignment figures for a graphical representation. I: O: P: PU: G: Input Output Power Internal Pull Up During Power On Reset Ground LI: IO: PD: OD: Latched Input During Power up or Hardware Reset Bi-Directional Input and Output Internal Pull Down During Power On Reset Open Drain k e t 6.1. Transceiver Interface Pin No. 2 Pin Name MDIP0 3 MDIN0 5 6 l a Table 1. Transceiver Interface Type Description IO In MDI mode, this is the first pair in 1000Base-T, i.e., the BI_DA+/- pair, and is the transmit pair in 10Base-T and 100Base-TX. In MDI crossover mode, this pair acts as the BI_DB+/- pair, and is the receive pair in IO 10Base-T and 100Base-TX. e R MDIP1 IO MDIN1 IO L IA In MDI mode, this is the second pair in 1000Base-T, i.e., the BI_DB+/- pair, and is the receive pair in 10Base-T and 100Base-TX. In MDI crossover mode, this pair acts as the BI_DA+/- pair, and is the transmit pair in 10Base-T and 100Base-TX. T N In MDI mode, this is the third pair in 1000Base-T, i.e., the BI_DC+/- pair. 7 MDIP2 IO In MDI crossover mode, this pair acts as the BI_DD+/- pair. 8 MDIN2 IO In MDI mode, this is the fourth pair in 1000Base-T, i.e., the BI_DD+/- pair. 10 MDIP3 IO In MDI crossover mode, this pair acts as the BI_DC+/- pair. 11 MDIN3 IO Note: BI_DA+/-, BI_DB+/-, BI_DC+/-, BI_DD+/- means the logical wire-pairs as described in section 40.1.3 of the IEEE 802.3-2008 standard. F N O C 6.2. Clock Pin No. 45 Pin Name XTAL_IN 46 XTAL_OUT/ EXT_CLK 44 CLKOUT H C E Table 2. Clock D E IT M I L Type Description I 25MHz Crystal Input. Connect to GND if an external 25MHz oscillator drives XTAL_OUT/EXT_CLK pin. O 25MHz Crystal Output. If a 25MHz oscillator is used, connect XTAL_OUT/EXT_CLK pin to the oscillator’s output (see section 10.3, page 78 for clock source specifications). O 1. Reference Clock Generated from Internal PLL. This pin should be kept floating if the clock is not used by the MAC. 2. UTP recovery receive clock for Sync Ethernet. 3. Fiber recovery receive clock for Sync Ethernet. 4. PTP synchronized clock output. Note: The above sources of CLKOUT pin can be selected via Page 0xa43, Reg 25, bit[13:12], see section 8.5.17, page 51. T E G A N A D L O G or f E ID Integrated 10/100/1000M Ethernet Precision Transceiver 10 Track ID: JATR-8275-15 Rev. 1.3 RTL8211FS(I)(-VS) Datasheet 6.3. RGMII Pin No. 21 Pin Name TXC Type I 19 18 17 16 20 28 TXD0 TXD1 TXD2 TXD3 TXCTL RXC I I I I I O/LI/PD 26 25 24 23 27 RXD0 RXD1 RXD2 RXD3 RXCTL O/LI/PU O/LI/PD O/LI/PD O/LI/PD O/LI/PD 40 41 Pin Name HSIP HSIN HSOP HSON l a HSOP_CLK HSON_CLK L IA Receive Control Signal to the MAC. Type I I T N E ID Table 4. SerDes Description SerDes Differential Input: 1.25GHz serial interfaces to receive data from an External device that supports the SGMII interface. The differential pair has an internal 100-ohm termination resistor. SerDes Differential Output: 1.25GHz serial interfaces to transfer data to an External device that supports the SGMII interface. The differential pair has an internal 100-ohm termination resistor. SerDes Receive CLK Pair. 625MHz differential serial clock output. The differential pair has an internal 100-ohm termination resistor. F N O C 42 43 k e t Transmit Control Signal from the MAC. The continuous receive reference clock will be 125MHz, 25MHz, or 2.5MHz, and is derived from the received data stream. Receive Data. Data is transmitted from PHY to MAC via RXD[3:0]. e R 6.4. SerDes Pin No. 38 39 Table 3. RGMII Description The transmit reference clock will be 125MHz, 25MHz, or 2.5MHz depending on speed. Transmit Data. Data is transmitted from MAC to PHY via TXD[3:0]. O O O O H C E D E IT M I L T E G A N 6.5. Reset Table 5. Reset Description Hardware Reset. Active low. For a complete PHY reset, this pin must be asserted low for at least 10ms. All registers will be cleared after a hardware reset. Note: See section 7.19, page 36 for more details. Pin No. 13 A D L Pin Name PHYRSTB Type I/PU O G or f Integrated 10/100/1000M Ethernet Precision Transceiver 11 Track ID: JATR-8275-15 Rev. 1.3 RTL8211FS(I)(-VS) Datasheet 6.6. Mode Selection (Hardware Configuration) Pin No. 35 28 27 26 Pin Name PHYAD0 PHYAD1 PHYAD2 RXDLY Type O/LI/PU O/LI/PD O/LI/PD O/LI/PU Table 6. Mode Selection Description PHYAD[2:0]: PHY Address Configuration. RGMII Receiver Clock Timing Control. Pull up to add 2ns delay to RXC for RXD latching. Note: Enabling of TXDLY is via register setting: Page 0xd08, Reg 17, Bit[8] = 1. 36 CFG_LDO0 O/LI/PU CFG_LDO[1:0]: Voltage Selection for the RGMII I/O Pad. 37 CFG_LDO1 O/LI/PD 2’b00: 3.3V. 2’b01: 2.5V. 2’b10: 1.8V. 2’b11: 1.5V. 25 CFG_MODE0 O//LI PD CFG_MODE[2:0]: Operation Mode Configuration. 24 CFG_MODE1 O//LI PD 3’b000: UTP ÅÆ RGMII 23 CFG_MODE2 O//LI PD 3’b001: FIBER ÅÆ RGMII 3’b010: UTP/FIBER ÅÆ RGMII (Media Auto Detection) 3’b011: UTP ÅÆ SGMII 3’b100: SGMII (PHY side) ÅÆ RGMII (MAC side) 3’b101: SGMII (MAC side) ÅÆ RGMII (PHY side) 3’b110: UTP ÅÆ FIBER (Media Conversion auto mode) 3’b111: UTP ÅÆ FIBER (Media Conversion force mode) Note: See section 3 System Applications, page 3, for illustration. Note: For more information, see section 7.10 Hardware Configuration page 22. k e t l a e R T N E ID F N O C L IA 6.7. LED Default Settings D E IT M I L Table 7. LED Default Settings Pin No. Pin Name Type Description 35 LED0 O/LI/PU High=Link Up at 10Mbps Blinking=Transmitting or Receiving. 36 LED1 O/LI/PU Low=Link Up at 100Mbps Blinking=Transmitting or Receiving. 37 LED2 O/LI/PD High=Link Up at 1000Mbps Blinking=Transmitting or Receiving. Note 1: High/Low active depends on hardware configuration pins setting (see section 7.11, page 23). Note 2: See section 7.16 LED Configuration, page 33 for more LED setting details. H C E T E G A N A D L O G or f Integrated 10/100/1000M Ethernet Precision Transceiver 12 Track ID: JATR-8275-15 Rev. 1.3 RTL8211FS(I)(-VS) Datasheet 6.8. Regulator and Reference Pin No. 48 32 Pin Name RSET REG_OUT Table 8. Regulator and Reference Description Reference (External Resistor Reference). Switching Regulator 1.0V Output. Connect to a 2.2µH inductor. Type O O k e t 6.9. Power and Ground Pin No. 30 31 29 22 1, 12 4, 9,47 49 Pin Name DVDD33 VDD_REG DVDD_RG l a Type P P P e R DVDD10 AVDD33 AVDD10 GND P P P G Table 9. Power and Ground Description Digital non-RGMII I/O Power. 3.3V. 3.3V Power for Switching Regulator. Digital RGMII I/O Pad Power. T N E ID F N O C L IA Digital Core Power. 1.0V. Analog Power. 3.3V. Analog Power. 1.0V. Ground. Exposed Pad (E-Pad) is Analog and Digital Ground (see section 11 Mechanical Dimensions, page 90). H C E D E IT M I L T E G A N A D L O G or f Integrated 10/100/1000M Ethernet Precision Transceiver 13 Track ID: JATR-8275-15 Rev. 1.3 RTL8211FS(I)(-VS) Datasheet 6.10. Management and PTP Application Interface *Note: The definitions of pin 33 and 34 depend on the products, i.e. RTL8211FS(I) or RTL8211FS(I)-VS. Pin No. 14 15 33 34 Table 10. Management and PTP Application Interface Pin Name Type Description MDC I Management Data Clock. MDIO IO/PU Input/Output of Management Data. Pull up 3.3/2.5/1.8/1.5V for 3.3/2.5/1.8/1.5V I/O, respectively. RTL8211FS(I) NC Not Connected. RTL8211FS(I)-VS PTP_CLKIN/ I/O 1. PTP clock input from the external reference clock source. GPIO0 Note: See section 8.5.31, page 57 for enabling the PTP clock input function information. 2. PTP GPIO_0. RTL8211FS(I) INTB/PMEB O/OD This pin is shared by two functions, keep this pin floating if either of the functions is not used. 1. Interrupt (supports 3.3V pull up). Set low if the specified events occurred; active low. 2. Power Management Event (supports 3.3V pull up). Set low if received a magic packet, Wake-Up frame, or wake up event;; active low. Note 1: The behavior of this pin is level-triggered. Note 2: The function of this pin (INTB/PMEB) can be assigned by Page 0xd40, Reg.22, bit[5]: 1: Pin 34 functions as PMEB. 0: Pin 34 functions as INTB (default) Note 3:For more detailed INTB/PMEB usage, see section 7.8, page 21. Product All All k e t l a e R T N E ID F N O C L IA H C E D E IT M I L T E G A N A D L O G or f Integrated 10/100/1000M Ethernet Precision Transceiver 14 Track ID: JATR-8275-15 Rev. 1.3 RTL8211FS(I)(-VS) Datasheet RTL8211FS(I)-VS INTB/PMEB GPIO1 O/OD I/O This pin is shared by three functions, the default pin setting is INTB. Keep this pin floating if either of the functions is not used. The pin type depends on function selected: 1. Interrupt (supports 3.3V pull up). Set low if the specified events occurred; active low. 2. Power Management Event (supports 3.3V pull up). Set low if received a magic packet, Wake-Up frame ,or wake up event; active low. Note 1: The behavior of INTB/PMEB is level-triggered. Note 2: The function of INTB/PMEB can be assigned by Page 0xd40, Reg.22, bit[5]: 1: Pin 34 functions as PMEB. 0: Pin 34 functions as INTB (default) Note 3:For more detailed INTB/PMEB usage, see section 7.8, page 21. 3. PTP GPIO_1. Note: Only when setting INTBCR register (Page 0xd40, Reg 22, bit[2:0] = 3’b101, see section 8.5.26, page 55) and PTP_TAI_CFG register (Page 0xe42, Reg 16, bit[4:3] = 2’b01, see section 8.5.37, page 59), this pin will function as a PTP GPIO_1,. This configuration has higher priority than the INTB/PMEB function. k e t l a e R T N E ID F N O C L IA H C E D E IT M I L T E G A N A D L O G or f Integrated 10/100/1000M Ethernet Precision Transceiver 15 Track ID: JATR-8275-15 Rev. 1.3 RTL8211FS(I)(-VS) Datasheet 7. Function Description 7.1. Transmitter 7.1.1. 1000Mbps Mode The RTL8211FS(I)(-VS)’s PCS layer receives data bytes from the MAC through the SGMII/RGMII interface and performs generation of continuous code-groups through 4D-PAM5 coding technology. These code groups are passed through a waveform-shaping filter to minimize EMI effect, and are transmitted onto the 4-pair CAT.5 cable at 125MBaud/s through a D/A converter. 7.1.2. k e t 100Mbps Mode The transmitted 4-bit nibbles (TXD[3:0]) from the MAC, clocked at 25MHz (TXCLK), are converted into 5B symbol code through 4B/5B coding technology, then through scrambling and serializing, are converted to 125MHz NRZ and NRZI signals. The NRZI signals are passed to the MLT3 encoder, then to the D/A converter and transmitted onto the media. 7.1.3. l a e R 10Mbps Mode L IA T N The transmit 4-bit nibbles (TXD[3:0]) from the MAC, clocked at 2.5MHz (TXCLK), are serialized into 10Mbps serial data. The 10Mbps serial data is converted into a Manchester-encoded data stream and is transmitted onto the media by the D/A converter. 7.2. Receiver 7.2.1. 1000Mbps Mode E ID F N D E IT Input signals from the media first pass through the on-chip sophisticated hybrid circuit to subtract the transmitted signal from the input signal for effective reduction of near-end echo. The received signal is processed with state-of-the-art technology, such as adaptive equalization, BLW (Baseline Wander) correction, cross-talk cancellation, echo cancellation, timing recovery, error correction, and 4D-PAM5 decoding. The 8-bit-wide data is recovered and is sent to the SGMII/RGMII interface at a clock speed of 125MHz. The Rx MAC retrieves the packet data from the receive SGMII/RGMII interface and sends it to the Rx Buffer Manager. O C 7.2.2. H C E M I L T E G A N 100Mbps Mode The MLT3 signal is processed with an ADC, equalizer, BLW (Baseline Wander) correction, timing recovery, MLT3 and NRZI decoder, descrambler, 4B/5B decoder, and is then presented to the SGMII/RGMII interface in 4-bit-wide nibbles at a clock speed of 25MHz. A D L O G or 7.2.3. 10Mbps Mode The received differential signal is converted into a Manchester-encoded stream first. Next, the stream is processed with a Manchester decoder, and is de-serialized into 4-bit-wide nibbles. The 4-bit nibbles are presented to the SGMII/RGMII interface at a clock speed of 2.5MHz. f Integrated 10/100/1000M Ethernet Precision Transceiver 16 Track ID: JATR-8275-15 Rev. 1.3 RTL8211FS(I)(-VS) Datasheet 7.3. Precision Time Protocol (PTP) (RTL8211FS(I)-VS Only) Precision Time Protocol (PTP) stands for a series of IEEE specifications, including IEEE 1588 Ver. 1, IEEE 1588 Ver. 2, and IEEE 802.1AS, that synchronize the time of day or a standard time across a network system. The PTP protocol is typically used in Audio Video Bridging (AVB) applications, industrial and factory automation applications, or test and measurement systems. The fundamental concept of PTP is time-stamping specified PTP frames with high precision as close to the transmission media as possible. Time stamping in the PHY provides increased accuracy compared to time-stamping in the MAC or higher layers. k e t The PTP core in the RTL8211FS(I)-VS consists of three main blocks: • Packet Time Stamping • Synchronized PTP Clock • Time Application Interface (TAI) e R l a L IA By combining the above functions, the RTL8211FS(I)-VS provides complete and accurate support for applications in a time-synchronous system. T N The PTP features of the RTL8211FS(I)-VS are briefly introduced below. For more detailed configuration of PTP functions, refer to the RTL8211FS(I)-VS PTP Application Note. 7.3.1. E ID Synchronized PTP Clock F N Based on the PTP specification requirements, the integrated PTP clock of the RTL8211FS(I)-VS consists of the following time fields: seconds (48 bits), nanoseconds (30 bits), and fractional nanoseconds (in units of 2-32 ns). O C D E IT M I L The RTL8211FS(I)-VS provides several ways to access and update this internal PTP clock. The methods are listed below: • Direct Read/Write • Step Adjustment • Rate Adjustment H C E T E G A N A D L A Direct Write of the time value is done by setting a new value to all time fields. This function may be used when initializing a PTP synchronization that needs an immediate setting to a time value due to the local PTP time being far different to the Master clock time. O G or A Step Adjustment is an alternative method for making quick compensation to the PTP clock time. Note that the adjustment can be incremented and decremented. f Integrated 10/100/1000M Ethernet Precision Transceiver 17 Track ID: JATR-8275-15 Rev. 1.3 RTL8211FS(I)(-VS) Datasheet When the local time is close to the PTP Master, Rate Adjustment is the better way to fine-tune the time setting. The Rate Adjustment allows for correction on the order of 2-32 ns per clock cycle. It can correct the offset over time accurately. Refer to section 8.5.31, page 57, for detailed register settings. 7.3.2. Packet Time Stamping The PTP packet parser in the RTL8211FS(I)-VS continually monitors transmit/receive packet data in order to detect IEEE 1588 Ver. 1, Ver 2 or 802.1AS Event Messages. The PTP packets transported in Layer 2 Ethernet, IPv4/UDP, or IPv6/UDP packet formats can be recognized accordingly. Upon detection of a PTP Event Message, the RTL8211FS(I)-VS will capture the specific transmit/receive timestamp and provide it to the software at the upper layer through PTP_TRX_TS registers (see section 8.5.44 to 8.5.52, page 62~65). A PTP interrupt can be generated, if enabled, upon a transmit/receive timestamp ready. k e t l a In some transmission cases, the RTL8211FS(I)-VS supports One-Step operation: The egress timestamp of a Sync message is on-the-fly inserted to the Sync itself, with no need for Follow-Up messages. e R L IA A Hardware-assisted Timestamp Insertion feature is imbedded, which will insert receive timestamps directly into the next Follow-Up/Delay-Response packets via hardware; software does not need to access timestamp registers. T N After gathering the timestamp information, the upper layer software can compute the difference between the local time and the PTP Master’s central clock time, and use the three methods in section 7.3.1 to tune the local PTP clock, in order to match the master clock. 7.3.3. E ID Time Application Interface (TAI) F N D E IT When the end-point’s PTP clock is synchronized to the PTP Master clock, its time information and local clock can be provided to peripheral time applications that need to work simultaneously with the central clock. The RTL8211FS(I)-VS features these time application interfaces in the following, via the PTP GPIOs and CLKOUT pins: O C Event Capture interface: • T E Monitors the selected GPIO, and records the timestamp of incoming pulses, edges, or time alignment signals, similar to a stopwatch. G A N Trigger Generate interface: • A D L Arms the selected GPIO to generate a pulse, edge, or periodic clock signal at a specific time, similar to an alarm clock. The periodic clock has configurable period and duty cycles. O G or • f • H C E M I L Low-jitter synchronized 1588 clock output with frequency of 25M/125 MHz via the CLKOUT pin. PTP clock input from the external reference clock source with 10M/25M/125MHz via GPIO0. The related TAI configurations can be set by PTP_TAI registers (section 8.5.37, page 59). Integrated 10/100/1000M Ethernet Precision Transceiver 18 Track ID: JATR-8275-15 Rev. 1.3 RTL8211FS(I)(-VS) Datasheet 7.4. Synchronous Ethernet (Sync-E) The RTL8211FS(I)-VS provides Synchronous Ethernet (Sync-E) support when the device is operating in 1000Base-T, 100Base-TX, 1000Base-X, and 100Base-FX on the transmission media. The CLKOUT pin can be assigned to output the recovered clock. Refer to section 8.5.17, page 51 (PHYCR2 register) for clock output configuration details. The recovery clock for Sync-E can be either a 125MHz or a 25MHz clock, which is also determined by the PHYCR2 register. k e t When the PHY is in SLAVE mode, the CLKOUT will output the recovered clock from the MDI. If the device is in MASTER mode, the CLKOUT will output the clock based on the local free run PLL. PTP and Sync-E can be used simultaneously so as to provide better time synchronization performance. l a L IA 7.5. Energy Efficient Ethernet (EEE) e R The RTL8211FS(I)(-VS) supports IEEE 802.3az-2010, also known as Energy Efficient Ethernet (EEE), at 10Mbps, 100Mbps, and 1000Mbps. It provides a protocol to coordinate transitions to/from a lower power consumption level (Low Power Idle mode) based on link utilization. When no packets are being transmitted, the system goes to Low Power Idle mode to save power. Once packets need to be transmitted, the system returns to normal mode, and does this without changing the link status and without dropping/corrupting frames. T N E ID To save power, when the system is in Low Power Idle mode, most of the circuits are disabled, however, the transition time to/from Low Power Idle mode is kept small enough to be transparent to upper layer protocols and applications. F N O C D E IT EEE also specifies a negotiation method to enable link partners to determine whether EEE is supported. Refer to http://www.ieee802.org/3/az/index.html for more details. 7.6. Wake-On-LAN (WOL) H C E M I L T E G A N The RTL8211FS(I)(-VS) can monitor the network for a Wake-Up Frame or a Magic Packet, and notify the system via the PMEB (Power Management Event; ‘B’ means low active) pin when such a packet or event occurs1. The system can then be restored to a normal state to process incoming jobs. The PMEB pin needs to be connected with a 4.7k-ohm resistor and pulled up to 3.3V. When the Wake-Up Frame or a Magic Packet is sent to the PHY, the PMEB pin will be set low to notify the system to wake up. Refer to the RTL8211F_Series_WOL_App_Note for details. A D L O G or f Integrated 10/100/1000M Ethernet Precision Transceiver 19 Track ID: JATR-8275-15 Rev. 1.3 RTL8211FS(I)(-VS) Datasheet Magic Packet Wake-up occurs only when the following conditions are met: • The destination address of the received Magic Packet is acceptable to the RTL8211FS(I)(-VS), e.g., a broadcast, multicast, or unicast packet addressed to the current RTL8211FS(I)(-VS). • The received Magic Packet does not contain a CRC error. • The Magic Packet pattern matches; i.e., 6 * FFh + MISC (can be none) + 16 * DID (Destination ID) in any part of a valid Ethernet packet. k e t A Wake-Up Frame event occurs only when the following conditions are met: • The destination address of the received Wake-Up Frame is acceptable to the RTL8211FS(I)(-VS), e.g., a broadcast, multicast, or unicast address to the current RTL8211FS(I)(-VS). • The received Wake-Up Frame does not contain a CRC error. • The 16-bit CRC2 of the received Wake-Up Frame matches the 16-bit CRC of the sample Wake-Up Frame pattern given by the local machine’s OS. Or, the RTL8211FS(I)(-VS) is configured to allow direct packet wakeup, e.g., a broadcast, multicast, or unicast network packet. Non-specific packets are also supported. l a e R L IA T N Note 1: The INTB and PMEB functions share the same pin (pin 34), and can be determined by Page 0xd40, Reg.22, bit[5]. Note 2: 16-bit CRC: The RTL8211FS(I)(-VS) supports eight long Wake-Up frames (covering 128 mask bytes from offset 0 to 127 of any incoming network packet). CRC16 polynomial=x16+x12+x5+1. E ID F N O C H C E D E IT M I L T E G A N A D L O G or f Integrated 10/100/1000M Ethernet Precision Transceiver 20 Track ID: JATR-8275-15 Rev. 1.3 RTL8211FS(I)(-VS) Datasheet 7.7. Interrupt The RTL8211FS(I)(-VS) provides an active low interrupt output pin (INTB) based on change of the PHY status. Every interrupt condition is represented by the read-only general interrupt status register (section 8.5.19 INSR (Interrupt Status Register, Page 0xa43, Address 0x1D), page 52), PTP interrupt status register (section 8.5.29 PTP_INSR (PTP Interrupt Status Register, Page 0xe40, Address 0x12), page 56), and SERDES interrupt status register (section 8.5.65 SERDES INSR (SERDES Interrupt Status Register, Page 0xde1, Address 0x12), page 72). k e t The interrupts can be individually enable or disable by setting or clearing bits in the interrupt enable register (section 8.5.15 INER (Interrupt Enable Register, Page 0xa42, Address 0x12), page 49), PTP interrupt enable register (section 8.5.28 PTP_INER (PTP Interrupt Enable Register, Page 0xe40, Address 0x11), page 56), and SERDES interrupt enable register (section 8.5.64 SERDES INER (SERDES Interrupt Enable Register, Page 0xde1, Address 0x11), page 72). When an enabled interrupt condition occurs, the interrupt pin is driven low, and the interrupts are self-cleared (INTB pin de-asserted) by reading the corresponding interrupt status registers through MDC/MDIO interface. l a L IA Note 1: The interrupt of the RTL8211FS(I)(-VS) is a level-triggered mechanism. Note 2: The INTB and PMEB functions share the same pin (pin 34), and can be determined by Page 0xd40, Reg.22, bit[5]. e R T N E ID 7.8. INTB/PMEB Pin Usage The INTB/PMEB pin (pin 34) of the RTL8211FS(I)(-VS) is designed to notify in cases of both interrupt and WOL events. The default mode of this pin is INTB (Page 0xd40, Reg.22, bit[5] = 0). For general use, indication of a WOL event is also integrated into one of the interrupt events (Page 0xa42, Reg 18, bit[7] which is triggered when any specified WOL event occurs. However, the ‘Pulse Low’ waveform format is not supported during this mode; only the Active Low, level-triggered waveform is provided. Refer to section 6.1 in the RTL8211F_Series_WOL_App_Note for more information. F N O C H C E D E IT M I L If PMEB mode is selected (Page 0xd40, Reg.22, bit[5] = 1), pin 34 becomes a fully functional PMEB pin. Note that the interrupt function is disabled in this mode. 7.9. MDI Interface T E G A N A D L This interface consists of four signal pairs; MDI0, MDI1, MDI2, and MDI3. Each signal pair consists of two bi-directional pins that can transmit and receive at the same time. The MDI interface has internal termination resistors to reduce BOM cost and PCB complexity. For 1000Base-T, all four pairs are used in both directions at the same time. For 10/100Mbps links and during auto-negotiation, only pairs MDI0 and MDI1 are used. O G or f Integrated 10/100/1000M Ethernet Precision Transceiver 21 Track ID: JATR-8275-15 Rev. 1.3 RTL8211FS(I)(-VS) Datasheet 7.10. Hardware Configuration The I/O pad voltage, interface mode, and PHY address can be set by the CONFIG pins. The respective value mapping of CONFIG with the configurable vector is listed in Table 11. To set the CONFIG pins, an external pull-high or pull-low via resistor is required. Table 11. CONFIG Pins vs. Configuration Register CONFIG Pin Configuration LED0 PHYAD[0] RXC PHYAD[1] RXCTL PHYAD[2] RXD0 RXDLY LED1 CFG_LDO[0] LED2 CFG_LDO[1] RXD1 CFG_MODE[0] RXD2 CFG_MODE[1] RXD3 CFG_MODE[2] l a e R Configuration PHYAD[2:0] CFG_LDO[1:0] L IA T N Table 12. Configuration Register Definitions Description PHY Address. PHYAD sets the PHY address for the device. TheRTL8211FS(I)(-VS) supports PHY addresses from 0x01 to 0x07. Note 1: An MDIO command with PHY address=0 is a broadcast from the MAC; each PHY device should respond. This function can be disabled by setting Page 0xa43, Reg24, bit[13]=0 (see section 8.5.16, page 50). Note 2: The RTL8211FS(I)(-VS) with PHYAD[2:0]=000 can automatically remember the first non-zero PHY address. This function can be enabled by setting Page 0xa43, Reg24, bit[6] = 1 (see section 8.5.16, page 50). RGMII Receive Clock Timing Control. 1: Add 2ns delay to RXC for RXD latching (via 4.7k-ohm to DVDD_RG) 0: No delay (via 4.7k-ohm to GND) Note: Enabling of TXDLY is left in the register setting: Page 0xd08, Reg 17, Bit[8] = 1. Voltage Selection for I/O pad 00: 3.3V 01: 2.5V 10: 1.8V 11: 1.5V Note: When CFG_LDO[1:0] = 00, the I/O pad power is supplied from the external 3.3V power connected to DVDD_RG pin; Otherwise, it is supplied from the internal LDO. E ID F N O C RXDLY k e t H C E D E IT M I L T E G A N A D L O G or f Integrated 10/100/1000M Ethernet Precision Transceiver 22 Track ID: JATR-8275-15 Rev. 1.3 RTL8211FS(I)(-VS) Datasheet Configuration CFG_MODE[2:0] Description The RTL8211FS(I)(-VS) Operating Mode Selection. 000: UTP ÅÆ RGMII 001: FIBER ÅÆ RGMII 010: UTP/FIBER ÅÆ RGMII (Media Auto Detection) 011: UTP ÅÆ SGMII 100: SGMII (PHY side) ÅÆ RGMII (MAC side) 101: SGMII (MAC side) ÅÆ RGMII (PHY side) 110: UTP ÅÆ FIBER (Media Conversion auto mode) 111: UTP ÅÆ FIBER (Media Conversion force mode) k e t 7.11. LED and PHY Address/LDO Configuration l a In order to reduce the pin count on the RTL8211FS(I)(-VS), the LED pins are duplexed with the PHYAD0 and CFG_LDO[1:0] pins. As the Hardware Configuration shares the LED output pins, the external combinations required for strapping and LED usage must be considered in order to avoid contention. Specifically, when the LED outputs are used to drive LEDs directly, the active state of each output driver is dependent on the logic level sampled by the corresponding PHYAD0/CFG_LDO[1:0] inputs upon power-on/reset. e R L IA T N For example, as Figure 10 (left-side) shows, if a given PHYAD0/CFG_LDO inputs are resistively pulled high then the corresponding LED outputs will be configured as an active low driver. On the right side, we can see that if a given PHYAD0/CFG_LDO[1:0] input is resistively pulled low then the corresponding output will be configured as an active high driver. The Hardware Configuration pins should not be connected to GND or VCC directly, but must be pulled high or low through a resistor (e.g., 4.7KΩ). If no LED indications are needed, the components of the LED path (LED+510Ω) can be removed. E ID F N O C G A N DA for M I L T E CFG_LDO[1:0] = Logical 1 PHYAD0 = Logical 1 LED Indication = Active low L O G H C E D E IT CFG_LDO[1:0] = Logical 0 PHYAD0 = Logical 0 LED Indication = Active High Figure 10. LED and PHY Address/LDO Configuration Integrated 10/100/1000M Ethernet Precision Transceiver 23 Track ID: JATR-8275-15 Rev. 1.3 RTL8211FS(I)(-VS) Datasheet 7.12. Green Ethernet (1000/100Mbps Mode Only) 7.12.1. Cable Length Power Saving In 1000/100Mbps mode the RTL8211FS(I)(-VS) provides dynamic detection of cable length and dynamic adjustment of power required for the detected cable length. This feature provides intermediate performance with minimum power consumption. k e t 7.12.2. Register Setting Follow the register settings below to DISABLE Green Ethernet (Default is ‘Enabled’) Write Page 0xa43, Reg 27, Data=0x8011 l a Write Page 0xa43, Reg 28, Data=0x573f Follow the register settings below to ENABLE Green Ethernet (Default is ‘Enabled’) e R Write Page 0xa43, Reg 27, Data=0x8011 Write Page 0xa43, Reg 28, Data=0xd73f T N E ID F N O C L IA H C E D E IT M I L T E G A N A D L O G or f Integrated 10/100/1000M Ethernet Precision Transceiver 24 Track ID: JATR-8275-15 Rev. 1.3 RTL8211FS(I)(-VS) Datasheet 7.13. MAC/PHY Interface The RTL8211FS(I)(-VS) supports industry standards and is suitable for most off-the-shelf MACs with an SGMII/RGMII interface. 7.13.1. RGMII Among the RGMII interface in 100Base-TX and 10Base-T modes, TXC and RXC sources are 25MHz and 2.5MHz respectively; while in 1000Base-T mode, TXC and RXC sources are 125MHz. TXC will always be generated by the MAC and RXC will always be generated by the PHY. TXD[3:0] and RXD[3:0] signals are used for data transitions on the rising and falling edge of the clock. 7.13.2. SGMII k e t l a The Serial Gigabit Media Independent Interface (SGMII) is a standard interface which is used to carry frame data and link status information between a PHY and an Ethernet MAC. The SGMII uses a differential pair for data and clock signals to provide signal integrity while minimizing system noise. The data signals operate at 1.25G/baud and the clocks operate as a 625MHz double data rate (DDR) interface. e R 7.13.3. Management Interface L IA T N The management interface provides access to the internal registers through the MDC and MDIO pins as described in IEEE 802.3u section 22. The MDC signal, provided by the MAC, is the management data clock reference to the MDIO signal. The MDIO is the management data input/output and is a bi-directional signal that runs synchronously to MDC. The MDIO pin needs a 1.5k Ohm pull-up resistor to maintain the MDIO high during idle and turnaround. E ID F N D E IT The RTL8211FS(I)(-VS) can share the same MDIO line. In switch/router applications, each port should be assigned a unique address during the hardware reset sequence, and it can only be addressed via that unique PHY address. For detailed information on the management registers, see section 8 Register Descriptions, page 37. O C Read Write Preamble 1…1 1…1 ST 01 01 H C E M I L Table 13. Management Frame Format Management Frame Fields OP PHYAD REGAD TA DATA 10 AAAAA RRRRR Z0 DDDDDDDDDDDDDDDD 01 AAAAA RRRRR 10 DDDDDDDDDDDDDDDD T E G A N IDLE Z Z A D L Table 14. Management Frame Description O G or Name Preamble f ST Description 32 Contiguous Logical 1’s Sent by the MAC on MDIO, along with 32 Corresponding Cycles on MDC. This provides synchronization for the PHY. Start of Frame. Indicated by a 01 pattern. Integrated 10/100/1000M Ethernet Precision Transceiver 25 Track ID: JATR-8275-15 Rev. 1.3 RTL8211FS(I)(-VS) Datasheet Name OP Description Operation Code. Read: 10 Write: 01 PHY Address. Up to eight PHYs can be connected to one MAC. This 3-bit field selects which PHY the frame is directed to. Register Address. This is a 5-bit field that sets which of the 32 registers of the PHY this operation refers to. Turnaround. This is a 2-bit-time spacing between the register address and the data field of a frame to avoid contention during a read transaction. For a read transaction, both the STA and the PHY remain in a high-impedance state for the first bit time of the turnaround. The PHY drives a zero bit during the second bit time of the turnaround of a read transaction. Data. These are the 16 bits of data. Idle Condition. Not truly part of the management frame. This is a high impedance state. Electrically, the PHY’s pull-up resistor will pull the MDIO line to a logical ‘1’. PHYAD REGAD TA DATA IDLE MDC l a e R MDIO(MAC) MDIO(PHY) 1...1 Pre z Start F N Read OP (Code) PHY Address 0x01 T N Reg. Address 0x 00 ( BMCR ) z 0 0 0 0 1 0 0 0 1 0 1 0 0 0 0 0 0 z Turn Reg.Data 0x1140 Around E G A ED Idle T I M Figure 11. MDC/MDIO Read Timing N A D OL L IA E ID z 0 1 1 0 0 0 0 0 1 0 0 0 0 0 O C G r fo k e t I L H C E T Figure 12. MDC/MDIO Write Timing Integrated 10/100/1000M Ethernet Precision Transceiver 26 Track ID: JATR-8275-15 Rev. 1.3 RTL8211FS(I)(-VS) Datasheet 7.13.4. Change Page Set MDIO commands as shown below in order to switch to the desired Page 0xXYZ (in Hex). 1. Write Register 31 Data = 0x0XYZ (Page 0xXYZ) 2. Read/Write the target Register Data 3. Write Register 31 Data = 0x0000 or 0xa42 (switch back to IEEE Standard Registers) k e t 7.13.5. Access to MDIO Manageable Device (MMD) The MDIO Manageable Device (MMD) is an extension to the management interface that provides the ability to access more device registers while still retaining logical compatibility with the MDIO interface, defined in Table 22, page 39. Access to MMD configuration is provided via Registers 13 and 14. l a MMD Read/Write Operation L IA 1. Write Function field to 00 (address mode) and DEVAD field to the device address value for the desired MMD (Register 13). e R T N 2. Write the desired address value to the MMD’s address register (Register 14). 3. Write Function field to 01 (data mode; no post increment) and DEVAD field to the same device address for the desired MMD (Register 13). E ID 4. Read: Go to step 5. Write: Go to step 6. F N 5. Read the content of the selected register in MMD (Register 14). D E IT 6. Write the content of the selected register in MMD (Register 14). O C H C E 7.14. Auto-Negotiation M I L Auto-Negotiation is a mechanism to determine the fastest connection between two link partners. For copper media applications, it was introduced in IEEE 802.3u for Ethernet and Fast Ethernet, and then in IEEE 802.3ab to address extended functions for Gigabit Ethernet. It performs the following: G A N • Auto-Negotiation Priority Resolution • Auto-Negotiation Master/Slave Resolution A D L O G or • • T E f Auto-Negotiation PAUSE/ASYMMETRIC PAUSE Resolution Crossover Detection & Auto-Correction Resolution Integrated 10/100/1000M Ethernet Precision Transceiver 27 Track ID: JATR-8275-15 Rev. 1.3 RTL8211FS(I)(-VS) Datasheet Upon de-assertion of a hardware reset, the RTL8211FS(I)(-VS) can be configured to have auto-negotiation enabled, or be set to operate in 10Base-T, 100Base-TX, or 1000Base-T mode via the ANAR and GBCR register (Register 4 and 9). The auto-negotiation process is initiated automatically upon any of the following: • Power-up • Hardware reset • Software reset (Register 0.15) • Restart auto-negotiation (Register 0.9) • Transition from power down to power up (Register 0.11) • Entering the link fail state Bit D15 D14 D13 l a e R D[12:5] Name NP Ack RF S[4:0] M15 NP M14 Ack M13 MP f Ack2 E ID H C E D E IT M I L T E G A N A D L O G or M12 L IA T N F N A[7:0] O C D[4:0] k e t Table 15. 1000Base-T Base and Next Page Bit Assignments Bit Description Register Location Base Page Next Page. 1: Indicates that Next Pages follow 0: Indicates that no Next Pages follow Acknowledge. 1: Indicates that a device has successfully received its link partner’s Link Code Word (LCW) Remote Fault. 1: Indicates to its link partner that a device has encountered a fault condition Technology Ability Field. Register 4.[12:5] Indicates to its link partner the supported technologies specific to Table 29, page 43. the selector field value. Selector Field. Register 4.[4:0] Always 00001. Table 29, page 43. Indicates to its link partner that it is an IEEE 802.3 device. PAGE 0 (Message Next Page) Next Page. 1: Indicates that Next Pages follow 0: Indicates that no Next Pages follow Acknowledge. 1: Indicates that a device has successfully received its link partner’s Link Code Word (LCW) Message Page. 1: Indicates to its link partner that this is a message page, not an unformatted page. Acknowledge 2. 1: Indicates to its link partner that the device has the ability to comply with the message. Integrated 10/100/1000M Ethernet Precision Transceiver 28 Track ID: JATR-8275-15 Rev. 1.3 RTL8211FS(I)(-VS) Datasheet Bit M11 Name T M[10:0] - U15 NP U14 Ack U13 MP U12 Ack2 U11 - U3 - U1 - - O C - U15 NP U14 Ack U13 L O G for MP N A D - E ID H C E T E AG Integrated 10/100/1000M Ethernet Precision Transceiver 29 - - - L IA T N F N U0 Register Location - k e t l a e R T U[10:5] U4 U2 Bit Description Toggle. Used by the NWay arbitration function to ensure synchronization with its link partner during Next Page exchange. 1000Base-T Message Code (Always 8). PAGE 1 (Unformatted Next Page) Next Page. 1: Indicates that Next Pages follow 0: Indicates that no Next Pages follow Acknowledge. 1: Indicates that a device has successfully received its link partner’s Link Code Word (LCW) Message Page. 1: Indicates to its link partner that this is a message page, not an unformatted page. Acknowledge 2. 1: Indicates to its link partner that the device has the ability to comply with the message. Toggle. Used by the NWay arbitration function to ensure synchronization with its link partner during Next Page exchange. Reserved. Transmit as 0 1000Base-T Half Duplex. 1: Half duplex 0: No half duplex 1000Base-T Full Duplex. 1: Full duplex 0: No full duplex 1000Base-T Port Type Bit. 1: Multi-port device 0: Single-port device 1000Base-T Master-Slave Manual Configuration Value. 1: Master 0: Slave This bit is ignored if bit 9.12=0 1000Base-T Master-Slave Manual Configuration Enable. 1: Manual Configuration Enable This bit is intended to be used for manual selection in Master-Slave mode, and is to be used in conjunction with bit 9.11 PAGE 2 (Unformatted Next Page) Next Page. 1: Indicates that Next Pages follow 0: Indicates that no Next Pages follow Acknowledge. 1: Indicates that a device has successfully received its link partner’s Link Code Word (LCW) Message Page. 1: Indicates to its link partner that this is a message page, not an unformatted page - - Register 9.10 (GBCR) Table 34, page 46. Register 9.11 (GBCR) Table 34, page 46. D E IT M I L Register 9.12 (GBCR) Table 34, page 46. - - - Track ID: JATR-8275-15 Rev. 1.3 RTL8211FS(I)(-VS) Datasheet Bit U12 Name Ack2 U11 T U[10:0] - Bit Description Acknowledge 2. 1: Indicates to its link partner that the device has the ability to comply with the message Toggle. Used by the NWay arbitration function to ensure synchronization with its link partner during Next Page exchange. 1000Base-T Master-Slave Seed Bit[10:0] Register Location - - Master-Slave Seed Value SB[10:0] k e t 7.14.1. Auto-Negotiation Priority Resolution l a Upon the start of auto-negotiation, to advertise its capabilities each station transmits a 16-bit packet called a Link Code Word (LCW), within a burst of 17 to 33 Fast Link Pulses (FLP). A device capable of auto-negotiation transmits and receives the FLPs. The receiver must identify three identical LCWs before the information is authenticated and used in the arbitration process. The devices decode the base LCW and select capabilities with the highest common denominator supported by both devices. e R L IA To advertise 1000Base-T capability, both link partners, sharing the same link medium, should engage in Next Page (1000Base-T Message Page, Unformatted Page 1, and Unformatted Page 2) exchange. T N Auto-negotiation ensures that the highest priority protocol will be selected as the link speed based on the following priorities advertised through the Link Code Word (LCW) exchange. Refer to IEEE 802.3 Clause 28 for detailed information. E ID 1. 1000Base-T Full Duplex (highest priority) F N 2. 1000Base-T Half Duplex O C 3. 100Base-TX Full Duplex H C E 4. 100Base-TX Half Duplex 5. 10Base-T Full Duplex 6. 10Base-T Half Duplex (lowest priority) D E IT M I L T E G A N A D L O G or f Integrated 10/100/1000M Ethernet Precision Transceiver 30 Track ID: JATR-8275-15 Rev. 1.3 RTL8211FS(I)(-VS) Datasheet 7.14.2. Auto-Negotiation Master/Slave Resolution To establish a valid 1000Base-T link, the Master/Slave mode of both link partners should be resolved through the auto-negotiation process: • Master Priority • ƒ Multi-port > Single-port ƒ Manual > Non-manual Determination of Master/Slave configuration from LCW ƒ ƒ ƒ ƒ • • k e t Manual_MASTER=U0*U1 Manual_SLAVE=U0*!U1 Single-port device=!U0*!U2 Multi-port device=!U0*U2 Where: U0 is bit 0 of the Unformatted Page 1 U1 is bit 1 of the Unformatted Page 1 U2 is bit 2 of the Unformatted Page 1 Where there are two stations with the same configuration, the one with higher Master-Slave seed SB[10:0] in the unformatted page 2 shall become Master. l a e R Master-Slave configuration process resolution: ƒ L IA T N Successful: Bit 10.15 Master-Slave Configuration Fault is set to logical 0, and Bit 10.14 is set to logical 1 for Master resolution, or set to logical 0 for Slave resolution. ƒ Unsuccessful: Auto-Negotiation restarts. ƒ Fault Detect: Bit 10.15 is set to logical 1 to indicate that a configuration fault has been detected. Auto-Negotiation restarts automatically. This happens when both stations are set to manual Master mode or manual Slave mode, or after seven attempts to configure the Master-Slave relationship through the seed method has failed. E ID F N D E T 7.14.3. Auto-Negotiation PAUSE/ASYMMETRIC PAUSE Resolution I M I L H C E T E G A N A D L O G for O C Auto-negotiation is also used to determine the flow control capability between link partners. Flow control is a mechanism that can force a busy transmitting link partner to stop transmitting in a full duplex environment by sending special MAC control frames. In IEEE 802.3u, a PAUSE control frame had already been defined. However, in IEEE 802.3ab, a new ASY-PAUSE control frame was defined; if the MAC can only generate PAUSE frames but is not able to respond to PAUSE frames generated by the link partner, then it is called ASYMMETRIC PAUSE. PAUSE/ASYMMETRIC PAUSE capability can be configured by setting the ANAR bits 10 and 11 (Table 29, page 43). Link partner PAUSE capabilities can be determined from ANLPAR bits 10 and 11 (Table 30, page 44). A PHY layer device such as the RTL8211FS(I)(-VS) is not directly involved in PAUSE resolution, but simply advertises and reports PAUSE capabilities during the Auto-Negotiation process. The MAC is responsible for final PAUSE/ASYMMETRIC PAUSE resolution after a link is established, and is responsible for correct flow control actions thereafter. Integrated 10/100/1000M Ethernet Precision Transceiver 31 Track ID: JATR-8275-15 Rev. 1.3 RTL8211FS(I)(-VS) Datasheet 7.15. Crossover Detection and Auto-Correction Ethernet needs a crossover mechanism between both link partners to cross the transmit signal to the receiver when the medium is twisted-pair cable. Crossover Detection & Auto-Correction Configuration eliminates the need for crossover cables between devices, such as two computers connected to each other with a CAT.5 Ethernet cable. The basic concept is to assume the initial default setting is MDI mode, and then check the link status. If no link is established after a certain time, change to MDI Crossover mode and repeat the process until a link is established. An 11-bit pseudo-random timer is applied to decide the mode change time interval. k e t Crossover Detection & Auto-Correction is not a part of the Auto-Negotiation process, but it utilizes the process to exchange the MDI/MDI Crossover configuration. If the RTL8211FS(I)(-VS) is configured to only operate in 100Base-TX or only in 10Base-T mode, then Auto-Negotiation is disabled only if the Crossover Detection & Auto-Correction function is also disabled. If Crossover Detection & Auto-Correction are enabled, then Auto-Negotiation is enabled and the RTL8211FS(I)(-VS) advertises only 100Base-TX mode or 10Base-T mode. If the speed of operation is configured manually and Auto-Negotiation is still enabled because the Crossover Detection & Auto-Correction function is enabled, then the duplex advertised is as follows: l a e R 1. If it is set to half duplex, then only half duplex is advertised. L IA T N 2. If it is set to full duplex, then both full and half duplex are advertised. If the user wishes to advertise only full duplex at a particular speed with the Crossover Detection & Auto-Correction function enabled, then Auto-Negotiation should be enabled (Register 0.12) with the appropriate advertising capabilities set in registers 4 or 9. The Crossover Detection & Auto-Correction function may be enabled/disable by setting (Page 0xa43, Reg 24, bit[9:8]) manually, see section 8.5.16, page 50. E ID F N D E IT After initial configuration following a hardware reset, Auto-Negotiation can be enabled and disabled via Register 0.12, speed via Registers 0.13, 0.6, and duplex via Register 0.8. The abilities that are advertised can be changed via Registers 4 and 9. Changes to Registers 0.12, 0.13, 0.6, and 0.8 do not take effect unless at least one of the following events occurs: O C H C E • Software reset (Register 0.15) • Restart of Auto-Negotiation (Register 0.9) • Transition from power-down to power-up (Register 0.11) M I L T E G A N Registers 4 and 9 are internally latched once each time Auto-Negotiation enters the ABILITY DETECT state in the arbitration state machine (IEEE 802.3 Clause 28). Hence a write into Register 4 or 9 has no effect once the RTL8211FS(I)(-VS) begins to transmit Fast Link Pulses. A D L O G or Register 7 is treated in a similar manner as 4 and 9 during additional Next Page exchanges. Once the RTL8211FS(I)(-VS) completes Auto-Negotiation, it updates the various statuses in Registers 1, 5, 6, and 10. The speed, duplex, page received, and Auto-Negotiation completed statuses are also available in Page 0xa43, Reg 26 and 29 (Reg 29 is valid after enabling the interrupts in Page 0xa42, Reg 18). f Integrated 10/100/1000M Ethernet Precision Transceiver 32 Track ID: JATR-8275-15 Rev. 1.3 RTL8211FS(I)(-VS) Datasheet 7.16. LED Configuration 7.16.1. Customized LED Function The RTL8211FS(I)(-VS) supports three LED pins, suitable for multiple types of applications that can directly drive the LEDs. The output of these pins is determined by setting the corresponding bits in Page 0xd04 Register 16 and 18 (see section 8.5.22, page 53 and 8.5.24, page 54). The functionality of the RTL8211FS(I)(-VS) LEDs is shown in Table 16. Operation Mode CFG_MODE[2:0] 3’b000: UTP ÅÆ RGMII 3’b011: UTP ÅÆ SGMII 3’b100: SGMII (PHY side) ÅÆ RGMII (MAC side) 3’b101: SGMII (MAC side) ÅÆ RGMII (PHY side) l a e R 3’b001: Fiber ÅÆ RGMII 3’b010: UTP/Fiber ÅÆ RGMII (Media Auto Detection) 3’b110/3’b111: UTP ÅÆ Fiber (Media Conversion) LED2 10M Link and Active (Transmitting or Receiving) 100M Link and Active (Transmitting or Receiving) 1000M Link and Active (Transmitting or Receiving) N/A 100M Link and Active (Transmitting or Receiving) 1000M Link and Active (Transmitting or Receiving) Fiber 100M/1000M Link up UTP or Fiber Link and Active (Transmitting or Receiving) UTP 10M/100M/1000M Link up Link and Active (Transmitting or Receiving) L IA T N E ID F N O C k e t Table 16. LED Default Definitions Description LED0 LED1 UTP and Fiber are both 100M Link up UTP and Fiber are both 1000M Link up D E IT The LED pins can be customized from Page 0xd04 Register 16 and 18. To change the LED settings, see note (below) and Table 17 LED Register Table, which summarizes several configuration types (see also Table 18 LED Configuration Table 1, and Table 19 LED Configuration Table 2, page 34). H C E M I L Note: To switch to Page 0xd04, set Register 31 Data=0x0d04 (set page). After LED setting, switch back to the PHY’s IEEE Standard Registers, i.e. Page 0 or Page 0xa42 (Register 31 Data = 0 or 0xa42). Pin LED0 LED1 LED2 for 10Mbps Reg16 Bit0 Reg16 Bit5 Reg16 Bit10 T E G A N Table 17. LED Register Table LINK Speed Active (Tx/Rx) 100Mbps 1000Mbps Reg16 Bit1 Reg16 Bit3 Reg16 Bit4 Reg16 Bit6 Reg16 Bit8 Reg16 Bit9 Reg16 Bit11 Reg16 Bit13 Reg16 Bit14 L O G DA Integrated 10/100/1000M Ethernet Precision Transceiver 33 Common Mode Media Select Reg18 Bit11 Reg18 Bit13 Reg18 Bit15 Reg18 Bit10 Reg18 Bit12 Reg18 Bit14 Track ID: JATR-8275-15 Rev. 1.3 RTL8211FS(I)(-VS) Datasheet Pin LED0 LED1 LED2 10Mbps 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 Table 18. LED Configuration Table 1 LINK Bit Active (TX/RX) Bit 100Mbps 1000Mbps 0 0 0 0 0 1 0 1 0 0 1 1 1 0 0 1 0 1 1 1 0 1 1 1 0 0 0 0 0 1 0 1 0 0 1 1 1 0 0 1 0 1 1 1 0 1 1 1 O C 1 T N E ID F N 0 LED0 LED1 LED2 L IA Table 19. LED Configuration Table 2 Media Select Description Media Select bit is valid when Common Mode = 1'b0. The 0 corresponding LED indicates the UTP link status according to LED Configuration Table 1. Media Select bit is valid when Common Mode = 1'b0. The 1 corresponding LED indicates the SERDES link status according to LED Configuration Table 1. Media Select bit is not valid when Common Mode = 1'b1. The corresponding LED indicates the UTP and SERDES link status X according to LED Configuration Table 1. The behavior must be (Don’t care) the same on both sides and then the LED would be active. For example, the LED2 turns on only if the UTP and Fiber are both link up at 1000M in the Media Conversion mode. Common Mode 0 N/A N/A Link 1000 Link 1000+Active Link 100 Link 100+Active Link 100/1000 Link 100/1000+Active Link 10 Link 10+Active Link 10/1000 Link 10/1000+Active Link 10/100 Link 10/100+Active Link 10/100/1000 Link 10/100/1000+Active k e t l a e R Pin Description H C E D E IT M I L T E G A N A D L O G or f Integrated 10/100/1000M Ethernet Precision Transceiver 34 Track ID: JATR-8275-15 Rev. 1.3 RTL8211FS(I)(-VS) Datasheet 7.16.2. EEE LED Function EEE Idle Mode: LED continuous slow blinking. EEE Active Mode: LED fast and slow blinking (on packet transmitting and receiving). Refer to section 8.5.23, page 54 for EEE LED enable setting. k e t l a e R L IA T N Figure 13. EEE LED Behavior 7.17. Polarity Correction E ID F N D E IT The RTL8211FS(I)(-VS) automatically corrects polarity errors on the receive pairs in 1000Base-T and 10Base-T modes. In 100Base-TX mode polarity is irrelevant. In 1000Base-T mode, receive polarity errors are automatically corrected based on the sequence of idle symbols. Once the descrambler is locked, the polarity is also locked on all pairs. The polarity becomes unlocked only when the receiver loses lock. O C H C E M I L In 10Base-T mode, polarity errors are corrected based on the detection of validly spaced link pulses. The detection begins during the MDI crossover detection phase and locks when the 10Base-T link is up. The polarity becomes unlocked when the link is down. 7.18. Power T E G A N A D L The RTL8211FS(I)(-VS) implements a voltage regulator to generate operating power. The system vendor needs to supply a 3.3V, 1A steady power source. The RTL8211FS(I)(-VS) converts the 3.3V steady power source to 1.0V via a switching regulator. O G or f The RTL8211FS(I)(-VS) implements an option for the RGMII I/O power. The standard I/O voltage of the RGMII interface is 3.3V, with support for 2.5/1.8/1.5V to lower EMI. The 2.5/1.8/1.5V power source for RGMII is supplied from the internal LDO. Integrated 10/100/1000M Ethernet Precision Transceiver 35 Track ID: JATR-8275-15 Rev. 1.3 RTL8211FS(I)(-VS) Datasheet 7.19. PHY Reset (Hardware Reset) The RTL8211FS(I)(-VS) has a PHYRSTB pin to reset the chip. For a complete PHY reset, this pin must be asserted low for at least 10ms (Tgap in Figure 14) for the internal regulator. Wait for at least 72ms* (for internal circuits settling time) before accessing the PHY register. All registers will return to default values after a hardware reset. * Note: Does not include the 1.0V rise time. Refer to Note 5 in section 9.1, page 75, and the RTL8211F_Series_Power_Sequence_App_Note for more detailed information. k e t l a e R T N E ID F N O C L IA Figure 14. PHY Reset Timing H C E D E IT M I L T E G A N A D L O G or f Integrated 10/100/1000M Ethernet Precision Transceiver 36 Track ID: JATR-8275-15 Rev. 1.3 RTL8211FS(I)(-VS) Datasheet 8. Register Descriptions Table 20. Register Access Types Type LH RC RO WO RW SC Description Latch high. If the status is high, this field is set to ‘1’ and remains set. Read-cleared. The register field is cleared after read. Read only. Write only. Read and Write Self-cleared. Writing a ‘1’ to this register field causes the function to be activated immediately, and then the field will be automatically cleared to’0’ . k e t l a 8.1. UTP Register Mapping and Definitions Page 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 e R Offset 0 1 2 3 4 5 6 7 8 9 10 11~12 13 14 15 E ID RSVD INER RSVD PHYCR1 PHYCR2 PHYSR RSVD INSR RSVD PAGSR H C E T E 16~17 18 19~23 24 25 26 27~28 29 30 31 RO RW RO RW RW RO RO RO RO RW Reserved. Interrupt Enable Register. Reserved. PHY Specific Control Register 1. PHY Specific Control Register 2. PHY Specific Status Register. Reserved. Interrupt Status Register. Reserved. Page Select Register. 0xa46 20 RW PHYSCR PHY Special Config Register 0xd04 16 RW LCR LED Control Register. G A N A D L Integrated 10/100/1000M Ethernet Precision Transceiver D E IT M I L 0xa42 0xa42 0xa42 0xa43 0xa43 0xa43 0xa43 0xa43 0xa43 0xa43 O G or f T N F N O C L IA Table 21. UTP Register Mapping and Definitions Access Name Description RW BMCR Basic Mode Control Register. RO BMSR Basic Mode Status Register. RO PHYID1 PHY Identifier Register 1. RO PHYID2 PHY Identifier Register 2. RW ANAR Auto-Negotiation Advertising Register. RO ANLPAR Auto-Negotiation Link Partner Ability Register. RO ANER Auto-Negotiation Expansion Register. RW ANNPTR Auto-Negotiation Next Page Transmit Register. RO ANNPRR Auto-Negotiation Next Page Receive Register. RW GBCR 1000Base-T Control Register. RO GBSR 1000Base-T Status Register. RO RSVD Reserved. WO MACR MMD Access Control Register. RW MAADR MMD Access Address Data Register. RO GBESR 1000Base-T Extended Status Register. 37 Track ID: JATR-8275-15 Rev. 1.3 RTL8211FS(I)(-VS) Datasheet Page 0xd04 Offset 17 Access RW Name EEELCR Description EEE LED Control Register. 0xd04 18 RW FLCR Fiber LED Control Register 0xd08 21 RW MIICR MII Control Register 0xd40 22 RW INTBCR INTB Pin Control Register. 0xe40~ 16~23 RW PTP-related registers (RTL8211FS(I)-VS only). 0xe44 Note 1: These UTP IEEE Standard Registers 0 to 15 are valid if MDI is selected as UTP mode. Note 2: To access the IEEE Standard Registers 0 to 15, the Page Select Register (PAGSR, Register 31) should be set as ‘0’ or ‘0xa42’(default value). Note 3: For example, to switch to Page 0xd04, set Register 31 Data=0x0d04 (change to Page 0xd04). After LED setting, switch back to the PHY’s IEEE Standard Registers, i.e. Page 0 or Page 0xa42 (Register 31 Data = 0 or 0xa42). k e t l a e R T N E ID F N O C L IA H C E D E IT M I L T E G A N A D L O G or f Integrated 10/100/1000M Ethernet Precision Transceiver 38 Track ID: JATR-8275-15 Rev. 1.3 RTL8211FS(I)(-VS) Datasheet 8.2. UTP MMD Register Mapping and Definition Device 3 3 3 3 7 7 Offset 0 1 20 22 60 61 Table 22. MMD Register Mapping and Definition Access Name Description RW PC1R PCS Control 1 Register. RW PS1R PCS Status 1 Register. RO EEECR EEE Capability Register. RC EEEWER EEE Wake Error Register. RW EEEAR EEE Advertisement Register. RO EEELPAR EEE Link Partner Ability Register. k e t l a 8.3. Fiber Register Mapping and Definitions Table 23. Fiber Registers Mapping and Definitions Offset Access Name Description 0 RW Fiber BMCR Fiber Basic Mode Control Register. 1 RO Fiber BMSR Fiber Basic Mode Status Register. 2 RO PHYID1 PHY Identifier Register 1. 3 RO PHYID2 PHY Identifier Register 2. 4 RW 1000Base-X ANAR 1000Base-X Auto-Negotiation Advertising Register. 5 RO 1000Base-X ANLPAR 1000Base-X Auto-Negotiation Link Partner Ability Register. 6~14 RO RSVD Reserved. 15 RO Fiber ESR Extended Status Register. Note: These Fiber IEEE Standard Registers are valid if MDI is selected as Fiber mode. e R T N E ID F N O C L IA M I L 8.4. SERDES Registers Mapping and Definitions H C E D E IT Table 24. SERDES Registers Mapping and Definitions Page Offset Access Name Description 0xde1 17 RW SERDES INER SERDES Interrupt Enable Register. 0xde1 18 RO SERDES INSR SERDES Interrupt Status Register. 0xd08 20 RW SGMII ANARSEL SGMII Auto-Negotiation Advertising Register Select. 0xd08 16 RW SGMII ANAR SGMII Auto-Negotiation Advertising Register. 0xdc0 21 RO SGMII ANLPAR SGMII Auto-Negotiation Link Partner Ability Register. Note: These registers are valid if the SGMII MAC mode is selected. T E G A N A D L O G or f Integrated 10/100/1000M Ethernet Precision Transceiver 39 Track ID: JATR-8275-15 Rev. 1.3 RTL8211FS(I)(-VS) Datasheet 8.5. Register Tables 8.5.1. BMCR (Basic Mode Control Register, Address 0x00) Bit 0.15 Name Reset 0.14 Loopback 0.13 Speed[0] 0.12 0.11 Table 25. BMCR (Basic Mode Control Register, Address 0x00) Type Default Description RW, SC 0 Reset. 1: PHY reset 0: Normal operation Register 0 (BMCR) and register 1 (BMSR) will return to default values after a software reset (set Bit 0.15 to 1). This action may change the internal PHY state and the state of the physical link associated with the PHY. RW 0 Loopback Mode. 1: Enable PCS loopback mode 0: Disable PCS loopback mode RW 0 Speed Select Bit 0. In forced mode, i.e., when Auto-Negotiation is disabled, bits 0.6 and 0.13 determine device speed selection. Speed[1] Speed[0] Speed Enabled 1 1 Reserved 1 0 1000Mbps 0 1 100Mbps 0 0 10Mbps RW Isolate 0.9 Restart_AN 0.8 Duplex 0 RW 0 T N Auto-Negotiation Enable. 1: Enable Auto-Negotiation 0: Disable Auto-Negotiation Power Down. 1: Power down (only Management Interface and logic are active; link is down) 0: Normal operation Isolate. 1: RGMII interface is isolated; the serial management interface (MDC, MDIO) is still active. When this bit is asserted, the RTL8211FS(I)(-VS) ignores TXD[3:0], and TXCTL inputs, and presents a high impedance on TXC, RXC, RXCTL, RXD[3:0]. 0: Normal operation Restart Auto-Negotiation. 1: Restart Auto-Negotiation 0: Normal operation Duplex Mode. 1: Full Duplex operation 0: Half Duplex operation This bit is valid only in force mode, i.e., NWay is disabled. H C E D E IT M I L T E G A N RW, SC 0 A D L 0 O G or f RW L IA E ID 1 F N PWD O C 0.10 l a e R ANE k e t RW Integrated 10/100/1000M Ethernet Precision Transceiver 40 Track ID: JATR-8275-15 Rev. 1.3 RTL8211FS(I)(-VS) Datasheet Bit 0.7 Default Description 0 Collision Test. 1: Collision test enabled 0: Normal operation 0.6 Speed[1] RW 1 Speed Select Bit 1. Refer to bit 0.13. 0.5 Uni-directional RW 0 Uni-Directional Enable enable 1: Enable packet transmit without respect to linkok status 0: Packet transmit permitted when link is established 0.4:0 RSVD RO 00000 Reserved. Note 1: Changes to Registers 0.12, 0.13, 0.6, and 0.8 do not take effect unless at least one of the following events occurs: Software reset (0.15) is asserted, Restart_AN (0.9) is asserted, or PWD(0.11) transitions from power-down to normal operation. Note 2: When the RTL8211FS(I)(-VS) is switched from power down to normal operation, a software reset and restart auto-negotiation is performed, even if bits Reset (0.15) and Restart_AN (0.9) are not set by the user. Note 3: Auto-Negotiation is enabled when speed is set to 1000Base-T. Crossover Detection & Auto-Correction takes precedence over Auto-Negotiation disable (0.12=0). If ANE is disabled, speed and duplex capabilities are advertised by 0.13, 0.6, and 0.8. Otherwise, register 4.8:5 and 9.9:8 take effect. Note 4: Auto-Negotiation automatically restarts after hardware or software reset regardless of whether or not the restart bit (0.9) is set. 8.5.2. Bit 1.15 1.14 Name Collision Test Type RW l a e R 1.12 1.11 1.10 L IA T N BMSR (Basic Mode Status Register, Address 0x01) E ID Table 26. BMSR (Basic Mode Status Register, Address 0x01) Name Type Default Description 100Base-T4 RO 0 100Base-T4 Capability. The RTL8211FS(I)(-VS) does not support 100Base-T4 mode. This bit should always be 0. 100Base-TX (full) RO 1 100Base-TX Full Duplex Capability. 1: Device is able to perform 100Base-TX in full duplex mode 0: Device is not able to perform 100Base-TX in full duplex mode 100Base-TX (half) RO 1 100Base-TX Half Duplex Capability. 1: Device is able to perform 100Base-TX in half duplex mode 0: Device is not able to perform 100Base-TX in half duplex mode 10Base-T (full) RO 1 10Base-T Full Duplex Capability. 1: Device is able to perform 10Base-T in full duplex mode. 0: Device is not able to perform 10Base-T in full duplex mode. 10Base-T (half) RO 1 10Base-T Half Duplex Capability. 1: Device is able to perform 10Base-T in half duplex mode 0: Device is not able to perform 10Base-T in half duplex mode 10Base-T2 (full) RO 0 10Base-T2 Full Duplex Capability. The RTL8211FS(I)(-VS) does not support 10Base-T2 mode and this bit should always be 0. 10Base-T2 (half) RO 0 10Base-T2 Half Duplex Capability. The RTL8211FS(I)(-VS) does not support 10Base-T2 mode. This bit should always be 0. F N O C 1.13 k e t H C E D E IT M I L T E G A N A D L O G or f 1.9 Integrated 10/100/1000M Ethernet Precision Transceiver 41 Track ID: JATR-8275-15 Rev. 1.3 RTL8211FS(I)(-VS) Datasheet Bit 1.8 Name 1000Base-T Extended Status Type RO 1.7 Uni-directional ability RO 1.6 Preamble Suppression RO 1.5 Auto-Negotiation Complete RO 1.4 Remote Fault 1.3 1.2 1.1 e R RO Link Status RO Extended Capability RC, LH RO L IA T N E ID F N Jabber Detect O C 1.0 k e t l a RC, LH Auto-Negotiation Ability Default Description 1 1000Base-T Extended Status Register. 1: Device supports Extended Status Register 0x0F (15) 0: Device does not support Extended Status Register 0x0F This register is read-only and is always set to 1. 1 Uni-Directional Ability. 1: PHY able to transmit without linkok 0: PHY not able to transmit without linkok 0 Preamble Suppression Capability. The RTL8211FS(I)(-VS) default would not accept MDC/MDIO transactions with preamble suppressed. 0 Auto-Negotiation Complete. 1: Auto-Negotiation process complete, and contents of Registers 5, 6, 8, and 10 are valid 0: Auto-Negotiation process not complete 0 Remote Fault. 1: Remote fault condition detected (cleared on read or by reset). Indication or notification of remote fault from Link Partner 0: No remote fault condition detected 1 Auto Configured Link. 1: Device is able to perform Auto-Negotiation 0: Device is not able to perform Auto-Negotiation 0 Link Status. 1: Linked 0: Not Linked This register indicates whether the link was lost since the last read. For the current link status, either read this register twice or read Page 0xa43 Reg 26, bit[2] Link (Real Time). 0 Jabber Detect. 1: Jabber condition detected 0: No Jabber occurred 1 1: Extended register capabilities, always 1 D E IT M I L H C 8.5.3. PHYID1 (PHY Identifier Register 1,E Address 0x02) T E G A N A D L O G for Table 27. PHYID1 (PHY Identifier Register 1, Address 0x02) Type Default Description RO 0000000000011100 Organizationally Unique Identifier Bit 3:18. Always 0000000000011100. Note: Realtek OUI is 0x000732. Bit 2.15:0 Name OUI_MSB Integrated 10/100/1000M Ethernet Precision Transceiver 42 Track ID: JATR-8275-15 Rev. 1.3 RTL8211FS(I)(-VS) Datasheet 8.5.4. Bit 3.15:10 3.9:4 3.3:0 8.5.5. PHYID2 (PHY Identifier Register 2, Address 0x03) Table 28. PHYID2 (PHY Identifier Register 2, Address 0x03) Type Default Description RO 110010 Organizationally Unique Identifier Bit 19:24. Always 110010. Model Number RO 010001 Manufacture’s Model Number Revision Number RO 0110 Revision Number Name OUI_LSB k e t ANAR (Auto-Negotiation Advertising Register, Address 0x04) Table 29. ANAR (Auto-Negotiation Advertising Register, Address 0x04) Bit Name Type Default Description 4.15 NextPage RW 0 1: Additional next pages exchange desired 0: No additional next pages exchange desired 4.14 RSVD RO 0 Reserved. 4.13 Remote Fault RW 0 1: Set Remote Fault bit 0: No remote fault detected 4.12 RSVD RO 0 Reserved. 4.11 Asymmetric PAUSE RW 0 1: Advertise support of asymmetric pause 0: No support of asymmetric pause 4.10 PAUSE RW 0 1: Advertise support of pause frames 0: No support of pause frames 4.9 100Base-T4 RO 0 1: 100Base-T4 support 0: 100Base-T4 not supported 4.8 100Base-TX (Full) RW 1 1: Advertise support of 100Base-TX full-duplex mode 0: Not advertised 4.7 100Base-TX (Half) RW 1 1: Advertise support of 100Base-TX half-duplex mode 0: Not advertised 4.6 10Base-T (Full) RW 1 1: Advertise support of 10Base-TX full-duplex mode 0: Not advertised 4.5 10Base-T (Half) RW 1 1: Advertise support of 10Base-TX half-duplex mode 0: Not advertised 4.4:0 Selector Field RO 00001 Indicates the RTL8211FS(I)(-VS) supports IEEE 802.3 Note 1: The setting of Register 4 has no effect unless NWay is restarted or the link goes down, i.e., software reset (0.15) is asserted, Restart_AN (0.9) is asserted, or PWD (0.11) transitions from power down to normal operation. Note 2: If 1000Base-T is advertised, then the required next pages are automatically transmitted. Register 4.15 should be set to 0 if no additional next pages are needed. l a e R T N E ID F N O C L IA H C E D E IT M I L T E G A N A D L O G or f Integrated 10/100/1000M Ethernet Precision Transceiver 43 Track ID: JATR-8275-15 Rev. 1.3 RTL8211FS(I)(-VS) Datasheet 8.5.6. Bit 5.15 5.14 5.13 5.12 5.11:5 5.4:0 ANLPAR (Auto-Negotiation Link Partner Ability Register, Address 0x05) Table 30. ANLPAR (Auto-Negotiation Link Partner Ability Register, Address 0x05) Name Type Default Description Next Page RO 0 Next Page Indication. Received Code Word Bit 15. ACK RO 0 Acknowledge. Received Code Word Bit 14. Remote Fault RO 0 Remote Fault indicated by Link Partner. Received Code Word Bit 13. RSVD RO 0 Reserved. Technology Ability Field RO 00000000 Received Code Word Bit 12:5. Selector Field RO 00000 Received Code Word Bit 4:0. k e t l a Note: Register 5 is not valid until the Auto-Negotiation complete bit 1.5 indicates completed. 8.5.7. e R L IA ANER (Auto-Negotiation Expansion Register, Address 0x06) T N Table 31. ANER (Auto-Negotiation Expansion Register, Address 0x06) Bit Name Type Default Description 6.15:7 RSVD RO 0x000 Reserved. 6.6 RX NP location ability RO 1 Received next page storage location ability. 1: Received next page storage location is specified by bit 6.5 0: Received next page storage location is not specified by bit 6.5 6.5 RX NP location RO 1 Received next page storage location. 1: Link partner next pages are stored in Register 8 0: Link partner next pages are stored in Register 5 6.4 Parallel Detection Fault RC, LH 0 1: A fault has been detected via the Parallel Detection function 0: A fault has not been detected via the Parallel Detection function 6.3 Link Partner Next Page Able RO 0 1: Link Partner supports Next Page exchange 0: Link Partner does not support Next Page exchange 6.2 Local Next Page Able RO 1 1: Local Device is able to send Next Page Always 1. 6.1 Page Received RC, LH 0 1: A New Page (new LCW) has been received 0: A New Page has not been received 6.0 Link Partner RO 0 1: Link Partner supports Auto-Negotiation Auto-Negotiation capable 0: Link Partner does not support Auto-Negotiation Note: Register 6 is not valid until the Auto-Negotiation complete bit 1.5 indicates completed. E ID F N O C H C E D E IT M I L T E G A N A D L O G or f Integrated 10/100/1000M Ethernet Precision Transceiver 44 Track ID: JATR-8275-15 Rev. 1.3 RTL8211FS(I)(-VS) Datasheet 8.5.8. Bit 7.15 7.14 7.13 7.12 7.11 7.10:0 8.5.9. ANNPTR (Auto-Negotiation Next Page Transmit Register, Address 0x07) Table 32. ANNPTR (Auto-Negotiation Next Page Transmit Register, Address 0x07) Name Type Default Description Next Page RW 0 Next Page Indication. 0: No more next pages to send 1: More next pages to send Transmit Code Word Bit 15. RSVD RO 0 Transmit Code Word Bit 14. Message Page RW 1 Message Page. 0: Unformatted Page 1: Message Page Transmit Code Word Bit 13. Acknowledge 2 RW 0 Acknowledge2. 0: Local device has no ability to comply with the message received 1: Local device has the ability to comply with the message received Transmit Code Word Bit 12. Toggle RO 0 Toggle Bit. Transmit Code Word Bit 11. Message/Unformatted Field RW 0x001 Content of Message/Unformatted Page. Transmit Code Word Bit 10:0. k e t l a e R L IA T N E ID F N D E IT ANNPRR (Auto-Negotiation Next Page Receive Register, Address 0x08) O C M I L Table 33. ANNPRR (Auto-Negotiation Next Page Receive Register, Address 0x08) Bit Name Type Default Description 8.15 Next Page RO 0 Received Link Code Word Bit 15. 8.14 Acknowledge RO 0 Received Link Code Word Bit 14. 8.13 Message Page RO 0 Received Link Code Word Bit 13. 8.12 Acknowledge 2 RO 0 Received Link Code Word Bit 12. 8.11 Toggle RO 0 Received Link Code Word Bit 11. 8.10:0 Message/Unformatted Field RO 0x00 Received Link Code Word Bit 10:0. Note: Register 8 is not valid until the Auto-Negotiation complete bit 1.5 indicates completed. H C E T E G A N A D L O G or f Integrated 10/100/1000M Ethernet Precision Transceiver 45 Track ID: JATR-8275-15 Rev. 1.3 RTL8211FS(I)(-VS) Datasheet 8.5.10. GBCR (1000Base-T Control Register, Address 0x09) Table 34. GBCR (1000Base-T Control Register, Address 0x09) Type Default Description RW 0 Test Mode Select. 000: Normal Mode 001: Test Mode 1 – Transmit Jitter Test 010: Test Mode 2 – Transmit Jitter Test (MASTER mode) 011: Test Mode 3 – Transmit Jitter Test (SLAVE mode) 100: Test Mode 4 – Transmit Distortion Test 101, 110, 111: Reserved 9.12 MASTER/SLAVE Manual RW 0 Enable Manual Master/Slave Configuration. Configuration Enable 1: Manual MASTER/SLAVE configuration 0: Automatic MASTER/SLAVE 9.11 MASTER/SLAVE RW 0 Advertise Master/Slave Configuration Value. Configuration Value 1: Manual configure as MASTER 0: Manual configure as SLAVE 9.10 Port Type RW 0 Advertise Device Type Preference. 1: Prefer multi-port device (MASTER) 0: Prefer single port device (SLAVE) 9.9 1000Base-T Full Duplex RW 1 Advertise 1000Base-T Full-Duplex Capability. 1: Advertise 0: Do not advertise 9.8 RSVD RW 0 Reserved. 9.7:0 RSVD RO 0 Reserved. Note 1: Values set in register 9.12:9 have no effect unless Auto-Negotiation is restarted (Reg 0.9) or the link goes down. Note 2: Bits 9.11 and 9.10 are ignored when bit 9.12=0. Bit 9.15:13 Name Test Mode k e t l a e R T N E ID F N O C L IA M I L 8.5.11. GBSR (1000Base-T Status Register, Address 0x0A) Bit 10.15 10.14 10.13 D E IT Table 35. GBSR (1000Base-T Status Register, Address 0x0A) Name Type Default Description MASTER/SLAVE RO, RC, 0 Master/Slave Manual Configuration Fault Detected. Configuration Fault LH 1: MASTER/SLAVE configuration fault detected 0: No MASTER/SLAVE configuration fault detected MASTER/SLAVE RO 0 Master/Slave Configuration Result. Configuration Resolution 1: Local PHY configuration resolved to MASTER 0: Local PHY configuration resolved to SLAVE Local Receiver Status RO 0 Local Receiver Status. 1: Local Receiver OK 0: Local Receiver Not OK Remote Receiver Status RO 0 Remote Receiver Status. 1: Remote Receiver OK 0: Remote Receiver Not OK H C E T E G A N A D L O G or f 10.12 Integrated 10/100/1000M Ethernet Precision Transceiver 46 Track ID: JATR-8275-15 Rev. 1.3 RTL8211FS(I)(-VS) Datasheet Bit 10.11 Name Link Partner 1000Base-T Full Duplex Capability Type RO Default 0 Description Link Partner 1000Base-T Full Duplex Capability. 1: Link Partner is capable of 1000Base-T full duplex 0: Link Partner is not capable of 1000Base-T full duplex 10.10 Link Partner 1000Base-T RO 0 Link Partner 1000Base-T Half Duplex Capability. Half Duplex Capability 1: Link Partner is capable of 1000Base-T half duplex 0: Link Partner is not capable of 1000Base-T half duplex 10.9:8 RSVD RO 00 Reserved. 10.7:0 Idle Error Count RO, RC 0x00 MSB of Idle Error Counter. The counter stops automatically when it reaches 0xff. Note 1: Values set in register 10.11:10 are not valid until register 6.1 is set to 1. Note 2: Register 10 is not valid until the Auto-Negotiation complete bit 1.5 indicates completed. k e t l a 8.5.12. MACR (MMD Access Control Register, Address 0x0D) L IA Table 36. MACR (MMD Access Control Register, Address 0x0D) Bit Name Type Default Description 13.15:14 Function WO 0 00: Address 01: Data with no post increment 10: Data with post increment on reads and writes 11: Data with post increment on writes only 13.13:5 RSVD RO 000000000 Reserved. 13.4:0 DEVAD WO 0 Device Address. Note 1: This register is used in conjunction with the MAADR (Register 14) to provide access to the MMD address space. Note 2: If the MAADR accesses for address (Function=00), then it is directed to the address register within the MMD associated with the value in the DEVAD field. Note 3: If the MAADR accesses for data (Function≠00), both the DEVAD field and MMD’s address register direct the MAADR data accesses to the appropriate registers within the MMD. e R E ID F N O C T N D E IT M I 8.5.13. MAADR (MMD Access Address Data Register,L Address 0x0E) H C E T E G A N A D L O G for Table 37. MAADR (MMD Access Address Data Register, Address 0x0E) Bit Name Type Default Description 14.15:0 Address Data RW 0x0000 13.15:14 = 00 Æ MMD DEVAD’s address register 13.15:14 = 01, 10, or 11 Æ MMD DEVAD’s data register as indicated by the contents of its address register Note: This register is used in conjunction with the MACR (Register 13; Table 36) to provide access to the MMD address space. Integrated 10/100/1000M Ethernet Precision Transceiver 47 Track ID: JATR-8275-15 Rev. 1.3 RTL8211FS(I)(-VS) Datasheet 8.5.14. GBESR (1000Base-T Extended Status Register, Address 0x0F) Bit 15.15 15.14 15.13 15.12 15.11:0 Table 38. GBESR (1000Base-T Extended Status Register, Address 0x0F) Name Type Default Description 1000Base-X FD RO 0 0: Not 1000Base-X full duplex capable 1000Base-X HD RO 0 0: Not 1000Base-X half duplex capable 1000Base-T FD RO 1 1: 1000Base-T full duplex capable 1000Base-T HD RO 0 1: 1000Base-T half duplex capable RSVD RO 0x000 Reserved. k e t l a e R T N E ID F N O C L IA H C E D E IT M I L T E G A N A D L O G or f Integrated 10/100/1000M Ethernet Precision Transceiver 48 Track ID: JATR-8275-15 Rev. 1.3 RTL8211FS(I)(-VS) Datasheet 8.5.15. INER (Interrupt Enable Register, Page 0xa42, Address 0x12) Table 39. INER (Interrupt Enable Register, Page 0xa42, Address 0x12) Bit Name Type Default Description 18.15:11 RSVD RW 00000 Reserved. 18.10 Jabber Interrupt RW 0 1: Interrupt Enable 0: Interrupt Disable Setting this bit to 0 only disables the jabber interrupt event in the INTB pin. Page 0xa43, Reg29 Bit[10] always reflects the jabber interrupt behavior. 18.9 ALDPS State Change Interrupt RW 0 1: Interrupt Enable 0: Interrupt Disable Setting this bit to 0 only disables the ALDPS state change interrupt event in the INTB pin. Page 0xa43, Reg29 Bit[9] always reflects the ALDPS state change interrupt behavior. 18.8 RSVD RW 0 Reserved. 18.7 PME (Power Management Event RW 0 1: Interrupt Enable 0: Interrupt Disable of WOL) Setting this bit to 0 only disables the PME interrupt event in the INTB pin. Page 0xa43, Reg29 Bit[7] always reflects the PME interrupt behavior. 18.6 RSVD RW 0 Reserved. 18.5 PHY Register Accessible Interrupt RW 1 1: Interrupt Enable 0: Interrupt Disable Setting this bit to 0 only disables the PHY register access interrupt event in the INTB pin. Page 0xa43, Reg29 Bit[5] always reflects the PHY register access interrupt behavior. 18.4 Link Status Change Interrupt RW 0 1: Interrupt Enable 0: Interrupt Disable Setting this bit to 0 only disables the link status change interrupt event in the INTB pin. Page 0xa43, Reg29 Bit[4] always reflects the link change interrupt behavior. 18.3 Auto-Negotiation Completed RW 0 1: Interrupt Enable 0: Interrupt Disable Interrupt Setting this bit to 0 only disables the auto-negotiation completed interrupt event in the INTB pin. Page 0xa43, Reg29 Bit[3] always reflects the auto-negotiation completed interrupt behavior. 18.2 Page Received Interrupt RW 0 1: Interrupt Enable 0: Interrupt Disable Setting this bit to 0 only disables the page received interrupt event in the INTB pin. Page 0xa43, Reg29 Bit[2] always reflects the page received interrupt behavior. 18.1 RSVD RW 0 Reserved. k e t l a e R T N E ID F N O C L IA H C E D E IT M I L T E G A N A D L O G or f Integrated 10/100/1000M Ethernet Precision Transceiver 49 Track ID: JATR-8275-15 Rev. 1.3 RTL8211FS(I)(-VS) Datasheet Bit 18.0 Name Auto-Negotiation Error Interrupt Type RW Default 0 Description 1: Interrupt Enable 0: Interrupt Disable Setting this bit to 0 only disables the auto-negotiation error interrupt event in the INTB pin. Page 0xa43, Reg29 Bit[0] always reflects the auto-negotiation error interrupt behavior. k e t 8.5.16. PHYCR1 (PHY Specific Control Register 1, Page 0xa43, Address 0x18) Table 40. PHYCR1 (PHY Specific Control Register 1, Page 0xa43, Address 0x18) Name Type Default Description RSVD RO 00 Reserved. PHYAD_0 Enable RW 1 1: A broadcast from MAC (A command with PHY address = 0) is valid. MDC/MDIO will respond to this command. 24.12 ALDPS XTAL-OFF Enable RW 0 1: Enable XTAL off when in ALDPS mode (valid when Bit 24.2 = 1) 24.11:10 RSVD RO 00 Reserved. 24.9 MDI Mode Manual Configuration RW 0 1: Enable Manual Configuration of MDI mode Enable 24.8 MDI Mode RW 1 Set the MDI/MDIX mode. 1: MDI 0: MDIX This bit will take effect only when Bit 24.9 = 1. 24.7 TX CRS Enable RW 0 1: Assert CRS on transmit 0: Never assert CRS on transmit 24.6 PHYAD Non-zero Detect RW 0 1: The RTL8211FS(I)(-VS) with PHYAD[2:0] = 000 will latch the first non-zero PHY address as its own PHY address 24.5 RSVD RO 0 Reserved. 24.4 Preamble Check Enable RW 1 1: Check preamble when receiving an MDC/MDIO command 24.3 Jabber Detection Enable RW 1 1: Enable Jabber Detection 24.2 ALDPS Enable RO 0 1: Enable Link Down Power Saving Mode 24.1 ALDPS PLL-OFF Enable RW 0 1: Enable PLL off when in ALDPS mode (valid when Bit 24.2= 1) 24.0 RSVD RO 0 Reserved. Note: The method to disable auto-crossover and force MDI or MDIX mode is as follows: Step 1: Set Bit 24.9=1 (Manual Configuration of MDI mode) and set Bit24.8=1 (MDI) or 0 (MDIX). Step 2: Perform a PHY reset, i.e., set Page 0, Reg0 bit[15]=1. l a Bit 24.15:14 24.13 e R T N E ID F N O C L IA H C E D E IT M I L T E G A N A D L O G or f Integrated 10/100/1000M Ethernet Precision Transceiver 50 Track ID: JATR-8275-15 Rev. 1.3 RTL8211FS(I)(-VS) Datasheet 8.5.17. PHYCR2 (PHY Specific Control Register 2, Page 0xa43, Address 0x19) Bit 25.15:14 25.13:12 25.11 25.10:8 25.7 25.6 25.5 25.4 25.3 25.2 25.1 25.0 Table 41. PHYCR2 (PHY Specific Control Register 2, Page 0xa43, Address 0x19) Name Type Default Description RSVD RO 00 Reserved. CLKOUT Source RW 00 Source select of the CLKOUT pin clock output. 00: Free run clock generated from internal PLL. 01: UTP recovery receive clock for Sync Ethernet. (Valid only if in UTP mode) 10: Fiber recovery receive clock for Sync Ethernet. (Valid only if in FIBER mode) 11: PTP synchronized clock output. Note: Issue a Software Reset (0.15) in order to allow the setting to take effect. CLKOUT Frequency Select RW 1 Frequency select of the CLKOUT pin clock output. 0: 25MHz 1: 125MHz RSVD RO 000 Reserved. CLKOUT SSC Enable RW 0 1: Enable Spread-Spectrum Clocking (SSC) on CLKOUT output clock. RSVD RO 1 Reserved. PHY-mode EEE Enable RW 1 1: Enable EEE in PHY mode. RSVD RO 0 Reserved. RXC SSC Enable RW 0 1: Enable Spread-Spectrum Clocking (SSC) on RXC clock output. RSVD RO 0 Reserved. RXC Enable RW 1 1: RXC clock output enabled. CLKOUT Enable RW 1 1: CLKOUT clock output enabled. k e t l a e R T N E ID F N O C L IA D E IT M I L 8.5.18. PHYSR (PHY Specific Status Register, Page 0xa43, Address 0x1A) Bit 26.15 26.14 26.13 H C E Table 42. PHYSR (PHY Specific Status Register, Page 0xa43, Address 0x1A) Name Type Default Description RSVD RO 0 Reserved. ALDPS State RO 0 Link Down Power Saving Mode. 1: Reflects local device entered Link Down Power Saving Mode, i.e., cable not plugged in (reflected after 3 sec). 0: With cable plugged in MDI Plug RO 0 MDI Status. 1: Plugged 0: Unplugged NWay Enable RO 1 Auto-Negotiation (NWay) Status. 1: Enable 0: Disable Master Mode RO 0 Device is in Master/Slave Mode. 1: Master mode 0: Slave mode RSVD RO 00 Reserved. T E G A N A D L O G or 26.12 f 26.11 26.10:9 Integrated 10/100/1000M Ethernet Precision Transceiver 51 Track ID: JATR-8275-15 Rev. 1.3 RTL8211FS(I)(-VS) Datasheet Bit 26.8 26.7 Name EEE capability Rxflow Enable Type RO RO Default Description 0 1: Both local and link-partner have EEE capability of current speed 0 Rx Flow Control. 1: Enable 0: Disable 26.6 Txflow Enable RO 0 Tx Flow Control. 1: Enable 0: Disable 26.5:4 Speed RO 00 Link Speed. 11: Reserved 10: 1000Mbps 01: 100Mbps 00: 10Mbps 26.3 Duplex RO 0 Full/Half Duplex Mode. 1: Full duplex 0: Half duplex 26.2 Link (Real Time) RO 0 Real Time Link Status. 1: Link OK 0: Link not OK 26.1 MDI Crossover RO 1 MDI/MDI Crossover Status. Status 1: MDI 0: MDI Crossover 26.0 Jabber (Real Time) RO 0 Real Time Jabber Indication. 1: Jabber Indication 0: No Jabber Indication Note 1: Bit 26.11 is valid only when in Giga mode. Note 2: Bit 26.8 asserts at 10M speed when local device is EEE capable. k e t l a e R L IA T N 8.5.19. INSR (Interrupt Status Register, Page 0xa43, Address 0x1D) Bit 29.15:11 29.10 29.9 F N O C 29.8 29.7 E ID Table 43. INSR (Interrupt Status Register, Page 0xa43, Address 0x1D) Name Type Default Description RSVD RO, RC 00000 Reserved. Jabber RO, RC 0 1: Jabber detected 0: No jabber detected ALDPS State Change RO, RC 0 1: ALDPS state changed 0: ALDPS state not changed RSVD RO, RC 0 Reserved. PME (Power Management RO, RC 0 1: WOL event occurred 0: WOL event did not occur Event of WOL) 29.6 29.5 RSVD PHY Register Accessible RO, RC RO, RC 0 0 29.4 29.3 Link Status Change RO, RC Auto-Negotiation Completed RO, RC 0 0 29.2 Page Received 29.1 29.0 RSVD Auto-Negotiation Error G r fo OL RO, RC 0 RO, RC RO, RC 0 0 Integrated 10/100/1000M Ethernet Precision Transceiver M I L Reserved. 1: Can access PHY Register through MDC/MDIO 0: Cannot access PHY Register through MDC/MDIO 1: Link status changed 0: Link status not changed 1: Auto-Negotiation completed 0: Auto-Negotiation not completed 1: Page (a new LCW) received 0: Page not received Reserved. 1: Auto-Negotiation Error 0: No Auto-Negotiation Error T E G A N DA H C E D E IT 52 Track ID: JATR-8275-15 Rev. 1.3 RTL8211FS(I)(-VS) Datasheet 8.5.20. PAGSR (Page Select Register, Page 0xa43, Address 0x1F) Bit 31.15:12 31.11:0 Table 44. PAGSR (Page Select Register, Page 0xa43, Address 0x1F) Name Type Default Description RSVD RW 0 Reserved. PageSel RW 0xa42 Page Select (in HEX). 0xa42: Page 0xa42 (default page) k e t 8.5.21. PHYSCR (PHY Special Config Register, Page 0xa46, Address 0x14) Bit 20.15:2 20.1 20.0 l a Table 45. PHYSCR (PHY Special Config Register, Page 0xa46, Address 0x14) Name Type Default Description RSVD RO 0 Reserved. PHY Special Config RW 0 1: Write 1 to indicate the special PHY parameter configuration Done has been done. RSVD RO 0 Reserved. e R L IA T N 8.5.22. LCR (LED Control Register, Page 0xd04, Address 0x10) Bit 16.15 16.14 16.13 16.12 16.11 16.10 16.9 16.8 16.7 16.6 16.5 16.4 16.3 16.2 16.1 16.0 E ID Table 46. LCR (LED Control Register, Page 0xd04, Address 0x10) Name Type Default Description RSVD RO 0 Reserved. LED2_ACT RW 1 LED2 Active (Transmitting or Receiving) Indication LED2_LINK_1000 RW 1 LED2 Link Indication: 1000Mbps RSVD RO 0 Reserved. LED2_LINK_100 RW 0 LED2 Link Indication: 100Mbps LED2_LINK_10 RW 0 LED2 Link Indication: 10Mbps LED1_ACT RW 1 LED1 Active (Transmitting or Receiving) Indication LED1_LINK_1000 RW 0 LED1 Link Indication: 1000Mbps RSVD RO 0 Reserved. LED1_LINK_100 RW 1 LED1 Link Indication: 100Mbps LED1_LINK_10 RW 0 LED1 Link Indication: 10Mbps LED0_ACT RW 1 LED0 Active (Transmitting or Receiving) Indication LED0_LINK_1000 RW 0 LED0 Link Indication: 1000Mbps RSVD RO 0 Reserved. LED0_LINK_100 RW 0 LED0 Link Indication: 100Mbps LED0_LINK_10 RW 1 LED0 Link Indication: 10Mbps F N O C H C E D E IT M I L T E G A N A D L O G or f Integrated 10/100/1000M Ethernet Precision Transceiver 53 Track ID: JATR-8275-15 Rev. 1.3 RTL8211FS(I)(-VS) Datasheet 8.5.23. EEELCR (EEE LED Control Register, Page 0xd04, Address 0x11) Bit 17.15:4 17.3 17.2 17.1 17.0 Table 47. EEELCR (EEE LED Control Register, Page 0xd04, Address 0x11) Name Type Default Description RSVD RO 0 Reserved. LED2 EEE Enable RW 1 1: Enable EEE LED indication of LED2. LED1 EEE Enable RW 1 1: Enable EEE LED indication of LED1. LED0 EEE Enable RW 1 1: Enable EEE LED indication of LED0. RSVD RO 0 Reserved. k e t 8.5.24. FLCR (Fiber LED Control Register, Page 0xd04, Address 0x12) Bit 18.15 18.14 18.13 18.12 18.11 18.10 l a Table 48. FLCR (Fiber LED Control Register, Page 0xd04, Address 0x12) Name Type Default Description LED2 Common Mode RW 0 1: Enable LED2 common mode. LED2 Media Select RW 0 Media selection of LED2. 0: UTP 1: SERDES Valid if LED2 Common Mode = 0 LED1 Common Mode RW 0 1: Enable LED1 common mode. LED1 Media Select RW 0 Media selection of LED1. 0: UTP 1: SERDES Valid if LED1 Common Mode = 0 LED0 Common Mode RW 0 1: Enable LED0 common mode. LED0 Media Select RW 0 Media selection of LED0. 0: UTP 1: SERDES Valid if LED0 Common Mode = 0 RSVD RO 0 Reserved. e R T N E ID F N O C 18.9:0 L IA H C E D E IT M I L 8.5.25. MIICR (MII Control Register, Page 0xd08, Address 0x15) Bit 21.15:7 21.6 21.5:0 T E Table 49. MIICR (MII Control Register, Page 0xd08, Address 0x15) Name Type Default Description RSVD RO 0 Reserved. RGMII In-band CRS RW 1 1: Enable in-band CRS Status in RGMII Rx flow. Enable RSVD RO 0 Reserved. G A N A D L O G or f Integrated 10/100/1000M Ethernet Precision Transceiver 54 Track ID: JATR-8275-15 Rev. 1.3 RTL8211FS(I)(-VS) Datasheet 8.5.26. INTBCR (INTB Pin Control Register, Page 0xd40, Address 0x16) Table 50. INTBCR (INTB Pin Control Register, Page 0xd40, Address 0x16) Name Type Default Description RSVD RO 0 Reserved. INTB/PMEB Selection RW 0 Pin 34 of the RTL8211FS(I)(-VS) functions as: 1: PMEB 0: INTB RSVD RO 0 Reserved. INTB/PTP_GPIO_1 Sel RW 000 3’b101: Pin 34 of the RTL8211FS(I)(-VS) functions as PTP GPIO_1. Other values: Reserved. Note: This configuration has higher priority than the INTB/PMEB function. Bit 22.15:6 22.5 22.4:3 22.2:0 k e t l a L IA 8.5.27. PTP_CTL (PTP Control Register, Page 0xe40, Address 0x10) e R *Note: This register applies to the RTL8211FS(I)-VS only. Bit 16.15:13 16.12 16.11 Table 51. PTP_CTL (PTP Control Register, Page 0xe40, Address 0x10) Name Type Default Description RSVD RO 000 Reserved. UDP_CHKSUM Update RW 0 Enable auto-correction of UDP Checksum if One-Step Timestamp Insertion is enabled. Only effective to IPv6/UDP packets. 0: Set 0x0000 to the UDP Checksum field 1: Re-compute the UDP Checksum P_DRFU_2STEP_INS RW 0 Enable Hardware-assisted Timestamp Insertion to Enable PDelaly_Resp_Follow_Up messages. P_DR_2STEP_INS RW 0 Enable Hardware-assisted Timestamp Insertion to Enable PDelay_Resp messages. DR_2STEP_INS Enable RW 0 Enable Hardware-assisted Timestamp Insertion to Delay_Resp messages. FU_2STEP_INS Enable RW 0 Enable Hardware-assisted Timestamp Insertion to Follow_Up messages. P_DR_1STEP Enable RW 0 Enable One-Step Timestamp Insertion (t3-t2) to Pdelay_Response messages. SYNC_1STEP Enable RW 0 Enable One-Step Timestamp Insertion (t1) to Sync messages. AVB_802.1AS Support RW 1 1: AVB 802.1AS standard support. PTPv2_Layer2 Support RW 1 1: PTPv2 Layer 2 packets support. PTPv2_UDPIPV4 RW 1 1: PTPv2 UDP/IPv4 packets support. Support PTPv2_UDPIPV6 RW 1 1: PTPv2 UDP/IPv6 packets support. Support PTPv1 Support RW 1 1: PTPv1 packets support. 16.9 16.8 16.7 16.6 16.5 16.4 16.3 E ID F N O C 16.10 T N H C E D E IT M I L T E G A N A D L O G or f 16.2 16.1 Integrated 10/100/1000M Ethernet Precision Transceiver 55 Track ID: JATR-8275-15 Rev. 1.3 RTL8211FS(I)(-VS) Datasheet Bit 16.0 Name PTP_Enable Type RW Default Description 1 PTP function enable Note: Issue a Software Reset (0.15) after setting this bit in order to enable/disable PTP function. 8.5.28. PTP_INER (PTP Interrupt Enable Register, Page 0xe40, Address 0x11) k e t *Note: This register applies to the RTL8211FS(I)-VS only. Bit 17.15:4 17.3 17.2 17.1 17.0 Table 52. PTP_INER (PTP Interrupt Enable Register, Page 0xe40, Address 0x11) Name Type Default Description RSVD RO 0x000 Reserved. Tx Timestamp Interrupt RW 0 1: Interrupt Enable 0: Interrupt Disable Transmit Timestamp ready interrupt. Rx Timestamp Interrupt RW 0 1: Interrupt Enable 0: Interrupt Disable Receive Timestamp ready interrupt. TrigGen Interrupt RW 0 1: Interrupt Enable 0: Interrupt Disable Trigger Generate complete interrupt. EventCap Interrupt RW 0 1: Interrupt Enable 0: Interrupt Disable Event Capture timestamp ready interrupt. l a e R L IA T N E ID 8.5.29. PTP_INSR (PTP Interrupt Status Register, Page 0xe40, Address 0x12) F N *Note: This register applies to the RTL8211FS(I)-VS only. O C Bit 18.15:4 18.3 18.2 18.1 18.0 D E IT Table 53. PTP_INSR (PTP Interrupt Status Register, Page 0xe40, Address 0x12) Name Type Default Description RSVD RO 0x000 Reserved. Tx Timestamp Interrupt RO, RC 0 1: Transmit Timestamp ready interrupt detected. Rx Timestamp Interrupt RO, RC 0 1: Receive Timestamp ready interrupt detected. TrigGen Interrupt RO, RC 0 1: Trigger Generate complete interrupt detected. EventCap Interrupt RO, RC 0 1: Event Capture timestamp ready interrupt detected. H C E M I L T E G A N A D L O G or f Integrated 10/100/1000M Ethernet Precision Transceiver 56 Track ID: JATR-8275-15 Rev. 1.3 RTL8211FS(I)(-VS) Datasheet 8.5.30. SYNCE_CTL (Sync-E Control Register, Page 0xe40, Address 0x13) *Note: This register applies to the RTL8211FS(I)-VS only. Bit 19.15:1 19.0 Table 54. SYNCE_CTL (Sync-E Control Register, Page 0xe40, Address 0x13) Name Type Default Description RSVD RO 0 Reserved. SyncE Enable RW 0 Sync-E function Enable. Note: Issue a Software Reset (0.15) after setting this bit in order to enable/disable Sync-E function. k e t 8.5.31. PTP_CLK_CFG (PTP Clock Config Register, Page 0xe41, Address 0x10) l a *Note: This register applies to the RTL8211FS(I)-VS only. Bit 16.15:7 16.6:5 16.4 e R T N E ID F N O C 16.3:1 L IA Table 55. PTP_CLK_CFG (PTP Clock Config Register, Page 0xe41, Address 0x10) Name Type Default Description RSVD RO 0 Reserved. ptp_clkin_freq_sel RW 0 PTP CLKIN Frequency Select. 00: 125MHz 01: 25MHz 10: 10MHz 11: Reserved Note: Issue a Software Reset (0.15) in order to allow the setting to take effect. ptp_clkin_en RW 0 PTP CLKIN function at GPIO 0 enable Note: Issue a Software Reset (0.15) in order to allow the setting to take effect. ptp_clkadj_mod RW 0 PTP Clock Adjustment Mode Select. 000: No function 001: Reserved - Issue Direct Read/Write to PTP_Local_Time through PTP_Time_Config registers 010: Direct Read 011: Direct Write - Issue Step Adjustment to PTP_Local_Time through PTP_Time_Config registers 100: Increment Step 101: Decrement Step - Issue Rate Adjustment Read/Write to PTP_Rate_Adj_Amt through PTP_Time_Config_ns registers [24:0]. A 2’s complement representation should be used if a negative rate adjustment is needed. 110: Rate Read 111: Rate Write H C E D E IT M I L T E G A N A D L O G or f Integrated 10/100/1000M Ethernet Precision Transceiver 57 Track ID: JATR-8275-15 Rev. 1.3 RTL8211FS(I)(-VS) Datasheet Bit 16.0 Name ptp_clkadj_mod_set Type RW, SC Default Description 0 PTP Clock Adjustment Mode Set. 1: Activate the selected clock adjustment mode as related parameters are properly inserted. 8.5.32. PTP_CFG_NS_LO (PTP Time Config Nano-Sec Low Register, Page 0xe41, Address 0x11) k e t *Note: This register applies to the RTL8211FS(I)-VS only. Table 56. PTP_CFG_NS_LO (PTP Time Config Nano-Sec Low Register, Page 0xe41, Address 0x11) Bit Name Type Default Description 17.15:0 PTP_Time_Config_ns[15:0] RW 0x0000 Time configuration nano-sec field [15:0] / Rate adjustment multiplier field [15:0] A 2’s complement representation should be used if a negative rate adjustment is needed. l a e R L IA 8.5.33. PTP_CFG_NS_HI (PTP Time Config Nano-Sec High Register, Page 0xe41, Address 0x12) *Note: This register applies to the RTL8211FS(I)-VS only. E ID T N Table 57. PTP_CFG_NS_HI (PTP Time Config Nano-Sec High Register, Page 0xe41, Address 0x12) Bit Name Type Default Description 18.15:14 RSVD RO 00 Reserved. 18.13:0 PTP_Time_Config_ns[29:16] RW 0 Time configuration nano-sec field_ns [29:16]/ Rate adjustment multiplier field [24:16]; [24]: Rate adjustment Sign bit (1: higher rate; 0: lower rate); [29:25]: No effect when write, Reflect Sign Extension result when read. A 2’s complement representation should be used if a negative rate adjustment is needed. F N O C D E IT M I L H C 8.5.34. PTP_CFG_S_LO (PTP Time ConfigE Sec Low Register, Page 0xe41, T Address 0x13) E G A N A D L O G for *Note: This register applies to the RTL8211FS(I)-VS only. Table 58. PTP_CFG_S_LO (PTP Time Config Sec Low Register, Page 0xe41, Address 0x13) Bit Name Type Default Description 19.15:0 PTP_Time_Config_s[15:0] RW 0x0000 Time configuration sec field [15:0]. Integrated 10/100/1000M Ethernet Precision Transceiver 58 Track ID: JATR-8275-15 Rev. 1.3 RTL8211FS(I)(-VS) Datasheet 8.5.35. PTP_CFG_S_MI (PTP Time Config Sec Mid Register, Page 0xe41, Address 0x14) *Note: This register applies to the RTL8211FS(I)-VS only. Table 59. PTP_CFG_S_MI (PTP Time Config Sec Mid Register, Page 0xe41, Address 0x14) Bit Name Type Default Description 20.15:0 PTP_Time_Config_s[31:16] RW 0x0000 Time configuration sec field [31:16]. k e t 8.5.36. PTP_ CFG_S_HI (PTP Time Config Sec High Register, Page 0xe41, Address 0x15) *Note: This register applies to the RTL8211FS(I)-VS only. Bit 21.15:0 l a Table 60. PTP_S_HI (PTP Time Config Sec High Register, Page 0xe41, Address 0x15) Name Type Default Description PTP_Time_Config_s[47:32] RW 0x0000 Time configuration sec field [47:32]. e R L IA T N 8.5.37. PTP_TAI_CFG (PTP Application I/F Config Register, Page 0xe42, Address 0x10) E ID *Note: This register applies to the RTL8211FS(I)-VS only. Table 61. PTP_TAI_CFG (PTP Application I/F Config Register, Page 0xe42, Address 0x10) Bit Name Type Default Description 16.15:10 RSVD RO 000000 Reserved. 16.9:8 trig_mod_sel RW 00 Trigger Generate mode select. Trigger(s) start at time specified in TAI_TS_RW registers. Valid if tai_func_sel = 01. 00: Single rising edge 01: Single falling edge (The high/low level of the GPIO will be adjusted by HW automatically.) 10: Single pulse. The pulse width can be set by pulse_amt fields 11: Periodic pulses. The pulse period and duty cycle can be set by pulse_amt (Page 0xe42, Reg 17, bit[9:0]) and pulse_dc (Page 0xe42, Reg 17, bit[13:12]) fields, see section 8.5.38. 16.7 trig_iflate RW 0 Trigger-if-Late Control. Valid if tai_func_sel (Bit 16.2:1) = 01. 1: Allow an immediate Trigger when setting a time value which is earlier than the current time. F N O C H C E D E IT M I L T E G A N A D L O G or f Integrated 10/100/1000M Ethernet Precision Transceiver 59 Track ID: JATR-8275-15 Rev. 1.3 RTL8211FS(I)(-VS) Datasheet Bit 16.6 Name evnt_rf_det Type RW 16.5 evnt_overwr_en RW tai_gpio_num tai_func_sel RW RW 16.4:3 16.2:1 16.0 Default Description 0 Event Capture rising/falling edge detect selection. Valid if tai_func_sel (Bit 16.2:1) = 10. 0: Detection of a rising edge 1: Detection of a falling edge SW should take care of the high/low level of GPIO with this setting. 1 Event Capture timestamp overwrite enable. Valid if tai_func_sel (Bit 16.2:1) = 10. 0: Keep the old value, 1: Cause the event timestamp to be overwritten if a new event is detected at the specific GPIO if the upper layer has not yet read the old event timestamp. 00 The GPIO number that is going to be armed. 00 PTP Application Interface function select of selected GPIO. 00: Disable function 01: Trigger Generate 10: Event Capture 11: Trigger start time/Event timestamp read (according to current GPIO settings) 0 PTP Application Interface configuration set. Setting this bit will issue a TAI Configuration ‘Set’ to the selected GPIO via tai_gpio_num k e t l a e R tai_cfg_set RW, SC L IA T N E ID 8.5.38. PTP_TRIG_CFG (PTP Trigger Config Register, Page 0xe42, Address 0x11) F N D E IT *Note: This register applies to the RTL8211FS(I)-VS only. O C M I L Table 62. PTP_TRIG_CFG (PTP Trigger Config Register, Page 0xe42, Address 0x11) Bit Name Type Default Description 17.15:14 RSVD RO 00 Reserved. 17.13:12 pulse_dc RW 00 Duty Cycle of a Trigger Pulse. Valid if tai_func_sel (Page 0xe42, Reg 16, bit[2:1]) = 01. Takes effect only on GPIO 0/1. 00: 0% 01: 25% 10: 50% 11: 75%. Note: The options of 0%, 25%, and 75% are available only when pulse_amt_unit >= 8*PTPCLK period (64 ns). 17.11:10 pulse_amt_unit RW 00 The unit of pulse_amt field. 00: nano-second (ns) 01: micro-second (us) 10: milli-second (ms) 11: second (s) H C E T E G A N A D L O G or f Integrated 10/100/1000M Ethernet Precision Transceiver 60 Track ID: JATR-8275-15 Rev. 1.3 RTL8211FS(I)(-VS) Datasheet Bit 17.9:0 Name pulse_amt Type RW Default Description 0 Period of periodic pulses/Width of the single pulse. Note 1: when pulse_amt_unit = 2’b00, the value that pulse_amt take effect will be floored to the multiple of PTPCLK period (8ns). Note 2: pulse_amt should be greater than 0. k e t 8.5.39. PTP_TAI_STA (PTP Application I/F Status Register, Page 0xe42, Address 0x12) *Note: This register applies to the RTL8211FS(I)-VS only. Table 63. PTP_TAI_STA (PTP Application I/F Status Register, Page 0xe42, Address 0x12) Bit Name Type Default Description 18.15 tai_gpio0_func RO 0 Indicate GPIO0’s function 0: Trigger Generate 1: Event Capture 18.14 tai_gpio0_en RO 0 GPIO0 function is enabled. 18.13 tai_gpio0_notify RO,RC 0 Indicate if a Trigger is generated or Event Detected at GPIO0. 18.12 tai_gpio0_err RO,RC 0 Indicate the start-time of the Trigger is earlier than the current time/an old Event timestamp value is kept at GPIO0. 18.11 tai_gpio1_func RO 0 Indicate GPIO1’s function 0: Trigger Generate 1: Event Capture 18.10 tai_gpio1_en RO 0 GPIO1 function is enabled. 18.9 tai_gpio1_notify RO,RC 0 Indicate if a Trigger is generated or Event Detected at GPIO1. 18.8 tai_gpio1_err RO,RC 0 Indicate the start-time of the Trigger is earlier than the current time/an old Event timestamp value is kept at GPIO1. 18.7:0 RSVD RO 0x00 Reserved. l a e R T N E ID F N O C L IA H C E D E IT M I L 8.5.40. PTP_TAI_TS_NS_LO (PTP TAI Timestamp Nano-Sec Low Register, Page 0xe42, Address 0x13) T E G A N *Note: This register applies to the RTL8211FS(I)-VS only. Table 64. PTP_TAI_TS_NS_LO (PTP TAI Timestamp Nano-Sec Low Register, Page 0xe42, Address 0x13) Bit Name Type Default Description 19.15:0 TAI_TS_ns[15:0] RW 0x0000 PTP Application Interface timestamp Read/Write interface nanosec field [15:0]. A D L O G or f Integrated 10/100/1000M Ethernet Precision Transceiver 61 Track ID: JATR-8275-15 Rev. 1.3 RTL8211FS(I)(-VS) Datasheet 8.5.41. PTP_TAI_TS_NS_HI (PTP TAI Timestamp Nano-Sec High Register, Page 0xe42, Address 0x14) *Note: This register applies to the RTL8211FS(I)-VS only. Table 65. PTP_TAI_TS_NS_HI (PTP TAI Timestamp Nano-Sec High Register, Page 0xe42, Address 0x14) Bit Name Type Default Description 20.15:14 RSVD RO 00 Reserved. 20.13:0 TAI_TS_ns[29:16] RW 0 PTP Application Interface timestamp Read/Write interface nanosec field [29:16]. k e t 8.5.42. PTP_TAI_TS_S_LO (PTP TAI Timestamp Sec Low Register, Page 0xe42, Address 0x15) l a **Note: This register applies to the RTL8211FS(I)-VS only. Table 66. PTP_S_LO (PTP Time Config Sec Low Register, Page 0xe41, Address 0x13) Bit 21.15:0 e R Name TAI_TS_s[15:0] Type RW Default 0x0000 L IA Description PTP Application Interface timestamp Read/Write interface sec field [15:0]. T N E ID 8.5.43. PTP_TAI_TS_S_HI (PTP TAI Timestamp Sec High Register, Page 0xe42, Address 0x16) *Note: This register applies to the RTL8211FS(I)-VS only. F N D E IT Table 67. PTP_S_MI (PTP Time Config Sec Mid Register, Page 0xe41, Address 0x14) Bit Name Type Default Description 22.15:0 TAI_TS_s[31:16] RW 0x0000 PTP Application Interface timestamp Read/Write interface sec field [31:16]. O C H C E M I L 8.5.44. PTP_TRX_TS_STA (PTP TxRx Timestamp Status Register, Page 0xe43, Address 0x10) T E G A N *Note: This register applies to the RTL8211FS(I)-VS only. Table 68. PTP_TRX_TS_STA (PTP TxRx Timestamp Status Register, Page 0xe43, Address 0x10) Bit Name Type Default Description 16.15 txts_sync_rdy RO 0 Sync message Transmit timestamp ready. 16.14 txts_dlyreq_rdy RO 0 Delay_Request Transmit timestamp ready. 16.13 txts_pdlyreq_rdy RO 0 PDelay_Request Transmit timestamp ready. 16.12 txts_pdlyrsp_rdy RO 0 PDelay_Response Transmit timestamp ready. 16.11 rxts_sync_rdy RO 0 Sync message Receive timestamp ready. 16.10 rxts_dlyreq_rdy RO 0 Delay_Request Receive timestamp ready. A D L O G or f Integrated 10/100/1000M Ethernet Precision Transceiver 62 Track ID: JATR-8275-15 Rev. 1.3 RTL8211FS(I)(-VS) Datasheet Bit 16.9 16.8 16.7:5 16.4 Name rxts_pdlyreq_rdy rxts_pdlyrsp_rdy RSVD trxts_overwr_en Type RO RO RO RW Default 0 0 000 1 16.3:2 trxts_msgtype_sel RW 00 trxts_sel RW 16.1 16.0 Description PDelay_Request Receive timestamp ready. PDelay_Response Receive timestamp ready. Reserved. Transmit/Receive timestamp overwrite enable. When a new PTP packet comes that needs to be time stamped, HW will 0: Keep the old timestamp value, 1: Overwrite the old timestamp value if the older one has not been read by the upper layer. Message Type of Transmit/Receive timestamp select. 00: Sync 01: Delay_Request 10: PDelay_Request 11: PDelay_Response Transmit/Receive timestamp read select. 0: Tx 1: Rx Transmit/Receive timestamp read enable. Issue a ‘Read’ for Transmit/Receive timestamp. k e t l a e R trxts_rd 0 RW, SC 0 L IA T N E ID 8.5.45. PTP_TRX_TS_INFO (PTP TxRx Timestamp Info Register, Page 0xe44, Address 0x10) *Note: This register applies to the RTL8211FS(I)-VS only. F N D E IT Table 69. PTP_TRX_TS_INFO (PTP TxRx Timestamp Info Register, Page 0xe44, Address 0x10) Bit Name Type Default Description 16.15:12 trxts_transspec RO 0000 Transmit/Receive timestamp Transport Specific field 16.11:8 trxts_msgtype RO 0000 Transmit/Receive timestamp Message Type field 16.7:4 RSVD RO 0000 Reserved 16.3:0 trxts_ptpver RO 0000 Transmit/Receive timestamp PTP Version field O C H C E M I L T E Timestamp Source Hash Register, 8.5.46. PTP_TRX_TS_SH (PTP TxRx G Page 0xe44, Address A 0x11) N A D L O G for *Note: This register applies to the RTL8211FS(I)-VS only. Table 70. PTP_TRX_TS_SH (PTP TxRx Timestamp Source Hash Register, Page 0xe44, Address 0x11) Bit Name Type Default Description 17.15:0 trxts_srchash RO 0x0000 Transmit/Receive timestamp Source Port ID Hash field. Integrated 10/100/1000M Ethernet Precision Transceiver 63 Track ID: JATR-8275-15 Rev. 1.3 RTL8211FS(I)(-VS) Datasheet 8.5.47. PTP_TRX_TS_SID (PTP TxRx Timestamp Seq ID Register, Page 0xe44, Address 0x12) *Note: This register applies to the RTL8211FS(I)-VS only. Table 71. PTP_TRX_TS_SID (PTP TxRx Timestamp Seq ID Register, Page 0xe44, Address 0x12) Bit Name Type Default Description 18.15:0 trxts_seqid RO 0x0000 Transmit/Receive timestamp Sequence ID field. k e t 8.5.48. PTP_ TRX_TS NS_LO (PTP TxRx Timestamp Nano-Sec Low Register, Page 0xe44, Address 0x13) l a *Note: This register applies to the RTL8211FS(I)-VS only. Table 72. PTP_ TRX_TS NS_LO (PTP TxRx Timestamp Nano-Sec Low Register, Page 0xe44, Address 0x13) Bit Name Type Default Description 19.15:0 TXRX_TS_ns[15:0] RO 0x0000 Transmit/Receive timestamp nanosec field [15:0] e R L IA T N 8.5.49. PTP_ TRX_TS NS_HI (PTP TxRx Timestamp Nano-Sec High Register, Page 0xe44, Address 0x14) E ID *Note: This register applies to the RTL8211FS(I)-VS only. Table 73. PTP_ TRX_TS NS_HI (PTP TxRx Timestamp Nano-Sec High Register, Page 0xe44, Address 0x14) Bit Name Type Default Description 20.15:14 RSVD RO 00 Reserved. 20.13:0 TXRX_TS_ns[29:16] RW 0 Transmit/Receive timestamp nanosec field [29:16] F N O C D E IT M I 8.5.50. PTP_ TRX_TS S_LO (PTP TxRx Timestamp Sec Low Register, L H Page 0xe44, Address 0x15) C E T E G A N A D L O G for *Note: This register applies to the RTL8211FS(I)-VS only. Table 74. PTP_ TRX_TS S_LO (PTP TxRx Timestamp Sec Low Register, Page 0xe44, Address 0x15) Bit Name Type Default Description 21.15:0 TXRX_TS_s[15:0] RW 0x0000 Transmit/Receive timestamp sec field [15:0]. Integrated 10/100/1000M Ethernet Precision Transceiver 64 Track ID: JATR-8275-15 Rev. 1.3 RTL8211FS(I)(-VS) Datasheet 8.5.51. PTP_ TRX_TS S_MI (PTP TxRx Timestamp Sec Mid Register, Page 0xe44, Address 0x16) *Note: This register applies to the RTL8211FS(I)-VS only. Table 75. PTP_ TRX_TS S_MID (PTP TxRx Timestamp Sec Mid Register, Page 0xe44, Address 0x16) Bit Name Type Default Description 22.15:0 TXRX_TS_s[31:16] RW 0x0000 Transmit/Receive timestamp sec field [31:16]. k e t 8.5.52. PTP_ TRX_TS S_HI (PTP TxRx Timestamp Sec High Register, Page 0xe44, Address 0x17) l a *Note: This register applies to the RTL8211FS(I)-VS only. Table 76. PTP_ TRX_TS S_LO (PTP TxRx Timestamp Sec High Register, Page 0xe44, Address 0x17) Bit Name Type Default Description 23.15:0 TXRX_TS_s[47:32] RW 0x0000 Transmit/Receive timestamp sec field [47:32]. e R L IA 8.5.53. PC1R (PCS Control 1 Register, MMD Device 3, Address 0x00) T N Table 77. PC1R (PCS Control 1 Register, MMD Device 3, Address 0x00) Bit Name Type Default Description 3.0.15:11 RSVD RW 0 Reserved. 3.0.10 Clock Stop Enable RW 0 1: PHY stops RXC when receiving LPI 0: RXC not stoppable 3.0.9:0 RSVD RW 0 Reserved. E ID F N D E T 8.5.54. PS1R (PCS Status1 Register, MMD Device 3, Address 0x01) I M I L H C E T E G A N A D L O G for O C Table 78. PS1R (PCS Status 1 Register, MMD Device 3, Address 0x01) Bit Name Type Default Description 3.1.15:12 RSVD RO 0 Reserved. 3.1.11 TX LPI Received RO, LH 0 1: TX PCS has received LPI 0: LPI not received 3.1.10 RX LPI Received RO, LH 0 1: RX PCS has received LPI 0: LPI not received 3.19 TX LPI Indication RO 0 1: TX PCS is currently receiving LPI 0: TX PCS is not currently receiving LPI 3.1.8 RX LPI Indication RO 0 1: RX PCS is currently receiving LPI 0: RX PCS is not currently receiving LPI 3.1.7 RSVD RO 0 Reserved. 3.1.6 Clock Stop Capable RO 1 1: MAC stops TXC in LPI 0: TXC not stoppable 3.1.5:0 RSVD RO 0 Reserved. Integrated 10/100/1000M Ethernet Precision Transceiver 65 Track ID: JATR-8275-15 Rev. 1.3 RTL8211FS(I)(-VS) Datasheet 8.5.55. EEECR (EEE Capability Register, MMD Device 3, Address 0x14) Table 79. EEECR (EEE Capability Register, MMD Device 3, Address 0x14) Bit Name Type Default Description 3.20.15:3 RSVD RO 0 Reserved. 3.20.2 1000Base-T EEE RO 1 1: EEE is supported for 1000Base-T EEE 0: EEE is not supported for 1000Base-T EEE 3.20.1 100Base-TX EEE RO 1 1: EEE is supported for 100Base-TX EEE 0: EEE is not supported for 100Base-TX EEE 3.20.0 RSVD RO 0 Reserved. k e t 8.5.56. EEEWER (EEE Wake Error Register, MMD Device 3, Address 0x16) l a Table 80. EEEWER (EEE Wake Error Register, MMD Device 3, Address 0x16) Bit Name Type Default Description 3.22.15:0 EEE Wake Error RC 0 Used by PHY types that support EEE to count wake time faults Counter where the PHY fails to complete its normal wake sequence within the time required for the specific PHY type. e R L IA T N E ID 8.5.57. EEEAR (EEE Advertisement Register, MMD Device 7, Address 0x3c) F N Table 81. EEEAR (EEE Advertisement Register, MMD Device 7, Address 0x3c) Bit Name Type Default Description 7.60.15:3 RSVD RW 0 Reserved. 7.60.2 1000Base-T EEE RW 1 Advertise 1000Base-T EEE Capability. 1: Advertise 0: Do not advertise 7.60.1 100Base-TX EEE RW 1 Advertise 100Base-TX EEE Capability. 1: Advertise 0: Do not advertise 7.60.0 RSVD RW 0 Reserved. O C H C E D E IT M I L T E G A N A D L O G or f Integrated 10/100/1000M Ethernet Precision Transceiver 66 Track ID: JATR-8275-15 Rev. 1.3 RTL8211FS(I)(-VS) Datasheet 8.5.58. EEELPAR (EEE Link Partner Ability Register, MMD Device 7, Address 0x3d) Table 82. EEELPAR (EEE Link Partner Ability Register, MMD Device 7, Address 0x3d) Bit Name Type Default Description 7.61.15:3 RSVD RO 0 Reserved. 7.61.2 LP 1000Base-T EEE RO 0 1: Link Partner is capable of 1000Base-T EEE 0: Link Partner is not capable of 1000Base-T EEE 7.61.1 LP 100Base-TX EEE RO 0 1: Link Partner is capable of 100Base-TX EEE 0: Link Partner is not capable of 100Base-TX EEE 7.61.0 RSVD RO 0 Reserved. k e t l a e R T N E ID F N O C L IA H C E D E IT M I L T E G A N A D L O G or f Integrated 10/100/1000M Ethernet Precision Transceiver 67 Track ID: JATR-8275-15 Rev. 1.3 RTL8211FS(I)(-VS) Datasheet 8.5.59. Fiber BMCR (Fiber Basic Mode Control Register, Address 0x00) Bit 0.15 0.14 0.13 0.12 0.11 Table 83. Fiber BMCR (Fiber Basic Mode Control Register, Address 0x00) RW Default Description RW, SC 0 Software Reset. 1: PHY reset 0: Normal operation Register 0 (Fiber BMCR) and register 1 (Fiber BMSR) will return to default values after a software reset (set Bit 0.15 to 1). This action may change the internal PHY state and the state of the physical link associated with the PHY. Loopback RW 0 Loopback Mode. 1: Enable PCS loopback mode 0: Disable PCS loopback mode Speed[0] RW 0 Speed Select Bit 0. In forced mode, i.e., when Auto-Negotiation is disabled, bits 6 and 13 determine device speed selection. Speed[1] Speed[0] Speed Enabled 1 1 Reserved 1 0 1000Mbps 0 1 100Mbps 0 0 10Mbps Name Reset RW 1 PWD RW 0 Isolate 0.9 Restart_AN 0.8 Duplex f RW, SC 0 Collision Test RW RW 0 T N Auto-Negotiation Enable. 1: Enable Auto-Negotiation 0: Disable Auto-Negotiation Power Down. 1: Power down (only Management Interface and logic are active; link is down) 0: Normal operation Isolate. 1: RGMII interface is isolated; the serial management interface (MDC, MDIO) is still active. When this bit is asserted, the RTL8211FS(I)(-VS) ignores TXD[3:0], and TXCTL inputs, and presents a high impedance on TXC, RXC, RXCTL, RXD[3:0]. 0: Normal operation Restart Auto-Negotiation. 1: Restart Auto-Negotiation 0: Normal operation Duplex Mode. 1: Full Duplex operation 0: Half Duplex operation This bit is valid only in force mode, i.e., NWay is disabled. Collision Test. 1: Collision test enabled 0: Normal operation H C E D E IT M I L T E G A N A D L O G or 0.7 RW L IA E ID F N O C 0.10 l a e R ANE k e t 1 0 Integrated 10/100/1000M Ethernet Precision Transceiver 68 Track ID: JATR-8275-15 Rev. 1.3 RTL8211FS(I)(-VS) Datasheet Bit 0.6 Name Speed[1] RW RW Default Description 1 Speed Select Bit 1. Refer to bit 0.13. 0.5 Uni-direction RW 0 Uni-Directional Enable al enable 1: Enable packet transmit without respect to linkok status 0: Packet transmit permitted when link is established 0.4:0 RSVD RO 00000 Reserved. Note: 100Base-FX does not have Auto-Negotiation, and the AN (0.9) needs to be disabled (0.9=0). The speed capabilities bits 0.13, 0.6 are set to 100Mbps. k e t 8.5.60. Fiber BMSR (Basic Mode Status Register, Address 0x01) Bit 1.15 1.14 1.13 1.12 1.11 l a Table 84. Fiber BMSR (Fiber Basic Mode Status Register, Address 0x01) Name Type Default Description 100Base-T4 RO 0 100Base-T4 Capability. The RTL8211FS(I)(-VS) does not support 100Base-T4 mode. This bit should always be 0. 100Base-FX (Full) RO 0 100Base-FX Full Duplex Capability. 1: Device is able to perform 100Base-X in full duplex mode 0: Device is not able to perform 100Base-X in full duplex mode 100Base-FX (Half) RO 0 100Base-FX Half Duplex Capability. 1: Device is able to perform 100Base-X in half duplex mode 0: Device is not able to perform 100Base-X in half duplex mode 10Base-T (Full) RO 0 10Base-T Full Duplex Capability. 1: Device is able to perform 10Base-T in full duplex mode. 0: Device is not able to perform 10Base-T in full duplex mode. 10Base-T (Half) RO 0 10Base-T Half Duplex Capability. 1: Device is able to perform 10Base-T in half duplex mode 0: Device is not able to perform 10Base-T in half duplex mode 100Base-T2 (Full) RO 0 100Base-T2 Full Duplex Capability. The RTL8211FS(I)(-VS) does not support 100Base-T2 mode and this bit should always be 0. 100Base-T2 (Half) RO 0 100Base-T2 Half Duplex Capability. The RTL8211FS(I)(-VS) does not support 100Base-T2 mode. This bit should always be 0. Extended Status RO 1 Support Extended Status Register. 1: Device supports Extended Status Register 0x0F (15) 0: Device does not support Extended Status Register 0x0F This register is read-only and is always set to 1. RSVD RO 0 Reserved. Preamble RO 0 Preamble Suppression Capability. Suppression The RTL8211FS(I)(-VS) default will not accept MDC/MDIO transactions with preamble suppressed. e R 1.9 1.8 1.7 1.6 T N E ID F N O C 1.10 L IA H C E D E IT M I L T E G A N A D L O G or f Integrated 10/100/1000M Ethernet Precision Transceiver 69 Track ID: JATR-8275-15 Rev. 1.3 RTL8211FS(I)(-VS) Datasheet Bit 1.5 Name Auto-Negotiation Complete 1.4 Remote Fault 1.3 Auto-Negotiation Ability RO 1.2 Link Status RO 1.1 Jabber Detect 1.0 Type RO RC, LH e R RO k e t l a RC, LH Extended Capability Default Description 0 Auto-Negotiation Complete. 1: Auto-Negotiation process complete, and contents of registers 5, 6, 8, and 10 are valid 0: Auto-Negotiation process not complete 0 Remote Fault. 1: Remote fault condition detected (cleared on read or by reset). Indication or notification of remote fault from Link Partner 0: No remote fault condition detected 1 Auto Configured Link. 1: Device is able to perform Auto-Negotiation 0: Device is not able to perform Auto-Negotiation 0 Link Status. 1: Linked 0: Not Linked 0 Jabber Detect. 1: Jabber condition detected 0: No Jabber occurred 1 1: Extended register capabilities, always 1 L IA T N 8.5.61. 1000Base-X ANAR (1000Base-X Auto-Negotiation Advertising Register, Address 0x04) E ID Table 85. 1000Base-X ANAR (Auto-Negotiation Advertising Register, Address 0x04) Bit Name RW Default Description 4.15 Next Page RW 0 1: Additional next pages exchange desired 0: No additional next pages exchange desired 4.14 RSVD RO 0 Reserved. 4.13:12 Remote Fault RW 00 Remote Fault. Used to indicate to the link partner that a remote fault condition has been detected: 00: No Error, Link OK 01: Link Failure 10: Off Line 11: Auto-Negotiation Error 4.11:9 RSVD RO 000 Reserved. 4.8:7 PAUSE RW 00 Pause. Used to indicate pause capabilities to the link partner. 00: No Pause 01: Symmetric Pause 10: Asymmetric Pause 11: Both Symmetric and Asymmetric Pause 4.6 Half Duplex RW 0 1’b1: Support half duplex to link partner. 4.5 Full Duplex RW 1 1’b1: Support full duplex to link partner. 4.4:0 RSVD RW 00000 Reserved. Note: The setting of Fiber ANAR Register is valid only when ANE is enabled in the 1000Base-X auto-negotiation mode. F N O C H C E D E IT M I L T E G A N A D L O G or f Integrated 10/100/1000M Ethernet Precision Transceiver 70 Track ID: JATR-8275-15 Rev. 1.3 RTL8211FS(I)(-VS) Datasheet 8.5.62. 1000Base-X ANLPAR (1000Base-X Auto-Negotiation Link Partner Ability Register, Address 0x05) Table 86. 1000Base-X ANLPAR (Auto-Negotiation Link Partner Ability Register, Address 0x05) Bit Name RW Default Description 5.15 Next Page RO 0 Support for transmission and reception of additional link code word encodings. 5.14 ACK RO 0 Indicates link partner successfully received the previously transmitted base page. 5.13:12 Remote Fault RO 00 Remote Fault. Used to indicate to the link partner that a remote fault condition has been detected: 00: No Error, Link OK 01: Link Failure 10: Off Line 11: Auto-Negotiation Error 5.11:9 RSVD RO 000 Reserved. 5.8:7 PAUSE RO 00 Pause. Used by link partner to indicate its pause capabilities. 00: No Pause 01: Symmetric Pause 10: Asymmetric Pause 11: Both Symmetric and Asymmetric Pause 5.6 Half Duplex RO 0 1: Link partner support half duplex. 5.5 Full Duplex RO 0 0: Link partner support full duplex. 5.4:0 RSVD RO 00000 Reserved. Note: The setting of Fiber ANLPAR Register is valid only in the 1000Base-X auto-negotiation mode. k e t l a e R L IA T N E ID F N D E IT 8.5.63. Fiber ESR (Fiber Extended Status Register, Address 0x0F) O C Bit 15.15 15.14 15.13:0 Table 87. Fiber ESR (Fiber Extended Status Register, Address 0x0F) Name RW Default Description 1000Base-X FD RO 1 1: Support 1000Base-X full duplex capability. 1000Base-X HD RO 0 1: Support 1000Base-X half duplex capability. RSVD RO 00000000000000 Reserved. H C E M I L T E G A N A D L O G or f Integrated 10/100/1000M Ethernet Precision Transceiver 71 Track ID: JATR-8275-15 Rev. 1.3 RTL8211FS(I)(-VS) Datasheet 8.5.64. SERDES INER (SERDES Interrupt Enable Register, Page 0xde1, Address 0x11) Table 88. SERDES INER (SERDES Interrupt Enable Register, Page 0xde1, Address 0x11) Bit Name RW Default Description 17.15:8 RSVD RO 00000000 Reserved. 17.7 Fiber Speed RW 0 1: Interrupt Enable 0: Interrupt Disable Changed Interrupt Setting this bit to 0 only disables the Fiber speed change interrupt event in the INTB pin. SERDES INSR Bit[7] always reflects the Fiber speed change interrupt behavior. 17.6 Fiber Duplex RW 0 1: Interrupt Enable 0: Interrupt Disable Changed Interrupt Setting this bit to 0 only disables the Fiber duplex change interrupt event in the INTB pin. SERDES INSR Bit[6] always reflects the Fiber duplex change interrupt behavior. 17.5 Fiber/SGMII Signal RW 0 1: Interrupt Enable 0: Interrupt Disable Detection Changed Setting this bit to 0 only disables the Fiber/SGMII signal Interrupt detection change interrupt event in the INTB pin. SERDES INSR Bit[5] always reflects the Fiber/SGMII signal detection change interrupt behavior. 17.4 Fiber/SGMII Link RW 0 1: Interrupt Enable 0: Interrupt Disable Status Change Setting this bit to 0 only disables the Fiber/SGMII link Interrupt status change interrupt event in the INTB pin. SERDES INSR Bit[4] always reflects the Fiber/SGMII link change interrupt behavior. 17.3:1 RSVD RO 000 Reserved. 17.0 Fiber/SGMII RW 0 1: Interrupt Enable 0: Interrupt Disable Auto-Negotiation Setting this bit to 0 only disables the Fiber/SGMII Error Interrupt auto-negotiation error interrupt event in the INTB pin. SERDES INSR Bit[0] always reflects the Fiber/SGMII auto-negotiation error interrupt behavior. k e t l a e R T N E ID F N O C L IA H C E D E IT M I L 8.5.65. SERDES INSR (SERDES Interrupt Status Register, Page 0xde1, Address 0x12) T E G A N Table 89. SERDES INSR (SERDES Interrupt Status Register, Page 0xde1, Address 0x12) Name RW Default Description RSVD RO, RC 00000000 Reserved. Fiber Speed RO, RC 0 1: Fiber Speed Changed Changed 0: No Fiber Speed Changed 18.6 Fiber Duplex RO, RC 0 1: Fiber Duplex Changed Changed 0: No Fiber Duplex Changed 18.5 SERDES Signal RO, RC 0 1: Fiber/SGMII Signal Detection Changed Detection Changed 0: No Fiber/SGMII Signal Detection Changed Bit 18.15:8 18.7 A D L O G or f Integrated 10/100/1000M Ethernet Precision Transceiver 72 Track ID: JATR-8275-15 Rev. 1.3 RTL8211FS(I)(-VS) Datasheet Bit 18.4 18.3:1 18.0 Name SERDES Link Status Change RW RO, RC Default 0 RSVD SERDES Auto-Negotiation Error RO, RC RO, RC 000 0 Description 1: Fiber/SGMII Link Status Change 0: No Fiber/SGMII Link Status Change Reserved. 1: Fiber/SGMII Auto-Negotiation Error 0: No Fiber/SGMII Auto-Negotiation Error k e t 8.5.66. SGMII ANARSEL (SGMII Auto-Negotiation Advertising Register Select, Page 0xd08, Address 0x14) Table 90. SGMII ANARSEL (SGMII Auto-Negotiation Advertising Register Select, Page 0xd08, Address 0x14) Bit Name RW Default Description 20.15:12 RSVD RO 0000 Reserved. 20.11 En_Select Link Info RW 0 1: Enable link information is selected by register. 20.10 RSVD RO 0 Reserved. Select link information. 00: Reserved 20.9:8 Select Link Info. RW 00 01: Reserved 10: Reserved 11: Select link information by SGMII ANAR 20.7:0 RSVD RW 00000000 Reserved. l a e R L IA T N E ID F N 8.5.67. SGMII ANAR (SGMII Auto-Negotiation Advertising Register, Page 0xd08, Address 0x10) O C D E IT Table 91. SGMII ANAR (SGMII Auto-Negotiation Advertising Register, Page 0xd08, Address 0x10) Bit Name RW Default Description 16.15:7 RSVD RO 000000000 Reserved. 16.6:4 RSVD RW 101 Reserved. 16.3 Link Status RW 0 Link Status. 1: Linked 0: Not Linked 16.2 Duplex RW 0 Duplex Mode. 1: Full Duplex operation 0: Half Duplex operation 16.1:0 Speed RW 00 Speed. 00: 10Mbps 01: 100Mbps 10: 1000Mbps 11: Reserved H C E M I L T E G A N A D L O G or f Integrated 10/100/1000M Ethernet Precision Transceiver 73 Track ID: JATR-8275-15 Rev. 1.3 RTL8211FS(I)(-VS) Datasheet 8.5.68. SGMII ANLPAR (SGMII Auto-Negotiation Link Partner Ability Register, Page 0xdc0, Address 0x15) Table 92. SGMII ANLPAR (SGMII Auto-Negotiation Link Partner Ability Register, Page 0xdc0, Address 0x15) Bit Name RW Default Description 21.15 Link Status RO 0 Link Status. 1: Linked; 0: Not Linked 21.14:13 RSVD RO 00 Reserved. 21.12 Duplex RO 0 Duplex Mode. 1: Full Duplex operation 0: Half Duplex operation 21.11:10 Speed RO 00 Speed. 00: 10Mbps 01: 100Mbps 10: 1000Mbps 11: Reserved 21.9:0 RSVD RO 0000000000 Reserved. k e t l a e R T N E ID F N O C L IA H C E D E IT M I L T E G A N A D L O G or f Integrated 10/100/1000M Ethernet Precision Transceiver 74 Track ID: JATR-8275-15 Rev. 1.3 RTL8211FS(I)(-VS) Datasheet 9. Switching Regulator The RTL8211FS(I)(-VS) incorporates a state-of-the-art switching regulator that requires a well-designed PCB layout in order to achieve good power efficiency and lower the output voltage ripple and input overshoot. The switching regulator 1.0V output pin (REG_OUT) should be connected only to DVDD10 and AVDD10 (do not provide this power source to other devices). Use an X5R/X7R low-ESR ceramic capacitor as the output capacitor for switching regulator stability. k e t Note: Refer to the RTL8211F Series Layout Guide for detailed description. 9.1. Power Sequence e R l a T N E ID F N O C L IA Figure 15. Power Sequence H C E D E IT M I L T E G A N A D L O G or f Integrated 10/100/1000M Ethernet Precision Transceiver 75 Track ID: JATR-8275-15 Rev. 1.3 RTL8211FS(I)(-VS) Datasheet Table 93. Power Sequence Parameters Description Min Typical Max Units 3.3V Rise Time 0.5* 100 ms External I/O Pad Power Rise Time Rt2 3.3V Off Time 100 ms Rt3 Core Logic Ready Time 72 ms Rt4 LDO Ready Time 1.5 ms Rt5** Reserved for Specific Parameter Configuration 100 ms Note 1: The RTL8211FS(I)(-VS) does not support fast 3.3V rising. The 3.3V rise time should be controlled over 0.5ms. * A 3.3V rise time between 0.1ms to 0.5ms is conditionally permitted only if the system 3.3V power budget is sufficient to ensure that 3.3V Overcurrent Protection (OCP) will NOT be triggered during the power-on procedure. If the rise time is less than 0.1ms, it will induce a peak voltage in VDD_REG which may cause permanent damage to the regulator. Note 2: If there is any action that involves consecutive ON/OFF toggling of the switching-regulator source (3.3V), the design must make sure the OFF state of both the switching-regulator source (3.3V) and output (1.0V) reach 0V, and the time period between the consecutive ON/OFF toggling action must be longer than 100ms. Note 3: When using an external oscillator or clock source, on stopping the clock source the RTL8211FS(I)(-VS) must also be powered off. Note 4: The RTL8211FS(I)(-VS) use the integrated LDO to generate the 2.5V, 1.8V, and 1.5V voltages for the I/O pad, the I/O pad voltage can be selected by using the CONFIG pins CFG_LDO[1:0]. Note 5: Rt5 is a reserved window for some PHY special parameter configuration with 100ms duration. The parameters, if needed, can be provided by Realtek. At the point of T2, i.e. the end of this configuration window, all the PHY registers can be accessed through MDIO. ** Currently there is no special configuration needed for the RTL8211FS(I)(-VS), the Rt5 can be skipped by setting Page 0xa46, Reg. 20, bit[1]=1 ( PHY Special Config Done) at the point of T2’. The ‘PHY Register Accessible Interrupt’ will then trigger accordingly, which indicates the PHY registers can be accessed by MDIO. Symbol Rt1 k e t l a e R T N E ID F N O C L IA H C E D E IT M I L T E G A N A D L O G or f Integrated 10/100/1000M Ethernet Precision Transceiver 76 Track ID: JATR-8275-15 Rev. 1.3 RTL8211FS(I)(-VS) Datasheet 10. Characteristics 10.1. Absolute Maximum Ratings WARNING: Absolute maximum ratings are limits beyond which permanent damage may be caused to the device, or device reliability will be affected. All voltages are specified reference to GND unless otherwise specified. k e t Table 94. Absolute Maximum Ratings Symbol Description Minimum VDD33, AVDD33 Supply Voltage 3.3V -0.3 AVDD10, DVDD10 Supply Voltage 1.0V -0.3 2.5V RGMII/GMII Supply Voltage 2.5V -0.2 1.8V RGMII Supply Voltage 1.8V -0.2 1.5V RGMII Supply Voltage 1.5V -0.2 3.3V DCinput Input Voltage -0.3 3.3V DCoutput Output Voltage 1.0V DCinput Input Voltage -0.3 1.0V DCoutput Output Voltage NA Storage Temperature -55 Note: Refer to the most updated schematic circuit for correct configuration. l a e R Maximum 3.6 1.2 2.8 2.3 2.0 Unit V V V V V L IA T N E ID 3.6 V 1.2 V +125 °C 10.2. Recommended Operating Conditions F N Table 95. Recommended Operating Conditions Pins Minimum Typical DVDD33, AVDD33 2.97 3.3 AVDD10, DVDD10 0.95 1.0 2.5V RGMII/GMII 2.25 2.5 1.8V RGMII 1.62 1.8 1.5V RGMII 1.5 1.56 Ambient Operating Temperature TA 0 (RTL8211FS/RTL8211FS-VS) -40 Ambient Operating Temperature TA (RTL8211FSI/RTL8211FSI-VS) Maximum Junction Temperature Description Supply Voltage VDD O C H C E T E AN AG D E IT Maximum 3.63 1.05 2.75 1.98 1.62 70 Unit V V V V V °C 85 °C 125 °C M I L D L O G r fo Integrated 10/100/1000M Ethernet Precision Transceiver 77 Track ID: JATR-8275-15 Rev. 1.3 RTL8211FS(I)(-VS) Datasheet 10.3. Crystal Requirements Table 96. Crystal Requirements Symbol Description/Condition Minimum Typical Maximum Unit Fref Parallel Resonant Crystal Reference Frequency, 25 MHz Fundamental Mode, AT-Cut Type. Fref Tolerance Parallel Resonant Crystal Frequency Tolerance, -50 +50 ppm Fundamental Mode, AT-Cut Type. Ta=0°C~70°C. Fref Duty Cycle Reference Clock Input Duty Cycle. 40 60 % ESR Equivalent Series Resistance. 50 Ω DL Drive Level. 0.5 mW Jitter Broadband Peak-to-Peak Jitter1, 2 200 ps Vih_CKXTAL Crystal Output High Level 1.4 V Vil_CKXTAL Crystal Output Low Level 0.4 V Note 1: 25kHz to 25MHz RMS < 3ps. Note 2: Broadband RMS < 9ps. Note 3: Fref Tolerance +/- 50ppm including effects of aging of the first year, external crystal capacitors, and PCB layout. k e t l a e R L IA T N 10.4. Oscillator/External Clock Requirements Table 97. Oscillator/External Clock Requirements Parameter Condition Minimum Typical Maximum Unit Frequency 25 MHz Frequency Tolerance Ta=0°C~70°C -50 50 ppm (RTL8211FS/RTL8211FS-VS) Frequency Tolerance Ta=-40°C~85°C -50 50 ppm (RTL8211FSI/RTL8211FSI-VS) Duty Cycle 40 60 % 1, 2 Broadband Peak-to-Peak Jitter 200 ps Vih 1.4 V Vil 0.4 V Rise Time (10%~90%) 10 ns Fall Time (10%~90%) 10 ns Operating Temperature Range -40 85 °C Note 1: 25kHz to 25MHz RMS < 3ps. Note 2: Broadband RMS < 9ps. Note 3: Frequency Tolerance +/- 50ppm including effects of aging of the first year, external crystal capacitors, and PCB layout. E ID F N O C H C E D E IT M I L T E G A N A D L O G or f Integrated 10/100/1000M Ethernet Precision Transceiver 78 Track ID: JATR-8275-15 Rev. 1.3 RTL8211FS(I)(-VS) Datasheet 10.5. DC Characteristics Table 98. DC Characteristics Parameter Conditions Minimum 3.3V Supply Voltage 2.97 Symbol VDD33, AVDD33 1. MDIO 2. RGMII I/O 1. MDIO 2. RGMII I/O 1. MDIO 2. RGMII I/O DVDD10, AVDD10 Voh (3.3V) Voh (2.5V) Voh (1.8V) Voh (1.5V) Vol (3.3V) Vol (2.5V) Vol (1.8V) Vol (1.5V) Vih (3.3V) Vil (3.3V) Vih (2.5V) Vil (2.5V) Vih (1.8V) Vil (1.8V) Vih (1.5V) Vil (1.5V) Minimum High Level Output Voltage Minimum High Level Output Voltage Minimum High Level Output Voltage Minimum High Level Output Voltage Maximum Low Level Output Voltage Maximum Low Level Output Voltage Maximum Low Level Output Voltage Maximum Low Level Output Voltage Minimum High Level Input Voltage Maximum Low Level Input Voltage Minimum High Level Input Voltage Maximum Low Level Input Voltage Minimum High Level Input Voltage Maximum Low Level Input Voltage Minimum High Level Input Voltage Maximum Low Level Input Voltage Iin Input Current Typical 3.3 Maximum 3.63 Units V 2.5 2.75 V k e t 2.5V RGMII Supply Voltage - 1.8V RGMII Supply Voltage - 1.62V 1.8V 1.98V V 1.5V RGMII Supply Voltage - 1.5V 1.56V 1.62V V 1.0V Supply Voltage - 0.95 1.0 1.05 V - VDD33 + 0.3 VDD25 + 0.3 VDD18 + 0.3 VDD15 + 0.3 0.4 0.4 0.1*VDD18 0.1*VDD15 0.8 0.7 0.5 0.3 V V V V V V V V V V V V V V V V - 0.5 µA e R l a 2.4 2.0 0.9*VDD18 0.9*VDD15 -0.3 -0.3 -0.3 -0.3 2.0 1.7 1.2 1.0 Vin=VDD33 0 or GND L IA T N E ID F N O C 2.25 H C E Note: Pins not mentioned above remain at 3.3V. M I L D E IT T E G A N A D L O G or f Integrated 10/100/1000M Ethernet Precision Transceiver 79 Track ID: JATR-8275-15 Rev. 1.3 RTL8211FS(I)(-VS) Datasheet 10.6. SGMII Characteristics 10.6.1. SGMII Differential Transmitter Characteristics Symbol UI T_X1 T_X2 T_Y1 T_Y2 VTX-OFFSET VTX-DIFFp-p TTX-EYE TTX-JITTER TTX-RISE TTX-FALL RTX CTX LTX Table 99. SGMII Differential Transmitter Characteristics Parameter Min Typ Max Units Notes Unit Interval 799.76 800 800.24 ps 800ps ± 300ppm Eye Mask 0.15 UI Eye Mask 0.4 UI Eye Mask 300 mV Eye Mask 450 mV Output Offset Voltage 600 800 1000 mV Output Differential Voltage 600 800 900 mV Minimum TX Eye Width 0.7 UI Output Jitter 0.3 UI TTX-JITTER-MAX = 1 - TTX-EYE-MIN = 0.3UI Output Rise Time 0.125 0.25 UI 20% ~ 80% Output Fall Time 0.125 0.25 UI 20% ~ 80% Differential Resistance 80 100 120 ohm AC Coupling Capacitor 80 100 120 nF Transmit Length in PCB 10 inch - k e t l a e R T N E ID F N O C L IA H C E D E IT M I L T E G A N A D L O G or f Figure 16. SGMII Differential Transmitter Eye Diagram Integrated 10/100/1000M Ethernet Precision Transceiver 80 Track ID: JATR-8275-15 Rev. 1.3 RTL8211FS(I)(-VS) Datasheet 10.6.2. SGMII Differential Receiver Characteristics Symbol UI R_X1 R_Y1 R_Y2 VRX-DIFFp-p TRX-EYE TRX-JITTER RRX Table 100. SGMII Differential Receiver Characteristics Parameter Min Typ Max Units Notes Unit Interval 799.76 800 800.24 ps 800ps ± 300ppm Eye Mask 0.3 UI Eye Mask 100 mV Eye Mask 1000 mV Input Differential Voltage 200 2000 mV Minimum RX Eye Width 0.4 UI Input Jitter Tolerance 0.6 UI TRX-JITTER-MAX = 1 - TRX-EYE-MIN = 0.6UI Differential Resistance 80 100 120 ohm - k e t l a L IA TRX-EYE-MIN e R R_Y2 R_Y1 Amplitude 0V -R_Y1 F N O C -R_Y2 0.0 T N E ID VRX-DIFFp-p-MIN R_X1 0.5 1-R_X1 VRX-DIFFp-p-MAX H C E Time UI D E IT M I L 1.0 T E Figure 17. SGMII Differential Receiver Eye Diagram G A N A D L O G or f Integrated 10/100/1000M Ethernet Precision Transceiver 81 Track ID: JATR-8275-15 Rev. 1.3 RTL8211FS(I)(-VS) Datasheet 10.7. 1000Base-X Characteristics 10.7.1. 1000Base-X Differential Transmitter Characteristics Symbol UI T_X1 T_X2 T_Y1 T_Y2 VTX-OFFSET VTX-DIFFp-p TTX-EYE TTX-JITTER TTX-RISE TTX-FALL RTX CTX LTX Table 101. 1000Base-X Differential Transmitter Characteristics Parameter Min Typ Max Units Notes Unit Interval 799.76 800 800.24 ps 800ps ± 300ppm Eye Mask 0.15 UI Eye Mask 0.4 UI Eye Mask 300 mV Eye Mask 1000 mV Output Offset Voltage 800 1000 1200 mV Output Differential Voltage 600 1600 2000 mV Minimum TX Eye Width 0.7 UI Output Jitter 0.3 UI TTX-JITTER-MAX = 1 - TTX-EYE-MIN = 0.3UI Output Rise Time 0.125 0.25 UI 20% ~ 80% Output Fall Time 0.125 0.25 UI 20% ~ 80% Differential Resistance 80 100 120 ohm AC Coupling Capacitor 80 100 120 nF Transmit Length in PCB 10 inch - k e t l a e R T N E ID F N O C L IA H C E D E IT M I L T E G A N A D L O G or f Figure 18. 1000Base-X Differential Transmitter Eye Diagram Integrated 10/100/1000M Ethernet Precision Transceiver 82 Track ID: JATR-8275-15 Rev. 1.3 RTL8211FS(I)(-VS) Datasheet 10.7.2. 1000Base-X Differential Receiver Characteristics Symbol UI R_X1 R_Y1 R_Y2 VRX-DIFFp-p TRX-EYE TRX-JITTER RRX Table 102. 1000Base-X Differential Receiver Characteristics Parameter Min Typ Max Units Notes Unit Interval 799.76 800 800.24 ps 800ps ± 300ppm Eye Mask 0.3 UI Eye Mask 100 mV Eye Mask 1000 mV Input Differential Voltage 200 2000 mV Minimum RX Eye Width 0.4 UI Input Jitter Tolerance 0.6 UI TRX-JITTER-MAX = 1 - TRX-EYE-MIN = 0.6UI Differential Resistance 80 100 120 ohm - k e t l a L IA TRX-EYE-MIN e R R_Y2 R_Y1 Amplitude 0V -R_Y1 F N O C -R_Y2 0.0 T N E ID VRX-DIFFp-p-MIN R_X1 0.5 1-R_X1 VRX-DIFFp-p-MAX H C E Time UI D E IT M I L 1.0 T E Figure 19. 1000Base-X Differential Receiver Eye Diagram G A N A D L O G or f Integrated 10/100/1000M Ethernet Precision Transceiver 83 Track ID: JATR-8275-15 Rev. 1.3 RTL8211FS(I)(-VS) Datasheet 10.8. AC Characteristics 10.8.1. MDC/MDIO Timing k e t l a L IA Figure 20. MDC/MDIO Setup, Hold Time, and Valid from MDC Rising Edge Time Definitions e R MDC/MDIO Timing – Management Port T N E ID F N O C Symbol t1 t2 t3 t4 t5 t6 for H C E M I L T E Figure 21. MDC/MDIO Management Timing Parameters G A N Table 103. MDC/MDIO Management Timing Parameters Description Minimum Maximum MDC Low Pulse Width 32 MDC High Pulse Width 32 MDC Period 80 MDIO Setup to MDC Rising Edge 10 MDIO Hold Time from MDC Rising Edge 10 MDIO Valid from MDC Rising Edge 0 60 DA L O G D E IT Integrated 10/100/1000M Ethernet Precision Transceiver 84 Unit ns ns ns ns ns ns Track ID: JATR-8275-15 Rev. 1.3 RTL8211FS(I)(-VS) Datasheet 10.8.2. RGMII Timing Modes Timing for this interface will be such that the clock and data are generated simultaneously by the source of the signals and therefore skew between the clock and data is critical to proper operation. Figure 22 shows the effect of adding an additional delay to TXC by PC board (upper side) or by transmitter internally (lower side) when in RGMII mode. k e t l a e R T N E ID F N O C L IA H C E D E IT M I L T E G A N A D L O G or f Figure 22. RGMII Timing Modes (For TXC) Integrated 10/100/1000M Ethernet Precision Transceiver 85 Track ID: JATR-8275-15 Rev. 1.3 RTL8211FS(I)(-VS) Datasheet Figure 23 shows the effect of adding an additional delay to RXC by PC board (upper side) or by transmitter internally (lower side) when in RGMII mode. k e t l a e R T N E ID F N O C L IA H C E D E IT M I L T E G A N Figure 23. RGMII Timing Modes (For RXC) A D L O G or f Integrated 10/100/1000M Ethernet Precision Transceiver 86 Track ID: JATR-8275-15 Rev. 1.3 RTL8211FS(I)(-VS) Datasheet Table 104. RGMII Timing Parameters Symbol Description Min Typical Max Units Tcyc * Clock Cycle Duration (1000Mbps) 7.2 8 8.8 ns Clock Cycle Duration (100Mbps) 36 40 44 ns Clock Cycle Duration (10Mbps) 360 400 440 ns Duty_G Duty Cycle for 1000 45 50 55 % Duty_T Duty Cycle for 10/100 40 50 60 % tR TXC/RXC Rise Time (20%~80%) 0.75 ns tF TXC/RXC Fall Time (20%~80%) 0.75 ns TsetupT Data to Clock Output Setup Time at transmitter 1.2 2 ns (with delay integrated at transmitter) TholdT Clock to Data Output Hold Time at transmitter 1.2 2 ns (with delay integrated at transmitter) TsetupR Data to Clock Input Setup Time at receiver 1.0 2 ns (with delay integrated at transmitter) TholdR Clock to Data Input Hold Time at receiver 1.0 2 ns (with delay integrated at transmitter) TskewT ** Data to Clock Output Skew Time at transmitter -0.5 0 0.5 ns (without delay integrated) TskewR ** Data to Clock Input Skew Time at receiver 1 1.8 2.6 ns (with PCB delay integrated) This implies that PC board design will require clocks to be routed such that an additional trace delay of greater than 1.5ns and less than 2.0ns will be added to the associated clock signal. *Note: Duty cycle may be stretched/shrunk during speed changes or while transitioning to a received packet's clock domain as long as minimum duty cycle is not violated and stretching occurs for no more than three Tcyc of the lowest speed transitioned between. **Note: For 10/100Mbps, the max value of Skew Time is unspecified. k e t l a e R T N E ID F N O C L IA H C E D E IT M I L T E G A N A D L O G or f Integrated 10/100/1000M Ethernet Precision Transceiver 87 Track ID: JATR-8275-15 Rev. 1.3 RTL8211FS(I)(-VS) Datasheet 10.8.3. SGMII Timing Modes k e t l a e R T N E ID F N O C L IA H C E D E IT M I L T E Figure 24. SGMII Timing Modes G A N A D L O G or f Integrated 10/100/1000M Ethernet Precision Transceiver 88 Track ID: JATR-8275-15 Rev. 1.3 RTL8211FS(I)(-VS) Datasheet Symbol clock Tf Tr Tskew tclock2q - Table 105. Differential Transmitter Output AC Timing Parameter Min Typical Max Clock Signal Duty Cycle @ 625MHz 48 52 VOD Fall Time (20%~80%) 80 120 VOD Rise Time (20%~80%) 80 120 Skew between Two Members of a 15 Differential Pair Clock to Data Relationship: From 250 550 either edge of the clock to valid data Effective Clock Period 800 Cycle to Cycle Clock Jitter 100 Imperfect Duty Cycle 30 Data Dependent Skew 70 Static Package Skew 100 Remaining Window 500 - Table 106. Differential Receiver Input AC Timing Parameter Min Typical Max Setup Time (20%~80%) 250 550 Hold Time (20%~80%) 250 550 Driver Window 500 Static Package Skew 100 Remaining Window 200 - ps - ps ps ps ps ps ps peak-to-peak peak-to-peak peak-to-peak peak-to-peak peak-to-peak L IA T N E ID F N O C Note - k e t l a e R Symbol Tsetup Thold - Units % ps ps ps H C E Units ps ps ps ps ps Note peak-to-peak peak-to-peak peak-to-peak D E IT M I L T E G A N A D L O G or f Integrated 10/100/1000M Ethernet Precision Transceiver 89 Track ID: JATR-8275-15 Rev. 1.3 RTL8211FS(I)(-VS) Datasheet 11. Mechanical Dimensions k e t l a e R T N E ID F N O C H C E 11.1. Mechanical Dimensions Notes T E Symbol Dimension in mm Min Nom Max A 0.75 0.85 1.00 A1 0.00 0.02 0.05 A3 0.20REF b 0.15 0.20 0.25 D/E 6.00BSC D2/E2 4.15 4.4 4.65 e 0.40BSC L 0.30 0.40 0.50 Note 1: CONTROLLING DIMENSION: MILLIMETER (mm). Note 2: REFERENCE DOCUMENT: JEDEC MO-220. G A N DA for L O G L IA Integrated 10/100/1000M Ethernet Precision Transceiver Min 0.030 0.000 0.006 0.163 0.012 90 D E IT M I L Dimension in inch Nom 0.034 0.001 0.008REF 0.008 0.236BSC 0.173 0.016BSC 0.016 Max 0.039 0.002 0.010 0.183 0.020 Track ID: JATR-8275-15 Rev. 1.3 RTL8211FS(I)(-VS) Datasheet 12. Ordering Information Table 107. Ordering Information Part Number RTL8211FS-CG RTL8211FS-VS-CG RTL8211FSI-CG RTL8211FSI-VS-CG Package 48-Pin QFN with ‘Green’ Package 48-Pin QFN with ‘Green’ Package, supports Precision Time Protocol (PTP). 48-Pin QFN with ‘Green’ Package. Industrial grade. 48-Pin QFN with ‘Green’ Package, supports Precision Time Protocol (PTP). Industrial grade. Note: See page 8 for package identification. k e t l a e R O C L IA T N E ID F N Status MP MP - H C E D E IT M I L T E G A N A D L Realtek Semiconductor Corp. Headquarters No. 2, Innovation Road II Hsinchu Science Park, Hsinchu 300, Taiwan Tel.: +886-3-578-0211 Fax: +886-3-577-6047 www.realtek.com O G or f Integrated 10/100/1000M Ethernet Precision Transceiver 91 Track ID: JATR-8275-15 Rev. 1.3
