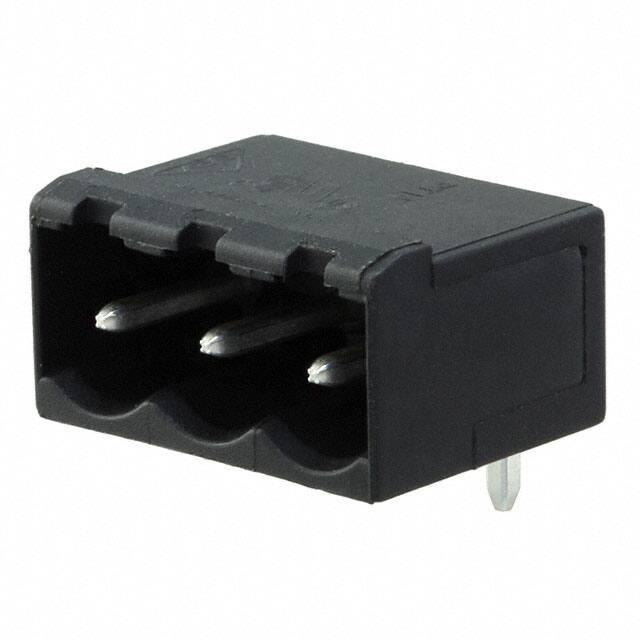

Page 1/6 Data sheet P/N 313301xx xx=number of poles PT115xxHBBN Type 330 2023/06/28 Version: X Illustrations Dimensional drawing Drill pattern See enlarged drawings at the end of document Product specification • pin header, solderable • centerline 5.00 mm, direction of connection 90° • closed ends • color black • codeable Data sheet Page 2/6 PT115xxHBBN Type 330 P/N 313301xx xx=number of poles 2023/06/28 Version: X Technical Data General Data Solder pin length 3.45 mm min. number of poles 2 max. number of poles 24 Insulating material class CTI 600 clearance/creepage dist. 4 mm Protection category IP00 Rated current 10 A Overvoltage category III III II Pollution degree 3 2 2 Rated voltage 320 V 800 V 800 V Rated test voltage 4 kV 4 kV 4 kV Approvals V/A approval UL - File No. 1.5 mm² 300 / 16 E121004 320 V / 4 kV / 13.5 A / 1.0 x 1.0 mm Material insulating material PA66 flammability class V0 contact pin material CuFe contact pin surface Ni + Ag Glow-Wire Flammability GWFI 960 °C acc. to IEC 60695-2-12 Glow-Wire Flammability GWIT 775 °C acc. to IEC 60695-2-13 Climatic Data upper limit temperature 105 °C lower limit temperature -40 °C general Tolerance ISO 2768 -mH Solderability Acc. to JEDEC JESD22-B102E 245°C/5s Data sheet Page 3/6 PT115xxHBBN Type 330 P/N 313301xx xx=number of poles 2023/06/28 Version: X Accessories P/N Designation 700024-01-9 Coding star white 700523-0157 Geh_Kappe_swg_Block Data sheet Page 4/6 PT115xxHBBN Type 330 P/N 313301xx xx=number of poles 2023/06/28 Version: X Counterpart of P/N Designation 313131 RP035xxHBLC Type 313 313141 RP035xxHBLD Type 314 31314103-08 RP035xxHBLD Typ 314 31314103-09 RP035xxHBLD Typ 314 313491 RP015xxVBLC Type 349 313501 RP015xxSBLC Type 350 ASP045 SP045xxVBNC ASP045 SP065XXVBNC SP065xxVBNC SP065XXVBPC SP065xxVBPC SP995XXVBNC SP995xxVBNC Data sheet PT115xxHBBN Type 330 Page 5/6 P/N 313301xx xx=number of poles 2023/06/28 Version: X Illustrations Dimensional drawing L=(pole size - 1) x centerline + 6.2 mm [0.244] Data sheet PT115xxHBBN Type 330 Page 6/6 P/N 313301xx xx=number of poles 2023/06/28 Version: X Illustrations Drill pattern Powered by TCPDF (www.tcpdf.org)
