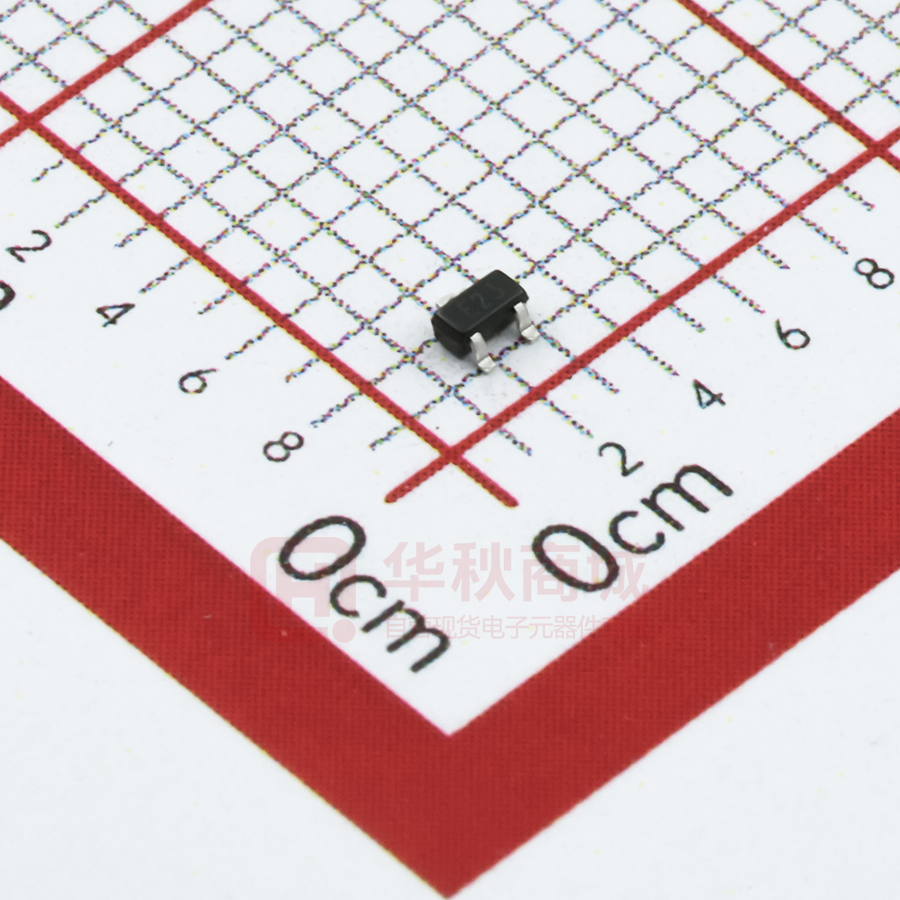

DTC143ZE

DTC143ZE DTC143Z E NPN Silicon Epitaxial Planar Digital Transistor FEATURES  Built-in bias resistors enable the configuration of an inverter circuit without connecting external input resistors(see equivalent circuit)  The bias resistors consist of thin-film resistors with complete isolation to allow negative biasing of the input.They also have the advantage of almost completely eliminating parasitic effects  Only the on/off conditions need to be set for operation, making device design easy PIN CONNENCTIONS and MARKING ORDERING INFORMATION Part Number MARKING Package Packing Method Pack Quantity DTC143ZE E23 SOT-523 Reel 3000pcs/Reel DTC143ZUA E23 SOT-323 Reel 3000pcs/Reel DTC143ZKA E23 SOT-23-3L Reel 3000pcs/Reel DTC143ZCA E23 SOT-23 Reel 3000pcs/Reel www.tw-gmc.com 1 DTC143ZE MAXIMUM RATINGS(Ta=25℃ unless otherwise noted) Symbol VCC Supply Voltage VIN Input Voltage IO Output Current PD Power Dissipation TJ,Tstg Limits(DTC143Z□) Parameter M 100 E 150 Operation Junction and Storage Temperature Range UA CA KA Unit SA 50 V -5～+30 V 100 mA 200 200 200 300 mW ℃ -55～+150 ELECTRICAL CHARACTERISTICS (Ta=25℃ unless otherwise specified) Parameter Input voltage Output voltage Input current Symbol Conditions VI(off) VCC=5V,IO=100µA VI(on) VO=0.3V ,IO=5mA VO(on) IO/II=5mA/0.25mA II Min Typ Max 0.5 V 1.3 V 0.3 V VI=5V 1.8 mA VCC=50V,VI=0 0.5 μA kΩ 0.1 Output current IO(off) DC current gain GI Input resistance R1 3.29 4.7 6.11 Resistance ratio R2/R1 8 10 12 Transition frequency www.tw-gmc.com fT Unit VO=5V,IO=10mA VO=10V ,IO=5mA,f=100MHz 2 80 250 MHz DTC143ZE I Typical Characteristics REVERSE VOLTAGE www.tw-gmc.com VR (V) AMBIENT TEMPERATURE Ta (℃) 3 DTC143ZE PACKAGE OUTLINE Plastic surface mounted package; 3 leads SOT-523 D E B A X HE v M A 3 Q A 1 A1 2 e1 bp c w M B Lp e detail X 0 0.5 1 mm scale DIMENSIONS (mm are the original dimensions) www.tw-gmc.com UNIT A A1 max bp c D E e e1 HE Lp Q v w mm 0.95 0.60 0.1 0.30 0.15 0.25 0.10 1.8 1.4 0.9 0.7 1 0.5 1.75 1.45 0.45 0.15 0.23 0.13 0.2 0.2 4
