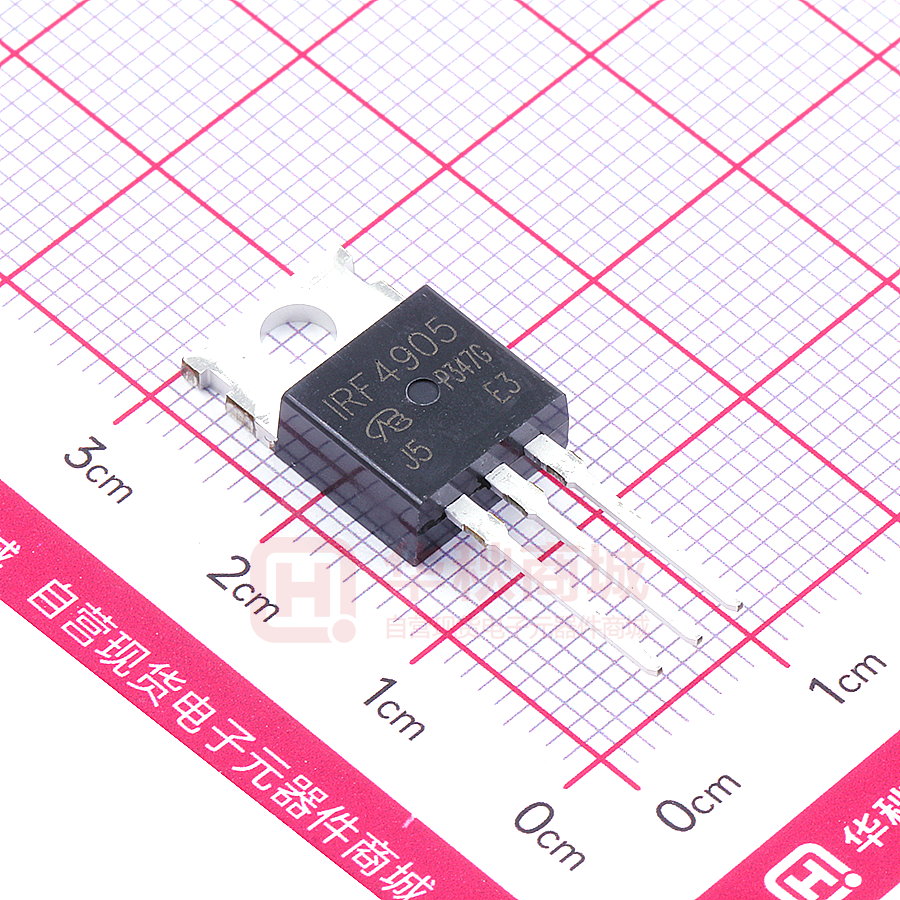

IRF4905PBF-VB

IRF4905PBF www.VBsemi.com P-Channel 60-V (D-S) MOSFET PRODUCT SUMMARY VDS -60 RDS(on) VGS = 10 V 19 V mΩ RDS(on) VGS = 4.5 V 26 mΩ ID -50 A Single Configuration FEATURES • TrenchFET® Power MOSFET • 100 % UIS Tested APPLICATIONS • Load Switch TO-220AB S G D G D S P-Channel MOSFET Top View ABSOLUTE MAXIMUM RATINGS (TA = 25 °C, unless otherwise noted) Symbol Limit Drain-Source Voltage Parameter VDS - 60 Gate-Source Voltage VGS ± 20 TC = 25 °C Continuous Drain Current (TJ = 150 °C) TC = 70 °C TA = 25 °C - 46 ID -39 IDM - 200 Avalanche Current Pulse IAS - 45 EAS 101 Continuous Source-Drain Diode Current TC = 25 °C TA = 25 °C 69 IS TC = 70 °C TA = 25 °C A 104.2a 66.7a PD W 3.1b 2b TA = 70 °C TJ, Tstg Operating Junction and Storage Temperature Range mJ a 20b TC = 25 °C Maximum Power Dissipation A -34 Pulsed Drain Current L = 0.1 mH V - 50 TA = 70 °C Single Pulse Avalanche Energy Unit - 55 to 150 °C THERMAL RESISTANCE RATINGS Parameter Maximum Steady State Symbol RthJA Typical Maximum Junction-to-Ambientb 33 40 Maximum Junction-to-Case Steady State RthJC 0.98 1.2 Unit °C/W Notes: a. Based on TC = 25 °C. b. Surface mounted on 1" x 1" FR4 board. 服务热线：400-655-8788 1 IRF4905PBF www.VBsemi.com SPECIFICATIONS (TJ = 25 °C, unless otherwise noted) Parameter Symbol Test Conditions Min. VDS VGS = 0 V, ID = - 250 µA - 60 Typ. Max. Unit Static Drain-Source Breakdown Voltage VDS/TJ VDS Temperature Coefficient VGS(th)/TJ Gate-Source Threshold Voltage VGS(th) VDS = VGS, ID = - 250 µA IGSS Gate-Source Leakage Zero Gate Voltage Drain Current IDSS On-State Drain Currenta ID(on) Drain-Source On-State Resistancea Forward Transconductancea RDS(on) gfs 68 ID = - 250 µA VGS(th) Temperature Coefficient V mV/°C - 5.2 -1 -3 V VDS = 0 V, VGS = ± 20 V ± 100 nA VDS = - 60 V, VGS = 0 V -1 VDS = - 60 V, VGS = 0 V, TJ = 55 °C - 10 VDS =-5 V, VGS = - 10 V - 120 A VGS = - 10 V, ID = - 30 A 19 VGS = - 4.5 V, ID = - 20 A 26 VDS = - 15 V, ID = - 50 A µA mΩ 20 S Dynamicb Input Capacitance Ciss Output Capacitance Coss Reverse Transfer Capacitance Crss Total Gate Charge Qg Gate-Source Charge Qgs Gate-Drain Charge Qgd Rg Gate Resistance 3700 VDS = - 25 V, VGS = 0 V, f = 1 MHz 290 VDS = - 30 V, VGS = - 10 V, ID = - 55 A VDS = - 30 V, VGS = - 4.5 V, ID = - 55 A tr Rise Time td(off) Turn-Off Delay Time f = 1 MHz 115 38 60 16 nC VDD = - 2 V, RL = 2  ID  - 10 A, VGEN = - 10 V, Rg = 1   5.2 10 tf Fall Time 76 19 td(on) Turn-On Delay Time pF 390 15 7 15 70 110 40 60 ns Drain-Source Body Diode Characteristics Continuous Source-Drain Diode Current a IS Pulse Diode Forward Current ISM Body Diode Voltage VSD TC = 25 °C - 69 A - 150 IS = - 30 A -1 - 1.5 V Body Diode Reverse Recovery Time trr 45 68 ns Body Diode Reverse Recovery Charge Qrr 59 120 nC Reverse Recovery Fall Time ta Reverse Recovery Rise Time tb IF = - 50 A, di/dt = 100 A/µs, TJ = 25 °C 29 16 ns Notes: a. Pulse test; pulse width  300 µs, duty cycle  2 %. b. Guaranteed by design, not subject to production testing. Stresses beyond those listed under “Absolute Maximum Ratings” may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated in the operational sections of the specifications is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability. 服务热线：400-655-8788 2 IRF4905PBF www.VBsemi.com TYPICAL CHARACTERISTICS (25 °C, unless otherwise noted) 200 100 VGS = 10 thru 6 V 80 VGS = 5 V ID - Drain Current (A) ID - Drain Current (A) 160 120 80 VGS = 4 V 40 60 40 TC = 125 °C 20 TC = 25 °C VGS = 3 V TC = - 55 °C 0 0 0 1 2 3 4 VDS - Drain-to-SourceVoltage (V) 5 1 2 3 4 VGS - Gate-to-Source Voltage (V) 0 Output Characteristics 5 Transfer Characteristics 10 100 8 80 gfs - Transconductance (S) ID - Drain Current (A) TC = - 55 °C 6 4 TC = 125 °C 2 TC = 25 °C 60 TC = 125 °C 40 20 TC = 25 °C TC = - 55 °C 0 0 0 1 2 3 4 0 5 24 36 ID - Drain Current (A) 12 VGS - Gate-to-Source Voltage (V) 60 Transconductance 0.05 5000 0.04 4000 C - Capacitance (pF) RDS(on) - On-Resistance (Ω) Transfer Characteristics 48 0.03 VGS = 4.5 V 0.02 Ciss 3000 2000 VGS = 10 V 0.01 1000 Coss 0.00 Crss 0 0 20 40 60 ID - Drain Current (A) 80 On-Resistance vs. Drain Current 100 0 10 20 30 40 50 VDS - Drain-to-Source Voltage (V) 60 Capacitance 服务热线：400-655-8788 3 IRF4905PBF www.VBsemi.com TYPICAL CHARACTERISTICS (25 °C, unless otherwise noted) 2.0 10 RDS(on) - On-Resistance (Normalized) VGS - Gate-to-Source Voltage (V) ID = 55 A 8 VDS = 20 V 6 VDS = 30 V 4 2 40 60 20 Qg - Total Gate Charge (nC) VGS = 10 V 1.4 VGS = 4.5 V 1.1 0.8 0.5 - 50 0 0 ID = 20 A 1.7 80 - 25 0 25 50 75 100 125 150 TJ - Junction Temperature (°C) Gate Charge On-Resistance vs. Gate-to-Source Voltage 0.10 100 TJ = 150 °C RDS(on) - On-Resistance (Ω) IS - Source Current (A) ID = 20 A TJ = 25 °C 10 0.08 0.06 0.04 TJ = 150 °C 0.02 TJ = 25 °C 1 0.0 0.00 0.3 0.6 0.9 VSD - Source-to-Drain Voltage (V) 0 1.2 2 4 6 8 VGS - Gate-to-Source Voltage (V) Source-Drain Diode Forward Voltage 10 On-Resistance vs. Gate-to-Source Voltage 1000 75 ID = 10 mA 72 V(BR)DSS - (V) I Dav - (A) 100 10 69 66 IAV (A) at TJ = 25 °C 1 63 IAV (A) at TJ = 150 °C 0.1 0.0001 0.001 0.01 T in - (s) 0.1 1 Single Pulse Avalanche Current Capability vs. Time 60 - 50 - 25 0 25 50 75 100 125 150 TJ - Temperature (°C) Drain-Source Breakdown Voltage vs. Junction Temperature 服务热线：400-655-8788 4 IRF4905PBF www.VBsemi.com TYPICAL CHARACTERISTICS (25 °C, unless otherwise noted) 60 0.8 50 ID - Drain Current (A) V GS(th) Variance (V) 0.5 ID = 250 µA ID = 1 mA 0.2 40 30 20 - 0.1 10 0 - 0.4 - 50 - 25 0 25 50 75 100 TJ - Temperature(°C) 125 25 0 150 Threshold Voltage 100 125 150 Max. Drain Current vs. Case Temperature 140 1000 Limited by RDS(on)* 120 10 µs 100 I D - Drain Current (A) 100 Power (W) 75 50 TC - Case Temperature (°C) 80 60 40 100 µs 10 1 ms 10 ms 100 ms, DC 1 20 BVDSS Limited TC = 25 °C Single Pulse 0 0 25 50 75 100 125 0.1 0.1 150 TJ - Temperature (°C) 1 10 100 VDS - Drain-to-Source Voltage (V) * VGS > minimum VGS at which RDS(on) is specified Power Derating, Junction-to-Case Safe Operating Area, Junction-to-Case 1 Normalized Effective Transient Thermal Impedance Duty Cycle = 0.5 0.2 0.1 0.1 0.05 0.02 Single Pulse 0.01 10-4 10-3 10-2 10-1 1 Square Wave Pulse Duration (s) Normalized Thermal Transient Impedance, Junction-to-Case . 服务热线：400-655-8788 5 IRF4905PBF www.VBsemi.com TO-220AB MILLIMETERS A E F D H(1) Q ØP 3 2 L(1) 1 M* L b(1) INCHES DIM. MIN. MAX. MIN. MAX. A 4.25 4.65 0.167 0.183 b 0.69 1.01 0.027 0.040 b(1) 1.20 1.73 0.047 0.068 c 0.36 0.61 0.014 0.024 D 14.85 15.49 0.585 0.610 E 10.04 10.51 0.395 0.414 e 2.41 2.67 0.095 0.105 e(1) 4.88 5.28 0.192 0.208 F 1.14 1.40 0.045 0.055 H(1) 6.09 6.48 0.240 0.255 J(1) 2.41 2.92 0.095 0.115 L 13.35 14.02 0.526 0.552 L(1) 3.32 3.82 0.131 0.150 ØP 3.54 3.94 0.139 0.155 Q 2.60 3.00 0.102 0.118 ECN: X12-0208-Rev. N, 08-Oct-12 DWG: 5471 Notes * M = 1.32 mm to 1.62 mm (dimension including protrusion) Heatsink hole for HVM C b e J(1) e(1) 服务热线：400-655-8788 6 IRF4905PBF www.VBsemi.com Disclaimer All products due to improve reliability, function or design or for other reasons, product specifications and data are subject to change without notice. Taiwan VBsemi Electronics Co., Ltd., branches, agents, employees, and all persons acting on its or their representatives (collectively, the "Taiwan VBsemi"), assumes no responsibility for any errors, inaccuracies or incomplete data contained in the table or any other any disclosure of any information related to the product.(www.VBsemi.com) Taiwan VBsemi makes no guarantee, representation or warranty on the product for any particular purpose of any goods or continuous production. To the maximum extent permitted by applicable law on Taiwan VBsemi relinquished: (1) any application and all liability arising out of or use of any products; (2) any and all liability, including but not limited to special, consequential damages or incidental ; (3) any and all implied warranties, including a particular purpose, non-infringement and merchantability guarantee. Statement on certain types of applications are based on knowledge of the product is often used in a typical application of the general product VBsemi Taiwan demand that the Taiwan VBsemi of. Statement on whether the product is suitable for a particular application is non-binding. It is the customer's responsibility to verify specific product features in the products described in the specification is appropriate for use in a particular application. Parameter data sheets and technical specifications can be provided may vary depending on the application and performance over time. All operating parameters, including typical parameters must be made by customer's technical experts validated for each customer application. Product specifications do not expand or modify Taiwan VBsemi purchasing terms and conditions, including but not limited to warranty herein. Unless expressly stated in writing, Taiwan VBsemi products are not intended for use in medical, life saving, or life sustaining applications or any other application. Wherein VBsemi product failure could lead to personal injury or death, use or sale of products used in Taiwan VBsemi such applications using client did not express their own risk. Contact your authorized Taiwan VBsemi people who are related to product design applications and other terms and conditions in writing. The information provided in this document and the company's products without a license, express or implied, by estoppel or otherwise, to any intellectual property rights granted to the VBsemi act or document. Product names and trademarks referred to herein are trademarks of their respective representatives will be all. Material Category Policy Taiwan VBsemi Electronics Co., Ltd., hereby certify that all of the products are determined to be RoHS compliant and meets the definition of restrictions under Directive of the European Parliament 2011/65 / EU, 2011 Nian. 6. 8 Ri Yue restrict the use of certain hazardous substances in electrical and electronic equipment (EEE) - modification, unless otherwise specified as inconsistent.(www.VBsemi.com) Please note that some documents may still refer to Taiwan VBsemi RoHS Directive 2002/95 / EC. We confirm that all products identified as consistent with the Directive 2002/95 / EC European Directive 2011/65 /. Taiwan VBsemi Electronics Co., Ltd. hereby certify that all of its products comply identified as halogen-free halogen-free standards required by the JEDEC JS709A. Please note that some Taiwanese VBsemi documents still refer to the definition of IEC 61249-2-21, and we are sure that all products conform to confirm compliance with IEC 61249-2-21 standard level JS709A.
