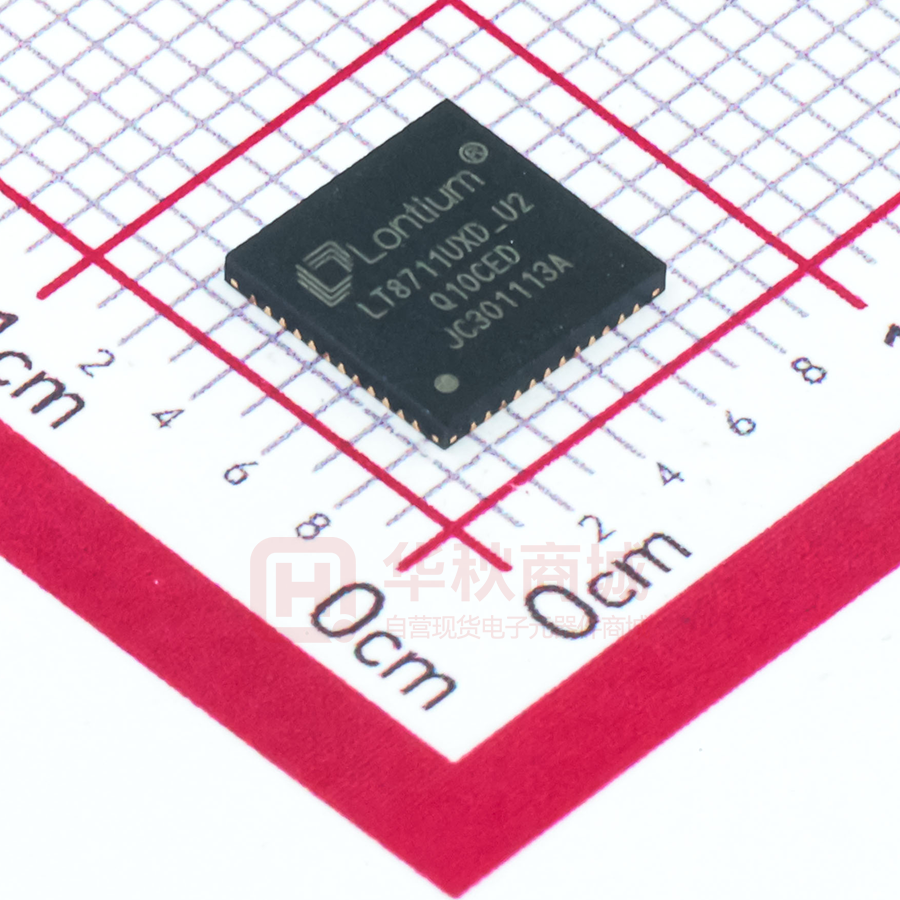

LT8711UXD_U2Q10CED

            LT8711UXD U1 ADVANCE INFORMATION – CONFIDENTIAL AND PROPRIETARY  LT8711UXD --- Product Brief 2-Lane Type-C/DP to HDMI2.0 Converter with PD3.0 1. Features  CSC: RGB YUV444 YUV422 YUV420  USB Type-C  External oscillator 27MHz, +/-100ppm  Integrated 100/400KHz I2C slave  Integrated microprocessor  Compliant with VESA DisplayPort alt mode on USB  Embedded SDRAM Type-C standard 1.0  Compliant with USB power delivery specification 3.0  Embedded SPI flash for firmware and HDCP keys  Compliant with USB Type-C cable and connector  Firmware update through SPI/I2C/BB interface  Power supply: 3.3V for I/O and 1.2V for core specification 1.3 2. General Description  Built-in dual CC controllers for charger and normal communication  Data roles supported: DFP, UFP and DRP The LT8711UXD is a high performance two lane  Power roles supported: source and sink Type-C/DP1.4 to HDMI2.0 converter, designed to connect a USB Type-C source or a DP1.4 source to an HDMI2.0  DP1.4 Receiver sink. The LT8711UXD integrates a DP1.4 compliant  Compliant with DisplayPort specification 1.4 for receiver, and an HDMI2.0 compliant transmitter. Also, two 1.62Gbps, 2.7Gbps, 5.4Gbps, 8.1Gbps CC controllers are included for CC communication to  Compliant Embedded DisplayPort specification version implement DP Alt Mode and power delivery function, one 1.4  Support DisplayPort 1/2 lanes for upstream Type-C port and another for downstream  Support SSC port.  Support HDCP 1.3/2.2/2.3 The DP receiver supports maximum 8.1Gbps data rate  Support HDCP repeater per lane, and incorporates HDCP 1.3/2.2/2.3 content  Support 8K@30Hz protection scheme with embedded key for secure  Support HDR10 and HDR12 transmission of digital audio-video content.  Support FEC The HDMI interface includes 4 TMDS clock/data pairs,  Support Adaptive-sync DDC, and HPD signal. The HDMI transmitter is capable of  Support ASSR for eDP supporting up to 6Gpbs data rate, quite adequate for handling video resolutions up to UHD 4k 60Hz formats.  HDMI2.0 Transmitter  Compliant with HDMI2.0b, HDMI1.4 and DVI1.0 The HDMI transmitter incorporates HDCP engines which  Data rate up to 6Gbps support both HDCP1.4/2.2/2.3. With the inclusion of  Support HDCP 1.4/2.2/2.3 HDCP, the LT8711UXD allows secure transmission of  Support HDCP repeater protected content. Embedded key is available that  Support 8K@30Hz provides the highest level of HDCP key security.  Support HDR10 and HDR12 The device is capable of automatic operation which is  Support CEC enabled by an integrated microprocessor that uses an  Programmable transmitter swing and pre-emphasis embedded SPI flash for firmware storage. System control is also available through the use of a dedicated  Miscellaneous Lontium Semiconductor Corporation LT8711UXD_U1 Product Brief – Draft1 www.lontiumsemi.com 1             LT8711UXD U1 ADVANCE INFORMATION – CONFIDENTIAL AND PROPRIETARY   Docking station configuration I2C slave interface.  Dongle 3. Applications Type‐C/DP1.4  2 lane LT8711UXD Figure 3.1 Application Diagram 4. Ordering Information Table 4.1 Ordering Information Product Name LT8711UXD Part Number LT8711UXD _U1Q10CED Product Status Preview Package QFN48 (6*6)Saw Bonding Wire Cu Grade Consumer Operating Stack Temperature Die Range Option TBD D Packing Method TBD MPQ TBD Figure 4.1 Part Number Naming Rules Lontium Semiconductor Corporation LT8711UXD_U1 Product Brief – Draft1 www.lontiumsemi.com 2             LT8711UXD U1 ADVANCE INFORMATION – CONFIDENTIAL AND PROPRIETARY  Copyright © 2021 Lontium Semiconductor Corporation, All rights reserved. Lontium Semiconductor Proprietary & Confidential This document and the information it contains belong to Lontium Semiconductor. Any review, use, dissemination, distribution or copying of this document or its information outside the scope of a signed agreement with Lontium is strictly prohibited. LONTIUM DISCLAIMS ALL WARRANTIES, EXPRESSED OR IMPLIED, INCLUDING THOSE OF NONINFRINGEMENT, MERCHANTABILITY, TITLE AND FITNESS FOR A PARTICULAR PURPOSE. CUSTOMERS EXPRESSLY ASSUME THEIR OWN RISH IN RELYING ON THIS DOCUMENT. LONTIUM PRODUCTS ARE NOT DESIGNED OR INTENDED FOR USE IN LIFE SUPPORT APPLIANCES, DEVICES OR SYSTEMS WHERE A MALFUNCTION OF A LONTIUM DEVICE COULD RESULT IN A PERSONAL INJURY OR LOSS OF LIFE. Lontium assumes no responsibility for any errors in this document, and makes no commitment to update the information contained herein. Lontium reserves the right to change or discontinue this document and the products it describes at any time, without notice. Other than as set forth in a separate, signed, written agreement, Lontium grants the user of this document no right, title or interest in the document, the information it contains or the intellectual property in embodies. Trademarks Lontium™ 龙迅™ and ClearEdge™ is a registered trademark of Lontium Semiconductor. All other brand names, product names, trademarks, and registered trademarks contained herein are the property of their respective owners. Visit our corporate web page at: www.lontiumsemi.com Technical support: support@lontium.com Sales: sales@lontium.com   Lontium Semiconductor Corporation LT8711UXD_U1 Product Brief – Draft1 www.lontiumsemi.com 3
