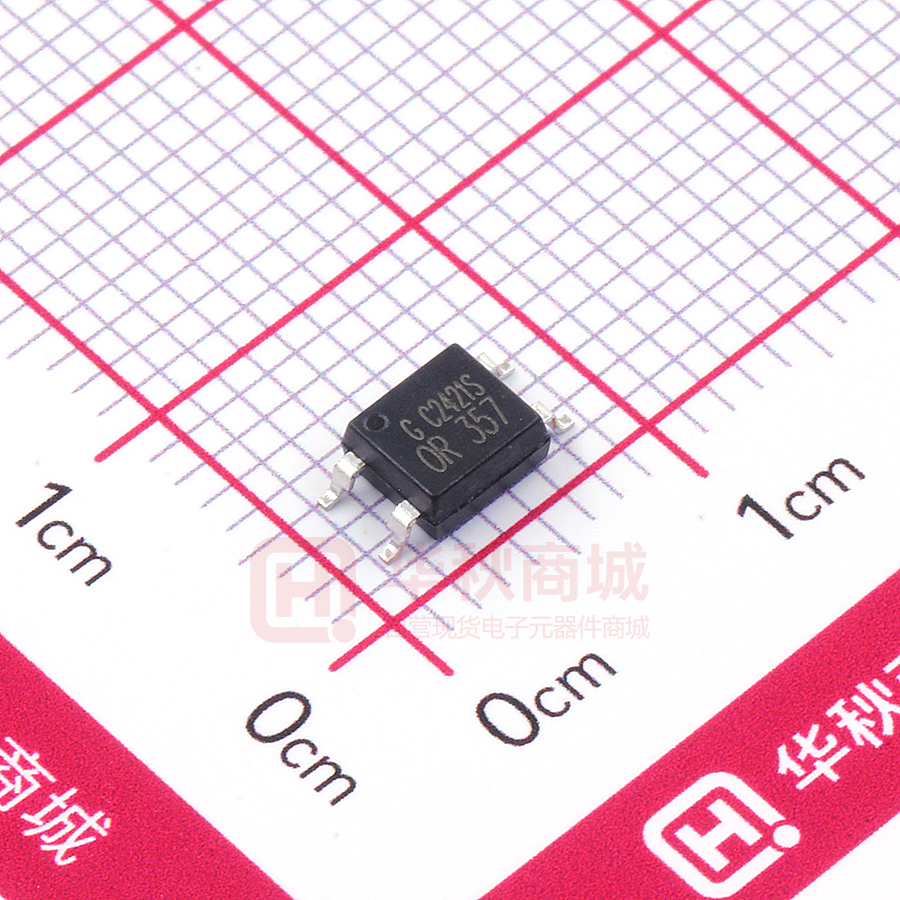

Shenzhen Orient Components Co ., Ltd OR-357 ORIENT Photo coupler Product Data Sheet 、 Part Number: OR-357 Customer: Date: SHENZHEN ORIENT COMPONENTS CO.,LTD. Block A 3rd Floor No.4 Building,Tian’an Cyber Park,Huangge Rd,LongGang Dist,Shenzhen,GD TEL：0755-29681816 FAX：0755-29681200 www.orient-opto.com Copyright© 2020 Orient .All rights Reserved 1 V7 Shenzhen Orient Components Co ., Ltd OR-357 1. Features (1) Current transfer ratio(CTR : MIN. 50% at IF = 5mA, VCE = 5V, Ta=25℃) (2) High input -output isolation voltage （VISO=3,750Vrms） (3) High collector-emitter voltage （VCEO = 80V） (4) SOP-4 package (5) Operating Temperature -55 ℃ to 125 ℃ (6) ESD pass HBM 8000V/MM 2000V (7) Safety approval UL approved(No.E323844) VDE approved(No.40029733) CQC approved (No.CQC19001231256) (8) In compliance with RoHS, REACH standards (9) MSL Class Ⅰ 2. Instructions  The OR-357 series device consists of an infrared led, photo transistor detector. They are encapsulated in a 4 pin SOP encapsulation.  Pin pitch of OR-357 is 2.54mm 3. Application Range (1) Hybrid substrates that require high density mounting. (2) Programmable controllers (3) System appliance, measuring instruments 4. Functional Diagram Copyright© 2020 Orient .All rights Reserved 2 V7 Shenzhen Orient Components Co ., Ltd OR-357 5. Max Absolute rated Value (Normal Temperature=25℃) Parameter Input Output Symbol Rated Value Unit Forward Current IF 50 mA Junction Temperature TJ 125 ℃ Reverse Voltage VR 6 V Consume Power P 70 mW Collector and emitter Voltage VCEO 80 Emitter and collector Voltage VECO 7 Collector Current IC 50 mA Consume Power PC 150 mW Total Consume Power Ptot 200 mW *1 Insulation Voltage Viso 3750 Vrms Working Temperature Topr -55 to + 125 Deposit Temperature Tstg -55 to + 150 *2 Soldering Temperature Tsol 260 V ℃ *1. AC Test, 1 minute, humidity = 40~60% Insulation test method as below: (1) Short circuit both terminals of photo coupler. (2) No Current when testing insulation voltage. (3) Adding sine wave voltage when testing. *2. soldering time is 10 seconds. Copyright© 2020 Orient .All rights Reserved 3 V7 Shenzhen Orient Components Co ., Ltd OR-357 6. Opto-electronic Characteristics Parameter Input Output Symbol Min Typ.* Max Unit Condition Forward Voltage VF --- 1.2 1.4 V IF=20mA Reverse Current IR --- --- 5 μA VR=5V Collector capacitance Ct --- 30 250 pF V=0, f=1KHz Collector to emitter Current ICEO --- --- 100 nA VCE=20V, IF=0mA Collector and Emitter attenuation Voltage BVCEO Emitter and Collector attenuation Voltage BVECO *1.Current conversion ratio CTR 50 --- 600 % Collector Current IC 2.5 --- 30 mA Collector and Emitter Saturation Voltage VCE(sat) --- --- 0.2 V Insulation Impedance Riso --- Ω 80 --- --- V IC=0.1mA IF=0mA 7 --- --- V IE=0.1mA IF=0mA IF=5mA VCE=5V Transforming Characteristics 5×1010 1×1011 IF=20mA IC= 1mA DC500V 40~60%R.H. Floating Capacitance Cf --- 0.6 1 pF V=0, f=1MHz Response Time tr --- 4 18 μs VCC=2V, IC=2mA , Descend Time  tf --- 3 18 μs RL=100Ω Current Conversion Ratio = IC / IF × 100% Copyright© 2020 Orient .All rights Reserved 4 V7 Shenzhen Orient Components Co ., Ltd OR-357 7. Rank table of current transfer ratio CTR（tolerance:±3%） CTR Rank Min. Max. A 80 160 B 130 260 C 200 400 D 300 600 No mark 50 600 Condition IF=5mA, VCE=5V, Ta=25℃ 8. Order Information Part Number OR-357X-W-Y-Z Note X = CTR Rank (A, B, C, D or none) W = Tape and reel option (TP or TP1). Y = ‘V’ code for VDE safety (This options is not necessary). Z = ‘G’ code for Halogen free . * VDE Code can be selected. Option Description Packing quantity TP Surface mount lead form (low profile) + TP tape & reel option 3000 units per reel TP1 Surface mount lead form (low profile) + TP1 tape & reel option 3000 units per reel Copyright© 2020 Orient .All rights Reserved 5 V7 Shenzhen Orient Components Co ., Ltd OR-357 9. Naming Rule 1. Manufacturer : ORIENT. 2. Part Number : 357. 3. Rank Code 4. Year Code 5. Week Code 6. VDE Code 7. HF Code ‘G’: Halogen Free. 8. Anode. ： CTR Rank ： '21' means '2021' and so on. ： 01 means the first week, 02 means the second week and so on. . (Optional) * VDE Code can be selected. Copyright© 2020 Orient .All rights Reserved 6 V7 Shenzhen Orient Components Co ., Ltd OR-357 10. Outer Dimension 11. Recommended Foot Print Patterns (Mount Pad) unit：mm Copyright© 2020 Orient .All rights Reserved 7 V7 Shenzhen Orient Components Co ., Ltd OR-357 12. Taping Dimensions （1）OR-357-TP 2.54±0.1 （2）OR-357-TP1 Description Symbol Dimension in mm(inch) Tape wide W 12±0.3（0.472） Pitch of sprocket holes P0 4±0.1（0.157） F 5.5±0.1（0.217） P2 2±0.1（0.079） P1 8±0.1（0.315） Distance of compartment Distance of compartment to compartment Package Type TP/TP1 Quantities(pcs) 3000 Copyright© 2020 Orient .All rights Reserved 8 V7 Shenzhen Orient Components Co ., Ltd OR-357 13. Package Dimension (1) package dimension Packing Information Packing type Reel type Tape Width 12mm Qty per Reel 3,000pcs Small box (inner) Dimension 345*345*45mm Large box (Outer) Dimension 480x360x360mm Max qty per small box 6,000pcs Max qty per large box 60,000pcs (2)Packing Label Sample Note： 1. 2. Material Code :Product ID. P/N :Contents with "Order Information" in the specification. 3. Lot No. :Product data. 4. D/C :Product weeks. 5. Quantity :Packaging quantity. Copyright© 2020 Orient .All rights Reserved 9 V7 Shenzhen Orient Components Co ., Ltd OR-357 14. Reliability Test NO. 1 ITEMS RSH 耐焊接热 Reliability Testing QTY. (Pcs) 22 Condition 260±5℃ Process 10s/3 次 Device Standard 锡炉 JESD22-A106 高温烤箱 测试仪 JESD22-A103 低温箱 测试仪 JESD22-A119 168 hrs 2 HTSL 高温存储 77 125℃ 500 hrs 1000 hrs 168 hrs 3 LTSL 低温存储 77 -55℃ 500 hrs 1000 hrs 4 5 TC 温度循环 TS 温度冲击 77 H:125℃ 15min ∫5min L:-55℃ 15min 300 cycle 冷热冲击机 JESD22-A104 77 H:100℃ 5min ∫15s L:-40℃ 5min 300 cycle 冷热冲击机 JESD22-A106 高温烤箱 测试仪、老 化电路板 JESD22-A108 ESD静电测 试仪 JESD22-A114 锡炉 JESD22-B102 高温烤箱 ，测试仪 JESD22-A103 恒温恒湿 机，测试仪 JESD22-A101 压力锅 JESD22-A102 168 hrs 6 7 8 9 10 11 HTOL 高温操作 ESD-HBM 人体模式 SD 可焊性 HTRB 高温反向偏压 H3TRB 温湿度反向偏 压，寿命试验 Autoclave 压力锅 110°C IF=10mA Vce=5V 500 hrs 22 ≥8KV 1Cycle 1次 22 Pb-free 245±5℃ 5S/1次 77 HTRB ＠125℃ Vce=80v 77 77 77 H3TRB 85℃,85%RH Vce=80v Ta=121 ℃,100%RH,2atm Copyright© 2020 Orient .All rights Reserved 1000 hrs 168 hrs 500 hrs 1000 hrs 168 hrs 500 hrs 1000 hrs 96hrs 10 V7 Shenzhen Orient Components Co ., Ltd OR-357 15. Temperature Profile Of Soldering （1） IR Reflow soldering (JEDEC-STD-020C compliant) One time soldering reflow is recommended within the condition of temperature and time profile shown below. Do not solder more than three times. Profile item Conditions Preheat - Temperature Min (T Smin ) 150˚C - Temperature Max (T Smax ) 200˚C - Time (min to max) (ts) 90±30 sec Soldering zone - Temperature (TL ) 217˚C - Time (t L ) 60 sec Peak Temperature 260˚C Peak Temperature time 20 sec Ramp-up rate 3˚C / sec max. Ramp-down rate from peak temperature 3~6˚C / sec Reflow times ≤3 Copyright© 2020 Orient .All rights Reserved 11 V7 Shenzhen Orient Components Co ., Ltd OR-357 （2） Wave soldering (JEDEC22A111 compliant) One time soldering is recommended within the condition of temperature. Temperature 260+0/-5˚C Time 10 sec Preheat temperature 25 to 140˚C Preheat time 30 to 80 sec （3） Hand soldering by soldering iron Allow single lead soldering in every single process. One time soldering is recommended. Copyright© 2020 Orient .All rights Reserved Temperature 380+0/-5˚C Time 3 sec max 12 V7 Shenzhen Orient Components Co ., Ltd OR-357 16. Characteristics Curves Copyright© 2020 Orient .All rights Reserved 13 V7 Shenzhen Orient Components Co ., Ltd Copyright© 2020 Orient .All rights Reserved 14 OR-357 V7
