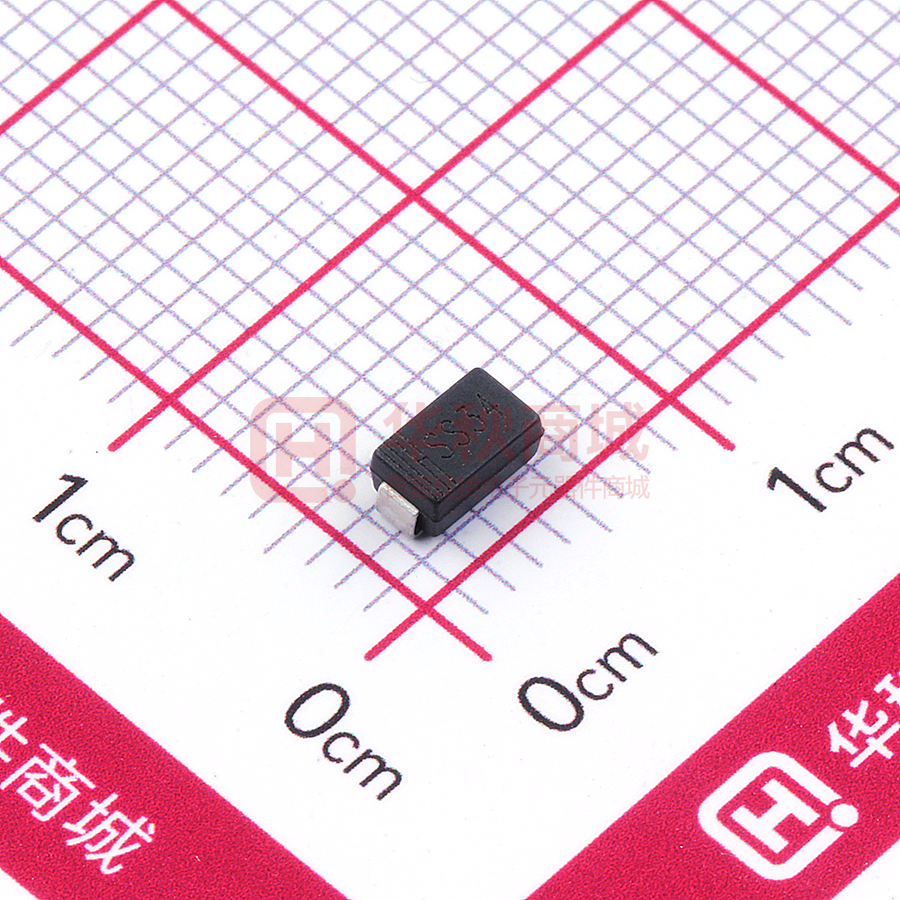

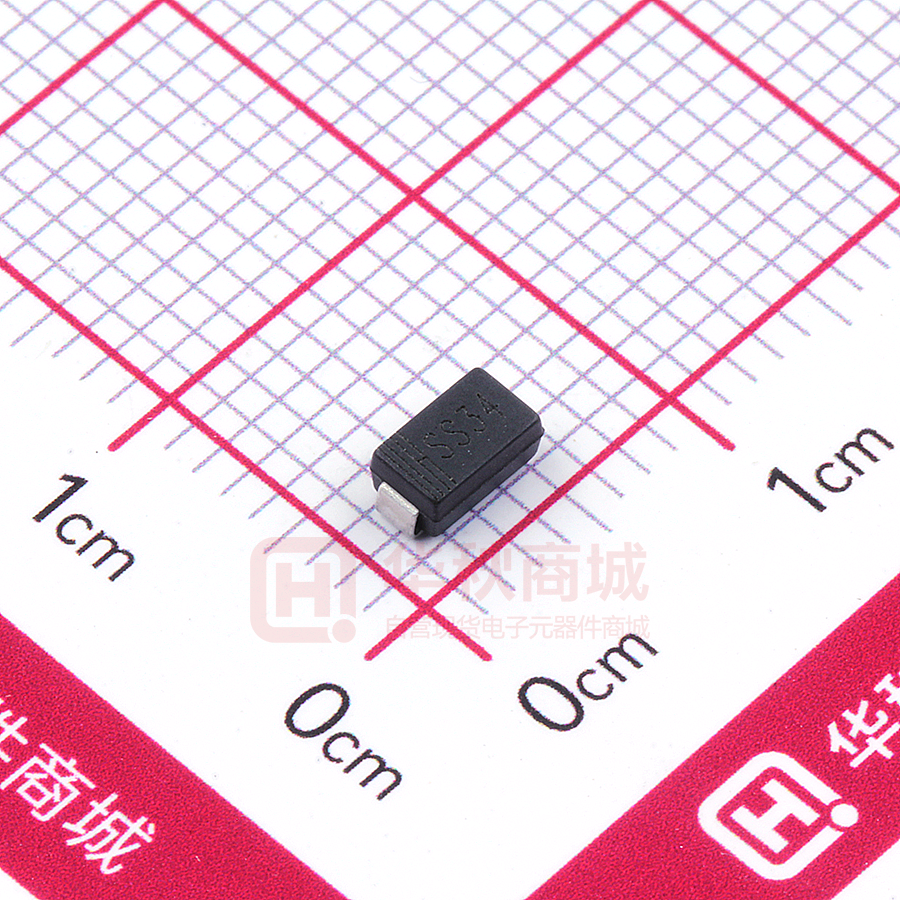

MBRA320T3G

MBRA320T3G SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER FEATURES * * * * DO-214AC(SMA) Ideal for surface mount applications Easy pick and place Built-in strain relief Low forward voltage drop MECHANICAL DATA * Case: Molded plastic * Epoxy: UL 94V-0 rate flame retardant * Metallurgically bonded construction * Polarity: Color band denotes cathode end * Mounting position: Any * Weight: 0.063 grams Dimensions in inches and (millimeters) 1 Cathode 2 Anode MAXIMUM RATINGS Rating Symbol Value Unit VRRM VRWM VR 20 V IO 3.0 A Non−Repetitive Peak Surge Current (Surge Applied at Rated Load Conditions Halfwave, Single Phase, 60 Hz) IFSM 80 A Storage Temperature Tstg −65 to +150 °C Operating Junction Temperature TJ −65 to +125 °C dv/dt 10,000 V/ms Peak Repetitive Reverse Voltage Working Peak Reverse Voltage DC Blocking Voltage Average Rectified Forward Current (At Rated VR, TL = 100°C) Voltage Rate of Change (Rated VR, TJ = 25°C) MARKING DIAGRAM 1 SS34 2 ORDERING INFORMATION www.tokmas.com Device SS34 Package Shipping SMA (Pb−Free) 2000 / Tape & Reel MBRA320T3G THERMAL CHARACTERISTICS Characteristic Thermal Resistance − Junction−to−Lead (Note 1) Thermal Resistance − Junction−to−Ambient (Note 1) Symbol Value Unit RθJL RθJA 15 80 °C/W VF 0.50 Volts ELECTRICAL CHARACTERISTICS Maximum Instantaneous Forward Voltage (Note 2) (IF = 3.0 A, TJ = 25°C) Maximum Instantaneous Reverse Current (Note 2) IR TJ = 25°C TJ = 100°C 2.0 20 (VR = 20 V) mA TYPICAL CHARACTERISTICS 1 10 IF, FORWARD CURRENT (AMPS) IF, FORWARD CURRENT (AMPS) 10 TJ = 125°C TJ = 100°C TJ = 25°C 0.1 0.0 TJ = −65°C 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.9 0.8 VF, INSTANTANEOUS FORWARD VOLTAGE (V) 1.0 1 TJ = 100°C TJ = 125°C TJ = 25°C 0.1 0.0 TJ = −65°C 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0 VF, MAXIMUM INSTANTANEOUS FORWARD VOLTAGE (V) Figure 1. Typical Forward Voltage www.tokmas.com Figure 2. Maximum Forward Voltage MBRA320T3G 1.E−01 IR, REVERSE CURRENT (AMPS) 1.E−01 1.E−02 1.E−02 1.E−03 TJ = 100°C 1.E−03 TJ = 100°C TJ = 25°C 1.E−04 1.E−04 TJ = 25°C 1.E−05 1.E−06 IR, MAXIMUM REVERSE CURRENT (AMPS) TYPICAL CHARACTERISTICS 0 1.E−05 10 5 20 15 1.E−06 5 0 VR, REVERSE VOLTAGE (V) dc 4 SQUARE WAVE 3 2 1 60 70 80 90 100 110 120 130 PFO, AVERAGE POWER DISSIPATION (W) RqJL = 15°C/W 0 50 6 5 SQUARE WAVE 4 3 2 dc 1 0 0 1 TL, LEAD TEMPERATURE (°C) 2 4 Figure 6. Forward Power Dissipation 700 TJ = 25°C 600 500 400 300 200 100 0 4 3 IO, AVERAGE FORWARD CURRENT (A) Figure 5. Current Derating 0 20 Figure 4. Maximum Reverse Current 6 C, CAPACITANCE (pF) IO, AVERAGE FORWARD CURRENT (AMPS) Figure 3. Typical Reverse Current 5 15 10 VR, REVERSE VOLTAGE (V) 8 12 16 20 24 28 32 VR, REVERSE VOLTAGE (V) Figure 7. Typical Capacitance www.tokmas.com 36 40 5 MBRA320T3G R(t), TRANSIENT THERMAL RESISTANCE (°C/W) TYPICAL CHARACTERISTICS 1000 D = 0.5 100 10 1 0.2 0.1 0.05 0.02 0.01 0.1 SINGLE PULSE 0.01 0.000001 0.00001 0.0001 0.001 0.01 0.1 1 10 100 10 100 1000 t, TIME (S) R(t), TRANSIENT THERMAL RESISTANCE (°C/W) Figure 8. Thermal Response, Junction−to−Ambient (min pad) 100 D = 0.5 0.2 10 0.1 0.05 1 0.02 0.01 0.1 SINGLE PULSE 0.01 0.000001 0.00001 0.0001 0.001 0.01 0.1 1 t, TIME (S) Figure 9. Thermal Response, Junction to Ambient (1 inch pad) www.tokmas.com 1000
