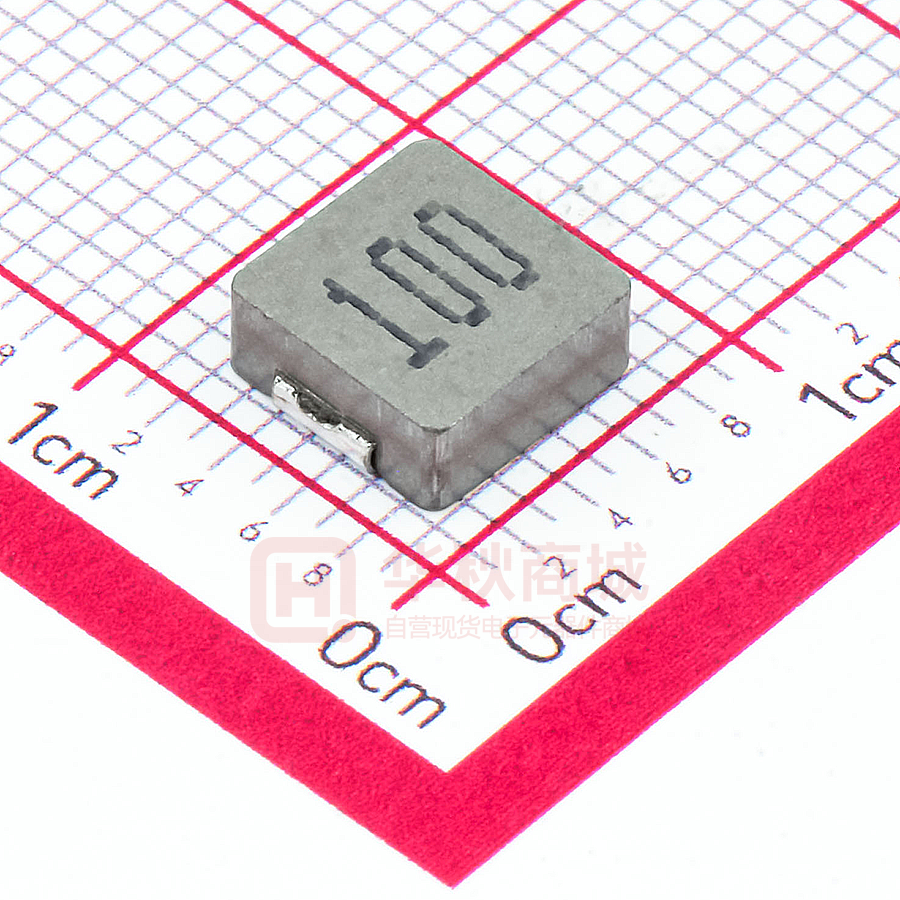

FXLA0630-100M

深圳市长江微电科技有限公司 SZ CJIANG TECHNOLOGY CO.,LTD Customer Product Name Wire Wound Molded SMD Power Inductors Customer P/N: Cjiang P/N: [ New Released, FXLA0630 Revised] Series SPEC No.: REMARK： Customer Approval Feedback ●深圳市长江微电科技有限公司 SZ CJIANG TECHNOLOGY CO. , LTD ADD： 11 F, International Science and Technology Building, Fuhong Road, Futian District, Shenzhen Factory ADD: No. shanyang RD CJIANG Industrial Park HUAi' AN Section HUAI' AN City Jiangsu Province TEL: 0755-82529562 FAX:0755-83977004 http:// www.CJING.COM.CN E-mail: BOND@ Cjiang. com. cn； ann@ cjiang. com. cn 更 多 资 讯 ,请 点 击 长 江 微 电 官 网 more information, Please click： WWW.CJIANG.COM.CN 深圳市长江微电科技有限公司 SZ CJIANG TECHNOLOGY CO.,LTD Version change history Description Rev Date 1.0 2020/8/9 文件制定 APPROVE D CHECKE D DRAWN Bond Charles 王云燕 Caution : All products listed in this specification are developed, designed and intended for use in general electronics equipment. The products are not designed or Warranted to meet the requirements of the applications listed below, whose performance and/or quality require especially high reliability, or whose failure, malfunction or trouble might directly cause damage to society, person, or property. Please understand that we are not responsible for any damage or liability caused by use of the products in any of the applications below. Please contact us for more details if you intend to use our products in the following applications. 1. Aircraft equipment. 2. Aerospace equipment. 3. Undersea equipment. 4. nuclear control equipment. 5. military equipment. 6. Power plant equipment. 7. Medical equipment. 8. Transportation equipment (automobiles, trains, ships,etc.) 9. Traffic signal equipment. 10. Disaster prevention / crime prevention equipment. 11. Data-processing equipment. 12. Applications of similar complexity or with reliability requirements comparable to the applications listed in the above. 更 多 资 讯 ,请 点 击 长 江 微 电 官 网 more information, Please click： WWW.CJIANG.COM.CN 深圳市长江微电科技有限公司 SZ CJIANG TECHNOLOGY CO.,LTD FXLA0630 Series introduction • ROHS，Halogen Free and REACH compliance • High rated current • 125℃ maximum total temperature operation • 7.3×6.8×3.0mm maximum surface mount package • Low core loss • Ultra low buzz noise due to molding construction Applications • Laptops and PCs • Switch and servers • Base stations • DC/DC converters • Battery powered devices • SSD modules Product Identification FXL ① 0630 ② --6R8 M ③ ④ ① FXL ---------- Series name ② 0630 ---------- Dimension ③ 6R8 ----------- Inductance Value (6R8 = 6.8μH) ④ M -----------Inductance Tolerance ( M= ± 20% ) Dimensions (unit:mm) A C b E B c a D Recommend Land Pattern A B C D E a typ b typ c typ 7.0±0.3 6.6±0.2 2.8±0.2 1.6±0.3 3.0±0.3 3.7 8.4 3.5 更 多 资 讯 ,请 点 击 长 江 微 电 官 网 more information, Please click： WWW.CJIANG.COM.CN 深圳市长江微电科技有限公司 SZ CJIANG TECHNOLOGY CO.,LTD Marking The inductor is marked with a 3-digit code Nominal Inductance Example Nominal Value 1R0 1.0 μH 100 10 μH 101 100 μH Note：Using Ink for marking 1R0 Structure and Components Symbol Components Material a MARKING Ink (black) b CORE Alloy Sponge Powder c WIRE Polyurethane copper wire d Terminal Copper plated with Sn 更 多 资 讯 ,请 点 击 长 江 微 电 官 网 more information, Please click： WWW.CJIANG.COM.CN 深圳市长江微电科技有限公司 SZ CJIANG TECHNOLOGY CO.,LTD Heating Rating Inductance DC Resistance Saturation Current L0 (μH) DCR (mΩ) Isat (A) Irms (A) ±20 %, 100 kHz, 1V MAX. TYP. TYP. FXLA0630-R22M 0.22 3 34 24 FXLA0630-R24M 0.24 3.1 26 23 FXLA0630-R33M 0.33 3.5 25 21 FXLA0630-R47M 0.47 4.1 20 18 FXLA0630-R56M 0.56 4.5 18 16.5 FXLA0630-R68M 0.68 5.3 17 16 FXLA0630-R82M 0.82 6.0 16 14 FXLA0630-1R0M 1.0 7.4 15 12 FXLA0630-1R5M 1.5 12.1 14 12 FXLA0630-2R2M 2.2 15 10 9.5 FXLA0630-3R3M 3.3 22 9.5 8.5 FXLA0630-4R7M 4.7 33 9 6 FXLA0630-5R6M 5.6 42 6.5 5.5 FXLA0630-6R8M 6.8 48 6 5 FXLA0630-8R2M 8.2 60 6 5 FXLA0630-100M 10 68 5.5 4.5 FXLA0630-150M 15 115 4.5 3 FXLA0630-220M 22 200 3 2.5 FXLA0630-330M 33 310 2.5 2 FXLA0630-470M 47 385 2 1.5 FXLA0630-680M 68 610 1.8 1.4 FXLA0630-820M 82 740 1.7 1.2 FXLA0630-101M 100 890 1.5 1.0 Part No. Current Notes 1. All test data is referenced to 25 °C ambient 2. Operating temperature range - 55 °C to + 125 °C 3. Irms (A):DC current (A) that will cause an approximate ΔT of 40 °C(reference ambient temperature is 25 °C) 4. Isat(A):DC current (A) that will cause L0 to drop approximately 30 % 5. The part temperature (ambient + temp rise) should not exceed 125 °C under worst case operating conditions. Circuit design, component placement, PWB trace size and thickness, airflow and other cooling provisions all affect the part temperature. Part temperature should be verified in the end application. 6. For FXLA series inductors,absolute maximum voltage: DC 30V 更 多 资 讯 ,请 点 击 长 江 微 电 官 网 more information, Please click： WWW.CJIANG.COM.CN 深圳市长江微电科技有限公司 SZ CJIANG TECHNOLOGY CO.,LTD Mechanical Reliability Item Specification and Requirement 1. No case deformation or change in apperarance Solderability 2. New solder coverage Test Method 1.Preheat：155℃±5℃ ，60S±2S 2.Tin: lead-free. 3.Temperature:240℃±5℃，flux 3.0S±0.5S. More than 95% Mechanical 1. No case deformation 1. Acceleration： 100G or change in apperarance 2. Pulse time:：6ms shock 3. 3 times in each positive and negative direction of 3 2. △L/Lo≦±10% 1. No case deformation Mechanical or change in apperarance vibration 2. △L/Lo≦±10% mutual perpendicular directions 1. Reflow: 2times 2. Frequency: 10HZ～55HZ～10HZ，20 Min/Cycles 3. Amplitude: 1.52 mm 4. Directions: X,Y,Z 5. Time: 12 cycle / direction Endurance Reliability Item Specification and Requirement Inductance change: Thermal Shock Within ± 10% Without distinct damage in appearance Test Method 1. First -55℃ for 30 minutes，last 125℃ for 30 minutes as 1 cycle. Go through 1000 cycles. 2. Max transfer time is 3 minutes. 3. Measured at room temperature after placing for 24±2 hours Humidity Resistance Inductance change: 1.Reflow 2 times, Within ± 10% Without distinct damage 2.85℃,85%RH,1000 hours in appearance 3.Measured at room temperature after placing for 24±2 hours Low temperature storage Inductance change: 1. Temperature：-55 ± 2℃ Within ± 10% Without distinct damage 2. Time：1000 hours in appearance 3. Measured at room temperature after placing for 24±2 hours 更 多 资 讯 ,请 点 击 长 江 微 电 官 网 more information, Please click： WWW.CJIANG.COM.CN 深圳市长江微电科技有限公司 SZ CJIANG TECHNOLOGY CO.,LTD High temperature storage 1. Temperature：+125 ± 2℃ Inductance change: Within ± 10% Without distinct damage in appearance 2. Time：1000 hours 3. Measured at room temperature after placing for 24±2 hours Recommended Soldering Technologies (1)Re-flowing Profile Preheat condition: 150 ~200℃/60~180sec. Allowed time above 217℃: 80~120sec. Max temp: 260℃ Max time at max temp: 10 sec. Solder paste: Sn/3.0Ag/0.5Cu Allowed Reflow time: 2x max (2)Iron Soldering Profile Iron soldering power: Max. 30W Pre-heating: 150℃/60sec. 3sec. Max. 350℃ Soldering Tip temperature: 350℃ Max. Power: max. 30W Soldering time: 3sec. Max. Diameter of Soldering Solder paste: Sn/3.0Ag/0.5Cu Max.1 times for iron soldering Soldering Iron Iron 1.0mm max. Tc ℃ 更 多 资 讯 ,请 点 击 长 江 微 电 官 网 more information, Please click： WWW.CJIANG.COM.CN 深圳市长江微电科技有限公司 SZ CJIANG TECHNOLOGY CO.,LTD Packaging Information (1) Tape Packaging Dimensions（Unit：mm） P0 D0 W P D1 Type FXLA0630 Tape dimensions (mm) W P P0 P2 D0 16 ±0.3 12 ±0.1 4 ±0.1 2 ±0.1 1.5 ±0.1 D1 T A0 1.5 0.35 6.9 ±0.1 ±0.05 ±0.1 B0 K0 E F 7.5 ±0.1 3.3 ±0.1 1.75 ±0.1 7.5 ±0.1 Taping Drawings (UNIT:mm) 更 多 资 讯 ,请 点 击 长 江 微 电 官 网 more information, Please click： WWW.CJIANG.COM.CN 深圳市长江微电科技有限公司 SZ CJIANG TECHNOLOGY CO.,LTD (2) Reel Dimensions（Unit：mm） B N A D W C A W N B C D 330+2.0 16.8+0.2 97+0.5 2.2+0.5 13.2±0.2 10.75±0.25 (3) Packaging Quantity(PCS) Standard Quantity Type FXLA0630 Reel Inner box 1500 pcs / reel 3Reel / box (4500 pcs) Carton box 4 Middle boxes, (18000 pcs) (4) Peel force of top cover tape The peel speed shall be about 300mm/minute The peel force of top cover tape shall be between 0.1 to 1.3 N 更 多 资 讯 ,请 点 击 长 江 微 电 官 网 more information, Please click： WWW.CJIANG.COM.CN 深圳市长江微电科技有限公司 SZ CJIANG TECHNOLOGY CO.,LTD (5) Reel Label Label on the reel • Customer's part Number • Lot Number • Quantity • date code Shipping Label • Customer's part Number • Manufacturer's part Number • Quantity • date code (6) Inner Box (7) Carton A B C 更 多 资 讯 ,请 点 击 长 江 微 电 官 网 more information, Please click： WWW.CJIANG.COM.CN
