XYDBBCNANF-24.000000MHZ

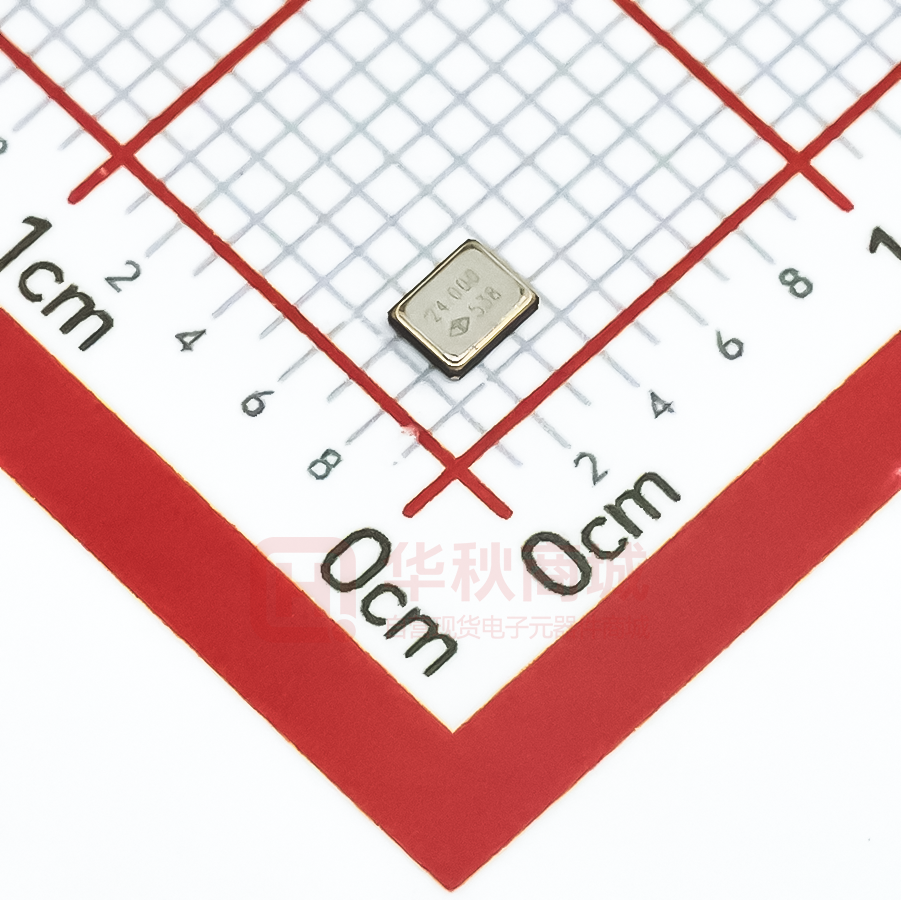

XY Type 2.5 x 2.0 mm SMD Crystal Actual Size FEATURE - Typical 2.5 x 2.0 x 0.45 mm ultra thin ceramic package. - 8 mm width Tape & Reel package for automatic assembly. - Tight tolerance 10 ppm available. T YPICAL APPLICATION - Bluetooth , Mobile phone, Wireless LAN. - Office Automation - Audio & Video RoHS Compliant XY DIMENSION (mm) SOLDER PAD L AYOUT (mm) [ TOP VIEW ] 2.55±0.20 GND #4 #3 2.05±0.20 1.62 #1 GND #3 1.60 1.10 0.55±0.10 #4 #2 #2 and #4 are connected to the cover (please connect to ground) #2 1.25±0.10 [ BOTTOM VIEW ] 1.62±0.10 #1 0.45±0.10 [ SIDE VIEW ] 1.20 0.72±0.10 ELECTRICAL SPECIFICATION Parameter Min. Storage Temp. Range Standard Frequency Level of Drive Shunt Capacitance (Co) Insulation Resistance Aging Typical -40 500 MΩ@ DC100V Max. 16, 24, 26, 40 10 ±1.0 to ± 3.0 Unit 125 MHz µw pF 200 3.0 - ppm / year Standard frequencies are frequencies which the crystal has been designed and does not imply a stock position. EQUIVALENT SERIES RESISTANCE (E. S. R.) Frequency Range 12 MHz Fo < 20 MHz 20 MHz Fo 30 MHz 30 MHz < Fo 54 MHz FREQ. STABILITY vs. TEMP. RANGE o Temp. ( C) ppm ±5 ±10 MODE E.S.R A1 A1 A1
