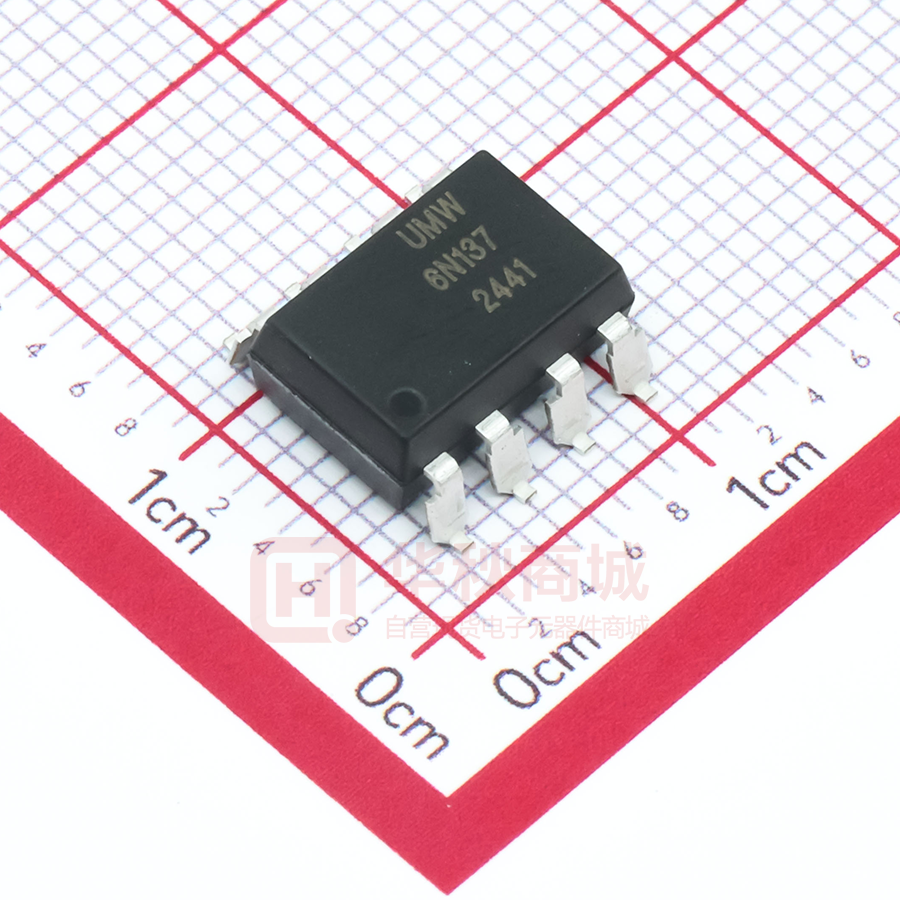

6N137S

UMW R UMW 6N137 High Speed 10MBit/s Logic Gate Optocouplers Description The UMW 6N137 optocoupler consists of a 850 nm AlGaAS LED, optically coupled to a very high speed integrated photo-detector logic gate withastrobable output. This output features an open collector, thereby permitting wired OR outputs. The coupled parameters are guaranteed over the temperature range of -40°C to +85°C. A maximum input signal of 5mA will provide a minimum output sink current of 13mA (fan out of 8). An internal noise shield provides superior common mode rejection of typically 10kV/µs. The UMW 6N137 has a minimum CMR of 5kV/µs. Features         Very high speed – 10 MBit/s Superior CMR – 10 kV/µs Double working voltage-480V Fan-out of 8 over -40°C to +85°C Logic gate output Strobable output Wired OR-open collector UL approved: UL1577, file No. E492440 Applications        Ground loop elimination LSTTL to TTL, LSTTL or 5-volt CMOS Line receiver, data transmission Data multiplexing Switching power supplies Pulse transformer replacement Computer-peripheral interface Package Outlines Schematics www.umw-ic.com 1 友台半导体有限公司 UMW R UMW 6N137 High Speed 10MBit/s Logic Gate Optocouplers Absolute Maximum Ratings (TA = 25°C unless otherwise specified) Stresses exceeding the absolute maximum ratings may damage the device. The device may not function or be operable above the recommended operating conditions and stressing the parts to these levels is not recommended. In addition, extended exposure to stresses above the recommended operating conditions may affect device reliability. The absolute maximum ratings are stress ratings only. Symbol TSTG TOPR TSOL EMITTER Parameter Storage Temperature Operating Temperature Lead Solder Temperature (for wave soldering only) Value -55 to +125 -40 to +85 260 for 10 sec Units ℃ ℃ ℃ IF DC/Average Forward Input Current 50 mA VE VR Enable Input Voltage Not to Exceed VCC by more than 500mV Reverse Input Voltage 5.5 5.0 V V PI Power Dissipation 100 mW DETECTOR VCC (1 minute max) Supply Voltage 7.0 V IO Output Current 50 mA VO Output Voltage 7.0 V PO Collector Output 85 mW Recommended Operating Conditions The Recommended Operating Conditions table defines the conditions for actual device operation. Recommended operating conditions are specified to ensure optimal performance to the datasheet specifications. We do not recommend exceeding them or designing to absolute maximum ratings. Symbol IFL IFH VCC VEL VEH TA N Parameter Input Current, Low Level Input Current, High Level Supply Voltage, Output Enable Voltage, Low Level Enable Voltage, High Level Low Level Supply Current Fan Out (TTL load) Min. 0 *6.3 4.5 0 2.0 -40 Max. 250 15 5.5 0.8 VCC +85 8 Units µA mA V V V ℃ Note: *6.3mA is a guard banded value which allows for at least 20% CTR degradation. Initial input current threshold value is 5.0mA or less. www.umw-ic.com 2 友台半导体有限公司 UMW R UMW 6N137 High Speed 10MBit/s Logic Gate Optocouplers Electro-optical Characteristics (TA= 0 to 70°C unless otherwise specified) Individual Component Characteristics Symbol EMITTER VF Parameter Input Forward Voltage Input Reverse Breakdown Voltage CIN Input Capacitance Input Diode Temperature ∆VF/∆TA Coefficient DETECTOR ICCH High Level Supply Current ICCL Low Level Supply Current IEL Low Level Enable Current IEH High Level Enable Current VEH High Level Enable Voltage VEL Low Level Enable Voltage BVR Test Conditions IF = 10mA Min. T A = 25°C IR = 10µA Typ.* Max. Unit 1.4 1.8 1.75 V V 5.0 VF = 0, f = 1MHz 60 pF IF = 10mA -1.4 mV/°C VCC = 5.5V, IF = 0mA, VE = 0.5V VCC = 5.5V, IF = 10mA VCC = 5.5V, VE = 0.5V VCC = 5.5V, VE = 2.0V VCC = 5.5V, IF = 10mA VCC = 5.5V, IF = 10mA (3) 7 9 -0.8 -0.6 10 13 -1.6 -1.6 2.0 0.8 mA mA mA mA V V Switching Characteristics (TA -40°C to +85°C, V CC= 5V, IF= 7.5mA unless otherwise specified) Symbol AC Characteristics Propagation Delay Time to TPLH TPHL |TPHL –TPLH| tr tf tELH tEHL |CMH| |CML| Output HIGH Level Test Conditions RL = 350 Ω , CL=15pF TA = 25°C Max. 20 45 75 (Fig. 12) (5) TA = 25°C Common Mode Transient RL = 350Ω, IF = 7.5mA, VOL (Max.) = 0.8V,TA = 25°C (11) (Fig. 14) www.umw-ic.com Typ.* Unit (4) Propagation Delay Time to Output LOW Level Pulse Width Distortion Output Rise Time (10–90%) Output Rise Time (90–10%) Enable Propagation Delay Time to Output HIGH Level Enable Propagation Delay Time to Output LOW Level Common Mode Transient Immunity (at Output HIGH Level) Immunity (at Output LOW Level) Min. 25 45 100 ns 75 100 35 ns RL = 350 Ω , CL= 15pF (Fig. 12) (RL = 350 Ω , CL=15pF (Fig. 12) RL = 350 Ω , CL = 15pF (6) (Fig. 12) RL = 350 Ω , CL = 15pF (7) (Fig. 12) 3 50 12 CL = 15pF (8) (Fig. 13) 20 ns CL = 15pF(9) (Fig. 13) TA = 25°C, |V CM| = 50V (Peak), IF = 0mA, VOH (Min.) = 2.0V, RL = 350Ω(10) (Fig. 14) 20 ns 5000 10000 V/µs 5000 10000 V/µs IF = 7.5mA, VEH = 3.5V, RL = 350Ω , IF = 7.5mA, VEH = 3.5V, RL = 350Ω, 3 ns ns ns 友台半导体有限公司 UMW R UMW 6N137 High Speed 10MBit/s Logic Gate Optocouplers Electrical Characteristics (Continued) Transfer Characteristics (TA = -40 to +85°C unless otherwise specified) Symbol DC Characteristics Test Conditions Min. Typ.* Max. Unit 100 µA 0.35 0.6 V 3 5 mA VCC = 5.5V, VO = 5.5V, IOH HIGH Level Output Current VOL LOW Level Output Current IFT Input Threshold Current IF = 250µA, VE = 2.0V(2) VCC = 5.5V, IF = 5mA, VE = 2.0V, I CL = 13mA(2) VCC = 5.5V, VO = 0.6V, VE = 2.0V, IOL = 13mA Isolation Characteristics (TA = -40°C to +85°C unless otherwise specified.) Symbol II-O VISO RI-O CI-O Characteristics Input-Output Insulation Leakage Current Withstand Insulation Test Voltage Resistance (Input to Output) Capacitance (Input to Output) Test Conditions Min. Typ.* Max. Unit Relative humidity = 45%,TA = 25°C, t = 5s,VI-O = 3000 VDC(12) RH < 50%, TA = 25°C, II-O≤ 2µA, t = 1 min.(12) VI-O = 500V(12) f = 1MHz(12) 10* 2500 1012 0.6 µA VRMS Ω pF * All Typicalsat VCC = 5V * TA = 25°C * Note: 1. The VCC supply to each optoisolator must be bypassed by a 0.1µF capacitor or larger. This can be either a ceramic or solid tantalum capacitor with good high frequency characteristic and should be connected as close as possible to the package VCC and GND pins of each device. 2. One channel. 3. Enable Input – No pull up resistor required as the device has an internal pull up resistor. 4. tPLH – Propagation delay is measured from the 3.75mA level on the HIGH to LOW transition of the input current pulse to the 1.5 V level on the LOW to HIGH transition of the output voltage pulse. 5. tPHL – Propagation delay is measured from the 3.75mA level on the LOW to HIGH transition of the input current pulse to the 1.5 V level on the HIGH to LOW transition of the output voltage pulse. 6. tr – Rise time is measured from the 90% to the 10% levels on the LOW to HIGH transition of the output pulse. 7. tf – Fall time is measured from the 10% to the 90% levels on the HIGH to LOW transition of the output pulse. 8.tELH – Enable input propagation delay is measured from the 1.5V level on the HIGH to LOW transition of the input voltage pulse to the 1.5V level on the LOW to HIGH transition of the output voltage pulse. 9. tEHL – Enable input propagation delay is measured from the 1.5V level on the LOW to HIGH transition of the input voltage pulse to the 1.5V level on the HIGH to LOW transition of the output voltage pulse. 10. CMH – The maximum tolerable rate of rise of the common mode voltage to ensure the output will remain in the HIGH state (i.e., VOUT> 2.0V). Measured in volts per microsecond (V/µs). 11. CML – The maximum tolerable rate of rise of the common mode voltage to ensure the output will remain in the LOW output state (i.e., VOUT< 0.8V). Measured in volts per microsecond (V/µs). 12. Device considered a two-terminal device: Pins 1, 2, 3 and 4 shorted together, and Pins 5, 6, 7 and 8 shorted together. www.umw-ic.com 4 友台半导体有限公司 UMW R UMW 6N137 High Speed 10MBit/s Logic Gate Optocouplers Marking ● “XX”denotes YEAR; ● “WW”denotes WEEK Order Code Order Code UMW 6N137M UMW 6N137S www.umw-ic.com Description Iron frame, DIP, Halogen/lead -free Copper frame,SOP-8,Halogen -free 5 Base qty 2250/BOX 1000/REEL 友台半导体有限公司 UMW R UMW 6N137 High Speed 10MBit/s Logic Gate Optocouplers Typical Performance Curves www.umw-ic.com 6 友台半导体有限公司 UMW R UMW 6N137 High Speed 10MBit/s Logic Gate Optocouplers Typical Performance Curves (Continued) www.umw-ic.com 7 友台半导体有限公司 UMW R UMW 6N137 High Speed 10MBit/s Logic Gate Optocouplers Test Circuits www.umw-ic.com 8 友台半导体有限公司 UMW R UMW 6N137 High Speed 10MBit/s Logic Gate Optocouplers Test Circuits (Continued) www.umw-ic.com 9 友台半导体有限公司 UMW R UMW 6N137 High Speed 10MBit/s Logic Gate Optocouplers Package Dimensions Note: All dimensions are in inches (millimeters) www.umw-ic.com 10 友台半导体有限公司
