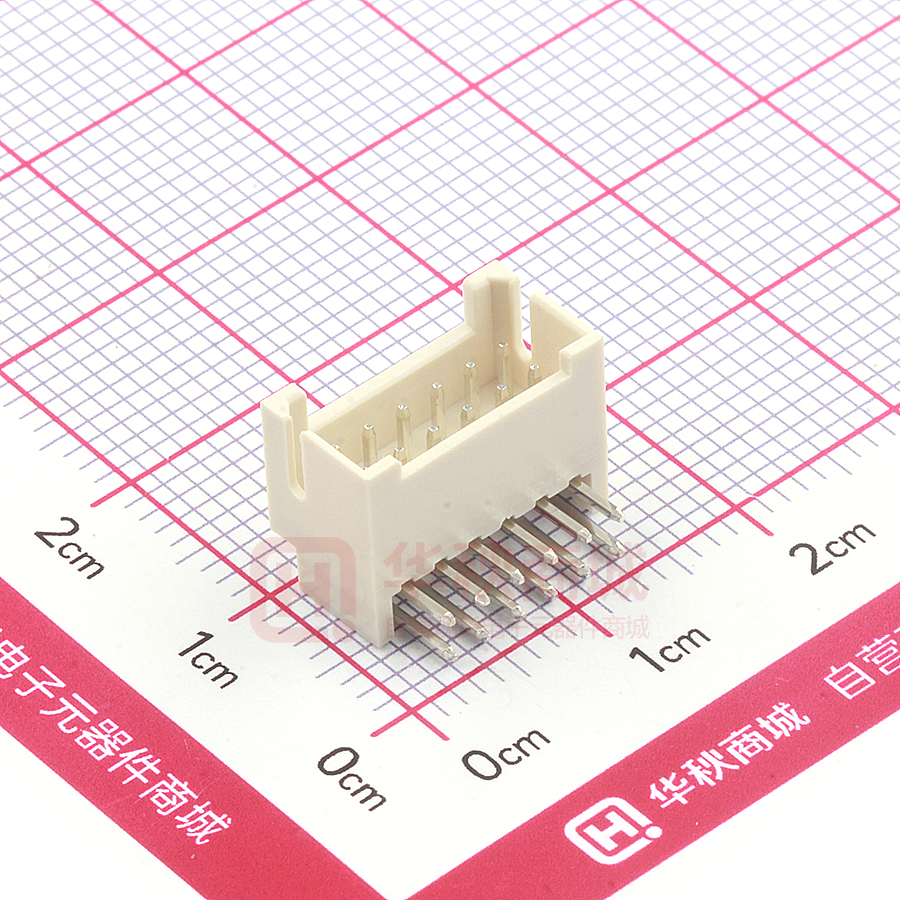

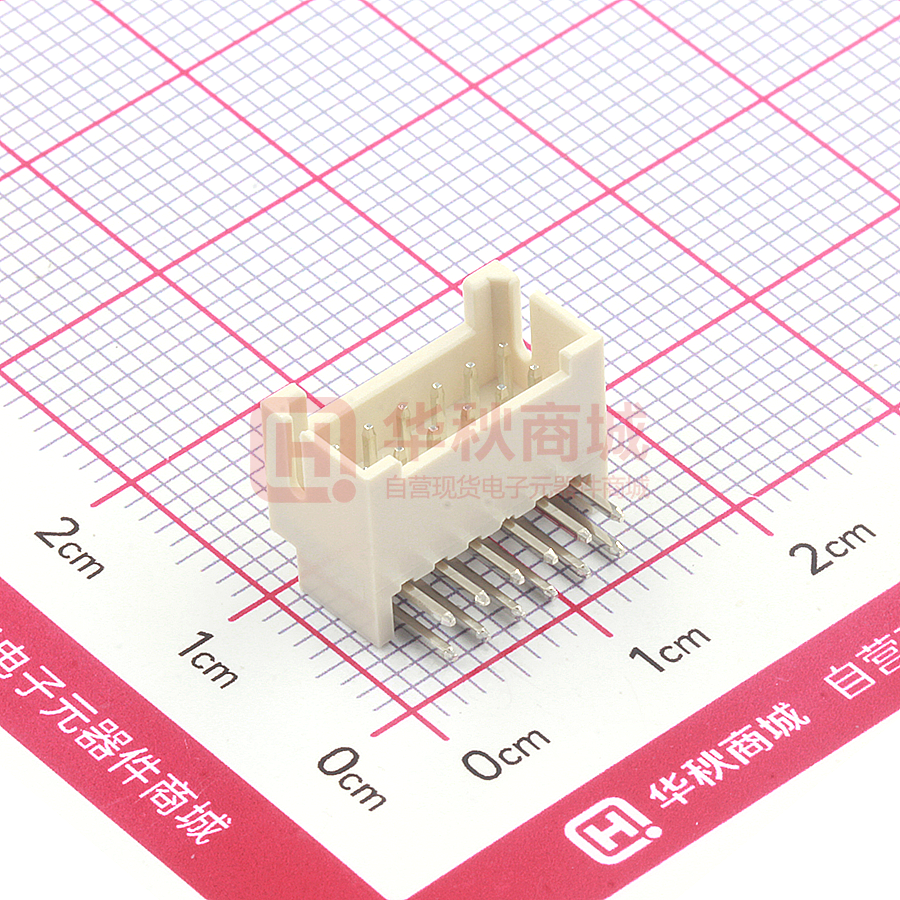

A2008WR-2x6P

A2008 SERIES 2.00mm pitch wire to board connector Specifications Current rating:3A AC,DC Voltage rating:250V AC,DC Temperature range:-40°C~+105°C Contact resistance:30mΩMax. Insulation resistance:1000MΩMin. Withstanding voltage:1000V AC/minute *Compliant with RoHS and REACH* *Meet the HF/Halogen Free,need to customize* *Contact CJT for details* Standards E326732 E326732 6.43 1.60 9.70 REF. 1.60 1.60 1.60 9.55 REF. 6.43 9.68 1.60 1.80 1.60 1.60 10.10 REF. 9.68 12.35 REF. CHANGJIANG CONNECTORS TEL:+86-755-29959119 29959129 FAX:+86-755-29959139 Http://www.CJT.cn A-240 A2008 SERIES A2008-T 2.00mm pitch wire to board connector 2.00mm pitch Crimp Terminal Reference Informations: *Used in CJT A2008H-XP,A2009H-2xXP series Housing 2.30±0.25 2.60±0.25 0.70±0.20 0.20 1.40±0.25 1.45±0.15 C 1.50±0.25 SEC:B-B 1.30±0.10 B 1.10±0.20 B 3.15±0.15 A 6.30±0.25 A SEC:A-A C 1.80±0.10 0.25±0.10 SEC:C-C Ordering information & Specifications: Unit:mm Part NO. Wire Range Insulation O.D. Material Finish Qty/reel A2008-TP AWG#22-#30 1.45mm(max) Phosphor Bronze Tin over Nickel 10,000 PCS AWG#22-#30 1.45mm(max) Phosphor Bronze Gold over Nickel 10,000 PCS A2008-GP Optional Gold plating available but MOQ requested A2008-T-A 2.00mm pitch Crimp Terminal Reference Informations: *Used in CJT A2008HB-XP,A2008H-2xXP series Housing 0.20 ∅1.50±0.20 1.90±0.20 5.00±0.20 0.80 1.80±0.20 SEC:A-A 1.30±0.20 1.50±0.20 0.50 1.50±0.20 3.20±0.20 B 4.00±0.20 B 1.10 A 7.30±0.25 A SEC:B-B 1.25±0.20 0.25±0.05 1.55±0.20 1.40±0.20 Ordering information & Specifications: Unit:mm Wire Range Insulation O.D. Material Finish Qty/reel A2008-TP-A AWG#22-#30 1.45mm(max) Phosphor Bronze Tin over Nickel 10,000 PCS A2008-GP-A AWG#22-#30 1.45mm(max) Phosphor Bronze Gold over Nickel 10,000 PCS Part NO. Optional Gold plating available but MOQ requested CHANGJIANG CONNECTORS TEL:+86-755-29959119 29959129 FAX:+86-755-29959139 Http://www.CJT.cn A-241 A2008 SERIES A2008H-2xXP 2.00mm pitch wire to board connector 2.00mm pitch Dual Row Housing 2.00±0.10 Reference Informations: *Material:Nylon 66,UL94V-0 *Suitable CJT A2008-T-A series Terminal *Mates with CJT A2008WV,WR,WV-S-2xXP series Dual Row Wafer *Color:White Last Circuit Circuit 1 2.00±0.10 Circuit 2 A±0.20 Ordering Information: A2008H-2xXP - *** 1 2 1.Part No. 2.Material: (Blank):Nylon 66,UL94V-0 GWT:Nylon 66,UL94V-0,GWT 750 ℃ Ordering Information & Dimensions: PART NO. 2x2P 2x3P 2x4P 2x5P 2x6P 2x7P 2x8P 2x9P 2x10P 2x11P 2x12P 2x13P 2x14P 2x15P 2x16P 2x20P B±0.25 C±0.25 5.50±0.20 8.30±0.25 1.10 6.00±0.25 A 2.00 4.00 6.00 8.00 10.00 12.00 14.00 16.00 18.00 20.00 22.00 24.00 26.00 28.00 30.00 38.00 Dimensions B 5.70 7.70 9.70 11.70 13.70 15.70 17.70 19.70 21.70 23.70 25.70 27.70 29.70 31.70 33.70 41.70 C 4.70 6.70 8.70 10.70 12.70 14.70 16.70 18.70 20.70 22.70 24.70 26.70 28.70 30.70 32.70 40.70 Unit: mm A2008WV-XP 2.00mm pitch 180° Wafer Circuit 1 2.90±0.20 Reference Informations: *Material:Pin:Brass/Tin over Nickel Insulator:Nylon 66,UL94V-0 *Mates with CJT A2008H,HB-XP series Single Row Housing *Color:White 2.00±0.10 Ordering Information: A2008WV-XP - *** - ** - ** 1 2 3 4 1.Part No. 2.Material: (Blank):Nylon 66,UL94V-0 GWT:Nylon 66,UL94V-0,GWT 750 ℃ 3.Color: 2.00±0.05 (Blank):White BK:Black RD:Red YL:Yellow BL:Blue Ø0.80±0.05 GN:Green GY:Gray P.C.B LAYOUT 4.Finish: (Blank):Tin over Nickel G:Gold over Nickel Ordering Information & Dimensions: A±0.20 PART NO. 5.20±0.20 3.40±0.20 6.70±0.25 7.80±0.25 B±0.25 4.30±0.20 PIN 0.50 SQ 2P 3P 4P 5P 6P 7P 8P 9P 10P 11P 12P 13P 14P 15P 16P Dimensions A B 2.00 6.00 4.00 8.00 6.00 10.00 8.00 12.00 10.00 14.00 12.00 16.00 14.00 18.00 16.00 20.00 18.00 22.00 20.00 24.00 22.00 26.00 24.00 28.00 26.00 30.00 28.00 32.00 30.00 34.00 Unit: mm CHANGJIANG CONNECTORS TEL:+86-755-29959119 29959129 FAX:+86-755-29959139 Http://www.CJT.cn A-245 A2008 SERIES A2008WR-XP 2.00mm pitch wire to board connector 2.00mm pitch 90° Wafer Reference Informations: *Material:Pin:Brass/Tin over Nickel Insulator:Nylon 66,UL94V-0 *Mates with CJT A2008H,HB-XP series Single Row Housing *Color:White Ordering Information: A2008WR-XP - *** - ** - ** 1 2 3 4 1.Part No. 2.Material: (Blank):Nylon 66,UL94V-0 GWT:Nylon 66,UL94V-0,GWT 750 ℃ 3.Color: (Blank):White BK:Black RD:Red YL:Yellow BL:Blue GN:Green GY:Gray 4.Finish: (Blank):Tin over Nickel G:Gold over Nickel Ordering Information & Dimensions: Circuit 1 2.00±0.05 Ø0.80±0.05 2.00±0.10 P.C.B LAYOUT PART NO. A±0.20 B±0.25 7.95±0.20 9.24±0.25 7.80±0.25 6.55±0.20 5.10±0.20 4.30±0.20 PIN 0.50 SQ 3.40±0.20 2P 3P 4P 5P 6P 7P 8P 9P 10P 11P 12P 13P 14P 15P 16P Dimensions A B 2.00 6.00 4.00 8.00 6.00 10.00 8.00 12.00 10.00 14.00 12.00 16.00 14.00 18.00 16.00 20.00 18.00 22.00 20.00 24.00 22.00 26.00 24.00 28.00 26.00 30.00 28.00 32.00 30.00 34.00 Unit: mm A2008WVA-XP 2.00mm pitch 180° Wafer Reference Informations: *Material:Pin:Brass/Tin over Nickel Insulator:Nylon 66,UL94V-0 *Mates with CJT A2008HA-XP series Single Row Housing *Color:Ivory 2P 3P 2.00±0.10 A±0.20 4~20P B±0.25 4.75±0.20 Circuit 1 A±0.10 Ordering Information: A2008WVA-XP - *** - ** - ** 1 2 3 4 1.Part No. 2.Material: (Blank):Nylon 66,UL94V-0 GWT:Nylon 66,UL94V-0,GWT 750 ℃ 3.Color: (Blank):White BK:Black RD:Red YL:Yellow BL:Blue GN:Green GY:Gray 4.Finish: (Blank):Tin over Nickel G:Gold over Nickel 5.50±0.25 8.50±0.25 3.30±0.20 6.85±0.20 2.00 PIN 0.50 SQ 2.00±0.05 Ø0.80±0.05 P.C.B LAYOUT Ordering Information & Dimensions: PART NO. 2P 3P 4P 5P 6P 7P 8P 9P 10P 11P 12P 13P 14P 15P 16P 17P 18P 19P 20P Dimensions A B 2.00 7.70 4.00 9.70 6.00 10.30 8.00 12.30 10.00 14.30 12.00 16.30 14.00 18.30 20.30 16.00 18.00 22.30 20.00 24.30 22.00 26.30 24.00 28.30 26.00 30.30 28.00 32.30 30.00 34.30 32.00 36.30 34.00 38.30 36.00 40.30 38.00 42.30 Unit: mm CHANGJIANG CONNECTORS TEL:+86-755-29959119 29959129 FAX:+86-755-29959139 Http://www.CJT.cn A-246 A2008 SERIES A2008WRA-XP 2.00mm pitch 90° Wafer Reference Informations: *Material:Pin:Brass/Tin over Nickel Insulator:Nylon 66,UL94V-0 *Mates with CJT A2008HA-XP series Single Row Housing *Color:Ivory A±0.10 Ordering Information: A2008WRA-XP - *** - ** - ** 1 2 3 4 1.Part No. 2.Material: (Blank):Nylon 66,UL94V-0 GWT:Nylon 66,UL94V-0,GWT 750 ℃ 3.Color: (Blank):White BK:Black RD:Red YL:Yellow BL:Blue GN:Green GY:Gray 4.Finish: (Blank):Tin over Nickel G:Gold over Nickel 4.75±0.20 PIN 0.50 SQ 2.00mm pitch wire to board connector 2P 2.00±0.10 Circuit 1 A±0.20 4~20P 3P 5.50±0.25 B±0.25 8.55±0.25 6.85±0.20 8.50±0.25 2.00 3.20±0.20 2.00±0.05 Ø0.80±0.05 P.C.B LAYOUT Ordering Information & Dimensions: Dimensions A B 2.00 7.70 4.00 9.70 6.00 10.30 8.00 12.30 10.00 14.30 12.00 16.30 14.00 18.30 16.00 20.30 18.00 22.30 20.00 24.30 22.00 26.30 24.00 28.30 26.00 30.30 28.00 32.30 30.00 34.30 32.00 36.30 34.00 38.30 36.00 40.30 38.00 42.30 PART NO. 2P 3P 4P 5P 6P 7P 8P 9P 10P 11P 12P 13P 14P 15P 16P 17P 18P 19P 20P Unit: mm A2008WV-2xXP 2.00mm pitch 180° Dual Row Wafer Circuit 2 2.00±0.10 Circuit 1 2.00±0.10 Last Circuit Ordering Information: A2008WV-2xXP - *** - ** 1 2 3 1.Part No. 2.Material: (Blank):Nylon 66,UL94V-0 GWT:Nylon 66,UL94V-0,GWT 750 ℃ 3.Finish: (Blank):Tin over Nickel G:Gold over Nickel 2.00±0.10 Ø0.80±0.05 2.00±0.10 Reference Informations: *Material:Pin:Brass/Tin over Nickel Insulator:Nylon 66,UL94V-0 *Mates with CJT A2008H-2xXP series Dual Row Housing *Color:Ivory Ordering Information & Dimensions: A±0.20 P.C.B LAYOUT C±0.25 B±0.25 7.70±0.25 3.20±0.20 7.30±0.25 PIN 0.50 SQ PART NO. 2x2P 2x3P 2x4P 2x5P 2x6P 2x7P 2x8P 2x9P 2x10P 2x11P 2x12P 2x13P 2x14P 2x15P 2x16P 2x20P A 2.00 4.00 6.00 8.00 10.00 12.00 14.00 16.00 18.00 20.00 22.00 24.00 26.00 28.00 30.00 38.00 Dimensions B 6.00 8.00 10.00 12.00 14.00 16.00 18.00 20.00 22.00 24.00 26.00 28.00 30.00 32.00 34.00 42.00 C 4.80 6.80 8.80 10.80 12.80 14.80 16.80 18.80 20.80 22.80 24.80 26.80 28.80 30.80 32.80 40.80 Unit: mm CHANGJIANG CONNECTORS TEL:+86-755-29959119 29959129 FAX:+86-755-29959139 Http://www.CJT.cn A-247 A2008 SERIES A2008WR-2xXP 2.00mm pitch wire to board connector 2.00mm pitch 90° Dual Row Wafer Reference Informations: *Material:Pin:Brass/Tin over Nickel Insulator:Nylon 66,UL94V-0 *Mates with CJT A2008H-2xXP series Dual Row Housing *Color:Ivory Last Circuit 2.00±0.10 PIN 0.50 SQ 2.00±0.10 Circuit 2 2.00±0.10 ∅0.80±0.05 P.C.B LAYOUT Circuit 1 2.00±0.10 A±0.20 C±0.25 8.00±0.25 8.15±0.20 7.80±0.25 10.00±0.25 2.50±0.20 2.00±0.10 7.30±0.25 B±0.25 3.00±0.20 Last Circuit Circuit 2 2.00±0.10 2x6P~2x20P Circuit 1 Ordering Information: A2008WR-2xXP - *** - ** 1 2 3 1.Part No. 2.Material: (Blank):Nylon 66,UL94V-0 GWT:Nylon 66,UL94V-0,GWT 750 ℃ 3.Finish: (Blank):Tin over Nickel G:Gold over Nickel 2.00±0.10 A±0.20 Ordering Information & Dimensions: C±0.25 8.00±0.25 7.30±0.25 2.00±0.10 7.70±0.25 B±0.25 PART NO. PIN 0.50 SQ 3.40±0.20 2x2P~2x5P 2x2P 2x3P 2x4P 2x5P 2x6P 2x7P 2x8P 2x9P 2x10P 2x11P 2x12P 2x13P 2x14P 2x15P 2x16P 2x20P A 2.00 4.00 6.00 8.00 10.00 12.00 14.00 16.00 18.00 20.00 22.00 24.00 26.00 28.00 30.00 38.00 Dimensions B 6.00 8.00 10.00 12.00 14.00 16.00 18.00 20.00 22.00 24.00 26.00 28.00 30.00 32.00 34.00 42.00 C 4.80 6.80 8.80 10.80 12.80 14.80 16.80 18.80 20.80 22.80 24.80 26.80 28.80 30.80 32.80 40.80 Unit: mm CHANGJIANG CONNECTORS TEL:+86-755-29959119 29959129 FAX:+86-755-29959139 Http://www.CJT.cn A-248 A2008 SERIES A2008WV-S-XP 2.00mm pitch wire to board connector 2.00mm pitch 180° Wafer-SMT TYPE Reference Informations: *Material:Pin:Brass/Tin over Nickel Insulator:Nylon 6T,UL94V-0 *Mates with CJT A2008H,HB-XP series Single Row Housing *Color:Ivory B±0.20 Circuit 1 A±0.20 A±0.20 1.55±0.20 P.C.B LAYOUT 1.25±0.20 PART NO. 2P 3P 4P 5P 6P 7P 8P 9P 10P 11P 12P 13P 14P 15P 16P 5.10±0.20 8.05±0.20 C±0.25 0.90±0.20 2.00±0.10 2.60±0.20 1.30±0.20 2.50±0.20 1.00±0.20 Ordering Information: A2008WV-S-XP - *** - ** - ** 1 2 3 4 1.Part No. 2.Material: (Blank):Nylon 6T,UL94V-0 GWT:Nylon 6T,UL94V-0,GWT 750 ℃ 3.Color: (Blank):White BK:Black RD:Red YL:Yellow BL:Blue GN:Green GY:Gray 4.Finish: (Blank):Tin over Nickel G:Gold over Nickel Ordering Information & Dimensions: PIN 0.50 SQ A2008WR-S-XP 3.40 4.00±0.10 A±0.10 2.00±0.05 2.00±0.10 3.60 0.30 1.00 A±0.20 1.50 B±0.25 PIN 0.50 SQ 9.20±0.25 6.50±0.20 2.45±0.25 7.80±0.25 5.20±0.25 2P Ordering Information: A2008WR-S-XP - *** - ** - ** 1 2 3 4 1.Part No. 2.Material: (Blank):Nylon 6T,UL94V-0 GWT:Nylon 6T,UL94V-0,GWT 750 ℃ 3.Color: (Blank):White BK:Black RD:Red YL:Yellow BL:Blue GN:Green GY:Gray 4.Finish: (Blank):Tin over Nickel G:Gold over Nickel Ordering Information & Dimensions: PART NO. 1.05 P.C.B LAYOUT 3~16P C 8.00 10.00 12.00 14.00 16.00 18.00 20.00 22.00 24.00 26.00 28.00 30.00 32.00 34.00 36.00 2.00mm pitch 90° Wafer-SMT TYPE Circuit 1 B±0.25 Dimensions B 4.75 6.75 8.75 10.75 12.75 14.75 16.75 18.75 20.75 22.75 24.75 26.75 28.75 30.75 32.75 Unit: mm Reference Informations: *Material:Pin:Brass/Tin over Nickel Insulator:Nylon 6T,UL94V-0 *Mates with CJT A2008H,HB-XP series Single Row Housing *Color:Beige Circuit 1 A 2.00 4.00 6.00 8.00 10.00 12.00 14.00 16.00 18.00 20.00 22.00 24.00 26.00 28.00 30.00 2P 3P 4P 5P 6P 7P 8P 9P 10P 11P 12P 13P 14P 15P 16P Dimensions A B 2.00 8.00 4.00 10.00 6.00 12.00 8.00 14.00 10.00 16.00 12.00 18.00 14.00 20.00 16.00 22.00 18.00 24.00 20.00 26.00 22.00 28.00 30.00 24.00 26.00 32.00 28.00 34.00 30.00 36.00 Unit: mm CHANGJIANG CONNECTORS TEL:+86-755-29959119 29959129 FAX:+86-755-29959139 Http://www.CJT.cn A-249
