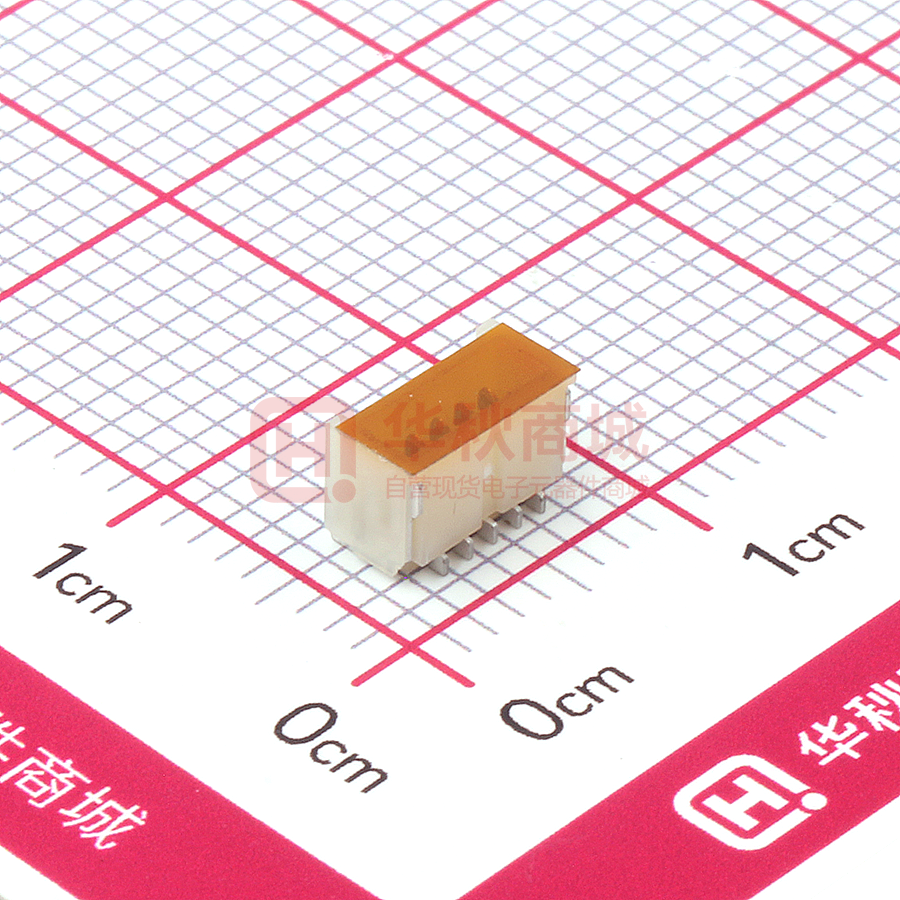

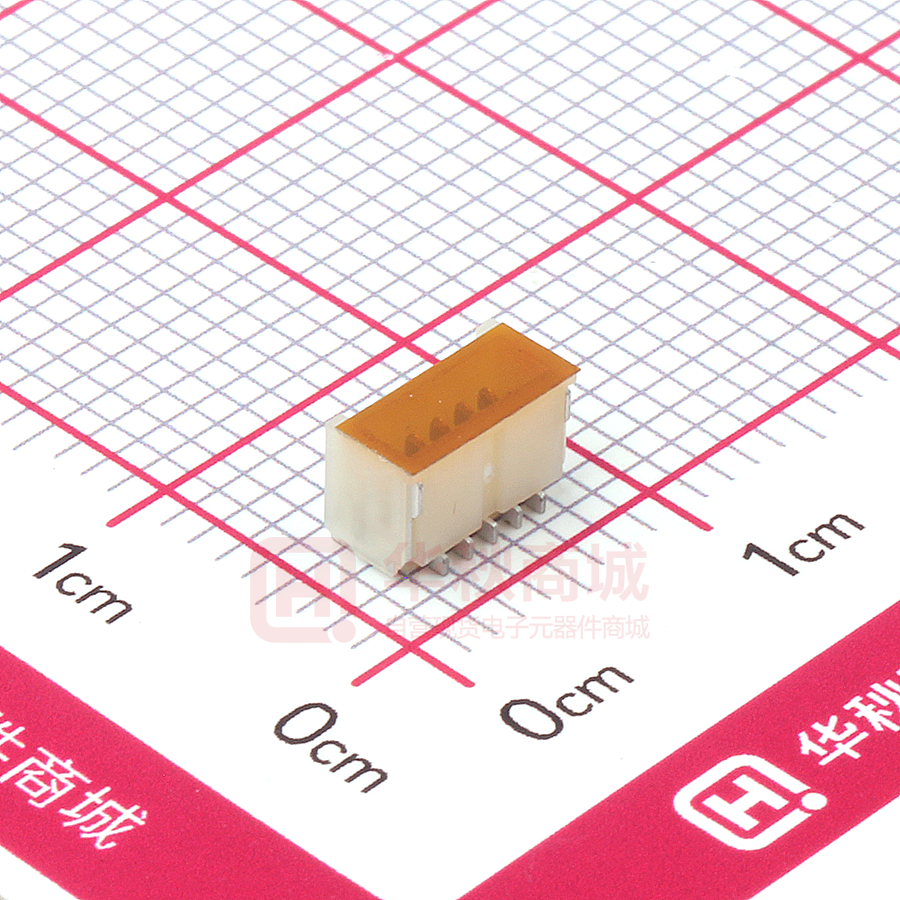

A1002WVB-S-5P

A1002 SERIES 1.00mm pitch wire to board connector Specifications Current rating:1A AC,DC Voltage rating:50V AC,DC Temperature range:-40°C~+105°C Contact resistance:20m Max. Insulation resistance:100M Min. Withstanding voltage:500V AC/minute *Compliant with RoHS and REACH* *Meet the HF/Halogen Free,need to customize* *Contact CJT for details* Standards E326732 E326732 2.90 2.95 6.30 REF. 6.25 REF. 5.40 5.45 6.30 REF. 7.05 REF. CHANGJIANG CONNECTORS TEL:86-755-29959119 29959129 FAX:86-755-29959139 Http://www.CJT.cn A-4 A1002 SERIES A1002-T 1.00mm pitch wire to board connector 1.00mm pitch Crimp Terminal Reference Informations: *Used in CJT A1002H , A1002H-2 series Housing 1.30±0.20 0.12±0.02 0.51±0.15 1.40±0.20 B B 0.30±0.05 0.90±0.20 A 4.00±0.20 A 0.83 SEC:A-A 1.10±0.20 SEC:B-B 1.30±0.10 0.40±0.10 0.75±0.10 Ordering information & Specifications: Part NO. A1002-TP A1002-GP Wire Range AWG#28-#32 AWG#28-#32 Unit:mm Insulation O.D. 0.80mm(max) 0.80mm(max) Material Phosphor Bronze Phosphor Bronze Qty/reel 20,000 PCS 20,000 PCS Finish Tin over Nickel Gold over flash Optional Gold plating available but MOQ requested A1002A-T 1.40±0.20 1.00mm pitch Crimp Terminal Reference Informations: *Used in CJT A1002HA , A1002HB series Housing 1.30±0.20 C C 0.45 MIN 0.76±0.15 0.90±0.20 SEC:B-B 0.55±0.10 0.95±0.10 B 1.10±0.20 0.30±0.10 1.40±0.10 B 0.75 A SEC:A-A 1.55±0.15 A 4.00±0.20 0.50±0.15 0.12 0.40±0.10 SEC:C-C Ordering information & Specifications: Unit:mm Wire Range Part NO. Insulation O.D. 0.80mm(max) A1002A-TP AWG#28-#32 0.80mm(max) AWG#28-#32 A1002A-GP Optional Gold plating available but MOQ requested Material Phosphor Bronze Phosphor Bronze Finish Tin over Nickel Gold over flash Qty/reel 20,000 PCS 20,000 PCS CHANGJIANG CONNECTORS TEL:86-755-29959119 29959129 FAX:86-755-29959139 Http://www.CJT.cn A-5 A1002 SERIES A1002C-T 1.00mm pitch wire to board connector 1.00mm pitch Crimp Terminal 0.15 0.55±0.20 1.25±0.25 1.05±0.25 SEC:B-B SEC:A-A A D D 0.75±0.10 SEC: C-C 0.75±0.10 SEC: D-D 0.25±0.05 0.70±0.10 0.45±0.10 0.75±0.10 C 0.70±0.10 C 3.60±0.20 0.65±0.10 B 0.30±0.05 2.70±0.20 B 6.30±0.25 0.90 A 0.85±0.25 1.10±0.25 Reference Informations: *Used in CJT A1002HC , A1002HD series Housing 0.35±0.05 Ordering information & Specifications: Part NO. A1002C-TP A1002C-GP Wire Range AWG#28-#32 AWG#28-#32 Unit:mm Insulation O.D. 0.80mm(max) 0.80mm(max) Material Phosphor Bronze Phosphor Bronze Finish Tin over Nickel Gold over flash Qty/reel 20,000 PCS 20,000 PCS Optional Gold plating available but MOQ requested A1002D-T 1.00mm pitch Crimp Terminal 1.44±0.20 Reference Informations: *Used in CJT A1002HG,A1002HI series Housing 0.12 0.50±0.10 1.30±0.20 0.55±0.10 0.80±0.10 0.10±0.08 0.80 0.86±0.20 B 0.28±0.10 1.40 B A 1.55±0.20 A 3.93±0.25 SEC:A-A 1.02±0.20 0.95±0.10 SEC:B-B 0.38±0.05 Ordering information & Specifications: Unit:mm Wire Range Part NO. Insulation O.D. 0.80mm(max) A1002D-TP AWG#28-#32 0.80mm(max) AWG#28-#32 A1002D-GP Optional Gold plating available but MOQ requested Material Phosphor Bronze Phosphor Bronze Finish Tin over Nickel Gold over flash Qty/reel 20,000 PCS 20,000 PCS CHANGJIANG CONNECTORS TEL:86-755-29959119 29959129 FAX:86-755-29959139 Http://www.CJT.cn A-6 A1002 SERIES A1002H 1.00mm pitch wire to board connector 1.00mm pitch Single Row Housing Reference Informations: *Material:PBT,UL94V-0 *Suitable CJT A1002 series Terminal *Mates with CJT A1002 series Single Row Wafer *Color:White Circuit 1 Ordering Information & Dimensions: PART NO. 1.00±0.10 A±0.20 5.00±0.25 2.80±0.25 B±0.25 2.08±0.20 A1002H-2P A1002H-3P A1002H-4P A1002H-5P A1002H-6P A1002H-7P A1002H-8P A1002H-9P A1002H-10P A1002H-11P A1002H-12P A1002H-13P A1002H-14P A1002H-15P A1002H-16P A1002H-17P A1002H-18P A1002H-19P A1002H-20P Dimensions A B 1.00 2.00 3.00 4.00 5.00 6.00 7.00 8.00 9.00 10.00 11.00 12.00 13.00 14.00 15.00 16.00 17.00 18.00 19.00 5.00 6.00 7.00 8.00 9.00 10.00 11.00 12.00 13.00 14.00 15.00 16.00 17.00 18.00 19.00 20.00 21.00 22.00 23.00 Unit: mm A1002H-2 1.00mm pitch Single Row Housing Reference Informations: *Material:PBT,UL94V-0 *Suitable CJT A1002 series Terminal *Mates with CJT A1002 series Single Row Wafer *Color:White Circuit 1 Ordering Information & Dimensions: PART NO. 1.00±0.10 A±0.20 5.00±0.25 2.80±0.25 B±0.25 2.08±0.20 A1002H-2P-2 A1002H-3P-2 A1002H-4P-2 A1002H-5P-2 A1002H-6P-2 A1002H-7P-2 A1002H-8P-2 A1002H-9P-2 A1002H-10P-2 A1002H-11P-2 A1002H-12P-2 A1002H-13P-2 A1002H-14P-2 A1002H-15P-2 A1002H-16P-2 A1002H-17P-2 A1002H-18P-2 A1002H-19P-2 A1002H-20P-2 Dimensions A B 1.00 2.00 3.00 4.00 5.00 6.00 7.00 8.00 9.00 10.00 11.00 12.00 13.00 14.00 15.00 16.00 17.00 18.00 19.00 3.00 4.00 5.00 6.00 7.00 8.00 9.00 10.00 11.00 12.00 13.00 14.00 15.00 16.00 17.00 18.00 19.00 20.00 21.00 Unit: mm CHANGJIANG CONNECTORS TEL:86-755-29959119 29959129 FAX:86-755-29959139 Http://www.CJT.cn A-7 A1002 SERIES A1002HA 1.00mm pitch wire to board connector 1.00mm pitch Single Row Housing Reference Informations: *Material:PBT,UL94V-0 *Suitable CJT A1002A series Terminal *Mates with CJT A1002WVB-S,A1002WRA-S,A1002WRB-S series Wafer *Color:White C±0.20 Ordering Information & Dimensions: A±0.20 1.00±0.10 PART NO. Circuit 1 A1002HA-2P A1002HA-3P A1002HA-4P A1002HA-5P A1002HA-6P A1002HA-7P A1002HA-8P A1002HA-9P A1002HA-10P A1002HA-11P A1002HA-12P A1002HA-13P A1002HA-14P A1002HA-15P A1002HA-16P A1002HA-17P A1002HA-18P A1002HA-19P A1002HA-20P B±0.25 5.01±0.25 1.90±0.20 1.70±0.20 2.30±0.25 A Dimensions B C 1.00 2.00 3.00 4.00 5.00 6.00 7.00 8.00 9.00 10.00 11.00 12.00 13.00 14.00 15.00 16.00 17.00 18.00 19.00 3.00 4.00 5.00 6.00 7.00 8.00 9.00 10.00 11.00 12.00 13.00 14.00 15.00 16.00 17.00 18.00 19.00 20.00 21.00 2.40 3.40 4.40 5.40 6.40 7.40 8.40 9.40 10.40 11.40 12.40 13.40 14.40 15.40 16.40 17.40 18.40 19.40 20.40 Unit:mm A1002HB 1.00mm pitch Single Row Housing Reference Informations: *Material:Nylon 66,UL94V-0 *Suitable CJT A1002A series Terminal *Mates with CJT A1002WVB-S,A1002WRB-S Wafer *Color:White Circuit 1 2.30±0.20 Ordering Information & Dimensions: PART NO. 1.00±0.10 A±0.20 C±0.20 3.79±0.25 B±0.25 7.20±0.25 2.90±0.20 6.00±0.25 1.70±0.20 A1002HB-2P A1002HB-3P A1002HB-4P A1002HB-5P A1002HB-6P A1002HB-7P A1002HB-8P A1002HB-9P A1002HB-10P A1002HB-11P A1002HB-12P A1002HB-13P A1002HB-14P A1002HB-15P A1002HB-16P A1002HB-17P A1002HB-18P A1002HB-19P A1002HB-20P A Dimensions B C 1.00 2.00 3.00 4.00 5.00 6.00 7.00 8.00 9.00 10.00 11.00 12.00 13.00 14.00 15.00 16.00 17.00 18.00 19.00 3.00 4.00 5.00 6.00 7.00 8.00 9.00 10.00 11.00 12.00 13.00 14.00 15.00 16.00 17.00 18.00 19.00 20.00 21.00 2.40 3.40 4.40 5.40 6.40 7.40 8.40 9.40 10.40 11.40 12.40 13.40 14.40 15.40 16.40 17.40 18.40 19.40 20.40 Unit:mm CHANGJIANG CONNECTORS TEL:86-755-29959119 29959129 FAX:86-755-29959139 Http://www.CJT.cn A-8 A1002 SERIES A1002HC 1.00mm pitch wire to board connector 1.00mm pitch Single Row Housing 1.45±0.25 Reference Informations: *Material:Nylon 46,UL94V-0 *Suitable CJT A1002C series Terminal *Color:Ivory A±0.20 Circuit 1 1.00±0.10 1.20±0.10 B±0.25 2.80±0.20 7.00±0.25 3.15±0.20 0.30±0.05 Ordering Information & Dimensions: PART NO. A1002HC-4P A1002HC-6P C±0.25 A Dimensions B C 3.00 5.00 4.60 6.60 6.60 8.60 Unit:mm A1002HD 1.00mm pitch Single Row Housing 1.45±0.25 Reference Informations: *Material:Nylon 46,UL94V-0 *Suitable CJT A1002C series Terminal *Color:Ivory Circuit 1 1.00±0.10 A±0.20 1.20±0.10 B±0.25 2.80±0.20 7.00±0.25 3.15±0.20 0.30±0.05 Ordering Information & Dimensions: PART NO. C±0.25 3.10±0.25 A1002HD-4P A1002HD-6P A Dimensions B C 3.00 5.00 4.60 6.60 6.60 8.60 Unit:mm CHANGJIANG CONNECTORS TEL:86-755-29959119 29959129 FAX:86-755-29959139 Http://www.CJT.cn A-9 A1002 SERIES A1002HE 1.00mm pitch wire to board connector 1.00mm pitch Single Row Housing Reference Informations: *Material:Nylon 66,UL94V-0 *Suitable CJT A1002A series Terminal *Mates with CJT A1002WRC-S series Wafer *Color:White 1.00±0.10 1.70±0.10 A±0.10 Circuit 1 Ordering Information & Dimensions: Dimensions A B C PART NO. 2.30±0.20 2.20±0.20 6.90±0.25 2.40±0.20 5.50±0.25 C±0.20 B±0.25 A1002HE-2P A1002HE-3P A1002HE-4P A1002HE-5P A1002HE-6P A1002HE-7P A1002HE-8P A1002HE-9P A1002HE-10P A1002HE-11P A1002HE-12P A1002HE-13P A1002HE-14P A1002HE-15P A1002HE-16P A1002HE-17P A1002HE-18P A1002HE-19P A1002HE-20P 1.00 2.00 3.00 4.00 5.00 6.00 7.00 8.00 9.00 10.00 11.00 12.00 13.00 14.00 15.00 16.00 17.00 18.00 19.00 3.00 4.00 5.00 6.00 7.00 8.00 9.00 10.00 11.00 12.00 13.00 14.00 15.00 16.00 17.00 18.00 19.00 20.00 21.00 2.40 3.40 4.40 5.40 6.40 7.40 8.40 9.40 10.40 11.40 12.40 13.40 14.40 15.40 16.40 17.40 18.40 19.40 20.40 Unit:mm A1002HG 1.00mm pitch 180° Single Row Housing Reference Informations: *Material:Nylon 66,UL94V-0 *Suitable CJT A1002D series Terminal *Mates with CJT A1002WRD-S series Wafer *Color:White Circuit 1 Ordering Information & Dimensions: 1.70±0.20 PART NO. 1.00±0.10 A±0.20 1.85±0.20 2.13±0.20 6.15±0.25 B±0.20 6.00±0.20 1.35 2.50±0.20 0.75 A1002HG-2P A1002HG-3P A1002HG-4P A1002HG-5P A1002HG-6P A1002HG-7P A1002HG-8P A1002HG-9P A1002HG-10P A1002HG-11P A1002HG-12P A1002HG-13P A1002HG-14P A1002HG-15P A1002HG-16P A1002HG-17P A1002HG-18P A1002HG-19P A1002HG-20P Dimensions A B 1.00 2.00 3.00 4.00 5.00 6.00 7.00 8.00 9.00 10.00 11.00 12.00 13.00 14.00 15.00 16.00 17.00 18.00 19.00 2.30 3.30 4.30 5.30 6.30 7.30 8.30 9.30 10.30 11.30 12.30 13.30 14.30 15.30 16.30 17.30 18.30 19.30 20.30 Unit:mm CHANGJIANG CONNECTORS TEL:86-755-29959119 29959129 FAX:86-755-29959139 Http://www.CJT.cn A-10 A1002 SERIES A1002HI 1.00mm pitch wire to board connector 1.00mm pitch 90° Single Row Housing Reference Informations: *Material:Nylon 66,UL94V-0 *Suitable CJT A1002D series Terminal *Mates with CJT A1002WRD-S series Wafer *Color:White Circuit 1 Ordering Information & Dimensions: Dimensions A B 1.70±0.20 PART NO. 1.00±0.05 A±0.10 A1002HI-2P A1002HI-3P A1002HI-4P A1002HI-5P A1002HI-6P A1002HI-7P A1002HI-8P A1002HI-9P A1002HI-10P A1002HI-11P A1002HI-12P A1002HI-13P A1002HI-14P A1002HI-15P A1002HI-16P A1002HI-17P A1002HI-18P A1002HI-19P A1002HI-20P C±0.25 0.75±0.10 1.85±0.10 6.15±0.20 6.05±0.20 6.00±0.20 B±0.15 0.75 2.13±0.20 2.50±0.20 2.30 3.30 4.30 5.30 6.30 7.30 8.30 9.30 10.30 11.30 12.30 13.30 14.30 15.30 16.30 17.30 18.30 19.30 20.30 1.00 2.00 3.00 4.00 5.00 6.00 7.00 8.00 9.00 10.00 11.00 12.00 13.00 14.00 15.00 16.00 17.00 18.00 19.00 Unit:mm A1002WRA-S 1.00mm pitch 90° Single Row Wafer - SMT TYPE Reference Informations: *Material:Pin:Brass/Tin over Nickel Solder Tabs: Brass/Tin over Nickel Insulator:Nylon 6T,UL94V-0 *Mates with CJT A1002HA series Single Row Housing *Color:Ivory A±0.10 Ordering Information & Dimensions: 1.00±0.05 0.60±0.10 1.10±0.05 3.15±0.10 1.20±0.10 PART NO. 0.60±0.10 0.20 P.C.B LAYOUT C±0.20 5.00±0.25 4.25±0.20 2.44 2.38±0.20 1.76 Circuit 1 0.60 1.00±0.10 1.30±0.10 A±0.20 4.70±0.10 B±0.25 A1002WRA-2P A1002WRA-3P A1002WRA-4P A1002WRA-5P A1002WRA-6P A1002WRA-7P A1002WRA-8P A1002WRA-9P A1002WRA-10P A1002WRA-11P A1002WRA-12P A1002WRA-13P A1002WRA-14P A1002WRA-15P A1002WRA-16P A1002WRA-17P A1002WRA-18P A1002WRA-19P A1002WRA-20P Dimensions A B C 1.00 2.00 3.00 4.00 5.00 6.00 7.00 8.00 9.00 10.00 11.00 12.00 13.00 14.00 15.00 16.00 17.00 18.00 19.00 3.50 4.50 5.50 6.50 7.50 8.50 9.50 10.50 11.50 12.50 13.50 14.50 15.50 16.50 17.50 18.50 19.50 20.50 21.50 2.50 3.50 4.50 5.50 6.50 7.50 8.50 9.50 10.50 11.50 12.50 13.50 14.50 15.50 16.50 17.50 18.50 19.50 20.50 Unit:mm CHANGJIANG CONNECTORS TEL:86-755-29959119 29959129 FAX:86-755-29959139 Http://www.CJT.cn A-11 A1002 SERIES A1002WV-S 1.00mm pitch wire to board connector 1.00mm pitch 180° Single Row Wafer - SMT TYPE Reference Informations: *Material:Pin:Phosphor Bronze/Tin over Nickel Solder Tabs: Phosphor Bronze/Tin over Nickel Insulator:Nylon 6T,UL94V-0 *Mates with CJT A1002 series Single Row Housing *Color:Ivory A±0.10 1.00±0.05 Circuit 1 1.00±0.10 Ordering Information & Dimensions: 1.80±0.10 0.60±0.05 1.55 4.20±0.10 0.70±0.10 Circuit 1 A±0.20 1.20±0.10 P.C.B LAYOUT B±0.25 CAP (FOR PICK AND PLACE SYSTEMS) 4.25±0.25 2.90±0.25 0.20 0.70 PART NO. A1002WV-S-2P A1002WV-S-3P A1002WV-S-4P A1002WV-S-5P A1002WV-S-6P A1002WV-S-7P A1002WV-S-8P A1002WV-S-9P A1002WV-S-10P A1002WV-S-11P A1002WV-S-12P A1002WV-S-13P A1002WV-S-14P A1002WV-S-15P A1002WV-S-16P A1002WV-S-17P A1002WV-S-18P A1002WV-S-19P A1002WV-S-20P Dimensions A B 1.00 2.00 3.00 4.00 5.00 6.00 7.00 8.00 9.00 10.00 11.00 12.00 13.00 14.00 15.00 16.00 17.00 18.00 19.00 4.00 5.00 6.00 7.00 8.00 9.00 10.00 11.00 12.00 13.00 14.00 15.00 16.00 17.00 18.00 19.00 20.00 21.00 22.00 Unit: mm A1002WR-S 1.00mm pitch 90° Single Row Wafer - SMT TYPE Reference Informations: *Material:Pin:Phosphor Bronze/Tin over Nickel Solder Tabs: Phosphor Bronze/Tin over Nickel Insulator:Nylon 6T,UL94V-0 *Mates with CJT A1002 series Single Row Housing *Color:Ivory A±0.10 1.00±0.05 0.70±0.10 0.60±0.05 Ordering Information & Dimensions: Circuit 1 Circuit 1 A±0.20 1.20±0.10 P.C.B LAYOUT B±0.25 0.70 4.25±0.25 2.90±0.25 0.20 1.80±0.10 1.55±0.10 1.00±0.10 5.55±0.10 PART NO. A1002WR-S-2P A1002WR-S-3P A1002WR-S-4P A1002WR-S-5P A1002WR-S-6P A1002WR-S-7P A1002WR-S-8P A1002WR-S-9P A1002WR-S-10P A1002WR-S-11P A1002WR-S-12P A1002WR-S-13P A1002WR-S-14P A1002WR-S-15P A1002WR-S-16P A1002WR-S-17P A1002WR-S-18P A1002WR-S-19P A1002WR-S-20P Dimensions A B 1.00 2.00 3.00 4.00 5.00 6.00 7.00 8.00 9.00 10.00 11.00 12.00 13.00 14.00 15.00 16.00 17.00 18.00 19.00 4.00 5.00 6.00 7.00 8.00 9.00 10.00 11.00 12.00 13.00 14.00 15.00 16.00 17.00 18.00 19.00 20.00 21.00 22.00 Unit: mm CHANGJIANG CONNECTORS TEL:86-755-29959119 29959129 FAX:86-755-29959139 Http://www.CJT.cn A-12 A1002 SERIES A1002WVB-S 1.00mm pitch wire to board connector 1.00mm pitch 180° Single Row Wafer - SMT TYPE 1.05±0.10 1.76±0.20 PART NO. 3.50±0.50 1.15±0.05 0.75±0.05 Ordering Information & Dimensions: 3.90±0.10 1.00±0.05 2.10±0.05 A±0.10 1.60±0.05 Reference Informations: *Material:Pin:Phosphor Bronze/Tin over Nickel Solder Tabs: Phosphor Bronze/Tin over Nickel Insulator:Nylon 9T,UL94V-0 *Mates with CJT A1002HB series Single Row Housing *Color:Ivory 1.00±0.10 0.60±0.10 A±0.20 0.55±0.10 Circuit 1 P.C.B LAYOUT 3.40±0.20 4.25±0.25 4.35±0.25 Circuit 1 CAP 0.50 B±0.25 1.20±0.10 0.20 A1002WVB-S-2P A1002WVB-S-3P A1002WVB-S-4P A1002WVB-S-5P A1002WVB-S-6P A1002WVB-S-7P A1002WVB-S-8P A1002WVB-S-9P A1002WVB-S-10P A1002WVB-S-11P A1002WVB-S-12P A1002WVB-S-13P A1002WVB-S-14P A1002WVB-S-15P A1002WVB-S-16P A1002WVB-S-17P A1002WVB-S-18P A1002WVB-S-19P A1002WVB-S-20P Dimensions A B 1.00 2.00 3.00 4.00 5.00 6.00 7.00 8.00 9.00 10.00 11.00 12.00 13.00 14.00 15.00 16.00 17.00 18.00 19.00 3.50±0.20 A1002WRB-S 3.70 4.70 5.70 6.70 7.70 8.70 9.70 10.70 11.70 12.70 13.70 14.70 15.70 16.70 17.70 18.70 19.70 20.70 21.70 Unit: mm 1.00mm pitch 90° Single Row Wafer - SMT TYPE Reference Informations: *Material:Pin:Phosphor Bronze/Tin over Nickel Solder Tabs: Phosphor Bronze/Tin over Nickel Insulator:Nylon 9T,UL94V-0 *Mates with CJT A1002HB series Single Row Housing *Color:Ivory A±0.10 Ordering Information & Dimensions: 3.15±0.10 0.60±0.10 1.00±0.10 4.70±0.20 1.00±0.05 1.20±0.10 1.76±0.20 1.10±0.05 A±0.20 0.60±0.10 P.C.B LAYOUT 0.20 0.80 5.00±0.25 4.28±0.25 Circuit 1 4.28±0.25 3.40±0.20 B±0.25 1.20±0.10 PART NO. A1002WRB-S-2P A1002WRB-S-3P A1002WRB-S-4P A1002WRB-S-5P A1002WRB-S-6P A1002WRB-S-7P A1002WRB-S-8P A1002WRB-S-9P A1002WRB-S-10P A1002WRB-S-11P A1002WRB-S-12P A1002WRB-S-13P A1002WRB-S-14P A1002WRB-S-15P A1002WRB-S-16P A1002WRB-S-17P A1002WRB-S-18P A1002WRB-S-19P A1002WRB-S-20P Dimensions A B 1.00 2.00 3.00 4.00 5.00 6.00 7.00 8.00 9.00 10.00 11.00 12.00 13.00 14.00 15.00 16.00 17.00 18.00 19.00 3.70 4.70 5.70 6.70 7.70 8.70 9.70 10.70 11.70 12.70 13.70 14.70 15.70 16.70 17.70 18.70 19.70 20.70 21.70 Unit: mm CHANGJIANG CONNECTORS TEL:86-755-29959119 29959129 FAX:86-755-29959139 Http://www.CJT.cn A-13 A1002 SERIES A1002WRC-S 1.00mm pitch wire to board connector Reference Informations: *Material:Pin:Brass/Tin over Nickel Solder Tabs: Brass/Tin over Nickel Insulator:Nylon 9T,UL94V-0 *Mates with CJT A1002HE series Single Row Housing *Color:Ivory 0.70±0.05 1.55±0.10 1.00mm pitch 90° Single Row Wafer - SMT TYPE A±0.10 1.00±0.05 Ordering Information & Dimensions: PART NO. 1.70±0.10 B±0.25 0.60±0.10 1.60±0.05 4.25±0.20 0.60 0.80±0.10 P.C.B LAYOUT 1.00±0.10 1.76±0.20 A±0.15 C±0.20 0.68 2.86±0.20 2.82±0.20 Circuit 1 4.93±0.25 0.20 A1002WRC-2P A1002WRC-3P A1002WRC-4P A1002WRC-5P A1002WRC-6P A1002WRC-7P A1002WRC-8P A1002WRC-9P A1002WRC-10P A1002WRC-11P A1002WRC-12P A1002WRC-13P A1002WRC-14P A1002WRC-15P A1002WRC-16P A1002WRC-17P A1002WRC-18P A1002WRC-19P A1002WRC-20P Dimensions A B C 1.00 2.00 3.00 4.00 5.00 6.00 7.00 8.00 9.00 10.00 11.00 12.00 13.00 14.00 15.00 16.00 17.00 18.00 19.00 3.90 4.90 5.90 6.90 7.90 8.90 9.90 10.90 11.90 12.90 13.90 14.90 15.90 16.90 17.90 18.90 19.90 20.90 21.90 2.50 3.50 4.50 5.50 6.50 7.50 8.50 9.50 10.50 11.50 12.50 13.50 14.50 15.50 16.50 17.50 18.50 19.50 20.50 Unit:mm A1002WRD-S 1.00mm pitch 90° Single Row Wafer - SMT TYPE A±0.10 0.70±0.05 1.70±0.10 0.80±0.10 P.C.B LAYOUT A±0.20 5.00±0.25 2.91±0.20 2.82±0.20 1.76 Circuit 1 0.20 PART NO. 0.60±0.10 1.00±0.10 C±0.20 Ordering Information & Dimensions: 0.70 1.60±0.05 3.63±0.20 4.30±0.25 B±0.25 1.00±0.05 1.55±0.10 Reference Informations: *Material:Pin:Brass/Tin over Nickel Solder Tabs: Brass/Tin over Nickel Insulator:Nylon 9T,UL94V-0 *Mates with CJT A1002HG , A1002HI series Single Row Housing *Color:Ivory A1002WRD-2P A1002WRD-3P A1002WRD-4P A1002WRD-5P A1002WRD-6P A1002WRD-7P A1002WRD-8P A1002WRD-9P A1002WRD-10P A1002WRD-11P A1002WRD-12P A1002WRD-13P A1002WRD-14P A1002WRD-15P A1002WRD-16P A1002WRD-17P A1002WRD-18P A1002WRD-19P A1002WRD-20P Dimensions A B C 1.00 2.00 3.00 4.00 5.00 6.00 7.00 8.00 9.00 10.00 11.00 12.00 13.00 14.00 15.00 16.00 17.00 18.00 19.00 3.90 4.90 5.90 6.90 7.90 8.90 9.90 10.90 11.90 12.90 13.90 14.90 15.90 16.90 17.90 18.90 19.90 20.90 21.90 2.50 3.50 4.50 5.50 6.50 7.50 8.50 9.50 10.50 11.50 12.50 13.50 14.50 15.50 16.50 17.50 18.50 19.50 20.50 Unit:mm CHANGJIANG CONNECTORS TEL:86-755-29959119 29959129 FAX:86-755-29959139 Http://www.CJT.cn A-14 A1002 SERIES A1002H-2 1.00mm pitch wire to board connector 1.00mm pitch Dual Row Housing Reference Informations: *Material:PBT,UL94V-0 *Suitable CJT A1002 series Terminal *Mates with CJT A1002 series Dual Row Wafer *Color:White Circuit 2 1.00±0.10 Circuit 1 A±0.20 4.20±0.20 5.00±0.25 Ordering Information & Dimensions: B±0.25 4.90±0.25 PART NO. A1002H-2x6P A1002H-2x8P A1002H-2x10P A1002H-2x15P A1002H-2x20P A1002H-2x25P Dimensions A B 5.00 7.00 9.00 14.00 19.00 24.00 9.00 11.00 13.00 18.00 23.00 28.00 Unit: mm A1002WV-S-2 1.00mm pitch 180° Dual Row Wafer - SMT TYPE Reference Informations: *Material:Pin:Phosphor Bronze/Tin over Nickel Solder Tabs: Phosphor Bronze/Tin over Nickel Insulator:Nylon 6T,UL94V-0 *Mates with CJT A1002 series Dual Row Housing *Color:Ivory Circuit 2 4.00±0.10 1.80±0.10 Circuit 1 A±0.20 0.50 Circuit 1 1.00±0.10 7.20±0.10 0.90±0.10 0.85±0.10 0.60 1.00±0.10 P.C.B LAYOUT 5.90±0.25 B±0.25 Ordering Information & Dimensions: 4.25±0.20 4.67±0.25 5.40±0.20 0.20 0.72 5.00±0.25 PART NO. A1002WV-S-2x6P A1002WV-S-2x8P A1002WV-S-2x10P A1002WV-S-2x15P A1002WV-S-2x20P A1002WV-S-2x25P Dimensions A B 5.00 7.00 9.00 14.00 19.00 24.00 8.30 10.30 12.30 17.30 22.30 27.30 Unit: mm CHANGJIANG CONNECTORS TEL:86-755-29959119 29959129 FAX:86-755-29959139 Http://www.CJT.cn A-15 A1002 SERIES A1002WV-S-F-2 1.00mm pitch wire to board connector 1.00mm pitch 180° Dual Row Wafer - SMT TYPE Reference Informations: *Material:Pin:Phosphor Bronze/Tin over Nickel Solder Tabs: Phosphor Bronze/Tin over Nickel Insulator:Nylon 6T,UL94V-0 *Mates with CJT A1002 series Dual Row Housing *Color:Ivory Circuit 2 7.20±0.10 1.80 Circuit 1 Ø0.55±0.10 4.00±0.10 0.50 1.90±0.10 0.90±0.10 0.85±0.10 0.60 1.00±0.10 1.00±0.10 Circuit 1 0.85±0.10 A±0.20 P.C.B LAYOUT 5.90±0.25 B±0.25 Ordering Information & Dimensions: 0.20 4.67±0.25 4.85±0.25 4.25±0.20 5.40±0.20 0.50 1.90 0.72 0.85 5.00±0.25 PART NO. A1002WV-S-F-2x6P A1002WV-S-F-2x8P A1002WV-S-F-2x10P A1002WV-S-F-2x15P A1002WV-S-F-2x20P A1002WV-S-F-2x25P Dimensions A B 5.00 7.00 9.00 14.00 19.00 24.00 8.30 10.30 12.30 17.30 22.30 27.30 Unit: mm A1002WR-S-2 1.00mm pitch 90° Dual Row Wafer - SMT TYPE Reference Informations: *Material:Pin:Phosphor Bronze/Tin over Nickel Solder Tabs: Phosphor Bronze/Tin over Nickel Insulator:Nylon 6T,UL94V-0 *Mates with CJT A1002 series Dual Row Housing *Color:Ivory Circuit 1 1.80±0.10 0.90±0.10 1.00±0.10 0.85±0.10 1.25±0.10 7.30±0.10 0.60 1.00±0.10 4.10±0.10 Circuit 1 Circuit 2 P.C.B LAYOUT A±0.20 5.10±0.25 5.40±0.25 Ordering Information & Dimensions: PART NO. 0.70 0.20 B±0.25 A1002WR-S-2x6P A1002WR-S-2x8P A1002WR-S-2x10P A1002WR-S-2x15P A1002WR-S-2x20P A1002WR-S-2x25P Dimensions A B 5.00 7.00 9.00 14.00 19.00 24.00 8.30 10.30 12.30 17.30 22.30 27.30 Unit: mm CHANGJIANG CONNECTORS TEL:86-755-29959119 29959129 FAX:86-755-29959139 Http://www.CJT.cn A-16
