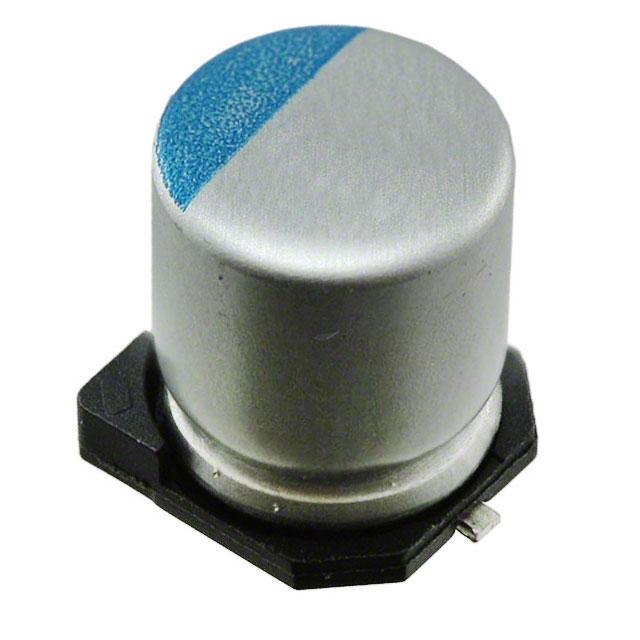

APXE2R5ARA471MF80G

CONDUCTIVE POLYMER ALUMINUM SOLID CAPACITORS TM NPCAP Surface Mount PXE - Series PXF ・Super low ESR, impedance and high heat resistance have been obtained by using conductive polymer as electrolyte. (ESR and rated ripple current values are improved from PXA series.) ・Rated voltage range : 2.5 to 16Vdc, Capacitance range : 33 to 2,700µF ・Suitable for DC-DC converters, voltage regulators and decoupling applications used on computer motherboards etc. ・Solvent resistant type (see PRECAUTIONS AND GUIDELINES) ・RoHS2 Compliant ・Halogen Free Lower ESR PXE Lower ESR PXA ◆SPECIFICATIONS Items Category Temperature Range Rated Voltage Range Capacitance Tolerance Leakage Current *Note Dissipation Factor (tanδ) Low Temperature Characteristics (Max. Impedance Ratio) Endurance Bias Humidity Surge Voltage Soldering Heat Characteristics -55 to +105℃ 2.5 to 16Vdc ±20% (M) Shall not exceed values shown in STANDARD RATINGS. (at 20℃, 120Hz) (at 20℃ after 2 minutes) 0.12 max. (at 20℃, 120Hz) Z(-25℃)/Z(+20℃)≦1.15 Z(-55℃)/Z(+20℃)≦1.25 (at 100kHz) The following specifications shall be satisfied when the capacitors are restored to 20℃ after the rated voltage is applied for 15,000 hours at 105℃. Appearance No significant damage Capacitance change ≦±20% of the initial value D.F. (tanδ) ≦150% of the initial specified value ESR ≦150% of the initial specified value Leakage current ≦The initial specified value The following specifications shall be satisfied when the capacitors are restored to 20℃ after subjecting them to the DC rated voltage at 60℃, 90 to 95% RH for 1,000 hours. Appearance No significant damage Capacitance change ≦±20% of the initial value D.F. (tanδ) ≦150% of the initial specified value ESR ≦150% of the initial specified value Leakage current ≦The initial specified value The capacitors shall be subjected to 1,000 cycles each consisting of charge with the surge voltage specified at 105℃ for 30 seconds through a protective resistor(R=1kΩ) and discharge for 5 minutes 30 seconds. Rated voltage (Vdc) 2.5 4.0 6.3 10 16 Surge voltage (Vdc) 2.9 4.6 7.2 12 18 Appearance No significant damage Capacitance change ≦±20% of the initial value D.F. (tanδ) ≦150% of the initial specified value ESR ≦150% of the initial specified value Leakage current ≦The initial specified value The following specifications shall be satisfied when the solder temperature is reduced back to 20°C to measure dip resistance after soldering has been performed under the recommended soldering conditions. Appearance No significant damage Capacitance value Within the specified tolerance range D.F. (tanδ) ≦The initial specified value ESR ≦The initial specified value Leakage current ≦The initial specified value (Voltage treatment) *Note : If any doubt arises, measure the leakage current after the following voltage treatment. Voltage treatment : DC rated voltage is applied to the capacitors for 120 minutes at 105℃. ◆DIMENSIONS [mm] 0.3max. L±0.3 (Note) P B±0.2 W A±0.2 (Note) L±0.5 for HA0, HC0, JA0, JC0 C±0.2 Code : A φD±0.5 ● Terminal ◆MARKING Size Code E61 F61 F80 H70 H80 HA0 HC0 J80 JA0 JC0 φD 5 6.3 6.3 8 8 8 8 10 10 10 L A B C 5.8 5.3 5.3 5.9 5.8 6.6 6.6 7.2 7.7 6.6 6.6 7.2 6.7 8.3 8.3 9.0 7.7 8.3 8.3 9.0 10.0 8.3 8.3 9.0 12.0 8.3 8.3 9.0 7.7 10.3 10.3 11.0 10.0 10.3 10.3 11.0 12.2 10.3 10.3 11.0 W 0.5 to 0.8 0.5 to 0.8 0.5 to 0.8 0.7 to 1.1 0.7 to 1.1 0.7 to 1.1 0.7 to 1.1 0.7 to 1.1 0.7 to 1.1 0.7 to 1.1 P 1.4 1.9 1.9 3.1 3.1 3.1 3.1 4.5 4.5 4.5 EX) 2.5V390µF E49A 390 2.5V Product specifications in this catalog are subject to change without notice.Request our product specifications before purchase and/or use. Please use our products based on the information contained in this catalog and product specifications. CAT. No. E1001X 2023 CONDUCTIVE POLYMER ALUMINUM SOLID CAPACITORS TM NPCAP Surface Mount PXESeries - ◆PART NUMBERING SYSTEM 1 2 3 4 A PXE 5 6 7 8 9 10 A RA 11 12 13 14 M 15 16 17 18 G Supplement code Size code Capacitance tolerance code Capacitance code (ex. 47µF:470,100µF:101) Taping code Terminal code Voltage code (ex. 6.3V:6R3,10V:100) Series code Category Please refer to "Product code guide (conductive polymer type)" ◆STANDARD RATINGS WV (Vdc) 2.5 4 6.3 Cap (µF) Size code 180 390 470 560 560 680 820 820 1,000 1,200 1,500 1,500 2,200 2,700 100 150 270 330 390 470 560 680 1,000 1,000 1,200 1,200 1,500 1,800 1,800 100 120 220 270 330 330 390 470 820 820 820 1,200 1,500 1,500 E61 F61 F80 F80 H70 H70 H80 HC0 H80 J80 HA0 HC0 JA0 JC0 E61 E61 F61 F61 F80 H70 H70 H80 HA0 J80 HC0 JA0 JA0 JA0 JC0 E61 E61 F61 F80 F80 H70 H70 H80 HA0 HC0 J80 JA0 JA0 JC0 Production of the products shown in Leakage current (µA max./after 2min.) 90.0 195 235 280 280 340 410 410 500 600 750 750 1,100 1,350 80.0 120 216 264 312 376 448 544 800 800 960 960 1,200 1,440 1,440 126 151 277 340 415 415 491 592 1,030 1,030 1,030 1,510 1,890 1,890 ESR Rated ripple current (mΩ max./20℃, 100k to 300kHz) (mArms/105℃, 100kHz) 21 15 13 13 13 13 12 9 12 13 10 9 10 9 22 22 15 15 14 14 14 13 10 14 9 10 10 10 9 24 24 15 14 14 14 14 13 12 10 14 12 12 10 2,670 3,160 3,600 3,600 4,100 4,100 4,260 5,400 4,260 4,450 5,220 5,400 5,500 5,600 2,610 2,610 3,160 3,160 3,470 3,950 3,950 3,950 5,220 4,300 5,400 5,500 5,500 5,500 5,600 2,500 2,500 3,160 3,470 3,470 3,950 3,950 3,950 4,770 5,150 4,300 5,025 5,025 5,500 Part No. APXE2R5ARA181ME61G APXE2R5ARA391MF61G APXE2R5ARA471MF80G APXE2R5ARA561MF80G APXE2R5ARA561MH70G APXE2R5ARA681MH70G APXE2R5ARA821MH80G APXE2R5ARA821MHC0G APXE2R5ARA102MH80G APXE2R5ARA122MJ80G APXE2R5ARA152MHA0G APXE2R5ARA152MHC0G APXE2R5ARA222MJA0G APXE2R5ARA272MJC0G APXE4R0ARA101ME61G APXE4R0ARA151ME61G APXE4R0ARA271MF61G APXE4R0ARA331MF61G APXE4R0ARA391MF80G APXE4R0ARA471MH70G APXE4R0ARA561MH70G APXE4R0ARA681MH80G APXE4R0ARA102MHA0G APXE4R0ARA102MJ80G APXE4R0ARA122MHC0G APXE4R0ARA122MJA0G APXE4R0ARA152MJA0G APXE4R0ARA182MJA0G APXE4R0ARA182MJC0G APXE6R3ARA101ME61G APXE6R3ARA121ME61G APXE6R3ARA221MF61G APXE6R3ARA271MF80G APXE6R3ARA331MF80G APXE6R3ARA331MH70G APXE6R3ARA391MH70G APXE6R3ARA471MH80G APXE6R3ARA821MHA0G APXE6R3ARA821MHC0G APXE6R3ARA821MJ80G APXE6R3ARA122MJA0G APXE6R3ARA152MJA0G APXE6R3ARA152MJC0G is scheduled to be discontinued. Product specifications in this catalog are subject to change without notice.Request our product specifications before purchase and/or use. Please use our products based on the information contained in this catalog and product specifications. CAT. No. E1001X 2023 CONDUCTIVE POLYMER ALUMINUM SOLID CAPACITORS TM NPCAP PXESeries - ◆STANDARD RATINGS WV (Vdc) 10 16 Cap (µF) Size code 47 56 68 120 150 220 270 330 390 470 680 33 39 68 82 100 100 120 150 180 220 220 330 E61 E61 E61 F61 F80 H70 H70 H80 HA0 J80 JA0 E61 E61 F61 F80 F80 H70 H70 H80 HA0 HA0 J80 JA0 Leakage current (µA max./after 2min.) ESR Rated ripple current (mΩ max./20℃, 100k to 300kHz) (mArms/105℃, 100kHz) 94.0 112 136 240 300 440 540 660 780 940 1,360 105 124 217 262 320 320 384 480 576 704 704 1,050 Production of the products shown in 28 28 28 25 21 21 21 19 17 19 13 35 35 28 24 24 24 24 22 18 18 22 16 2,310 2,310 2,310 2,530 2,880 3,220 3,220 3,390 4,000 3,800 4,820 2,070 2,070 2,390 2,700 2,700 3,010 3,010 3,150 3,890 3,890 3,450 4,350 Part No. APXE100ARA470ME61G APXE100ARA560ME61G APXE100ARA680ME61G APXE100ARA121MF61G APXE100ARA151MF80G APXE100ARA221MH70G APXE100ARA271MH70G APXE100ARA331MH80G APXE100ARA391MHA0G APXE100ARA471MJ80G APXE100ARA681MJA0G APXE160ARA330ME61G APXE160ARA390ME61G APXE160ARA680MF61G APXE160ARA820MF80G APXE160ARA101MF80G APXE160ARA101MH70G APXE160ARA121MH70G APXE160ARA151MH80G APXE160ARA181MHA0G APXE160ARA221MHA0G APXE160ARA221MJ80G APXE160ARA331MJA0G is scheduled to be discontinued. ◆RATED RIPPLE CURRENT MULTIPLIERS ・Frequency Multipliers Frequency（Hz） SMD type 120 0.05 1k 0.30 10k 0.55 50k 0.70 100k to 500k 1.00 Product specifications in this catalog are subject to change without notice.Request our product specifications before purchase and/or use. Please use our products based on the information contained in this catalog and product specifications. CAT. No. E1001X 2023 CONDUCTIVE POLYMER ALUMINUM SOLID CAPACITORS Product Guide ■ Always read "Notes on Use" before using the product in order to enable you to use the product correctly and prevent any faults and accidents from occurring. ■ Request the Product Specification on the product of NIPPON CHEMI-CON CORPORATION to refer to it as well as this brochure prior to the order of the products. Some specific notes on use of the ordered product may be described in the specifications. ■ The products listed in this catalog are designed and manufactured for general electronics equipment use and are not intended for use in applications that can adversely affect human life; where the malfunction of equipment may cause damage to life or property. In addition, our products are not intended to be used in specific applications that may cause a major social impact. Please consult with us in advance of usage of our products in the following listed applications. ① Aerospace equipment ② Power generation equipment such as thermal power, nuclear power etc. ③ Medical equipment ④ Transport equipment (automobiles, trains, ships, etc.) ⑤ Transportation control equipment ⑥ Disaster prevention / crime prevention equipment ⑦ Highly publicized information processing equipment ⑧ Submarine equipment ⑨ Other applications that are not considered general-purpose applications. ■ The circuits described as examples in this catalog and the "delivery specifications" are featured in order to show the operations and usage of our products, however, this fact does not guarantee that the circuits are available to function in your equipment systems. We are not in any case responsible for any failures or damage caused by the use of information contained herein. You should examine our products, of which the characteristics are described in the "delivery specifications" and other documents, and determine whether or not our products suit your requirements according to the specifications of your equipment systems. Therefore, you bear final responsibility regarding the use of our products. Please make sure that you take appropriate safety measures such as use of redundant design and malfunction prevention measures in order to prevent fatal accidents and/or fires in the event any of our products malfunction. ■ We strongly recommend our customers to purchase Nippon Chemi-Con products only through our official sales channels. We assume no responsibility for any defects or damages caused by using products purchased from outside our official sales channel or of counterfeit goods. In addition, we will ask the customer to pay the investigation cost for products purchased outside our official sales channel. ■ We reserve the right to discontinue production and delivery of products. We do not guarantee that all the products included in this catalog will be available in the future. The aforementioned does not apply in the case of individual agreements deviating from the foregoing for customer-specific products ■ We continually strive to improve the quality and reliability of our products, but in any case that our product does not meet our published specifications, please stop using it promptly and contact us immediately. As for compensation for non-conforming goods delivered by Chemi-Con, we will limit it only to goods found in non-compliance of our published specifications. This may be accomplished by a no cost replacement of non-conforming individual products, a credit of the piece price paid per each individual non-conforming product, or in other ways deemed necessary. In addition, we have an established system with enhanced traceability, therefore we will limit the applicable lot items for any potential compensation. Part Numbering System Part Numbering System (Appendix) Standardization Available Items by Manufacturing Locations Environmental Measures Technical Note Precautions and Guidelines Recommended Soldering Conditions Taping, Lead-preforming, Terminal and Packaging Options Product specifications in this catalog are subject to change without notice.Request our product specifications before purchase and/or use. Please use our products based on the information contained in this catalog and product specifications. CAT. No. E1001X 2023
