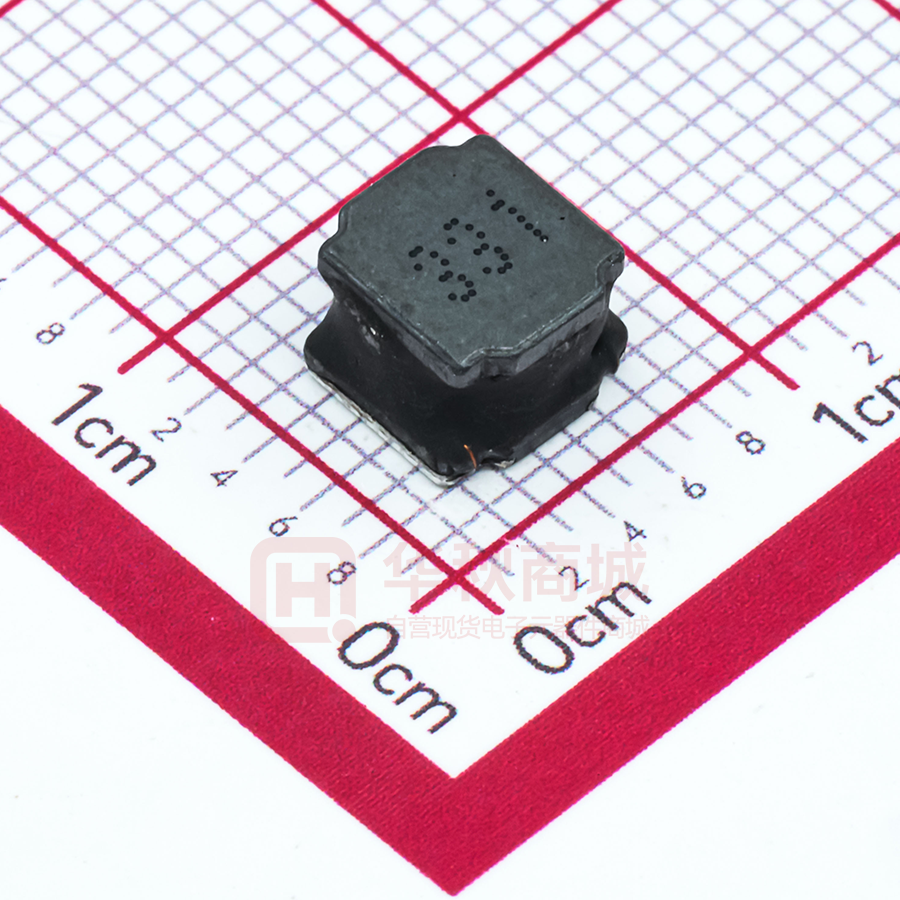

PNLS6045-331M 330UH

PNLS6045-331M 330UH

  • 厂商:

    DMBJ(振宝佳)

  • 封装:

    SMD,6x6mm

  • 描述:

    –40℃~+125℃

  • 数据手册
  • 价格&库存
PNLS6045-331M 330UH 数据手册
东莞市振宝佳电子有限公司 Dongguan Zhenbaojia Electronics Co., Ltd. 产品规格书 PRODUCT SPECIFICATION 客户名称 CUSTOMER 产品系列 PNLS 系列片式功率电感器 PRODUCT SERIES PNLS SERIES CHIP POWER INDUCTOR 规格型号 PRODUCT TYPE 客户型号规格 CUSTOMER’S PRODUCT TYPE 研发 品质 业务 备注 REMARK: 客户回签 CUSTOMER APPROVAL 第 1 页 共 22 页 批准 东莞市振宝佳电子有限公司 Dongguan Zhenbaojia Electronics Co., Ltd. 变更履历 Change list 序号 NO. 1 2 修改日期 DATE 2014.7.16 2019.12.10 修改内容 CHANGE CONTENT 初版 First edition 更新联系方式 Update contact 第 2 页 共 22 页 版本号 Version NO. A1 A2 东莞市振宝佳电子有限公司 Dongguan Zhenbaojia Electronics Co., Ltd. 1 用途 APPLICATIONS 广泛应用于智能手机,机顶盒,VR,AR,笔记本电脑,PC 电脑,服务器,游戏机,导航仪,多媒体 设备等。 Smart phone, set top box, VR, AR, Notebooks, desktop computers, servers, Portable gaming devices, personal navigation systems, personal multimedia devices. 2 特点 FEATURES 饱和电流大 large saturation current 磁心金属化处理,抗冲击耐疲劳 Metallization on ferrite core results in excellent shock resistance and damage-free durability 闭合磁路设计减少漏磁通和电磁干扰 Closed magnetic circuit design reduces leakage flux and Electro Magnetic Interference (EMI) 直流电阻小、功耗小,体积小、占用 PCB 空间小 Low DCR decreases power loss, small and slim take up less PCB real estates. 3 产品编码 PRODUCT IDENTIFICATION 252010 - R47 M PNLS ① ② ③ ④ ① Type:Wire Wound Chip Inductor ② External Dimensions (L×W) (mm):2.0×1.6 ③ Nominal Inductance:R10,0.1μH;1R0,1.0μH;100,10μH ④ Inductance Tolerance:K,±10%;M,±20%;N,±30% 4 外形及尺寸 SHAPE AND DIMENSIONS Fig.1 Unit: mm Fig.2 Fig.3 Type PNLS252010 PNLS252012 PNLS3010 PNLS3012 PNLS3015 PNLS4010 PNLS4012 PNLS4018 PNLS4020 PNLS4026 PNLS4030 PNLS5012 PNLS5020 PNLS5040 PNLS5045 PNLS6012 PNLS6020 PNLS6030 PNLS6045 PNLS6050 PNLS6060 PNLS8040 A 2.5±0.3 2.5±0.3 3.0±0.3 3.0±0.3 3.0±0.3 4.0±0.3 4.0±0.3 4.0±0.3 4.0±0.3 4.0±0.3 4.0±0.3 5.0±0.3 5.0±0.3 5.0±0.3 5.0±0.3 6.0±0.3 6.0±0.3 6.0±0.3 6.0±0.3 6.0±0.3 6.0±0.3 8.0±0.3 第 3 页 共 22 页 B 2.0±0.35 2.0±0.35 3.0±0.35 3.0±0.35 3.0±0.35 4.0±0.35 4.0±0.35 4.0±0.35 4.0±0.35 4.0±0.35 4.0±0.35 5.0±0.35 5.0±0.35 5.0±0.35 5.0±0.35 6.0±0.35 6.0±0.35 6.0±0.35 6.0±0.35 6.0±0.35 6.0±0.35 8.0±0.35 C(max) 1.05 1.25 1.20 1.30 1.50 1.15 1.35 1.80 2.10 2.80 3.00 1.30 2.00 4.00 4.50 1.30 2.00 3.00 4.50 5.30 6.30 4.20 D(max) 2.1 2.0 2.5 2.8 2.6 3.5 3.5 3.5 3.5 3.5 3.5 4.0 4.0 4.0 4.0 5.0 5.0 5.0 5.0 5.0 5.0 6.3 E(max) 0.85 0.85 0.85 0.90 0.90 1.30 1.30 1.30 1.30 1.30 1.30 1.50 1.50 1.50 1.50 1.65 1.65 1.85 1.65 1.65 1.65 2.45 SHAPE Fig.1 Fig.1 Fig.1 Fig.2 Fig.2 Fig.2 Fig.2 Fig.2 Fig.2 Fig.2 Fig.2 Fig.2 Fig.2 Fig.2 Fig.2 Fig.3 Fig.2 Fig.3 Fig.3 Fig.3 Fig.3 Fig.3 东莞市振宝佳电子有限公司 Dongguan Zhenbaojia Electronics Co., Ltd. 5 特性参数 SPECIFICATIONS 详见附录 A。Please refer to Appendix A. 工作温度范围 Operating temperatrue range: -40℃~ +85℃ 储存温度范围 Storage temperature range: -10 ℃~ + 70% RH. 40℃, 6 测试及可靠性 TESTING AND RELIABILITY 6.1 测试环境条件 Test Conditions 一般按照以下环境条件测试(有特殊要求的除外),: Unless otherwise specified, the standard atmospheric conditions for measurement/test as: a. 温度 Ambient Temperature: 20±15 ℃ b. 湿度 Relative Humidity: 65±20% c. 大气压 Air Pressure: 86 kPa to 106 kPa 如果对测试结果有疑义,可以按照以下条件复测: If any doubt on the results, measurements/tests should be made within the following limits: a. 温度 Ambient Temperature: 20±2 ℃ b. 湿度 Relative Humidity: 65±5% c. 大气压 Air Pressure: 86kPa to 106 kPa 6.2 测试及可靠性 Testing and reliability 测试与可靠性 Testing and reliability 直流电阻 RDC 电感量 Inductance (|Z|) 品质因数 Q 额定电流 Rated Current(Ir) 可焊性 SOLDER-ABILITY 耐焊性 RESISTANCE TO SOLDER HEAT 测试方法与要求 Test Methods and Remarks a. 标准值参考第 5 章节附录 A。Refer to Item 5 Appendix A. b. 测试仪器:高精度电阻表 HP4338B 或等效仪器。Test equipment (Analyzer): High Accuracy Milliohmmeter-HP4338B or equivalent. a. 标准值参考第 5 章节附录 A。Refer to Item 5 Appendix A. b. 测试仪器:高精度射频阻抗分析仪 Anglient E4991A+HP16192A 或等效仪器。 Test equipment: High Accuracy RF Inductance /Material Analyzer -Anglient E4991A+ HP16192A or equivalent. c. 测试信号 Test signal: -40dBm or 100mV. d. 测试频率参考第 5 章节。Test frequency refers to Item 5. c. a. 标准值参考第 5 章节附录 A。Refer to Item 5 Appendix A. b. 测试仪器:高精度射频阻抗分析仪 Anglient E4991A+HP16192A 或等效仪器。 Test equipment: High Accuracy RF Inductance /Material Analyzer -Anglient E4991A+ HP16192A or equivalent. c. 测试信号 Test signal: -40dBm or 100mV. d. 测试频率参考第 5 章节。Test frequency refers to Item 5. d. a. 标准值参考第 5 章节附录 A。Refer to Item 5 Appendix A. b. 测试仪器:HP6632B 直流电源,数字点温计或等效仪器。 Test equipment: HP6632B system DC power supply, digital surface thermometer or equivalent. c. 电感量下降 ΔL/L×100%≤30%。ΔL/L×100%≤30% . 至少 95%的焊接面完全被焊锡连续覆盖。95% min. coverage of all metabolised area. 焊锡温度 Solder temp. : 240±5 ℃ 浸入时间 Immersion time : 3±1 sec 焊锡 Solder : Sn-3Ag-0.5Cu 无可见损伤。电特性和机械特性满足产品规范或检验标准要求。No visible damage. Electrical characteristics and mechanical characteristics shall be satisfied. 焊锡温度 Solder Temp. : 265±3 ℃ 第 4 页 共 22 页 东莞市振宝佳电子有限公司 Dongguan Zhenbaojia Electronics Co., Ltd. Be n d in g 40 弯曲 Bend 浸入时间 Immersion time : 6±1 sec 预热 Preheating : 100 ℃ to 150℃, 1 minute. 在室温下放置 24±2 小时后测试检查。Measurement to be made after keeping at room temp for 24±2 hrs. 焊锡 Solder : Sn-3Ag-0.5Cu 试验后无破损现象,电感量应在±20%以 un it : m m 内,直流电阻应符合标准/规范要求。 Without deformation cases, Inductance 0 .8 shall be satisfied ± 20%, DC resistance 45 45 shall be satisfied. 将产品焊接在试验板上,如图所示在试验 板中间位置施加压力,使得试验板中心点 向下弯曲 2mm, 保持 10 秒。After soldering a chip to a test substrate,bend the substrate 100 by 2mm hold for 10s and then return. Soldering shall be done in accordance with the recommended PC board pattern and reflow soldering. a.试验要求 Performance specification 1)外观 Appearance:无可见机械损伤 no mechanical damage 2)电感量变化应在±20%以内 Inductance shall be with ±20﹪of the initial value b.试验条件 Test condition 1)波形 Waveform:正弦波 Sine wave 2)频率 Frequency:10~55~10 Hz 3)持续时间 Sweep time:1min 4)Amplitude:1.5mm(peak-peak) 5.Direction:X,Y,Z(3 axes) 6.Duration:2 hrs./axis,total 6 hrs. a.试验要求 Performance specification 1)外观 Appearance:无可见机械损伤 no mechanical damage 2)电感量变化应在±20%以内 Inductance shall be with ±20﹪of the initial value b.试验条件 Test condition 1)温度 Temperature :-40 各保持 30 分钟。-40 ℃,+85℃ ℃ 2)周期 Cycle:5 次。5 cycles. 3)检查 Measurement:试验后至少在室温条件下放置 24 小时以上。After placing at room ambient temperature for 24 hours minimum. a.试验要求 Performance specification 1)外观 Appearance:无可见机械损伤 no mechanical damage 2)电感量变化应在±20%以内 Inductance shall be with ±20﹪of the initial value b.试验条件 Test condition 1)湿度 Humidity:90 to 95﹪RH 2)温度 Temperature:60±2 ℃ 3)加载电流 Applied current:额定直流电流 Rated current 4)试验时间 Testing tine:1000(+48,0)hours 5)检查 Measurement:试验后至少在室温条件下放置 24 小时以上。After placing at room ambient temperature for 24 hours minimum. a. 试验要求 Performance specification 1) 外观 Appearance:无可见机械损伤 no mechanical damage 2) 电感量变化应在±20%以内 Inductance shall be with ±20﹪of the initial value b. 试验条件 Test condition 1) 温度 Temperature: +85 ℃±2℃ 2) 加载电流 Applied current:额定直流电流 Rated current 3) 试验时间 Testing time:1000(+48,0)hours 4) 检查 Measurement:试验后至少在室温条件下放置 24 小时以上。After placing at room ambient temperature for 24 hours minimum. a.试验要求 Performance specification 振动 Vibration 温度冲击 Temperature shock 湿热负载 HUMIDITY RESISTANCE 高温负载 HIGH TEMPERATURE RESISTANCE 低温储存 第 5 页 共 22 页 东莞市振宝佳电子有限公司 Dongguan Zhenbaojia Electronics Co., Ltd. 1)外观 Appearance:无可见机械损伤 no mechanical damage. 2)电感量变化应在±20%以内 Inductance shall be with ±20﹪of the initial value. b.试验条件 Test condition 1.温度 Temperature:-40 ℃±2 ℃ 2.试验时间 Testing time:1000(+48,0)hours 3.检查 Measurement:试验后至少在室温条件下放置 24 小时以上。After placing for 24 hours minimum at room ambient temperature. 无破损现象。Without deformation cases. 电感量变化应在±20%以内。Inductance shall be satisfied ± 20%. 直流电阻应满足标准要求。DC resistance shall be satisfied. 焊接在 PCB 上的产品应持续成熟 10N 推力共 10 秒,0603[0201]产品推力为 2N。Solder chip on PCB and applied 10N(1.02Kgf) for 10 sec.0603[0201] chip applied 2N. 试验后产品应无失效现象。Products shall be no failure after test. 产品跌落在混凝土地面或钢板上。It shall be dropped on concrete or steel board. 试验方法:自由落下。Method : free fall. 高度 Height : 100cm. 产品跌落方向:3 个方向。Attitude from which the product is dropped : 3 direction. 总次数:每个方向 3 次(共 9 次)。The number of times : 3 times for each direction (Total 9 times). a.试验要求 Performance specification 1)外观 Appearance:无可见机械损伤 no mechanical damage. 2)电感量变化应在±20%以内 Inductance shall be with ±20﹪of the initial value. b.试验条件 Test condition 1)盐溶液溶度 Concentration of salt solution:(5±0.1)%. 2)PH:6.5-7.2 3)时间 Time:48±2h LOW TEMPERATURE STORAGE LIFE 端头强度 TERMINAL STRENGTH 跌落 Drop 盐雾 Salt mist 7 包装及储存 Packaging, Storage 7.1 包装 Packaging (1)载带尺寸 Tape Dimensions(Unit: mm) Type W A B D P Kmax Tmax Quantity(pcs/reel) PNLS252010 8 2.45 2.75 3.5 4.0 1.25 0.28 2000 PNLS252012 8 2.45 2.75 3.5 4.0 1.60 0.28 2000 PNLS3010 8 3.3 3.3 3.5 4.0 1.45 0.28 2000 PNLS3012 8 3.3 3.3 3.5 4.0 1.60 0.28 2000 PNLS3015 8 3.3 3.3 3.5 4.0 1.90 0.28 2000 PNLS4010 12 4.3 4.3 5.5 8.0 1.45 0.35 5000 第 6 页 共 22 页 东莞市振宝佳电子有限公司 Dongguan Zhenbaojia Electronics Co., Ltd. PNLS4012 12 4.3 4.3 5.5 8.0 1.60 0.35 4500 PNLS4018 12 4.3 4.3 5.5 8.0 2.10 0.35 3000 PNLS4020 12 4.3 4.3 5.5 8.0 2.45 0.40 3000 PNLS4026 12 4.3 4.3 5.5 8.0 2.85 0.35 2500 PNLS4030 12 4.3 4.3 5.5 8.0 3.25 0.40 2000 PNLS5012 12 5.3 5.3 5.5 8.0 1.45 0.35 4500 PNLS5020 12 5.3 5.3 5.5 8.0 2.20 0.35 2500 PNLS5040 12 5.3 5.3 5.5 8.0 4.25 0.40 2500 PNLS5045 12 5.3 5.3 5.5 8.0 4.45 0.40 2500 PNLS6012 16 6.3 6.3 7.5 8.0 1.50 0.40 2500 PNLS6020 16 6.3 6.3 7.5 8.0 2.50 0.40 2500 PNLS6030 16 6.3 6.3 7.5 8.0 3.40 0.40 2000 PNLS6045 16 6.3 6.3 7.5 8.0 4.70 0.40 1500 PNLS6050 16 6.3 6.3 7.5 8.0 5.20 0.40 1500 PNLS6060 16 6.3 6.3 7.5 8.0 6.50 0.40 1500 PNLS8040 16 8.4 8.4 7.5 12.0 4.50 0.50 1000 (2)载带 Tape (3)卷盘 REEL 型号 Type A N W PNLS252010\PNLS252012\ PNLS3010\PNLS3012\PNLS3015 178±2 60±2 12±0.2 PNLS40\PNLS50\PNLS60\PNLS80 330±2 100±2 12.4±0.2 第 7 页 共 22 页 东莞市振宝佳电子有限公司 Dongguan Zhenbaojia Electronics Co., Ltd. (4)剥离力 PEELING OFF FORCE 剥离速度 Speed of peeling off 剥离力 Peeling off force 300mm/s 0.1N to 1N(10g to 100g). (5)包装 Packaging a. 卷盘和干燥剂一同放入尼龙或塑料袋中。Reel and a bag of desiccant shall be packed in Nylon or plastic bag. b. 每个内盒中最多装 2 个上述袋子。Maximum of 2 bags shall be packaged in a inner box. c. 每个外箱中最多装 8 个内盒。Maximum of 8 inner box shall be packaged in a outer box. 7.2 储存 Storage 7.2.1 不得暴露在高温高湿环境下储存,否则导致产品外电极和焊接性恶化变差。建议包装好的产品储存 在低于 40 ℃ 、小于 70% RH 条件下。The solderability of the external electrode may be deteriorated if packages are stored where they are exposed to high humidity. Packages must be stored at 40 ℃ or less ﹪RH or less. and 70 7.2.2 不得暴露在灰尘或腐蚀性气体(如氯化氢,亚硫酸气体或硫化氢等)环境下储存,否则会导致产品 外电极和焊接性恶化变差。The solderability of the external electrode may be deteriorated if packages are stored where they are exposed to dust or harmful gas (hydrogen chloride, sulfurous acid gas or hydrogen sulfide). 7.2.3 如果暴露在阳光直射或加热环境下储存,会导致包装材料变形。Packaging material may be deformed if packages are stored where they are exposed to heat or direct sunlight. 7.2.4 采用聚乙烯热封载带形式的最小包装,在使用之前不要拆开。如果拆开了,应尽快使用卷盘保护起 来。Minimum packages, such as polyvinyl heat-seal packages shall not be opened until just before they are used.If opened, use the reels as soon as possible. 7.2.5 在符合 7.2.1 和 7.2.2 要求的环境下储存,从产品发货日期开始 6 个月内,产品的焊接性能够满足 7.2 规定的要求。Solderability specified in composite specification 7.2 shall be for 6 months from the date of delivery on condition that they are stored at the environment specified clause 8.2.1 & 8.2.2. 在产品使用之前,如果储存期超过 6 个月,则需要复检焊接性。For those parts which passed more than 6 months shall be checked solderability before it is used. 8 安装使用及注意事项 8.1 回流焊条件 Reflow soldering conditions 焊接之前产品应预热到 150 ℃ 。焊接后应冷却到 100 ℃ 。Pre-heating should be in such a way that the temperature difference between solder and ferrite surface is limited to 150 ℃ into max.Also solvent after cooling soldering should be in such a way that the temperature difference is limited to 100 ℃ max. 如果预热不充分,会导致产品质量恶化。Unenough pre-heating may cause cracks on the ferrite, resulting in the deterioration of product quality. 产品应当按照下述曲线焊接。Products should be soldered within the following allowable range indicated by the slanted line. 作业前,应对焊锡炉进行校准确认,保证能够符合焊接工艺条件。The excessive soldering conditions may cause the corrosion of the electrode, When soldering is repeated, allowable time is the accumulated time. 第 8 页 共 22 页 东莞市振宝佳电子有限公司 Dongguan Zhenbaojia Electronics Co., Ltd. 8.2 返工 Reworking with soldering iron 预热 Preheating 150℃, l minute 最高温度 Tip temperature 280℃ max 焊接时间 Soldering time 3seconds max. 电烙铁输出功率 Soldering iron output 30w max. 电烙铁焊头尺寸 End of soldering iron ∮3mm max. *返工仅限一次。Reworking should be limited to only one time. 注意 Note:为了避免焊接高温冲击导致产品本体开裂,电烙铁焊头焊锡时应避免直接与产品接触。Do not directly touch the products with the tip of the soldering iron in order to prevent the crack on the ferrite material due to the thermal shock. 8.3 焊料量 Solder Volume 焊料使用时,不得超过如下所示的上限要求。Solder shall be used not to be exceed the upper limits as shown below. 随着焊料的增加,产品承受的机械应力也随之增加。过量的焊料所产生的机械应力,会导致产品出现 机械或电气特性失效。Accordingly increasing the solder volume, the mechanical stress to product is also increased. Exceeding solder volume may cause the failure of mechanical or electrical performance. 第 9 页 共 22 页 东莞市振宝佳电子有限公司 Dongguan Zhenbaojia Electronics Co., Ltd. 附录 A 电气特性表 Appendix A Electrical Characteristics PNLS252010 Series Part Number Inductance Max.DC resistance Saturation Current Unit μH@1MHz 0.1V mΩ A Symbol L DCR Isat PNLS252010-R33□ 0.33 38 2.7 PNLS252010-R47□ 0.47 36 2.57 PNLS252010-R68□ 0.68 49 2.45 PNLS252010-1R0□ 1 66 2.05 PNLS252010-1R5□ 1.5 108 1.7 PNLS252010-2R2□ 2.2 145 1.55 PNLS252010-3R3□ 3.3 204 1.1 PNLS252010-4R7□ 4.7 300 0.95 PNLS252010-6R8□ 6.8 444 0.8 PNLS252010-100□ 10 564 0.65 PNLS252010-150□ 15 900 0.45 PNLS252010-220□ 22 1344 0.4 *请选用时注明公差(J=±5%;K=±10%;M=±20%;N=±30%)Please specify the inductance tolerance code(J=±5%;K= ±10%;M=±20%;N=±30%). PNLS252012 Series Part Number Inductance Max.DC resistance Saturation Current Unit μH@1MHz 0.1V mΩ A Symbol L DCR Isat PNLS252012-R24□ 0.24 32 4.05 PNLS252012-R33□ 0.33 42 4 PNLS252012-R47□ 0.47 42 3.6 PNLS252012-R56□ 0.56 42 3.3 PNLS252012-R68□ 0.68 55 2.7 PNLS252012-1R0□ 1 63.7 2.45 PNLS252012-1R5□ 1.5 84 2.05 PNLS252012-2R2□ 2.2 115.2 1.9 PNLS252012-3R3□ 3.3 156 1.5 PNLS252012-4R7□ 4.7 228.8 1.35 PNLS252012-6R8□ 6.8 325 1 PNLS252012-100□ 10 492 0.75 PNLS252012-150□ 15 648 0.56 第 10 页 共 22 页 东莞市振宝佳电子有限公司 Dongguan Zhenbaojia Electronics Co., Ltd. PNLS252012-180□ 18 1000 0.5 PNLS252012-220□ 22 1020 0.5 *请选用时注明公差(J=±5%;K=±10%;M=±20%;N=±30%)Please specify the inductance tolerance code(J=±5%;K= ±10%;M=±20%;N=±30%). PNLS3010 Series Part Number Inductance Max.DC resistance Saturation Current Unit μH@100KHz 0.25V mΩ A Symbol L DCR Isat PNLS3010-1R0□ 1 85 1.4 PNLS3010-1R5□ 1.5 104 1.27 PNLS3010-2R2□ 2.2 143 1.15 PNLS3010-3R3□ 3.3 189 0.97 PNLS3010-4R7□ 4.7 293 0.75 PNLS3010-6R8□ 6.8 397 0.55 PNLS3010-100□ 10 520 0.55 PNLS3010-150□ 15 850 0.42 PNLS3010-220□ 22 1300 0.35 PNLS3010-330□ 33 2050 0.29 PNLS3010-470□ 47 2535 0.22 *请选用时注明公差(J=±5%;K=±10%;M=±20%;N=±30%)Please specify the inductance tolerance code(J=±5%;K= ±10%;M=±20%;N=±30%). PNLS3012 Series Part Number Inductance Max.DC resistance Saturation Current Unit μH@100KHz 0.25V mΩ A Symbol L DCR Isat PNLS3012-R22□ 0.22 30 5.3 PNLS3012-R82□ 0.82 50 2.05 PNLS3012-1R0□ 1 60 1.87 PNLS3012-1R2□ 1.2 72 1.8 PNLS3012-1R5□ 1.5 75 1.62 PNLS3012-1R8□ 1.8 98 1.3 PNLS3012-2R2□ 2.2 105 1.2 PNLS3012-2R4□ 2.4 110 1.15 PNLS3012-2R7□ 2.7 110 1.14 PNLS3012-3R3□ 3.3 130 1.05 PNLS3012-3R6□ 3.6 156 1.05 PNLS3012-3R9□ 3.9 156 1 第 11 页 共 22 页 东莞市振宝佳电子有限公司 Dongguan Zhenbaojia Electronics Co., Ltd. PNLS3012-4R7□ 4.7 156 0.9 PNLS3012-5R6□ 5.6 226 0.8 PNLS3012-6R8□ 6.8 247 0.75 PNLS3012-100□ 10 345 0.6 PNLS3012-120□ 12 480 0.48 PNLS3012-150□ 15 492 0.45 PNLS3012-180□ 18 709 0.43 PNLS3012-220□ 22 839 0.42 PNLS3012-270□ 27 1131 0.35 PNLS3012-330□ 33 1138 0.36 PNLS3012-360□ 36 1235 0.34 PNLS3012-390□ 39 1729 0.3 PNLS3012-470□ 47 1885 0.27 PNLS3012-560□ 56 1950 0.26 PNLS3012-680□ 68 2171 0.24 PNLS3012-820□ 82 3302 0.17 PNLS3012-101□ 100 3718 0.21 *请选用时注明公差(J=±5%;K=±10%;M=±20%;N=±30%)Please specify the inductance tolerance code(J=±5%;K= ±10%;M=±20%;N=±30%). PNLS3015 Series Part Number Inductance Max.DC resistance Saturation Current Unit μH@100KHz 0.25V mΩ A Symbol L DCR Isat PNLS3015-1R0□ 1 30±30% 2.32 PNLS3015-1R2□ 1.2 40±30% 2.3 PNLS3015-1R5□ 1.5 50±30% 2.3 PNLS3015-2R2□ 2.2 60±30% 1.6 PNLS3015-3R3□ 3.3 80±30% 1.32 PNLS3015-4R7□ 4.7 125±30% 1.1 PNLS3015-6R8□ 6.8 200±30% 0.85 PNLS3015-100□ 10 250±30% 0.72 PNLS3015-120□ 12 320±30% 0.66 PNLS3015-150□ 15 350±30% 0.66 PNLS3015-220□ 22 460±30% 0.52 PNLS3015-470□ 47 1250±30% 0.32 *请选用时注明公差(J=±5%;K=±10%;M=±20%;N=±30%)Please specify the inductance tolerance code(J=±5%;K= ±10%;M=±20%;N=±30%). 第 12 页 共 22 页 东莞市振宝佳电子有限公司 Dongguan Zhenbaojia Electronics Co., Ltd. PNLS4010 Series Part Number Inductance Max.DC resistance Saturation Current Unit μH@100KHz 0.25V mΩ A Symbol L DCR Isat PNLS4010-1R0□ 1 92 2.2 PNLS4010-2R2□ 2.2 152 1.6 PNLS4010-3R3□ 3.3 206 1.4 PNLS4010-4R7□ 4.7 286 1.1 PNLS4010-6R8□ 6.8 378 1 PNLS4010-8R2□ 8.2 436 0.85 PNLS4010-100□ 10 480 0.8 PNLS4010-220□ 22 1430 0.5 PNLS4010-470□ 47 2389 0.23 *请选用时注明公差(J=±5%;K=±10%;M=±20%;N=±30%)Please specify the inductance tolerance code(J=±5%;K= ±10%;M=±20%;N=±30%). PNLS4012 Series Part Number Inductance Max.DC resistance Saturation Current Unit μH@100KHz 0.25V mΩ A Symbol L DCR Isat PNLS4012-1R0□ 1 65 2.61 PNLS4012-1R5□ 1.5 85 2.1 PNLS4012-2R2□ 2.2 104 1.76 PNLS4012-3R3□ 3.3 147 1.25 PNLS4012-4R7□ 4.7 163 1.15 PNLS4012-6R8□ 6.8 260 0.95 PNLS4012-100□ 10 345 0.8 PNLS4012-150□ 15 442 0.56 PNLS4012-220□ 22 611 0.54 PNLS4012-330□ 33 1053 0.42 PNLS4012-470□ 47 1430 0.35 PNLS4012-680□ 68 1950 0.3 *请选用时注明公差(J=±5%;K=±10%;M=±20%;N=±30%)Please specify the inductance tolerance code(J=±5%;K= ±10%;M=±20%;N=±30%). PNLS4018 Series Part Number Inductance Max.DC resistance Saturation Current Unit μH@100KHz 0.25V mΩ A 第 13 页 共 22 页 东莞市振宝佳电子有限公司 Dongguan Zhenbaojia Electronics Co., Ltd. Symbol L DCR Isat PNLS4018-R56□ 0.56 24 5.5 PNLS4018-1R0□ 1 25±30% 4.5 PNLS4018-1R2□ 1.2 48 3.5 PNLS4018-2R2□ 2.2 45±30% 2.7 PNLS4018-3R3□ 3.3 84 2.15 PNLS4018-4R7□ 4.7 90±30% 2 PNLS4018-5R6□ 5.6 100±30% 1.65 PNLS4018-6R8□ 6.8 110±30% 1.6 PNLS4018-100□ 10 180±30% 1.3 PNLS4018-150□ 15 250±30% 0.95 PNLS4018-220□ 22 360±30% 0.8 PNLS4018-330□ 33 530±30% 0.65 PNLS4018-470□ 47 650±30% 0.57 PNLS4018-680□ 68 1000±30% 0.46 PNLS4018-101□ 100 1.5Ω±30% 0.41 PNLS4018-151□ 150 2.4Ω±30% 0.32 PNLS4018-221□ 220 4.8Ω 0.28 *请选用时注明公差(J=±5%;K=±10%;M=±20%;N=±30%)Please specify the inductance tolerance code(J=±5%;K= ±10%;M=±20%;N=±30%). PNLS4020 Series Part Number Inductance Max.DC resistance Saturation Current Unit μH@100KHz 0.25V mΩ A Symbol L DCR Isat PNLS4020-1R0□ 1 41.8 4.78 PNLS4020-1R5□ 1.5 50.6 4.45 PNLS4020-2R2□ 2.2 54.6 3.4 PNLS4020-3R3□ 3.3 95.8 3.2 PNLS4020-4R7□ 4.7 102.9 2.35 PNLS4020-6R8□ 6.8 171.2 2.15 PNLS4020-100□ 10 225 1.6 PNLS4020-150□ 15 314 1.35 PNLS4020-220□ 22 477 1.05 PNLS4020-330□ 33 750 0.85 PNLS4020-470□ 47 969 0.74 PNLS4020-680□ 68 1449 0.61 PNLS4020-820□ 82 1596 0.5 第 14 页 共 22 页 东莞市振宝佳电子有限公司 Dongguan Zhenbaojia Electronics Co., Ltd. PNLS4020-101□ 100 2210 0.46 *请选用时注明公差(J=±5%;K=±10%;M=±20%;N=±30%)Please specify the inductance tolerance code(J=±5%;K= ±10%;M=±20%;N=±30%). PNLS4026 Series Part Number Inductance Max.DC resistance Saturation Current Unit μH@100KHz 0.25V mΩ A Symbol L DCR Isat PNLS4026-1R0□ 1 45 3.3 PNLS4026-2R2□ 2.2 60 2.9 PNLS4026-3R3□ 3.3 88 2.5 PNLS4026-4R7□ 4.7 128 2.25 PNLS4026-6R8□ 6.8 145 1.9 PNLS4026-8R2□ 8.2 160 1.75 PNLS4026-100□ 10 180 1.65 PNLS4026-150□ 15 300 1.55 PNLS4026-220□ 22 330 1.4 PNLS4026-330□ 33 482 1.2 PNLS4026-470□ 47 950 1 PNLS4026-680□ 68 1300 0.8 *请选用时注明公差(J=±5%;K=±10%;M=±20%;N=±30%)Please specify the inductance tolerance code(J=±5%;K= ±10%;M=±20%;N=±30%). PNLS4030 Series Part Number Inductance Max.DC resistance Saturation Current Unit μH@100KHz 0.25V mΩ A Symbol L DCR Isat PNLS4030-1R0□ 1 22±30% 5 PNLS4030-1R5□ 1.5 32±30% 4.8 PNLS4030-2R2□ 2.2 35±30% 4.5 PNLS4030-3R3□ 3.3 50±30% 3 PNLS4030-4R7□ 4.7 60±30% 2.9 PNLS4030-6R8□ 6.8 100±30% 2.2 PNLS4030-100□ 10 120±30% 2 PNLS4030-150□ 15 200±30% 1.7 PNLS4030-220□ 22 225±30% 1.3 PNLS4030-330□ 33 360±30% 1.1 PNLS4030-470□ 47 460±30% 0.98 PNLS4030-560□ 56 534±30% 0.88 第 15 页 共 22 页 东莞市振宝佳电子有限公司 Dongguan Zhenbaojia Electronics Co., Ltd. PNLS4030-680□ 68 836±30% 0.77 PNLS4030-101□ 100 1.11Ω±30% 0.7 PNLS4030-151□ 150 1.4Ω±30% 0.5 PNLS4030-221□ 220 3.5Ω±30% 0.33 *请选用时注明公差(J=±5%;K=±10%;M=±20%;N=±30%)Please specify the inductance tolerance code(J=±5%;K= ±10%;M=±20%;N=±30%). PNLS5012 Series Part Number Inductance Max.DC resistance Saturation Current Unit μH@100KHz 0.25V mΩ A Symbol L DCR Isat PNLS5012-1R0□ 1 78 4 PNLS5012-1R5□ 1.5 85 3.2 PNLS5012-2R2□ 2.2 120 3.1 PNLS5012-3R3□ 3.3 200 2.2 PNLS5012-4R7□ 4.7 230 1.98 PNLS5012-6R8□ 6.8 390 1.5 PNLS5012-100□ 10 624 1.4 PNLS5012-150□ 15 804 1.2 PNLS5012-220□ 22 1300 1.1 *请选用时注明公差(J=±5%;K=±10%;M=±20%;N=±30%)Please specify the inductance tolerance code(J=±5%;K= ±10%;M=±20%;N=±30%). PNLS5020 Series Part Number Inductance Max.DC resistance Saturation Current Unit μH@100KHz 0.25V mΩ A Symbol L DCR Isat PNLS5020-1R0□ 1 20±30% 4.33 PNLS5020-1R5□ 1.5 26±30% 4.1 PNLS5020-2R2□ 2.2 38±30% 3.6 PNLS5020-3R3□ 3.3 45±30% 3 PNLS5020-4R7□ 4.7 60±30% 2.5 PNLS5020-6R8□ 6.8 83±30% 2.05 PNLS5020-100□ 10 120±30% 1.44 PNLS5020-150□ 15 180±30% 1.4 PNLS5020-220□ 22 226±30% 1.15 PNLS5020-270□ 27 300±30% 1.05 PNLS5020-330□ 33 356±30% 1 PNLS5020-470□ 47 505±30% 0.82 第 16 页 共 22 页 东莞市振宝佳电子有限公司 Dongguan Zhenbaojia Electronics Co., Ltd. PNLS5020-680□ 68 640±30% 0.59 PNLS5020-101□ 100 1021±30% 0.55 PNLS5020-221□ 220 2200±30% 0.28 PNLS5020-102□ 1000 14Ω±30% 0.1 *请选用时注明公差(J=±5%;K=±10%;M=±20%;N=±30%)Please specify the inductance tolerance code(J=±5%;K= ±10%;M=±20%;N=±30%). PNLS5040 Series Part Number Inductance Max.DC resistance Saturation Current Unit μH@100KHz 0.25V mΩ A Symbol L DCR Isat PNLS5040-1R0□ 1 18 7.35 PNLS5040-1R5□ 1.5 28 5 PNLS5040-2R2□ 2.2 20±30% 4.9 PNLS5040-3R3□ 3.3 26±30% 3.95 PNLS5040-4R7□ 4.7 32±30% 3.5 PNLS5040-6R8□ 6.8 45±30% 2.9 PNLS5040-100□ 10 60±30% 2.3 PNLS5040-150□ 15 80±30% 2 PNLS5040-220□ 22 130±30% 1.6 PNLS5040-270□ 27 160±30% 1.4 PNLS5040-330□ 33 180±30% 1.3 PNLS5040-470□ 47 310±30% 1.02 PNLS5040-560□ 56 340±30% 1 PNLS5040-680□ 68 500±30% 0.85 PNLS5040-101□ 100 560±30% 0.66 PNLS5040-221□ 220 1.8Ω±30% 0.4 *请选用时注明公差(J=±5%;K=±10%;M=±20%;N=±30%)Please specify the inductance tolerance code(J=±5%;K= ±10%;M=±20%;N=±30%). PNLS5045 Series Part Number Inductance Max.DC resistance Saturation Current Unit μH@100KHz 0.25V mΩ A Symbol L DCR Isat PNLS5045-1R0□ 1 20 6 PNLS5045-1R5□ 1.5 21 5.8 PNLS5045-2R2□ 2.2 22 5 PNLS5045-3R3□ 3.3 29 4 第 17 页 共 22 页 东莞市振宝佳电子有限公司 Dongguan Zhenbaojia Electronics Co., Ltd. PNLS5045-4R7□ 4.7 34 3.3 PNLS5045-220□ 22 170 1.75 PNLS5045-151□ 150 1700 0.55 PNLS5045-221□ 220 1950 0.5 PNLS5045-331□ 330 2990 0.41 PNLS5045-471□ 470 4300 0.2 *请选用时注明公差(J=±5%;K=±10%;M=±20%;N=±30%)Please specify the inductance tolerance code(J=±5%;K= ±10%;M=±20%;N=±30%). PNLS6012 Series Part Number Inductance Max.DC resistance Saturation Current Unit μH@100KHz 0.25V mΩ A Symbol L DCR Isat PNLS6012-3R3□ 3.3 130 1.65 PNLS6012-6R8□ 6.8 243 1.3 PNLS6012-100□ 10 270 1 *请选用时注明公差(J=±5%;K=±10%;M=±20%;N=±30%)Please specify the inductance tolerance code(J=±5%;K= ±10%;M=±20%;N=±30%). PNLS6020 Series Part Number Inductance Max.DC resistance Saturation Current Unit μH@100KHz 0.25V mΩ A Symbol L DCR Isat PNLS6020-1R0□ 1 28 4.27 PNLS6020-1R5□ 1.5 35 4.2 PNLS6020-2R2□ 2.2 45 3.2 PNLS6020-3R3□ 3.3 46 3.15 PNLS6020-4R7□ 4.7 90 2.8 PNLS6020-6R8□ 6.8 140 2.2 PNLS6020-100□ 10 175 1.85 PNLS6020-120□ 12 190 1.7 PNLS6020-150□ 15 200 1.35 PNLS6020-220□ 22 280 1.29 PNLS6020-330□ 33 400 1 PNLS6020-470□ 47 650 0.9 PNLS6020-680□ 68 990 0.65 PNLS6020-101□ 100 1430 0.5 *请选用时注明公差(J=±5%;K=±10%;M=±20%;N=±30%)Please specify the inductance tolerance code(J=±5%;K= ±10%;M=±20%;N=±30%). 第 18 页 共 22 页 东莞市振宝佳电子有限公司 Dongguan Zhenbaojia Electronics Co., Ltd. PNLS6028 Series Part Number Inductance Max.DC resistance Saturation Current Unit μH@100KHz 0.25V mΩ A Symbol L DCR Isat PNLS6028-1R0□ 1 20 5.75 PNLS6028-1R5□ 1.5 25 5.25 PNLS6028-2R2□ 2.2 28 5.1 PNLS6028-3R3□ 3.3 40 3.8 PNLS6028-4R7□ 4.7 45 3.7 PNLS6028-5R6□ 5.6 60 3.15 PNLS6028-6R8□ 6.8 65 3 PNLS6028-100□ 10 85 2.5 PNLS6028-120□ 12 96 2 PNLS6028-150□ 15 125 2 PNLS6028-220□ 22 185 1.45 PNLS6028-270□ 27 210 1.5 PNLS6028-330□ 33 260 1.2 PNLS6028-470□ 47 410 1.15 PNLS6028-560□ 56 420 0.85 PNLS6028-680□ 68 546 0.85 PNLS6028-820□ 82 680 0.8 PNLS6028-101□ 100 750 0.75 PNLS6028-151□ 150 860 0.5 PNLS6028-331□ 330 2400 0.27 PNLS6028-471□ 470 3500 0.23 PNLS6028-102□ 1000 7800 0.2 *请选用时注明公差(J=±5%;K=±10%;M=±20%;N=±30%)Please specify the inductance tolerance code(J=±5%;K= ±10%;M=±20%;N=±30%). PNLS6045 Series Part Number Inductance Max.DC resistance Saturation Current Unit μH@100KHz 0.25V mΩ A Symbol L DCR Isat PNLS6045-1R0□ 1 12±30% 12.2 PNLS6045-1R5□ 1.5 15±30% 10.4 PNLS6045-1R8□ 1.8 17±30% 9.6 PNLS6045-2R2□ 2.2 18.4±30% 8.8 PNLS6045-3R3□ 3.3 24±30% 7.5 第 19 页 共 22 页 东莞市振宝佳电子有限公司 Dongguan Zhenbaojia Electronics Co., Ltd. PNLS6045-4R7□ 4.7 31±30% 6.7 PNLS6045-5R6□ 5.6 38±30% 5.5 PNLS6045-6R8□ 6.8 43±30% 5.3 PNLS6045-8R2□ 8.2 57±30% 4.5 PNLS6045-100□ 10 57±30% 4.5 PNLS6045-120□ 12 75±30% 3.8 PNLS6045-150□ 15 80±30% 3.4 PNLS6045-180□ 18 100±30% 3.1 PNLS6045-220□ 22 125±30% 3 PNLS6045-330□ 33 165±30% 2.3 PNLS6045-470□ 47 245±30% 1.9 PNLS6045-680□ 68 330±30% 1.6 PNLS6045-101□ 100 500±30% 1.3 PNLS6045-151□ 150 845±30% 1.1 PNLS6045-181□ 180 1000±30% 1 PNLS6045-221□ 220 1550±30% 0.9 PNLS6045-331□ 330 2Ω±30% 0.7 PNLS6045-471□ 470 3Ω±30% 0.6 PNLS6045-561□ 560 3.6Ω±30% 0.5 PNLS6045-681□ 680 3.8Ω±30% 0.45 PNLS6045-821□ 820 5.8Ω±30% 0.41 PNLS6045-102□ 1000 6.0Ω±30% 0.4 *请选用时注明公差(J=±5%;K=±10%;M=±20%;N=±30%)Please specify the inductance tolerance code(J=±5%;K= ±10%;M=±20%;N=±30%). PNLS6050 Series Part Number Inductance Max.DC resistance Saturation Current Unit μH@100KHz 0.25V mΩ A Symbol L DCR Isat PNLS6050-2R2□ 2.2 20 8.5 PNLS6050-3R3□ 3.3 26 7.2 PNLS6050-4R7□ 4.7 36 6.4 PNLS6050-6R8□ 6.8 46 5.2 PNLS6050-100□ 10 60 4.2 PNLS6050-150□ 15 90 3.3 PNLS6050-220□ 22 120 3.1 PNLS6050-330□ 33 175 2.2 *请选用时注明公差(J=±5%;K=±10%;M=±20%;N=±30%)Please specify the inductance tolerance code(J=±5%;K= ±10%;M=±20%;N=±30%). 第 20 页 共 22 页 东莞市振宝佳电子有限公司 Dongguan Zhenbaojia Electronics Co., Ltd. PNLS6060 Series Part Number Inductance Max.DC resistance Saturation Current Unit μH@100KHz 0.25V mΩ A Symbol L DCR Isat PNLS6060-1R0□ 1 10 10 PNLS6060-2R0□ 2 20 8.8 PNLS6060-2R2□ 2.2 20 8.8 PNLS6060-3R3□ 3.3 25 7.5 PNLS6060-4R7□ 4.7 32.5 6.8 PNLS6060-6R8□ 6.8 40 5.9 PNLS6060-100□ 10 72 4.6 PNLS6060-150□ 15 97.5 3.8 PNLS6060-220□ 22 110.5 3.4 PNLS6060-330□ 33 156 2.8 *请选用时注明公差(J=±5%;K=±10%;M=±20%;N=±30%)Please specify the inductance tolerance code(J=±5%;K= ±10%;M=±20%;N=±30%). PNLS8040 Series Part Number Inductance Max.DC resistance Saturation Current Unit μH@100KHz 0.25V mΩ A Symbol L DCR Isat PNLS8040-1R0□ 1 7.0±30% 10.15 PNLS8040-1R5□ 1.5 10±30% 8.15 PNLS8040-2R2□ 2.2 12±30% 8 PNLS8040-3R3□ 3.3 17±30% 6.5 PNLS8040-4R7□ 4.7 19±30% 5.9 PNLS8040-6R8□ 6.8 24±30% 4.95 PNLS8040-100□ 10 40±30% 4.3 PNLS8040-150□ 15 61 2.95 PNLS8040-220□ 22 66±30% 2.5 PNLS8040-330□ 33 110±30% 2.07 PNLS8040-470□ 47 195 1.75 PNLS8040-680□ 68 196±30% 1.45 PNLS8040-101□ 100 290±30% 1.15 PNLS8040-221□ 220 600±30% 0.85 PNLS8040-331□ 330 890±30% 0.68 PNLS8040-471□ 470 1500±30% 0.55 PNLS8040-681□ 680 2040±30% 0.48 第 21 页 共 22 页
