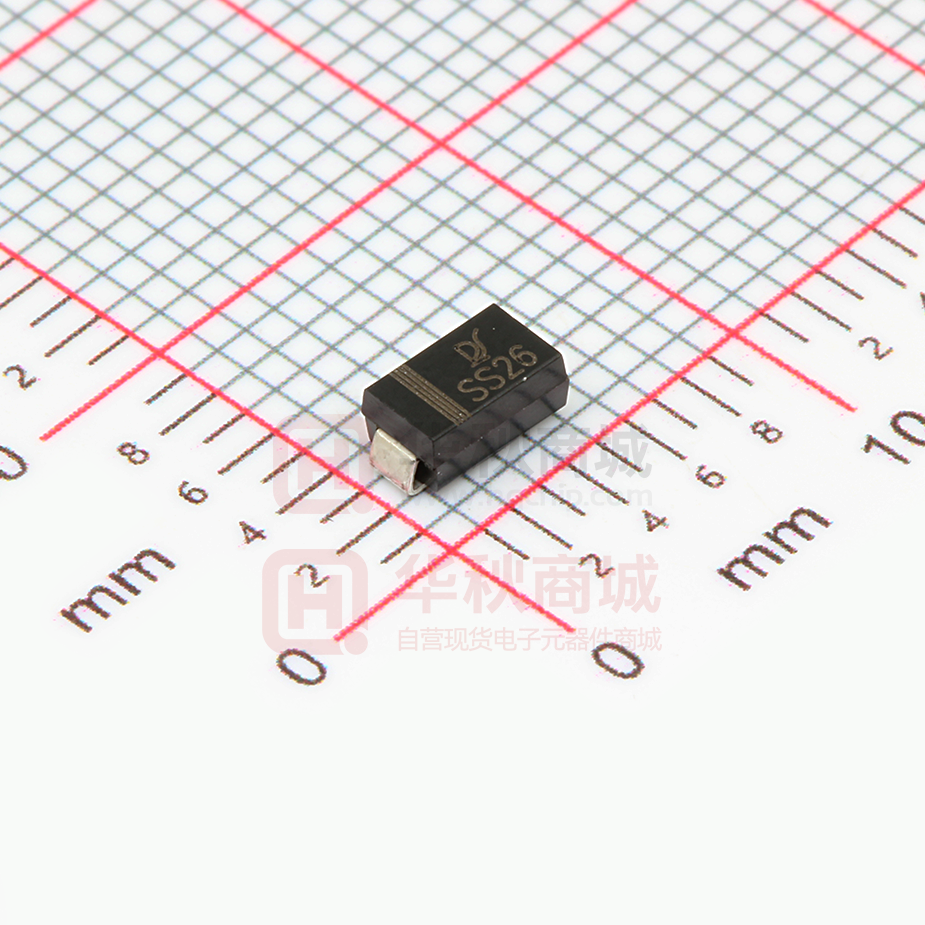

SS26

SS22 THRU SS225 2.0 AMP SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER Features · Schottky Brrier Chip · Low Power Loss,High Efficiency SMA/DO-214AC ·Ideally Suited for Automatic Assembly · Surge Overload Rating to 50A Peak 0.110(2.80) 0.094(2.40) 0.059(1.50) 0.051(1.30) ·Plastic Case Material has UL Flammability Classification Rating 94V-0 Mechanical Data 0.181(4.60) 0.157(4.00) · Case: Molded plastic SMA 0.012(0.31) 0.006(0.15) · Terminals: Plated leads solderable per MIL-STD-750,Method 2026 guaranteed 0.103(2.62) 0.079(2.00) · Polarity: Color band denotes cathode end · Mounting Position: Any 0.060(1.52) 0.030(0.76) · Making: Type Number 0.008(0.20) 0.002(0.05) 0.208(5.28) 0.188(4.80) Dimensions in inches and (millimeters) Maximum Ratings and Electrical Characteristics Rating at 25℃ ambient temperature unless otherwise specified Single phase,half wave,60Hz,resistive or inductive load For capacitive load derate current by 20% SYMBOL SS 22 Type Number Maximum Recurrent Peak Reverse Voltage VRRM 20 SS 23 SS SS SS 24 245 25 30 40 45 Maximum RMS Voltage VRMS 14 21 28 31 Maximum DC Blocking Voltage VDC 20 30 40 45 Average Rectified Output Current @TL =100 ℃ SS SS Unit 220 225 80 100 150 200 250 V SS 28 SS SS 210 215 50 SS 26 60 35 42 56 70 105 140 175 V 50 60 80 100 150 200 250 V IO 2.0 A Peak Forward Surge Current 8.3ms Single half sine-wave superimposed on rated load (JEDEC Method) IFSM 50 A Rating for fusing (t
