BE6TLC5VU

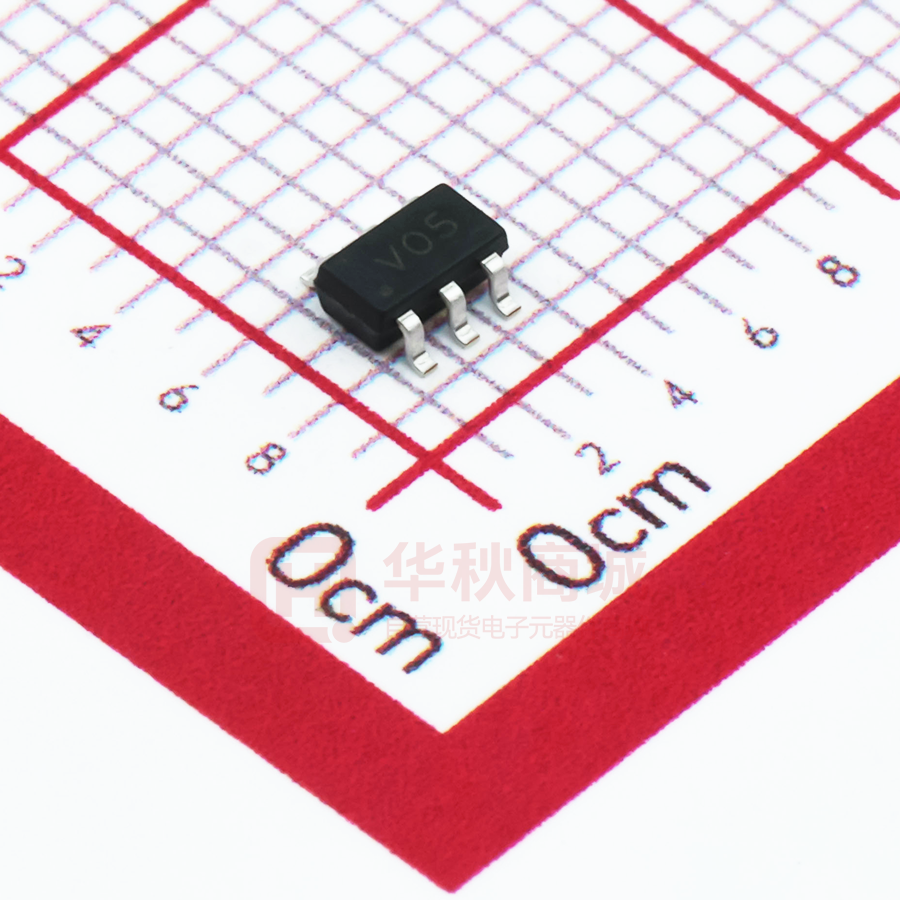

BE6TLC5VU Low Capacitance ESD Array Description BE6TLC5VU TVS diode is designed to protect high speed data interfaces. It has been specifically designed protect sensitive electronic components which are connected to data and transmission lines from overvoltage caused by ESD (Electrostatic Discharge), EFT (Electrical Fast Transients) and Lighting. BE6TLC5VU incorporates eight low capacitance steering diodes and a TVS diode in a single package. The BE6TLC5VU is in a SOT23-6L package and will protect four high-speed lines and one VDD line. It may be used to provide ESD protection up to ±20kV Contact and ± 25kV air discharge according to IEC61000-4-2 , and withstand peak pulse current up to 40A(5/50ns) according to IEC61000-4-4, 6A (8/20us) according to IEC61000-4-5. http//:www.szbetterwin.com SOT23-6L Circuit Diagram Features ◆ ◆ ◆ ◆ ◆ ◆ ◆ ◆ Working voltage: 5V Protect four I/O lines and one VDD line 90 Watts peak pulse power (tp=8/20us) Transient protection for data lines to IEC 61000-4-2 (ESD) ±25kV (air)， ±20kV (contact) IEC 61000-4-4 (EFT)40A (8/20us) IEC 61000-4-5 (Surge)6A (8/20us) Low capacitance Low clamping voltage Low leakage current Solid-state silicon-avalanche technology Order Information Applications ◆ ◆ ◆ ◆ ◆ ◆ ◆ ◆ Rev.1.1 Marking USB 2.0 Power and Data Line Protection Video Graphics Cards Digital Visual Interface (DVI) 10/1000 Ethernet SIM Ports Notebook Computer Monitors and Flat Panel Displays IEEE 1394 Firewire Ports 1 Device Package Shipping BE6TLC5VU SOT23-6L 3000/Tape&Reel www.szbetterwin.com BE6TLC5VU Definitions of electrical characteristics Symbol Parameter VRWM Reverse Stand-off Voltage IR Reverse Leakage Current @ VRWM VBR Reverse Breakdown Voltage @ IT IT Test Current IPP Reverse Peak Pulse Current VC Clamping Voltage @ IPP IF Forward Current VF Forward Voltage @ IF Cj Junction Capacitance IPP Peak Pulse Current Absolute Maximum Rating Rating Symbol Value Units PPK 90 W ±25 kV ±20 kV Peak Pulse Power ( tP = 8/20μS ) ESD according to IEC61000-4-2 air discharge VESD ESD according to IEC61000-4-2 contact discharge Lead Soldering Temperature TL 260 (10 sec) ℃ Operating Temperature TOP -55 to +125 ℃ Storage Temperature TSTG -55 to +150 ℃ Electrical Characteristics (Ta=25℃, unless otherwise noted) Parameter Reverse Stand-off Voltage Reverse Breakdown Voltage Symbol Conditions IT=1mA Reverse Leakage Current IR VRWM =5V Forward voltage VF IT=10mA Peak Pulse Current IPP tP = 8/20μs (I/O pin to Ground) Typ. VRWM VBR Clamping Voltage Min. Max. Units 5.0 V 6.0 V 0.8 1.0 μA 1.0 V 6 A IPP=1A tP = 8/20μs 9.5 11 V IPP=6A tP = 8/20μs 12.5 15 V VR=0V f = 1MHz, 0.5 0.7 0.9 pF 0.25 0.35 0.5 pF VC CI/O - GND VDD= floated, any I/O to GND Junction Capacitance CI/O - I/O Rev.1.1 VR=0V f = 1MHz, any I/O to I/O 2 www.szbetterwin.com BE6TLC5VU Current (%) Peak pulse current (%) Typical Characteristics (Ta=25℃, unless otherwise noted) Time (ns) Time (us) % Rated Power VC - Clamping voltage (V) Contact discharge current waveform per IEC61000-4-2 8/20 us waveform per IEC61000-4-5 Ipp - Peak pulse current （A） TA- Ambient temperature(℃) Power derating vs. Ambient temperature TLP Current (A) Clamping Voltage vs. Peak pulse current TLP Voltage(V) TLP Measurement Rev.1.1 3 www.szbetterwin.com BE6TLC5VU Package Outline Dimensions (SOT23-6L) Symbol Millimeter Inches Min Max Min Max A 0.90 1.45 0.035 0.057 A1 0.00 0.15 0.000 0.006 A2 0.45 0.65 0.017 0.026 B 0.35 0.50 0.010 0.020 C 0.08 0.20 0.003 0.007 D 2.80 3.00 0.110 0.122 e 0.69 1.02 0.032 0.043 E1 1.50 1.75 0.0060 0.0069 E L1 L 2.80BSC 0.35 0.60 0.60 0.110BSC 0.013 0.024 0.024 Recommend Land Pattern (Unit: mm) Note: This recommended land pattern is for reference purpose only. Rev.1.1 4 www.szbetterwin.com
