GBLCxxCI
Rev-1.1
www.elecsuper.com
SuperESD - GBLCxxCI
1. Description
The GBLCxxCI Series are ultra low capacitance transient voltage suppressor arrays, designed to
protect applications such as portable electronics and SMART phones. This series is available
bidirectional configurations and is rated at 350 Watts for an 8/20μs waveshape. At higher operating
frequencies or faster edge rates, insertion loss and signal integrity are a major concern. This series
offers a ultra low capacitance and low leakage current in a miniature SOD-323 package.
2. Features
⚫
⚫
IEC 61000-4-2 Level 4 ESD Protection
⚫
RoHS compliance
-
±25kV Contact Discharge
⚫
Bidirectional configuration
-
±25kV Air Discharge
⚫
IO Capacitance: 0.8pF (Typical)
IEC 61000-4-4 EFT Protection
⚫
Low clamping voltage
⚫
End Equipment
⚫
40A (5/50ns)
200W Peak pulse Power (8/20us)
3. Applications
⚫
Interfaces
-
USB 2.0/1.1
-
Industrial and Serve Robots
-
GPIO
-
Laptops and Desktops
-
Ethernet 10/100/1000 Mbps
-
TV and Monitors
-
Audio
-
Wearables
4. Ordering Information
Part Number
Package
Material
GBLCxxCI
SOD323
Halogen free
VRWM
Marking
Quantity per
reel
Tape &
3,000 PCS
Reel

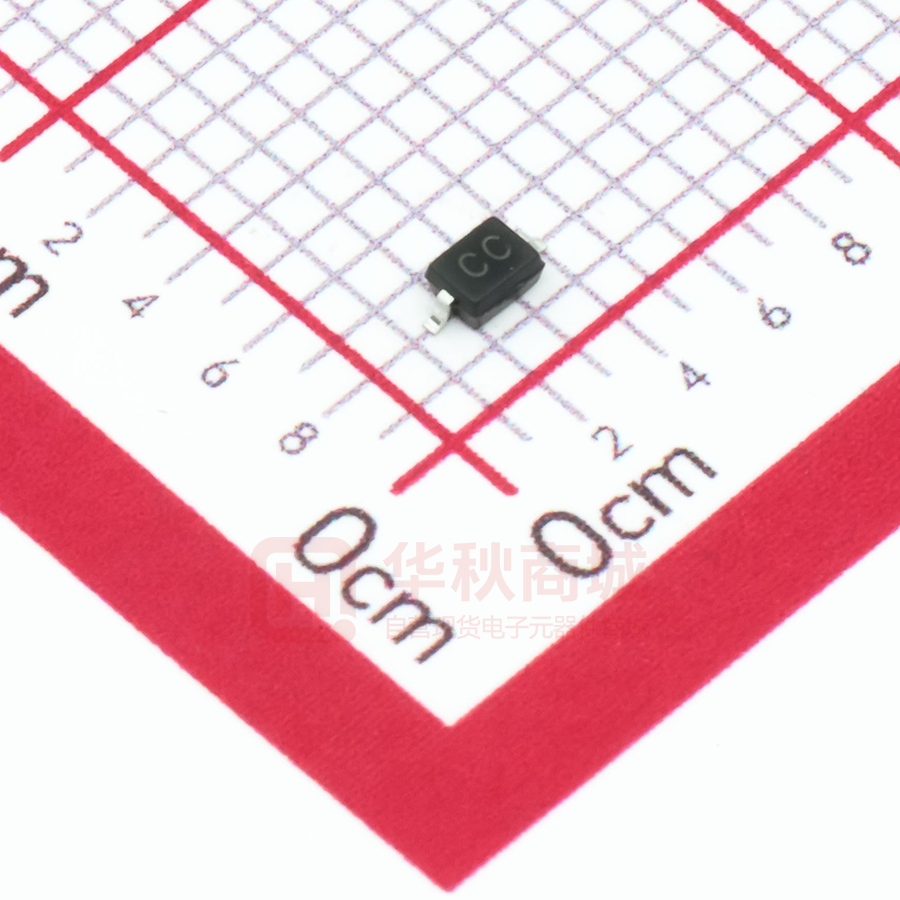

Marking for the GBLCxxCI series
3V
CC
Table-1
Copyright© ElecSuper Incorporated
Packing
Flammability
Rating
Reel Size
UL 94V-0
7 inches
5V
3B/LC
Ordering information
Contact Us
1 / 7
GBLCxxCI
Rev-1.1
www.elecsuper.com
5. Pin Configuration and Functions
Pin
Name
Description
1
IO
Connect to IO
Outline
1
Circuit Diagram
2
Marking
2
IO
1
2
Connect to IO
Table-2
Pin configuration
6. Specification
6.1. Absolute Maximum rating
Over operating free-air temperature range (unless otherwise noted)
Parameters
Symbol
Min.
Max.
Unit
Peak pulse power (tp=8/20us)@25℃
Ppk
-
200
W
Peak pulse current (tp=8/20us)@25℃
IPP
Refer to
Table-5
A
ESD (IEC61000-4-2 air discharge) @25℃
VESD
-
±25
kV
ESD (IEC61000-4-2 contact discharge) @25℃
VESD
-
±25
kV
TJ
-
150
℃
Operating temperature
TOP
-40
125
℃
Storage temperature
TSTG
-55
150
℃
TL
-
260
℃
Junction temperature
Lead temperature
Table-3
Copyright© ElecSuper Incorporated
Absolute Maximum rating
Contact Us
2 / 7
GBLCxxCI
Rev-1.1
www.elecsuper.com
6.2. Electrical Characteristics
Symbol
Description
VRWM
Rated reverse stand-off voltage
VBR
Minimum breakdown voltage @IT = 1mA
VCL
Clamping voltage
IPP
Maximum peak pulse current
IR
Reverse leakage current @VRWM
CO
Typical line capacitance (VIO=0V, VP-P = 30mV, f = 1MHz)
Table-4
Parameters Description
At TA = 25℃ unless otherwise noted
VRWM
VBR
VCL@I=1A
IPP
VCL@I=IPP
IR
CO
(V)
(V)
(V)
(A)
(V)
(uA)
(pF)
GBLC03CI
3.0
3.8
8.5
10.0
20.0
1.0
0.8
GBLC05CI
5.0
6.5
9.5
8.0
21.0
1.0
0.8
Part Number
Table-5
Copyright© ElecSuper Incorporated
Electrical Characteristics for All Series
Contact Us
3 / 7
GBLCxxCI
Rev-1.1
www.elecsuper.com
7. Typical Characteristic
Non-repetitive peak pulse power vs. pulse time
8. Typical Application
Pic-3
Copyright© ElecSuper Incorporated
Typical Internet 1G Interface Application
Contact Us
4 / 7
GBLCxxCI
Rev-1.1
www.elecsuper.com
9. Dimension
E
A
b
D
A1
E1
A2
θ
C
L
Symbol
A
A1
A2
b
C
D
E
E1
L
L1
θ
L1
SOD323
Dimensions in Millimeters
Min.
Max.
1.000
0.000
0.100
0.800
0.900
0.250
0.350
0.080
0.150
1.200
1.400
1.600
1.800
2.550
2.750
0.475REF
0.250
0.400
0°
8°
Table-6
Copyright© ElecSuper Incorporated
Dimensions in Inches
Min.
Max.
0.039
0.000
0.004
0.031
0.035
0.010
0.014
0.003
0.006
0.047
0.055
0.063
0.071
0.100
0.108
0.019REF
0.010
0.016
0°
8°
product dimensions
Contact Us
5 / 7
GBLCxxCI
Rev-1.1
www.elecsuper.com
10. Recommended Land Pattern
Note:
1. Controlling dimension: in millimeters
2. General tolerance: ±0.05mm
3. The pad layout is for reference only
4. Unit: mm
Copyright© ElecSuper Incorporated
Contact Us
6 / 7
GBLCxxCI
Rev-1.1
www.elecsuper.com
DISCLAIMER
ELECSUPER PROVIDES TECHNICAL AND RELIABILITY DATA (INCLUDING DATASHEETS), DESIGN RESOURCES
(INCLUDING REFERENCE DESIGNS), APPLICATION OR OTHER DESIGN ADVICE, SAFETY INFORMATION, AND OTHER
RESOURCES “AS IS” AND WITH ALL FAULTS, AND DISCLAIMS ALL WARRANTIES, EXPRESS AND IMPLIED, INCLUDING
WITHOUT LIMITATION ANY IMPLIED WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE
OR NON-INFRINGEMENT OF THIRD PARTY INTELLECTUAL PROPERTY RIGHTS.
These resources are intended for skilled developers designing with ElecSuper products. You are solely responsible for
(1) selecting the appropriate ElecSuper products for your application;
(2) designing, validating and testing your application;
(3) ensuring your application meets applicable standards, and any other safety, security, or other requirements.
These resources are subject to change without notice. ElecSuper grants you permission to use these resources only for
development of an application that uses the ElecSuper products described in the resource. Other reproduction and display of
these resources are prohibited. No license is granted to any other ElecSuper intellectual property right or to any third party
intellectual property right. ElecSuper disclaims responsibility for, and you will fully indemnify ElecSuper and its representatives
against, any claims, damages, costs, losses, and liabilities arising out of your use of these resources. ElecSuper’s products
are provided subject to ElecSuper’s Terms of Sale or other applicable terms available either on www.elecsuper.com or
provided in conjunction with such ElecSuper products. ElecSuper’s provision of these resources does not expand or otherwise
alter ElecSuper’s applicable warranties or warranty disclaimers for ElecSuper products.
Copyright© ElecSuper Incorporated
Contact Us
7 / 7
