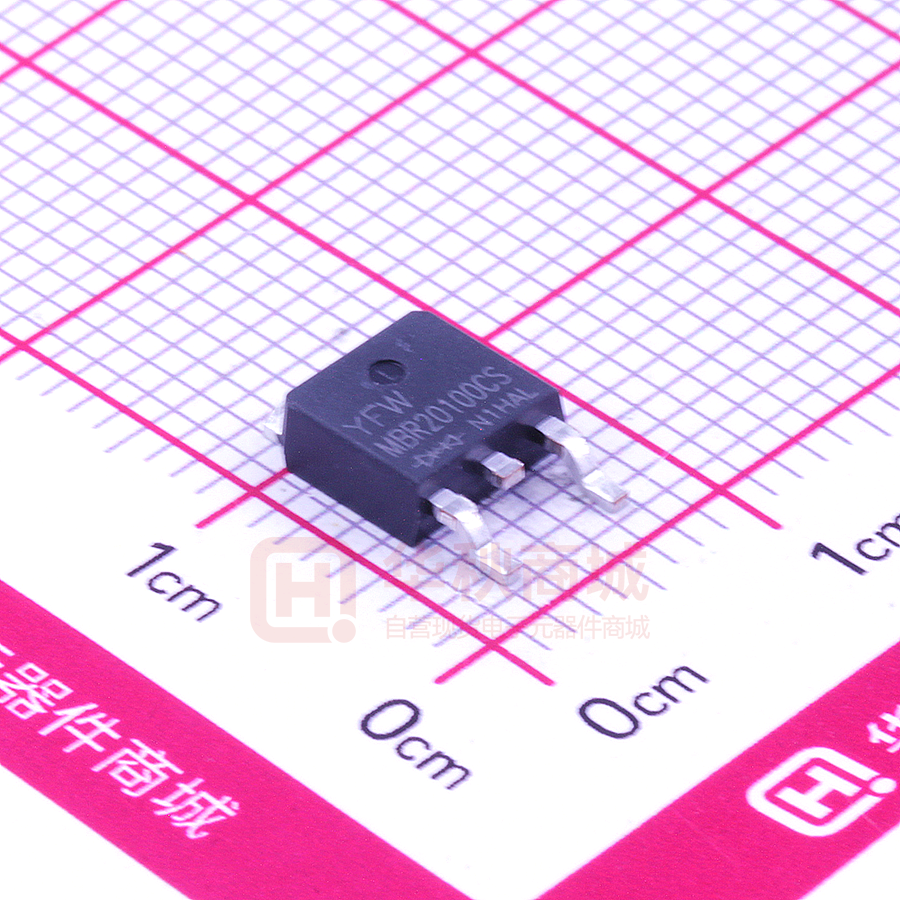

MBR20100CS

MBR20100CT-FCT-DC-CS SCHOTTKY BARRIER RECTIFIER Reverse Voltage - 100 V Forward Current - 20 A FEATURES  Low forward voltage  High current capability  High forward surge capability  Low power losses，High efficiency  Guarding for over voltage protection  Lead free in comply with EU RoHS 2011/65/EU directives MECHANICAL DATA  Case: TO-220AB/CT TO-220F/FCT TO-263/DC TO-252/CS  Solder bath temperature275℃maximum,10s per JESD22-106 Primary Characteristic Io 2*10A VRRM 100V IFSM 250A VF 0.68V TJ Max 150°C Maximum Ratings (Per Leg) at Ta=25°C unless otherwise specified Symbols Value Units Maximum Repetitive Peak Reverse Voltage Parameter VRRM 100 V Maximum RMS voltage VRMS 100 V Maximum DC Blocking Voltage VDC 100 V Per Leg Maximum Average Forward Rectified Current Total Peak Forward Surge Current, 8.3ms Single Half Sine-wave IFSM Operating Temperature Range Storage Temperature Range Typical Thermal Resistance (Note1) TO-220AB,TO-263 TO-220F TO252 10 Io A 20 250 A TJ -55 ~ +150 °C TSTG -55 ~ +150 °C RθJA/ RθJC 2/4 °C/W Value Units Note1: Thermal resistance from Junction to case per leg mounted on heatsink. Electrical Characteristics (Per Leg) unless otherwise specified Characteristics Symbols Forward Voltage Drop(Note2) at IF=3A at IF=5A at IF=10A Maximum Reverse Current at VR=100 V TA=25°C TA=125°C TA=25°C VF Typ Max 0.69 - 0.60 - 0.74 - V TA=125°C 0.61 - TA=25°C 0.82 0.85 TA=125°C 0.68 - TA=25°C 1.5 10 uA 1 - mA TA=125°C IR Note2:Pulse test: 300 μs pulse width, 1 % duty cycle www.yfwdiode.com 1/4 Dongguan YFW Electronics Co, Ltd. MBR20100CT-FCT-DC-CS RATINGS AND CHARACTERISTIC CURVES FIG. 2 MAXIMUM NON-REPETITIVE FORWARD SURGE CURRENT PER LEG FIG.1 MAXIMUM FORWARD CURRENT DERATING CURVE 400 350 PEAK FORWARD SURGE CURRENT(A) AVERAGE FORWARD CURRENT (A) 15 10 5 300 8.3ms Single Half Sine Wave JEDEC Method 250 200 150 100 50 0 0 0 25 50 75 100 125 150 1 175 10 FIG. 3 TYPICAL FORWARD CHARACTERISTICS PER LEG FIG. 4 TYPICAL REVERSE CHARACTERISTICS PER LEG 100000 10000 REVERSE LEAKAGE CURRENT(uA) INSTANTANEOUS FORWARD CURRENT (A) 50 TA=125℃ 5 TA=25℃ 0.5 0.1 0.3 0.5 0.7 100 NUMBER OF CYCLES AT 60 Hz AMBIENT TEMPERATURE (℃) TA=125℃ 1000 100 10 1 TA=25℃ 0.1 0 0.9 10 20 30 40 50 60 70 80 90 100 PERCENT OF VBR(V) FORWARD VOLTAGE (V) Marking on the body Ordering information Part Number Package Unit Weight Base Quantity Delivery mode MBR20100CT TO-220AB 0.07oz(1.96g) 50 pcs / tube 1000pcs/box 5000pcs/carton MBR20100FCT TO-220F 0.06oz(1.74g) 50 pcs / tube 1000pcs/box 5000pcs/carton MBR20100DC TO-263 0.04oz(1.16g) 50 pcs / tube 1000pcs/box 5000pcs/carton MBR20100DC-R O-263 0.04oz(1.16g) 800 pcs / reel 800pcs/box4000pcs/carton MBR20100CS TO-252 0.011oz(0.32g) 2500 pcs / reel 2500pcs/box 12500pcs/carton Note: For Halogen Free molding compound, add "H" suffix to part number above. www.yfwdiode.com 2/4 Dongguan YFW Electronics Co, Ltd. MBR20100CT-FCT-DC-CS Package Outline Dimensions millimeters www.yfwdiode.com 3/4 Dongguan YFW Electronics Co, Ltd. MBR20100CT-FCT-DC-CS www.yfwdiode.com 4/4 Dongguan YFW Electronics Co, Ltd.
