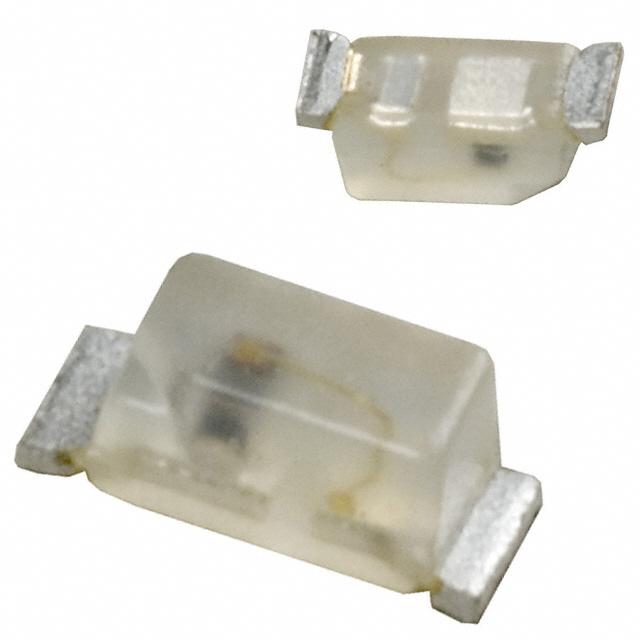

LG L29K-F2J1-24-Z

www.osram-os.com Produktdatenblatt | Version 1.1 LG L29K   LG L29K SMARTLED ® 0603 The innovative SMARTLED 0603 joins the successful family of TOPLED. Invested with the same high quality, its unique features are due to set new standards in product development and design, opening up new applications on a new scale. Applications ——Electronic Equipment ——White Goods Features: ——Package: SMT package 0603, colorless diffused resin ——Chip technology: InGaAlP ——Typ. Radiation: 150° ——Color: λdom = 570 nm (● green) ——Optical efficacy: 4 lm/W ——Corrosion Robustness Class: 3B ——Qualifications: The product qualification test plan is based on the guidelines of AEC-Q101-REV-C, Stress Test Qualification for Automotive Grade Discrete Semiconductors.   ——ESD: 2 kV acc. to ANSI/ESDA/JEDEC JS-001 (HBM, Class 2) 1 Version 1.4 | 2020-03-18 LG L29K   Ordering Information  Type Luminous Intensity 1) IF = 2 mA Iv Ordering Code LG L29K-F2H1-24 1.4 ... 3.6 mcd Q65110A1744 LG L29K-F2J1-24 1.4 ... 5.6 mcd Q65110A1745 LG L29K-G2J1-24 2.2 ... 5.6 mcd Q65110A1746   2 Version 1.4 | 2020-03-18 LG L29K   Maximum Ratings Parameter Symbol Operating Temperature Top min. max. -40 °C 100 °C Storage Temperature Tstg min. max. -40 °C 100 °C Junction Temperature Tj max. 110 °C Forward current TA = 25 °C IF max. 20 mA Surge Current t ≤ 10 µs; D = 0.005 ; TA = 25 °C IFS max. 100 mA Reverse voltage 2) TA = 25 °C VR max. 12 V ESD withstand voltage acc. to ANSI/ESDA/JEDEC JS-001 (HBM, Class 2) VESD   3 Version 1.4 | 2020-03-18 Values 2 kV LG L29K   Characteristics IF = 2 mA; TA = 25 °C Parameter Symbol Peak Wavelength λpeak typ. 572 nm Dominant Wavelength 3) IF = 2 mA λdom min. typ. max. 566 nm 570 nm 575 nm Spectral Bandwidth at 50% Irel,max ∆λ typ. 22 nm Viewing angle at 50% IV 2φ typ. 160 ° Forward Voltage 4) IF = 2 mA VF min. typ. max. 1.70 V 1.70 V 2.20 V Reverse current 2) VR = 12 V  IR typ. max. 0.01 µA 10 µA Temperature Coefficient of Peak Wavelength -10°C ≤ T ≤ 100°C TCλpeak typ. 0.11 nm / K Temperature Coefficient of Dominant Wavelength -10°C ≤ T ≤ 100°C TCλdom typ. 0.1 nm / K Temperature Coefficient of Forward Voltage -10°C ≤ T ≤ 100°C TCVF typ. -2.3 mV / K Real thermal resistance junction/ambient 5)6) RthJA real max. 500 K / W Real thermal resistance junction/solderpoint 5) RthJS real max. 310 K / W   4 Version 1.4 | 2020-03-18 Values LG L29K   Brightness Groups  Group Luminous Intensity 1) IF = 2 mA min. Iv Luminous Intensity. 1) IF = 2 mA max. Iv Luminous Flux 7) IF = 2 mA typ. ΦV F2 1.4 mcd 1.8 mcd 6.4 mlm G1 1.8 mcd 2.2 mcd 8.0 mlm G2 2.2 mcd 2.8 mcd 10.0 mlm H1 2.8 mcd 3.6 mcd 12.8 mlm H2 3.6 mcd 4.5 mcd 16.2 mlm J1 4.5 mcd 5.6 mcd 20.2 mlm Wavelength Groups  Group Dominant Wavelength 3) IF = 2 mA min. λdom Dominant Wavelength 3) IF = 2 mA max. λdom 2 566 nm 569 nm 3 569 nm 572 nm 4 572 nm 575 nm   5 Version 1.4 | 2020-03-18 LG L29K   Group Name on Label  Example: F2-2 Brightness Wavelength F2 2   6 Version 1.4 | 2020-03-18 LG L29K   Relative Spectral Emission 7) Irel = f (λ); IF = 2 mA; TA = 25 °C OHL11099 100 % I rel 80 Vλ 60 40 green 20 0 400 450 500 550 600 650 nm 700 λ Radiation Characteristics 7) Irel = f (ϕ); TA = 25 °C 40˚ 30˚ 20˚ 10˚ ϕ  50˚ 0˚ 1.0 0.8 60˚ 0.6 70˚ 0.4 80˚ 0.2 0 90˚ 1.0 0.8  100˚ OHL01440 7 Version 1.4 | 2020-03-18 0.6 0.4 0˚ 20˚ 40˚ 60˚ 80˚ 100˚ 120˚ LG L29K   Forward current Relative Luminous Intensity 7), 8) IF = f(VF); TA = 25 °C 7), 8) Iv/Iv(2 mA) = f(IF); TA = 25 °C OHL00802 10 2 mA OHL00801 10 2 IV IV (2 mA) IF 10 1 10 1 10 0 10 -1 10 0 10 -2 10 -3 1.4 1.6 1.8 2.0 V 2.2 VF   8 Version 1.4 | 2020-03-18 10 -1 0 10 10 1 mA IF 10 2 LG L29K   Relative Luminous Intensity 7) Iv/Iv(25 °C) = f(Tj); IF = 2 mA OHL00800 3.0 IV IV (25˚C) 2.0 1.5 1.0 0.5 0 -60 -40 -20 0 20 40 60 ˚C 100 Tj   9 Version 1.4 | 2020-03-18 LG L29K   Max. Permissible Forward Current IF = f(T) IF OHL02443 25 mA TS 20 TA 15 10 5 0 0 20 60 40 80 ˚C 100 TA Permissible Pulse Handling Capability Permissible Pulse Handling Capability IF = f(tp); D: Duty cycle; TA = 25 °C IF = f(tp); D: Duty cycle; TA = 85 °C 0.12 IF A 0.10 0.08 0.06 0.04 OHL02442 t D = TP D= 0.005 0.01 0.02 0.05 0.1 0.2 0.5 1 tP IF  T 0.10 0.08 0.06 0.04 0.02 tp  OHL02442 t D = TP tP IF T D= 0.005 0.01 0.02 0.05 0.1 0.2 0.5 1 0.02 0 -5 10 10-4 10-3 10-2 10-1 100 101 s 102 10 Version 1.4 | 2020-03-18 0.12 IF A 0 -5 10 10-4 10-3 10-2 10-1 100 101 s 102 tp LG L29K   9) 0.7 (0.028) ±0.05 (0.002) 5˚ Cathode marking (0.001) 0.65 (0.026) +0.02 -0.05 (0.002) 1.3 (0.051) ±0.1 (0.004) Cathode marking (0.002) 0.125 (0.005) +0.05 -0.03 (0.001) 7˚ max 0.8 (0.031) ±0.1 (0.004) 1.7 (0.067) ±0.1 (0.004) Dimensional Drawing A C GPLY7057 Further Information: Approximate Weight: 1.6 mg Package marking: Cathode Corrosion test: Class: 3B Test condition: 40°C / 90 % RH / 15 ppm H2S / 14 days (stricter than IEC 60068-2-43)   11 Version 1.4 | 2020-03-18 LG L29K   Recommended Solder Pad 9) 0.8 (0.031) 0.7 (0.028) 0.8 (0.031) 0.8 (0.031) OHAPY606 0.7 (0.028) 0.8 (0.031) 0.8 (0.031)  0.7 (0.028) 9) 0.05 (0.002) Recommended Solder Pad 0.6 (0.024) 0.05 (0.002) Copper solder pad Solder stencil aperture OHPY3832  For superior solder joint connectivity results we recommend soldering under standard nitrogen atmosphere. 12 Version 1.4 | 2020-03-18 LG L29K   Reflow Soldering Profile Product complies to MSL Level 2 acc. to JEDEC J-STD-020E OHA04525 300 ˚C T 250 Tp 245 ˚C 240 ˚C tP 217 ˚C 200 tL 150 tS 100 50 25 ˚C 0 0 50 100 150 200 250 s 300 t Profile Feature Symbol Pb-Free (SnAgCu) Assembly Minimum Recommendation Maximum Ramp-up rate to preheat*) 25 °C to 150 °C tS Time tS TSmin to TSmax Ramp-up rate to peak*) TSmax to TP Liquidus temperature  60 2 3 100 120 2 3 Unit K/s s K/s TL 217 Time above liquidus temperature tL 80 100 s Peak temperature TP 245 260 °C Time within 5 °C of the specified peak temperature TP - 5 K tP 20 30 3 6 Ramp-down rate* TP to 100 °C 10 Time 25 °C to TP  All temperatures refer to the center of the package, measured on the top of the component * slope calculation DT/Dt: Dt max. 5 s; fulfillment for the whole T-range 13 Version 1.4 | 2020-03-18 °C 480 s K/s s LG L29K   8 (0.315) 1.8 (0.071) 4 (0.157) 1.5 (0.059) 1.75 (0.069) 9) 3.5 (0.138) Taping C A 2 (0.079) 0.9 (0.035) 0.8 (0.031) OHAY1491   14 Version 1.4 | 2020-03-18 LG L29K   Tape and Reel 10) Reel Dimensions A 180 mm W Nmin 8 + 0.3 / - 0.1 mm   15 Version 1.4 | 2020-03-18 W1 60 mm W2 max 8.4 + 2 mm 14.4 mm Pieces per PU 5000 LG L29K   Barcode-Product-Label (BPL) Dry Packing Process and Materials 9) Moisture-sensitive label or print L E E V l e be sela ). k, H de L If an bl r co ba (R id m ity . H R hu 0% e e /6 tiv ˚C la ared ag ck re fr 30 _ < in pa % k of to 90 rs ea s d ). rs ou or te (p on rs H de , ou iti H an bjec ng ou rs co ˚C 72 si nd H ou 5 te 48 ˚C su es e H co ± 24 6 da e y 40 be oc tim ˚C e or < ith tim ill pr). or ct w O w nt 23 tim e at lo or fa M TO F s al tim at le ˚C at lo at or e. P th F l tic th va lo or ur O F lo s ui on be if: read en w ed l 4 5 F m la ce eq id lo g, n oc l ve vi 5a is in or be 24 de pr ve l 6 Le de , nt whe e te co g: , w e Le ve l ke r ou se da ba ed flo ur e Le ve m % ba e ba al st ur e Le r en re ed e re> 10 oi st e e fo tim ur se al op fo M se oi st ur as k, is or . 33 se is M oi st bed k, lo H an , g ph -0 M oi in an in F R ng ar rbl D M e ba T r po If bl ith % lif ki r C. (if S is p. w ea r ks lf J10 ba to et th va Y ea m rs m _ r w, < he ed 1 ee te Y d, EC iredicat S fte at nt > 1 W Hou D A flody qu In no ire 1. d e ou 4 8 re reity is qu/JE re 2. bo e M tim to es id 2b re C 16 : e a) S tim is IP ic ed loor tim e b) ev Humor or e en F tim lo or D 2a king nc te F op a) lo or 3. b) ba re F lo da e fe l 1 2 F If al re tim ve l 4. se d l 2a ve Le 3 an ve l ag e Le e B ve ur e Le at st ur e Le D oi st ur e M oi st ur M oi st M oi M N E RS s in IV O IT T S C nta N U TIO U coSEND Ais bUagRMEICO T E CThIS S d Barcode label < M RA OS  Humidity indicator Barcode label Please check the HIC immidiately after bag opening. Discard if circles overrun. Avoid metal contact. Do not eat. Comparator check dot WET If wet, examine units, if necessary bake units 15% If wet, examine units, if necessary bake units 10% 5% If wet, parts still adequately dry. change desiccant Humidity Indicator MIL-I-8835 Desiccant AM OSR OHA00539  Moisture-sensitive product is packed in a dry bag containing desiccant and a humidity card according JEDEC-STD-033. 16 Version 1.4 | 2020-03-18 LG L29K   Notes The evaluation of eye safety occurs according to the standard IEC 62471:2006 (photo biological safety of lamps and lamp systems). Within the risk grouping system of this IEC standard, the device specified in this data sheet falls into the class exempt group (exposure time 10000 s). Under real circumstances (for exposure time, conditions of the eye pupils, observation distance), it is assumed that no endangerment to the eye exists from these devices. As a matter of principle, however, it should be mentioned that intense light sources have a high secondary exposure potential due to their blinding effect. When looking at bright light sources (e.g. headlights), temporary reduction in visual acuity and afterimages can occur, leading to irritation, annoyance, visual impairment, and even accidents, depending on the situation. Subcomponents of this device contain, in addition to other substances, metal filled materials including silver. Metal filled materials can be affected by environments that contain traces of aggressive substances. Therefore, we recommend that customers minimize device exposure to aggressive substances during storage, production, and use. Devices that showed visible discoloration when tested using the described tests above did show no performance deviations within failure limits during the stated test duration. Respective failure limits are described in the IEC60810. For further application related information please visit www.osram-os.com/appnotes   17 Version 1.4 | 2020-03-18 LG L29K   Disclaimer Attention please! The information describes the type of component and shall not be considered as assured characteristics. Terms of delivery and rights to change design reserved. Due to technical requirements components may contain dangerous substances. For information on the types in question please contact our Sales Organization. If printed or downloaded, please find the latest version on the OSRAM OS website. Packing Please use the recycling operators known to you. We can also help you – get in touch with your nearest sales office. By agreement we will take packing material back, if it is sorted. You must bear the costs of transport. For packing material that is returned to us unsorted or which we are not obliged to accept, we shall have to invoice you for any costs incurred. Product and functional safety devices/applications or medical devices/applications OSRAM OS components are not developed, constructed or tested for the application as safety relevant component or for the application in medical devices. OSRAM OS products are not qualified at module and system level for such application. In case buyer – or customer supplied by buyer – considers using OSRAM OS components in product safety devices/applications or medical devices/applications, buyer and/or customer has to inform the local sales partner of OSRAM OS immediately and OSRAM OS and buyer and /or customer will analyze and coordinate the customer-specific request between OSRAM OS and buyer and/or customer.   18 Version 1.4 | 2020-03-18 LG L29K   Glossary 1) Brightness: Brightness values are measured during a current pulse of typically 25 ms, with an internal reproducibility of ±8 % and an expanded uncertainty of ±11 % (acc. to GUM with a coverage factor of k = 3). 2) Reverse Operation: Reverse Operation of 10 hours is permissible in total. Continuous reverse operation is not allowed. 3) Wavelength: The wavelength is measured at a current pulse of typically 25 ms, with an internal reproducibility of ±0.5 nm and an expanded uncertainty of ±1 nm (acc. to GUM with a coverage factor of k = 3). 4) Forward Voltage: The forward voltage is measured during a current pulse of typically 8 ms, with an internal reproducibility of ±0.05 V and an expanded uncertainty of ±0.1 V (acc. to GUM with a coverage factor of k = 3). 5) Thermal Resistance: Rth max is based on statistic values (6σ). 6) Thermal Resistance: RthJA results from mounting on PC board FR 4 (pad size ≥ 5 mm² per pad) 7) Typical Values: Due to the special conditions of the manufacturing processes of semiconductor devices, the typical data or calculated correlations of technical parameters can only reflect statistical figures. These do not necessarily correspond to the actual parameters of each single product, which could differ from the typical data and calculated correlations or the typical characteristic line. If requested, e.g. because of technical improvements, these typ. data will be changed without any further notice. 8) Characteristic curve: In the range where the line of the graph is broken, you must expect higher differences between single devices within one packing unit. 9) Tolerance of Measure: Unless otherwise noted in drawing, tolerances are specified with ±0.1 and dimensions are specified in mm. 10) Tape and Reel: All dimensions and tolerances are specified acc. IEC 60286-3 and specified in mm.   19 Version 1.4 | 2020-03-18 LG L29K   Revision History Version Date Change 1.4 2020-03-18 Schematic Transportation Box Dimensions of Transportation Box Not for new design removed   20 Version 1.4 | 2020-03-18 LG L29K     Published by OSRAM Opto Semiconductors GmbH Leibnizstraße 4, D-93055 Regensburg www.osram-os.com © All Rights Reserved. 21 Version 1.4 | 2020-03-18
