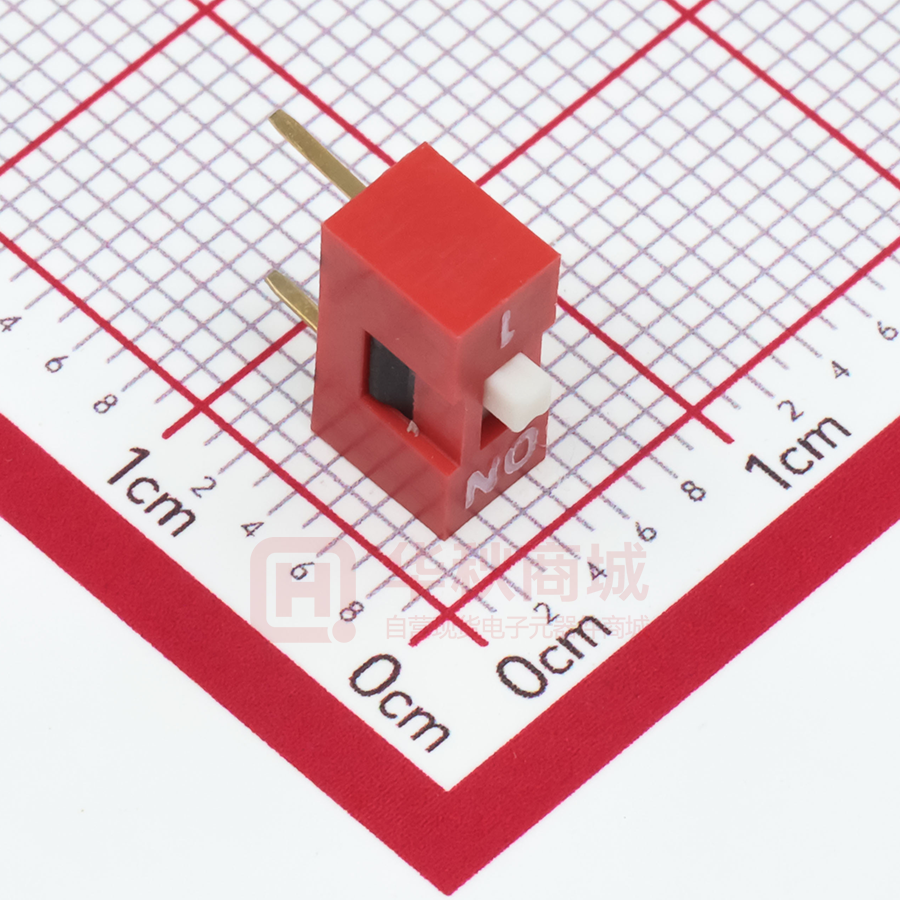

DS1040-01RN

NOTES: 9.90 N*2.54+1.46 1 2 3 4 5 6 7 8 1.Mechanical 1.1 Operation Force: 800g Max 1.2 Stroke: 1.90mm 1.3 Temperature Range: -40°C~+105°C 2.Materials 2.1 Base: Engineering Plastics,Black 2.2 Cover: Engineering Plastics,Red or Blue 2.3 Acutator: Engineering Plastics,White 2.4 Contact: Copper Alloy, Gold plating Warning: During the soldering process, The switch must be turned off. 5.50 3.Electrical 3.1 Electrical Life: 2000 cycles. 3.2 Contact resistance: 100mΩ Max. 3.3 Insulation Resistance: 1000MΩ at 500VDC. 3.4 Dielectric Withstanding Voltage: 500VAC per 1 minute 3.5 Circuit: Single pole single throw 3.6 Current Rating:100mA 3.7 Voltage Rating:24V AC/DC 3.3 4. Product number code: 0.60*0.15t 7.62 (N-1)*2.54 2.54X(N-1) 2.54 Positions 01,02,03,04,05,06, 07,08,09,10,11,12 7.62 Ø N=Positions 0. 97 2.54 Housing Type N: Regular Housing color R: Red B: Blue K: Black N: Brown Recommend PCB layout (Tolerance:±0.05) 2.54mm DIP SWITCH Regular Type (Series Image-Reference Only) 晨翔电子有限公司 CONNFLY ELECTRONIC CO. LTD N*2.54+1.46 Warning: During the soldering process, The switch must be turned off. NOTES: 1.Mechanical 1.1 Operation Force: 800g Max 1.2 Stroke: 1.90mm 1.3 Temperature Range: -40°C~+105°C 2.Materials 2.1 Base: Engineering Plastics,Black 2.2 Cover: Engineering Plastics,Red or Blue 2.3 Acutator: Engineering Plastics,White 2.4 Contact: Copper Alloy, Gold plating N=Positions 9.90 3.Electrical 3.1 Electrical Life: 2000 cycles. 3.2 Contact resistance: 100mΩ Max. 3.3 Insulation Resistance: 1000MΩ at 500VDC. 3.4 Dielectric Withstanding Voltage: 500VAC per 1 minute 3.5 Circuit: Single pole single throw 3.6 Current Rating:100mA 3.7 Voltage Rating:24V AC/DC 8.80 1 2 3 4 5 6 7 8 1.20 1.50 3.3 4. Product number code: 2.54 7.62 0.60*0.15t (N-1)*2.54 0. 97 2.54X(N-1) Ø 2.54 Housing Type T: Piano Housing color R: Red B: Blue K: Black N: Brown 7.62 Positions 02,03,04,05,06,07, 08,09,10,11,12 Recommend PCB layout (Tolerance:±0.05) 2.54mm DIP SWITCH Piano Type (Series Image-Reference Only) 晨翔电子有限公司 CONNFLY ELECTRONIC CO. LTD NOTES: Warning: During the soldering process, The switch must be turned off. 9.90 1.45 1.30 3.Electrical 3.1 Electrical Life: 2000 cycles. 3.2 Contact resistance: 100mΩ Max. 3.3 Insulation Resistance: 1000MΩ at 500VDC. 3.4 Dielectric Withstanding Voltage: 500VAC per 1 minute 3.5 Circuit: Single pole single throw 3.6 Current Rating:100mA 3.7 Voltage Rating:24V AC/DC 8.00 Housing Type T: Piano Housing color R: Red B: Blue K: Black N: Brown Positions 01 7.62 0. 97 7.62 Ø 0.60*0.2t 1.Mechanical 1.1 Operation Force: 800g Max 1.2 Stroke: 1.90mm 1.3 Temperature Range: -40°C~+105°C 2.Materials 2.1 Base: Engineering Plastics,Black 2.2 Cover: Engineering Plastics,Red or Blue 2.3 Acutator: Engineering Plastics,White 2.4 Contact: Copper Alloy, Gold plating 4. Product number code: 4.25 8.05 1.80 1.20 3.20 4.00 RECOMMEND PCB LAYOUT (TOLERANCE=±0.05) 2.54mm DIP SWITCH 1 Positions Piano Type 晨翔电子有限公司 CONNFLY ELECTRONIC CO. LTD
