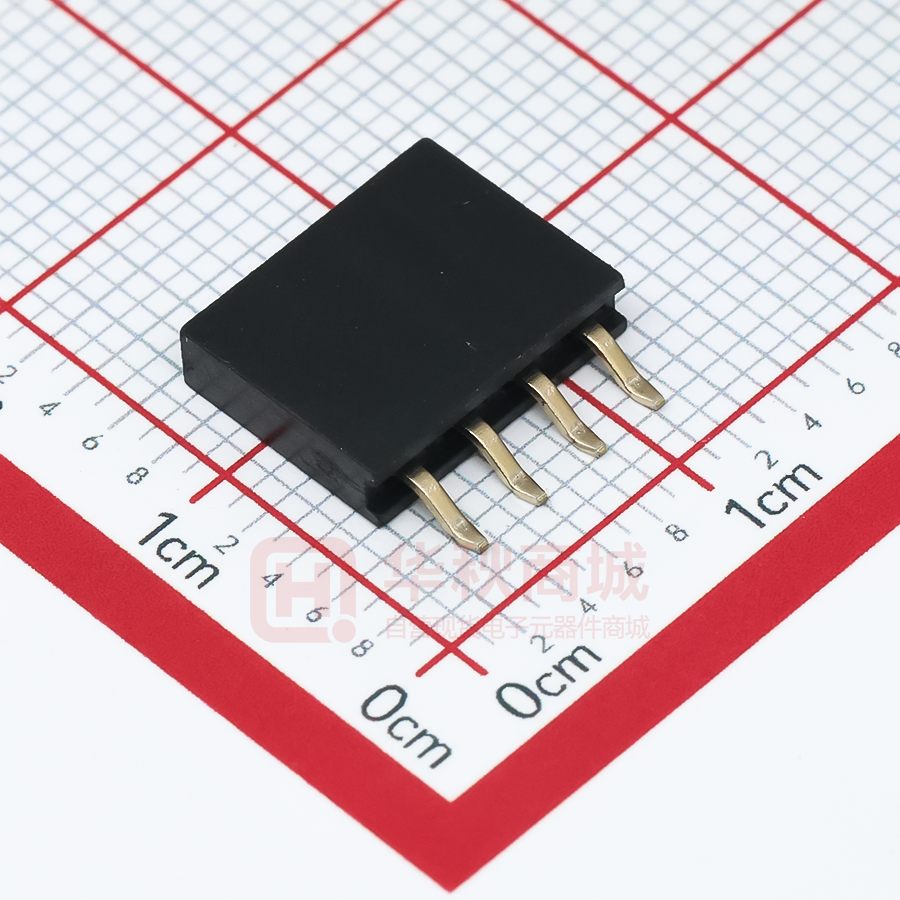

X6511FRS-04-C85D30

Specifications: 规格： Voltage rating:250V AC/DC 额定电压：250V AC/DC Current rating:3A AC/DC 额定电流：3A AC/DC Withstanding voltage:1000V AC/minute 耐受电压：1000V AC/分钟 Temperature range:-40℃-+105℃ 温度范围：-40℃-+105℃ Insulation resistance:≥1000MΩ 绝缘电阻：≥1000MΩ Contact resistance:≤20mΩ 接触电阻：≤20mΩ Material:PA6T UL94V-0 材质：PA6T UL94V-0 Plating Category:1U"Gold 镀层：1U"Gold Reflow soldring temperature:260±5℃，10S 回流焊温度：260±5℃，10S 2.54 x No . of Positions+0.4±0.3 2.40 [0.094] 2.54 [0.099] D=3.0 [0.117]±0.3 1.5 [0.058] C=8.5 [0.334] 2.54 x No . of Contact-2.54±0.2 X6511 F 1 PCB LAYOUT X X X DATE DESCRIPTION REVISIONS www.helloxkb.com www.helloxkb.cn www.xk-dg.cn REVISED 5 6 7 X6511FRS-XX-C85D30 PA6T Brass X6511 PART N0 Material Material(Pin) Suitable XKB Wafer DWN SCALE: N/A MODEL TYPE: 2.54mm BTB Connector VIEW: PART NO.: CHKD UNIT: mm/in APPD SIZE: A4 DSND MARK 4 2.0 [0.078] 2.54 [0.099] 3 1.Series No 2.Category:Female 3.Welding Board Angle:R-Stright 90° 4.Welding Way:S-SMT 5.Row No.Pin No:XX-02~10P 6.Plastic high:C=8.5mm 7.Pin Length:D=3.0 0.64 x 0.4 1.0 [0.039] 2 R S - XX - C85 D30 APPROVED ANGLAR L≤ 4 4
