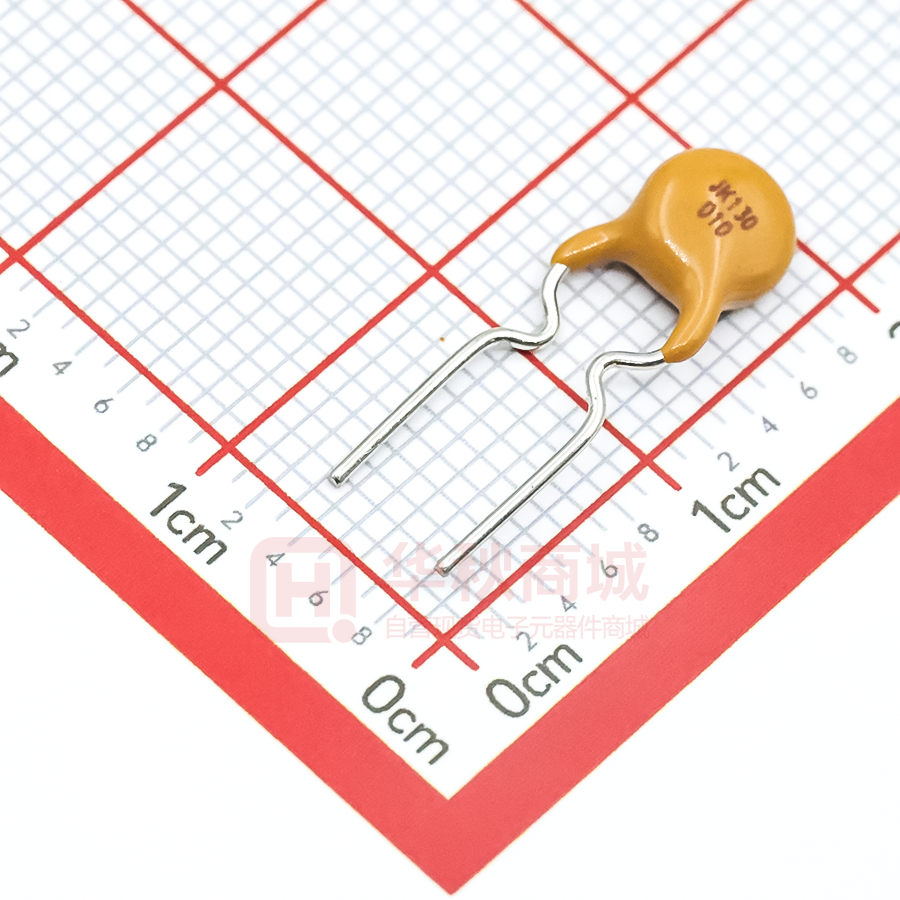

JK130-010

JK130-010

  • 厂商:

    JK(金科)

  • 封装:

    FUSE-D7.4XT3.8MM_TM

  • 描述:

  • 数据手册
  • 价格&库存
JK130-010 数据手册
ShenZhen JinRui Electronic Material Co.,Ltd JK130 Polymer PTC Resettable Fuse JK130 Series Series Features:    Radial leaded Devices Cured,flame retardant epoxy polymer insulating material meets UL94V-0 Rohs compliant and lead-free Product Dimensions Fig.1 Fig.2 Unit :mm JK130 Series Model Dimensions(mm) Lead material Shape A(max) B(max) C(max) D(typ) Tinned matel(mm) Fig JK130-010 7.4 12.7 3.8 5.1 22AWG/Φ0.6 1 JK130-015 7.4 13.0 3.8 5.1 22AWG/Φ0.6 1 JK130-017 7.4 13.5 3.8 5.1 22AWG/Φ0.6 1 JK130-020 7.6 13.5 3.8 5.1 22AWG/Φ0.6 1 JK130-025 7.6 13.5 3.8 5.1 22AWG/Φ0.6 1 JK130-030 8.0 14.0 3.8 5.1 22AWG/Φ0.6 1 JK130-040 9.4 15.0 3.8 5.1 22AWG/Φ0.6 1 JK130-050 10.2 15.2 3.8 5.1 22AWG/Φ0.6 1 JK130-065 12.8 18.0 3.8 5.1 22AWG/Φ0.6 1 JK130-075 12.8 18.0 3.8 5.1 22AWG/Φ0.6 1 JK130-090 14.5 19.6 3.8 5.1 20AWG/Φ0.8 2 JK130-110 16.3 21.3 3.8 5.1 20AWG/Φ0.8 2 JK130-135 17.0 22.0 3.8 5.1 20AWG/Φ0.8 2 JK130-160 20 25 3.8 5.1 20AWG/Φ0.8 2 JK130-185 22 23 3.8 5.1 20AWG/Φ0.8 2 JK130-200 25 27 3.8 10.2 20AWG/Φ0.8 2 ShenZhen JinRui Electronic Material Co.,Ltd JK130-250 27 Note: ① 32 JK130 3.8 10.2 Series 20 AWG/Φ0.8 2 Dimensions A, B, C is the maximum size, D values are typical tolerance of ± 0.75mm. Thermal Derating Chart-IH(A)JK130 Series Maximum ambient operating temperatures(℃) Model JK130 series -40℃ -20℃ 0℃ 25℃ 30℃ 40℃ 50℃ 60℃ 70℃ 85 147% 132% 118% 100% 90% 85% 76% 67% 60% 47% Electrical Characteristic Model Ihold(mA) Itrip(mA) Vmax interrupt(V) Imax(A) Pd max(W) Maximum Time to Trip Resistance(Ω) Current (A) Time(S) Rmin- Rmax JK130-010 0.10 0.20 130 3 0.8 0.5 6 2.5-9.0 JK130-015 0.15 0.30 130 3 0.8 0.75 5.5 2.5-7.5 JK130-017 0.17 0.34 130 3 0.8 0.85 5.2 1.5-7.0 JK130-020 0.20 0.40 130 3 0.8 1.0 5.0 1.9-4.0 JK130-025 0.25 0.50 130 3 1.0 1.25 4.8 1.45-3.50 JK130-030 0.30 0.60 130 3 1.0 1.5 4.5 1.0-3.0 JK130-040 0.40 0.80 130 3 1.0 2.0 4.5 0.75-2.0 JK130-050 0.50 1.0 130 3 1.0 2.5 5.0 0.50-1.60 JK130-065 0.65 1.3 130 10 1.0 3.25 5.2 0.45-1.0 JK130-075 0.75 1.5 130 10 1.0 3.75 5.5 0.40-0.90 JK130-090 0.90 1.8 130 10 1.5 4.5 5.8 0.30-0.70 JK130-110 1.10 2.2 130 10 1.8 5.5 6.3 0.20-0.65 JK130-135 1.35 2.7 130 10 1.8 6.75 7.5 0.15-0.60 JK130-160 1.60 3.2 130 10 2.0 8.0 8 0.10-0.50 JK130-185 1.85 3.7 130 10 2.0 9.25 9 0.10-0.40 JK130-200 2.00 4.0 130 10 2.2 10.0 10 0.10-0.30 JK130-250 2.50 5.0 130 10 2.5 12.5 12 0.05-0.25 IH=Hold current:maximum current at which the device will not trip at 25℃ still air. IT=Trip current:minimum current at which the device will nalways at 25℃ still air. Vmax=Maximum voltage device can withstand without damage at rated current. Imax=Maximum fault current device can withstand tithout damage at rated voltage. Ttrip=Maximum time to trip(s) at assigned current. Pd=Typical power dissipation:typical amount of power dissipated by the decice when in state air environment. Rmin=Minimum device resistance at 25℃ prior to tripping. Rmax=Maximum device resistance at 25℃ prior to tripping. ShenZhen JinRui Electronic Material Co.,Ltd JK130 Series Marking System Environmental Specifications Test Conditions Resistance change Passive aging +85℃,1000hrs ±8% typical Humidity aging +85℃,85%R.H.1000hrs ±8% typical Thermal shock +125℃ to -55℃,10times ±12% typical Resistance to solvent MIL-STD-202,Method 215 No change Vibration MIL-STD-202,Method 201 No change Solder reflow conditions Wave Soldering Soldering Temperature:260℃~270℃ Soldering Time:≤3sec. Soldering Position: Resettable fuse wire and the bottom ≥ 6mm。 Manual soldering Soldering Temperature:250℃~280℃ Soldering Time: ≤3sec. Soldering Position: Resettable fuse wire and the bottom ≥ 6mm。 Packaging and Storage Bag quantity JK130-010~JK130-065 JK130-075~JK130-200 1000Pcs/Bag 500 Pcs/Bag ShenZhen JinRui Electronic Material Co.,Ltd JK130 Series Storage The maximum ambient temperature shall not exceed 40℃.Storage temperatures higher than 40℃ could result in the deformation of packaging materials.The maximum relative humidity recommended for storage is 70%.High humidity with high temperature can accelerate the oxidation the oxidation of the solder plating on the termination and reduce the solderability of the components.sealed plastic bags with desiccant shall be used to teduce the oxidation of the termination and shall only be opened prior to use.the products shall not be stored in areas where harmful gases containing sulfu of chlorine are present. Warning: Please read this specification before use the product。 Using of this product must be sure to follow the requirement of this specification,operation beyond the specified maximum ratings or improper use may result in damage and possible electrical arcing and flame. PPTC resettable fuses are intended for occasional over current protection. Application for repeated over current condition or prolonged trip are not anticipated. Please avoid contact of PPTC resettable fuses with chemical solvent. Prolonged contact will damage the device performance. You are requested not to use our product deviating from the agreed specifications.
