Specification for Approval
Customer
Product Name
Wire Wound Molded SMD Power Inductors
Customer P/N:
Cjiang P/N:
[
FTC Series
New Released,
Revised]
SPEC No.:
REMARK：
Customer Approval Feedback
●深圳市长江微电科技有限公司
SZ CJIANG TECHNOLOGY CO.,LTD
ADD：11F, International Science and Technology Building, Fuhong Road, Futian District, Shenzhen
Factory ADD:No. shanyang RD CJIANG Industrial Park HUAi'AN Section HUAI'AN City Jiangsu Province
TEL: 0755-82529562 FAX:0755-83977004
http://www.CJING.COM.CN
E-mail: BOND@Cjiang.com.cn；ann@cjiang.com.cn
Version change history
Rev
Date
1.0
2022/8/9
Description
文件制定
APPROVED
CHECKED
DRAWN
Bond
Charles
王云燕
更多资讯,请点击长江微电官网 more information,Please click：WWW.CJIANG.COM.CN
深圳市长江微电科技有限公司
SZ CJIANG TECHNOLOGY CO.,LTD
Caution :
All products listed in this specification are developed, designed and intended for use in general electronics equipment. The products are not
designed or Warranted to meet the requirements of the applications listed below, whose performance and/or quality require especially high reliability,
or whose failure, malfunction or trouble might directly cause damage to society, person, or property. Please understand that we are not responsible
for any damage or liability caused by use of the products in any of the applications below. Please contact us for more details if you intend to use our
products in the following applications.
1. Aircraft equipment.
2. Aerospace equipment.
3. Undersea equipment.
4. nuclear control equipment.
5. military equipment.
6. Power plant equipment.
7. Medical equipment.
8. Transportation equipment (automobiles, trains, ships,etc.)
9. Traffic signal equipment.
10. Disaster prevention / crime prevention equipment.
11. Data-processing equipment.
12. Applications of similar complexity or with reliability requirements comparable to the applications listed in the above.
更 多 资 讯 ,请 点 击 长 江 微 电 官 网 more information, Please click： WWW.CJIANG.COM.CN
深圳市长江微电科技有限公司
SZCJIANGTECHNOLOGYCO.,LTD
1. Scope
Featurs
1.1
1.2
1.3
1.4
1.5
1.6
Metal material for large current and low loss.
High performance (Isat) realized by metal dust core.
Low loss realized with low Rdc.
Closed magnetic circuit design reduces leakage flux.
Vinyl thermal spray, better surface compactness.
100% lead (Pb) free meet RoHS standard.
Application
2.1
2.2
2.3
2.4
2.5
2.6
DC/DC converters.
Pad,Smart phone.
Portable gaming devices, Smart wear, Wi-Fi module.
Notebooks, VR, AR.
LCD displays, HDDs, DVCs, DSCs, etc.
Baseband power supply, Amplifier, Power management, Module power supply, Camera power manageme.
2. Ordering Procedure
FTC
①
2016
②
10
③
S
④
1R0
⑤
M
⑥
B
⑦
C
⑧
*
⑨
①Series Name: Mini Molding Power Inductors
②External Dimensions(L×W):2016=2.0*1.6 mm
③External Dimensions(H):10=1.0 mm
④Size Tolerance:S=±0.2mm D=±0.1mm
⑤Inductance value:1R0=1.0uH
⑥Tolerance:K=±10%
M=±20%
N=±30%
⑦Coating color:B=Black G=Grey
⑧Product type:C=Common
⑨Special define:A=Routine B~Z=Special
For special characteristics, please refer to the specific values in Item 5 "Specifications".
更 多 资 讯 ,请 点 击 长 江 微 电 官 网 more information, Please click： WWW.CJIANG.COM.CN
深圳市长江微电科技有限公司
SZCJIANGTECHNOLOGYCO.,LTD
.
SHAPE AND DIMENSIONS
Outline Dimensions
Recommend Land Pattern Dimensions
Units: mm
Series
L
G（TYP)
W
T
A
B
C
FTC100765D
1.0±0. 1
0.3
0.7±0. 1
0.65Max.
1.00
0.20
0.70
FTC121065S
1.2±0.2
0.4
1.0±0.2
0.65Max.
1.30
0.30
1. 10
FTC160865D
1.6±0. 1
0.5
0.8±0. 1
0.65Max.
1.70
0.40
0.90
FTC160865S
1.6±0.2
0.5
0.8±0.2
0.65Max.
1.60
0.40
0.80
FTC160808S
1.6±0.2
0.5
0.8±0.2
0.80Max.
1.70
0.40
0.90
FTC160810S
1.6±0.2
0.5
0.8±0.2
1.00Max.
1.70
0.40
0.90
FTC141265S
1.4±0.2
0.5
1.2±0.2
0.65Max.
1.50
0.45
1.30
FTC141208S
1.4±0.2
0.5
1.2±0.2
0.80Max.
1.50
0.45
1.30
FTC201265S
2.0±0.2
0.5
1.2±0.2
0.65Max.
2. 10
0.50
1.30
FTC201208S
2.0±0.2
0.5
1.2±0.2
0.80Max.
2. 10
0.50
1.30
FTC201210S
2.0±0.2
0.5
1.2±0.2
1.00Max.
2. 10
0.50
1.30
FTC201608S
2.0±0.2
0.6
1.6±0.2
0.80Max.
2. 10
0.50
1.70
FTC201610S
2.0±0.2
0.6
1.6±0.2
1.00Max.
2. 10
0.50
1.70
FTC201610D
2.0±0. 1
0.6
1.6±0. 1
1.00Max.
2.00
0.50
1.60
FTC201612S
2.0±0.2
0.6
1.6±0.2
1.20Max.
2. 10
0.50
1.70
FTC252010S
2.5±0.2
0.7
2.0±0.2
1.00Max.
2.60
0.70
2. 10
FTC252012S
2.5±0.2
0.7
2.0±0.2
1.20Max.
2.60
0.70
2. 10
FTC322512S
3.2±0.2
0.9
2.5±0.2
1.20Max.
3.25
0.90
2.55
FTC322520S
3.2±0.2
0.9
2.5±0.2
2.00Max
3.25
0.90
2.55
FTC303020D
3.0±0. 1
1.0
3.0±0. 1
2.00Max.
2.90
0.90
2.90
5. Marking
No Marking
更 多 资 讯 ,请 点 击 长 江 微 电 官 网 more information, Please click： WWW.CJIANG.COM.CN
深圳市长江微电科技有限公司
SZCJIANGTECHNOLOGYCO.,LTD
5. Specifications
①1007 Series
FTC100765(1.0*0.7*0.65mm)
P/N
@ (0A) 1MHz
Heat rating current
Irms(A)
Rdc(mΩ）
L0(µH)
Saturation current
Isat(A)
Typical
Max
Typical
Max
Typical
Max
FTC100765D1R5MBCA
1.5
400
500
0.4
0.3
1.1
0.9
FTC100765D2R6MGCA
2.6
750
900
0.55
0.4
1.0
0.8
②1210 Series
FTC121065(1.2*1.0*0.65mm)
P/N
@ (0A) 1MHz
FTC121065S2R2MBCA
2.2
Heat rating current
Irms(A)
Rdc(mΩ）
L0(µH)
Saturation current
Isat(A)
Typical
Max
Typical
Max
Typical
Max
280
340
1.0
0.9
1.3
1.2
③1608 Series
FTC160865(1.6*0.8*0.65mm)
P/N
@ (0A) 1MHz
Heat rating current
Irms(A)
Rdc(mΩ）
L0(µH)
Saturation current
Isat(A)
Typical
Max
Typical
Max
Typical
Max
FTC160865DR22MGCA
0.22
35
43
3.8
3.5
4.7
4.3
FTC160865SR47MGCA
0.47
66
82
2.3
2.0
3.3
3.0
FTC160808(1.6*0.8*0.8mm)
@ (0A) 1MHz
Heat rating current
Irms(A)
Rdc(mΩ）
L0(µH)
P/N
Saturation current
Isat(A)
Typical
Max
Typical
Max
Typical
Max
FTC160808SR22MBCA
0.22
33
40
3.4
3.0
5.5
5.0
FTC160808SR24MBCA
0.24
34
41
3.3
2.9
5.3
4.8
FTC160808SR47MBCA
0.47
80
100
2.6
2.3
4.1
3.7
FTC160808SR47MBCD
0.47
48
55
3.8
3.4
4.0
3.5
FTC160808SR56MBCA
0.56
85
110
2.2
1.9
4.0
3.5
FTC160808SR68MBCA
0.68
110
130
2.1
1.9
3.3
3.0
FTC160808S1R0MBCA
1.0
180
200
2.1
1.8
3.0
2.6
FTC160808S1R0MGCD
1.0
105
115
2.1
1.8
2.3
2.1
FTC160808S2R2MGCA
2.2
220
260
1.4
1.2
1.5
1.3
FTC160810(1.6*0.8*1.0mm)
@ (0A) 1MHz
Heat rating current
Irms(A)
Rdc(mΩ）
L0(µH)
P/N
Saturation current
Isat(A)
Typical
Max
Typical
Max
Typical
Max
FTC160810SR22MBCA
0.22
28
35
4.5
4.0
6.5
6.0
FTC160810SR24MBCA
0.24
28
35
4.4
3.9
6.3
5.8
更 多 资 讯 ,请 点 击 长 江 微 电 官 网 more information, Please click： WWW.CJIANG.COM.CN
深圳市长江微电科技有限公司
SZCJIANGTECHNOLOGYCO.,LTD
FTC160810SR47MBCA
0.47
65
80
4.0
3.5
4.8
4.4
FTC160810SR56MBCA
0.56
70
95
3.5
3.0
4.2
3.7
FTC160810SR68MBCA
0.68
90
115
3.0
2.5
3.6
3.2
④1412 Series
FTC141265(1.4*1.2*0.65mm)
P/N
@ (0A) 1MHz
Heat rating current
Irms(A)
Rdc(mΩ）
L0(µH)
Saturation current
Isat(A)
Typical
Max
Typical
Max
Typical
Max
FTC141265SR33MBCA
0.33
26
32
4.4
4.2
4.4
4.0
FTC141265SR33MGCA
0.33
26
32
4.4
4.2
4.4
4.0
FTC141265SR47MBCA
0.47
37
45
3.0
2.7
3.4
3.0
FTC141265SR47MGCA
0.47
37
45
3.0
2.7
3.4
3.0
FTC141207(1.4*1.2*0.7mm)
@ (0A) 1MHz
Heat rating current
Irms(A)
Rdc(mΩ）
L0(µH)
P/N
Saturation current
Isat(A)
Typical
Max
Typical
Max
Typical
Max
FTC141207SR24MBCA
0.24
22
28
4.0
3.6
4.6
4.3
FTC141207SR47MBCA
0.47
34
38
3.8
3.3
3.8
3.5
FTC141208(1.4*1.2*0.8mm)
@ (0A) 1MHz
Heat rating current
Irms(A)
Rdc(mΩ）
L0(µH)
P/N
Saturation current
Isat(A)
Typical
Max
Typical
Max
Typical
Max
FTC141208SR24MBCA
0.24
22
27
4.1
3.7
6.0
5.7
FTC141208SR33MBCA
0.33
23
28
4.0
3.5
5.3
5.0
FTC141208SR33MGCA
0.33
23
28
4.0
3.5
5.3
5.0
FTC141208SR47MBCA
0.47
29
35
3.8
3.3
4.6
4.2
FTC141208SR47MGCA
0.47
29
35
3.8
3.3
4.6
4.2
⑤2012 Series
FTC201265(2.0*1.2*0.65mm)
P/N
@ (0A) 1MHz
Heat rating current
Irms(A)
Rdc(mΩ）
L0(µH)
Saturation current
Isat(A)
Typical
Max
Typical
Max
Typical
Max
FTC201265S1R0MBCA
1.0
78
86
2.6
2.3
2.8
2.5
FTC201265D1R0MGCA
1.0
95
110
2.5
2.2
2.7
2.4
FTC201265S2R2MBCA
2.2
215
230
1.7
1.4
1.8
1.5
FTC201265S2R2MBCB
2.2
230
245
1.7
1.4
1.8
1.5
更 多 资 讯 ,请 点 击 长 江 微 电 官 网 more information, Please click： WWW.CJIANG.COM.CN
深圳市长江微电科技有限公司
SZCJIANGTECHNOLOGYCO.,LTD
FTC201208(2.0*1.2*0.8mm)
P/N
@ (0A) 1MHz
Heat rating current
Irms(A)
Rdc(mΩ）
L0(µH)
Saturation current
Isat(A)
Typical
Max
Typical
Max
Typical
Max
FTC201208SR24MBCA
0.24
18
23
6.5
5.9
6.5
6.0
FTC201208SR24MGCA
0.24
18
23
6.5
5.9
6.5
6.0
FTC201208SR33MBCA
0.33
33
45
4.3
4.0
5.2
4.8
FTC201208SR47MBCA
0.47
34
50
3.5
3.3
5.0
4.6
FTC201208SR47MGCA
0.47
34
50
3.5
3.3
5.0
4.6
FTC201208SR47MBCD
0.47
24
28
4.7
4.5
5.2
4.8
FTC201208DR47MGCA
0.47
34
42
4.3
3.9
5.2
4.8
FTC201208SR68MBCA
0.68
50
60
3.7
3.3
4.2
3.7
FTC201208S1R0MBCA
1.0
55
70
3.3
2.9
4.0
3.5
FTC201208S1R0MBCD
1.0
48
55
3.2
2.8
3.2
2.8
FTC201208S1R0MGCD
1.0
48
55
3.2
2.8
3.2
2.8
FTC201208S1R5MBCA
1.5
118
135
2.2
1.9
3.0
2.5
FTC201208S2R2MBCA
2.2
160
185
2.2
1.8
2.6
2.3
FTC201210(2.0*1.2*1.0mm)
P/N
@ (0A) 1MHz
Heat rating current
Irms(A)
Rdc(mΩ）
L0(µH)
Saturation current
Isat(A)
Typical
Max
Typical
Max
Typical
Max
FTC201210SR10MBCA
0.1
8.0
13
7.5
7.0
8.5
8.0
FTC201210SR22MBCA
0.22
16
22
7.1
6.5
7.3
6.8
FTC201210SR24MBCA
0.24
17
23
7.0
6.4
7.2
6.7
FTC201210SR24MGCD
0.24
13
17
7.0
6.4
7.2
6.7
FTC201210SR33MBCA
0.33
24
32
5.5
5.0
6.5
6.0
FTC201210SR47MBCA
0.47
29
36
4.7
4.3
5.5
5.0
FTC201210SR68MBCA
0.68
37
43
4.3
4.0
5.0
4.5
FTC201210S1R0MBCA
1.0
55
63
3.9
3.5
4.0
3.5
FTC201210S1R5MBCA
1.5
76
85
3.1
2.6
3.2
2.7
FTC201210S2R2MBCA
2.2
135
150
2.0
1.7
2.7
2.4
更 多 资 讯 ,请 点 击 长 江 微 电 官 网 more information, Please click： WWW.CJIANG.COM.CN
深圳市长江微电科技有限公司
SZCJIANGTECHNOLOGYCO.,LTD
⑥2016 Series
FTC201608(2.0*1.6*0.8mm)
P/N
@ (0A) 1MHz
Heat rating current
Irms(A)
Rdc(mΩ）
L0(µH)
Saturation current
Isat(A)
Typical
Max
Typical
Max
Typical
Max
FTC201608SR22MBCA
0.22
14
19
6.6
5.9
6.1
5.6
FTC201608SR24MBCA
0.24
14
20
6.5
5.8
6.0
5.5
FTC201608SR33MBCA
0.33
18
24
5.5
4.8
5.8
5.3
FTC201608SR47MBCA
0.47
24
27
4.6
4.4
5.5
5.0
FTC201608SR47MGCA
0.47
24
27
4.6
4.4
5.5
5.0
FTC201608SR68MBCA
0.68
39
44
3.8
3.5
4.6
4.2
FTC201608S1R0MBCA
1.0
53
60
3.6
3.3
3.3
3.1
FTC201608S1R0MGCD
1.0
45
52
3.6
3.3
3.8
3.5
FTC201608S1R5MBCA
1.5
73
85
3.1
2.8
3.0
2.8
FTC201608S2R2MBCA
2.2
123
140
2.2
2.0
2.5
2.3
FTC201608S3R3MBCA
3.3
200
220
1.8
1.5
2.1
1.8
FTC201608S4R7MBCA
4.7
260
290
1.6
1.4
1.7
1.5
更 多 资 讯 ,请 点 击 长 江 微 电 官 网 more information, Please click： WWW.CJIANG.COM.CN
深圳市长江微电科技有限公司
SZCJIANGTECHNOLOGYCO.,LTD
FTC201610(2.0*1.6*1.0mm)
P/N
@ (0A) 1MHz
Heat rating current
Irms(A)
Rdc(mΩ）
L0(µH)
Saturation current
Isat(A)
Typical
Max
Typical
Max
Typical
Max
FTC201610SR10MBCA
0.1
7.0
12
8.5
8.0
9.0
8.4
FTC201610SR15MBCA
0.15
8.0
14
7.6
7.0
8.7
8.0
FTC201610SR22MBCA
0.22
11
18
6.9
6.3
8.2
7.5
FTC201610SR24MBCA
0.24
10.5
19
6.8
6.2
8.2
7.4
FTC201610SR33MBCA
0.33
16.5
22
5.7
5.8
7.0
6.0
FTC201610SR33MGCA
0.33
16.5
22
5.7
5.8
7.0
6.0
FTC201610SR47MBCA
0.47
19.5
25
6.0
5.0
6.3
5.5
FTC201610SR47MGCA
0.47
19.5
25
6.0
5.0
6.3
5.5
FTC201610SR68MBCA
0.68
25
32
5.3
4.3
5.2
4.5
FTC201610S1R0MBCA
1.0
35
43
4.5
4.1
4.6
3.8
FTC201610S1R0MGCA
1.0
35
43
4.5
4.1
4.6
3.8
FTC201610S1R0MBCD
1.0
31
36
4.6
4.2
4.7
4.2
FTC201610S1R0MGCD
1.0
31
36
4.6
4.2
4.7
4.2
FTC201610S1R5MBCA
1.5
58
100
3.3
2.3
3.2
2.9
FTC201610S2R2MBCA
2.2
100
130
2.5
2.1
3.0
2.45
FTC201610S2R2MGCA
2.2
100
130
2.5
2.1
3.0
2.45
FTC201610D2R2MBCA
2.2
115
125
2.5
2.2
3.3
3.0
FTC201610S3R3MBCA
3.3
140
170
1.7
1.5
2.3
2.0
FTC201610S4R7MBCA
4.7
190
220
1.6
1.4
2.0
1.8
FTC201610S4R7MGCA
4.7
190
220
1.6
1.4
2.0
1.8
FTC201612(2.0*1.6*1.2mm)
P/N
@ (0A) 1MHz
Heat rating current
Irms(A)
Rdc(mΩ）
L0(µH)
Saturation current
Isat(A)
Typical
Max
Typical
Max
Typical
Max
FTC201612SR10MBCA
0.1
4.0
6.0
12
10
13
11.5
FTC201612SR24MBCA
0.24
9.0
11
9.1
8.6
9.2
8.7
FTC201612SR33MBCA
0.33
10
15
7.7
7.2
7.8
7.3
FTC201612SR47MBCA
0.47
13
17
6.7
6.0
6.7
6.0
FTC201612S1R5MBCA
1.5
40
50
4.0
3.5
4.0
3.5
更 多 资 讯 ,请 点 击 长 江 微 电 官 网 more information, Please click： WWW.CJIANG.COM.CN
深圳市长江微电科技有限公司
SZCJIANGTECHNOLOGYCO.,LTD
⑦2520 Series
FTC252010S(2.5*2.0*1.0mm)
P/N
@ (0A) 1MHz
Heat rating current
Irms(A)
Rdc(mΩ）
L0(µH)
Saturation current
Isat(A)
Typical
Max
Typical
Max
Typical
Max
FTC252010SR22MBCA
0.22
12
17
6.8
6.5
8.6
7.9
FTC252010SR22MGCA
0.22
12
17
6.8
6.5
8.6
7.9
FTC252010SR24MBCA
0.24
12
17.5
6.7
6.4
8.5
7.8
FTC252010SR33MBCA
0.33
13
19
6.5
6.2
7.6
7.2
FTC252010SR33MGCA
0.33
13
19
6.5
6.2
7.6
7.2
FTC252010SR47MBCA
0.47
15
22
6.1
5.6
7.0
6.5
FTC252010SR47MGCA
0.47
15
22
6.1
5.6
7.0
6.5
FTC252010SR68MBCA
0.68
23
27
5.6
5.0
5.9
5.5
FTC252010S1R0MBCA
1.0
22.5
30
5.4
4.1
5.3
4.8
FTC252010S1R0MGCA
1.0
22.5
30
5.4
4.1
5.3
4.8
FTC252010S1R5MBCA
1.5
45
55
3.4
3.0
4.3
3.9
FTC252010S1R5MGCA
1.5
45
55
3.4
3.0
4.3
3.9
FTC252010S2R2MBCA
2.2
60.5
70
2.5
2.1
3.5
3.0
FTC252010S2R2MGCA
2.2
60.5
70
2.5
2.1
3.5
3.0
FTC252010S3R3MBCA
3.3
86
100
2.5
2.1
2.8
2.5
FTC252010S3R3MGCA
3.3
86
100
2.5
2.1
2.8
2.5
FTC252010S4R7MBCA
4.7
160
180
2.0
1.6
2.6
2.0
FTC252010S4R7MGCA
4.7
160
180
2.0
1.6
2.6
2.0
FTC252010S4R7MBCD
4.7
145
160
2.0
1.6
2.6
2.0
FTC252010S6R8MBCA
6.8
270
320
1.6
1.4
2.4
1.9
FTC252010S100MBCA
10.0
500
560
1.05
0.95
1.55
1.4
FTC252010S100MGCA
10.0
500
560
1.05
0.95
1.55
1.4
FTC252010S220MGCA
22.0
1100
1300
0.85
0.6
1.1
0.9
更 多 资 讯 ,请 点 击 长 江 微 电 官 网 more information, Please click： WWW.CJIANG.COM.CN
深圳市长江微电科技有限公司
SZCJIANGTECHNOLOGYCO.,LTD
FTC252012S(2.5*2.0*1.2mm)
P/N
@ (0A) 1MHz
Saturation current
Isat(A)
Heat rating current
Irms(A)
Rdc(mΩ）
L0(µH)
Typical
Max
Typical
Max
Typical
Max
FTC252012SR10MBCA
0.1
6
10
12
10.5
13.5
12.5
FTC252012SR15MBCA
0.15
7
11
11.5
10
13.0
12.0
FTC252012SR22MBCA
0.22
9
14
8.2
7.6
9.6
9.0
FTC252012SR24MBCA
0.24
10
15
8.0
6.4
9.5
8.8
FTC252012SR24MGCA
0.24
10
15
8.0
6.4
9.5
8.8
FTC252012SR33MBCA
0.33
11
17
6.8
6.1
8.6
7.8
FTC252012SR47MBCA
0.47
13
19
6.5
6.0
7.5
6.8
FTC252012SR47MBCD
0.47
11
13
8.0
7.5
8.5
8.0
FTC252012SR47MGCD
0.47
11
13
8.0
7.5
8.5
8.0
FTC252012SR68MBCA
0.68
17
23
6.3
5.0
6.5
6.0
FTC252012S1R0MBCA
1.0
33
42
4.4
3.6
5.6
4.5
FTC252012S1R0MBCD
1.0
16
22
5.2
4.5
6.5
6.0
FTC252012S1R0MGCD
1.0
16
22
5.2
4.5
6.5
6.0
FTC252012S1R5MBCA
1.5
44
56
3.7
3.2
4.5
3.8
FTC252012S1R5MBCD
1.5
27
32
4.6
4.2
4.7
4.4
FTC252012S1R5MBCE
1.5
48
55
4.4
4.0
4.3
3.9
FTC252012S1R5MGCA
1.5
44
56
3.7
3.2
4.5
3.8
FTC252012S2R2MBCA
2.2
55
79
3.2
2.7
3.8
3.3
FTC252012S2R2MGCA
2.2
55
79
3.2
2.7
3.8
3.3
FTC252012S3R3MBCA
3.3
80
125
2.3
1.8
3.0
2.5
FTC252012S4R7MBCA
4.7
145
180
1.8
1.5
2.4
2.1
FTC252012S4R7MGCA
4.7
145
180
1.8
1.5
2.4
2.1
FTC252012S6R8MBCA
6.8
225
270
1.6
1.3
2.2
1.7
FTC252012S100MBCA
10.0
330
400
1.2
1.05
1.6
1.45
FTC252012S100MGCA
10.0
330
400
1.2
1.05
1.6
1.45
更 多 资 讯 ,请 点 击 长 江 微 电 官 网 more information, Please click： WWW.CJIANG.COM.CN
深圳市长江微电科技有限公司
SZCJIANGTECHNOLOGYCO.,LTD
⑧3225 Series
FTC322510S(3.2*2.5*1.0mm)
@ (0A) 1MHz
Heat rating current
Irms(A)
Rdc(mΩ）
L0(µH)
P/N
Saturation current
Isat(A)
Typical
Max
Typical
Max
Typical
Max
FTC322510SR47MBCA
0.47
17
22
6.4
5.9
8.3
7.6
FTC322510SR68MBCA
0.68
22
28
6.2
5.7
7.5
7.0
FTC322510S1R0MBCA
1.0
25
30
5.4
4.9
6.0
5.3
FTC322510S1R5MBCA
1.5
34
42
4.0
3.6
5.0
4.4
FTC322510S2R2MBCA
2.2
55
66
3.7
3.4
4.0
3.5
FTC322510S3R3MBCA
3.3
105
120
2.7
2.3
3.7
3.3
FTC322510S4R7MBCA
4.7
125
140
2.3
1.9
2.8
2.5
FTC322512S(3.2*2.5*1.2mm)
L0(µH)
P/N
@ (0A) 1MHz
Heat rating current
Irms(A)
Rdc(mΩ）
Saturation current
Isat(A)
Typical
Max
Typical
Max
Typical
Max
FTC322512SR10MBCA
0.10
5.2
7.0
12
11
18
16.5
FTC322512SR22MBCA
0.22
6.6
10
9..2
8.7
11.5
11
FTC322512SR22MGCA
0.22
6.6
10
9..2
8.7
11.5
11
FTC322512SR24MBCA
0.24
7.0
12
9.0
8.5
11
10.5
FTC322512SR33MBCA
0.33
9.0
14
8.4
8.1
10
9.5
FTC322512SR47MBCA
0.47
14
19
7.5
7.2
8.6
8.2
FTC322512SR47MGCA
0.47
14
19
7.5
7.2
8.6
8.2
FTC322512SR47MBCD
0.47
11
14
7.5
7.2
8.6
8.2
FTC322512SR68MBCA
0.68
18
23
7.3
6.8
8.1
7.7
FTC322512SR68MBCD
0.68
12
15
7.0
6.5
8.0
7.5
FTC322512S1R0MBCA
1.0
26
30
5.3
4.8
6.6
5.8
更 多 资 讯 ,请 点 击 长 江 微 电 官 网 more information, Please click： WWW.CJIANG.COM.CN
深圳市长江微电科技有限公司
SZCJIANGTECHNOLOGYCO.,LTD
FTC322512S1R0MGCA
1.0
26
30
5.3
4.8
6.6
5.8
FTC322512S1R0MBCD
1.0
18
21
5.5
5.0
7.7
7.0
FTC322512S1R5MBCA
1.5
37
44
4.7
4.3
5.1
4.7
FTC322512S2R2MBCA
2.2
58
70
3.6
3.0
4.6
4.2
FTC322512S2R2MBCD
2.2
42
50
3.8
3.5
5.0
4.5
FTC322512S2R2MGCD
2.2
42
50
3.8
3.5
5.0
4.5
FTC322512S3R3MBCA
3.3
75
95
2.9
2.5
3.7
3.2
FTC322512S3R3MGCA
3.3
75
95
2.9
2.5
3.7
3.2
FTC322512S4R7MBCA
4.7
115
135
2.3
2.0
2.9
2.6

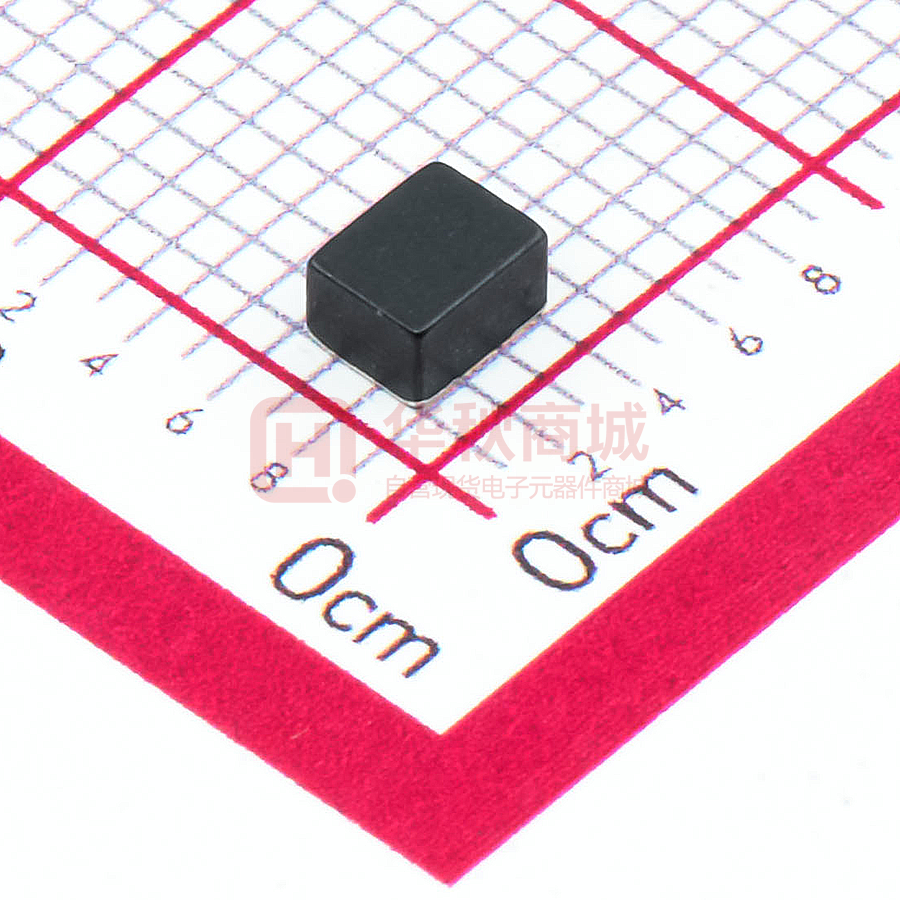

FTC322520S(3.2*2.5*2.0mm)
@ (0A) 1MHz
Heat rating current
Irms(A)
Rdc(mΩ )
L0(µH)
P/N
Saturation current
Isat( A)
Typical
Max
Typical
Max
Typical
Max
FTC322520SR33MBCA
0.33
8.0
9.6
8.5
8.0
11.0
10
FTC322520SR47MBCA
0.47
9.0
10.5
8.0
7.5
10.0
9.0
FTC322520SR68MBCA
0.68
12.5
14.5
7.0
6.5
8.6
7.5
FTC322520S1R0MBCA
1.0
15.0
17.5
6.5
6.0
7.5
6.5
FTC322520S1R5MBCA
1.5
24.5
28.0
5.5
5.0
6.3
5.5
FTC322520S2R2MBCA
2.2
36.5
44.0
5.0
4.5
5.4
4.8
FTC322520S3R3MBCA
3.3
54.0
63.0
3.2
2.7
4.5
4.0
FTC322520S4R7MBCA
4.7
82.0
95.0
2.8
2.4
3.5
3.0
⑨3030 Series
FTC303018(3.0*3.0*1.8mm)
P/N
@ (0A) 1MHz
Heat rating current
Irms(A)
Rdc(mΩ）
L0(µH)
Saturation current
Isat(A)
Typical
Max
Typical
Max
Typical
Max
FTC303018DR22MBCA
0.22
5.5
7.0
10.0
9.0
17
16
FTC303018D4R7MBCA
4.7
72
87
3.4
3.0
4.7
4.2
更 多 资 讯 ,请 点 击 长 江 微 电 官 网 more information, Please click： WWW.CJIANG.COM.CN
深圳市长江微电科技有限公司
SZCJIANGTECHNOLOGYCO.,LTD
FTC303020(3.0*3.0*2.0mm)
P/N
Heat rating current
Irms ( A )
Rdc(mΩ )
L0 (µH)
Saturation current
Isat ( A )
@ (0A) 1MHz
Typical
Max
Typical
Max
Typical
Max
FTC303020DR33MBCA
0.33
9
13
7.8
7.2
9.5
9.0
FTC303020DR47MBCA
0.47
11
15
7.3
6.7
9.0
8.3
FTC303020DR68MBCA
0.68
14
19
6.8
6.2
8.3
7.6
FTC303020D1R0MBCA
1.0
14
20
6.5
6.0
8.0
7.3
FTC303020D1R5MBCA
1.5
22
30
5.0
4.5
5.5
5.0
FTC303020D2R2MBCA
2.2
37
45
4.7
4.3
6.0
5.5
FTC303020D3R3MBCA
3.3
54
70
3.7
3.4
4.3
3.8
FTC303020D4R7MBCA
4.7
75
100
3.2
2.8
3.5
3.2
FTC303020D6R8MBCA
6.8
90
115
2.7
2.3
3.0
2.5
FTC303020D100MBCA
10
140
170
2.4
2.0
2.6
2.2
Test remarks
Note 1.：All test data is referenced to 25 ℃ ambient.
Note 2.：Test Condition:1MHz, 1.0Vrms.
Note 3.：Irms:DC current (A) that will cause an approximate △T of 40 ℃.
Note 4.： Isat:DC current (A) that will cause L0 to drop approximately 30%.
Note 5.： Operating Temperature Range -55℃ to + 125℃.
Note 6.：The part temperature (ambient + temp rise) should not exceed 125 under ℃ the worst case operating conditions. Circuit design,
Note 7.：The rated current as listed is either the saturation current or the heating current depending on which value is lower.
Note 8 ：For FTC series inductors,absolute maximum voltage: DC 20V
6 . Structure
component placement, PCB trace size and thickness, airflow and other cooling provision all affect the part temperature. Part
temperature should be verified in the end application.
更 多 资 讯 ,请 点 击 长 江 微 电 官 网 more information, Please click： WWW.CJIANG.COM.CN
深圳市长江微电科技有限公司
SZCJIANGTECHNOLOGYCO.,LTD
7. Current Characteristic
FTC100765D1R5MBCA
FTC100765D2R6MGCA
FTC160865DR22MGCA
FTC160865DR47MGCA
FTC160808SR24MBCA
FTC160808SR24MBCA
FTC160808SR47MBCD
FTC160808SR24MBCA
FTC160810SR22MBCA
FTC160808SR56MBCA
FTC121065S2R2MBCA
FTC160808SR22MBCA
FTC160808SR47MBCA
FTC160808SR68MBCA
FTC160808S1R0MGCD
FTC160808S2R2MGCA
FTC160810SR24MBCA
FTC160810SR47MBCA
更 多 资 讯 ,请 点 击 长 江 微 电 官 网 more information, Please click： WWW.CJIANG.COM.CN
深圳市长江微电科技有限公司
SZCJIANGTECHNOLOGYCO.,LTD
FTC160810SR56MBCA
FTC160810SR68MBCA
FTC141265SR33MBCA
FTC141265SR33MGCA
FTC141265SR47MBCA
FTC141265SR47MGCA
FTC141208SR24MBCA
FTC141208SR33MBCA
FTC141208SR33MGCA
FTC141208SR47MBCA
FTC141208SR47MGCA
FTC201265S1R0MBCA
FTC201265D1R0MGCA
FTC201208SR24MGCA
FTC201265S2R2MBCA
FTC201208SR33MBCA
FTC201208SR24MBCA
FTC201208SR47MBCA
更 多 资 讯 ,请 点 击 长 江 微 电 官 网 more information, Please click： WWW.CJIANG.COM.CN
深圳市长江微电科技有限公司
SZCJIANGTECHNOLOGYCO.,LTD
FTC201208SR47MGCA
FTC201208SR47MBCD
FTC201208S1R0MBCA
FTC201208S1R0MBCD
FTC201208S1R0MGCD
FTC201208S2R1MBCA
FTC201210SR10MBCA
FTC201210SR22MBCA
FTC201210SR24MBCA
FTC201210SR24MGCD
FTC201210SR33MBCA
FTC201210SR47MBCA
FTC201210SR68MBCA
FTC201210S1R0MBCA
FTC201210S1R5MBCA
FTC201210S2R2MBCA
FTC201608SR22MBCA
FTC201608SR24MBCA
更 多 资 讯 ,请 点 击 长 江 微 电 官 网 more information, Please click： WWW.CJIANG.COM.CN
深圳市长江微电科技有限公司
SZCJIANGTECHNOLOGYCO.,LTD
FTC201608SR33MBCA
FTC201608SR47MBCA
FTC201608SR47MGCA
FTC201608SR68MBCA
FTC201608S1R0MBCA
FTC201608S1R0MGCD
FTC201608S1R5MBCA
FTC201608S4R7MBCA
FTC201610SR22MBCA
FTC201610SR33MGCA
FTC201608S2R2MBCA
FTC201610SR10MBCA
FTC201610SR24MBCA
FTC201610SR47MBCA
FTC201608S3R3MBCA
FTC201610SR15MBCA
FTC201610SR33MBCA
FTC201610SR47MGCA
更 多 资 讯 ,请 点 击 长 江 微 电 官 网 more information, Please click： WWW.CJIANG.COM.CN
深圳市长江微电科技有限公司
SZCJIANGTECHNOLOGYCO.,LTD
FTC201610SR68MBCA
FTC201610S1R0MBCD
FTC201610S2R2MBCA
FTC201610S3R3MBCA
FTC201612SR10MBCA
FTC201612S1R5MBCA
FTC201610S1R0MBCA
FTC201610S1R0MGCD
FTC201610S2R2MGCA
FTC201610S4R7MBCA
FTC201610S1R0MGCA
FTC201610S1R5MBCA
FTC201610D2R2MBCA
FTC201610S4R7MGCA
FTC201612SR24MBCA
FTC201612SR33MBCA
FTC252010SR22MBCA
FTC252010SR22MGCA
更 多 资 讯 ,请 点 击 长 江 微 电 官 网 more information, Please click： WWW.CJIANG.COM.CN
深圳市长江微电科技有限公司
SZCJIANGTECHNOLOGYCO.,LTD
FTC252010SR24MBCA
FTC252010SR47MBCA
FTC252010S1R0MBCA
FTC252010S1R5MGCA
FTC252010S3R3MBCA
FTC252010S4R7MGCA
FTC252010SR33MBCA
FTC252010SR47MGCA
FTC252010S1R0MGCA
FTC252010S2R2MBCA
FTC252010S3R3MGCA
FTC252010S4R7MBCD
FTC252010SR33MGCA
FTC252010SR68MBCA
FTC252010S1R5MBCA
FTC252010S2R2MGCA
FTC252010S4R7MBCA
FTC252010S6R8MBCA
更 多 资 讯 ,请 点 击 长 江 微 电 官 网 more information, Please click： WWW.CJIANG.COM.CN
深圳市长江微电科技有限公司
SZCJIANGTECHNOLOGYCO.,LTD
FTC252010S100MBCA
FTC252010S100MGCA
FTC252010SR10MBCA
FTC252012SR15MBCA
FTC252012SR24MBCA
FTC252012SR24MGCA
FTC252010S220MBCA
FTC252012SR22MBCA
FTC252012SR33MBCA
FTC252012SR47MBCA
FTC252012SR47MBCD
FTC252012SR47MGCD
FTC252012SR68MBCA
FTC252012S1R0MBCA
FTC252012S1R0MBCD
FTC252012S1R0MGCD
FTC252012S1R5MBCA
FTC252012S1R5MBCD
更 多 资 讯 ,请 点 击 长 江 微 电 官 网 more information, Please click： WWW.CJIANG.COM.CN
深圳市长江微电科技有限公司
SZCJIANGTECHNOLOGYCO.,LTD
FTC252012S1R5MBCE
FTC252012S1R5MGCA
FTC252012S2R1MGCA
FTC252012S3R3MBCA
FTC252012S4R7MGCA
FTC252012S6R8MBCA
FTC252012S100MGCA
FTC322512SR22MBCA
FTC322512SR24MBCA
FTC322510S2R2MBCA
FTC322510SR22MGCA
FTC322512SR33MBCA
FTC252012S2R2MBCA
FTC252012S4R7MBCA
FTC252012S100MBCA
FTC322510S3R3MBCA
FTC322510S4R7MBCA
FTC322512SR47MBCA
更 多 资 讯 ,请 点 击 长 江 微 电 官 网 more information, Please click： WWW.CJIANG.COM.CN
深圳市长江微电科技有限公司
SZCJIANGTECHNOLOGYCO.,LTD
FTC322512SR47MGCA
FTC322512SR47MBCD
FTC322512SR68MBCD
FTC322512S1R0MBCA
FTC322512S1R0MBCD
FTC322512S1R5MBCA
FTC322512S2R2MBCD
FTC322512S3R3MGCA
FTC303020D1R0MBCA
FTC322512S2R2MGCD
FTC322512S4R7MBCA
FTC303020D2R2MBCA
FTC322512SR68MBCA
FTC322512S1R0MGCA
FTC322512S2R2MBCA
FTC322512S3R3MBCA
FTC303018D4R7MBCA
FTC303020D1R5MBCA
更 多 资 讯 ,请 点 击 长 江 微 电 官 网 more information, Please click： WWW.CJIANG.COM.CN
深圳市长江微电科技有限公司
SZCJIANGTECHNOLOGYCO.,LTD
8. Reliability
Item
Requirements
Insulation Resistance
≥100MΩ
Test Methods and Remarks
100 VDC between inductor coil and The
middle of the top surface of the body for 60 seconds.
Dip pads in flux .
Solderability
90% or more of electrode area shall
Solder Composition: Sn/Ag3.0/Cu0.5(Pb-Free).
be coated by new solde.
Solder Temperature: 245±5℃.
Immersion Time: (5±1) s.
Dip pads in flux.
Resistance to Soldering
Heat
No visible mechanical damage.
Inductance change: Within ±10.
Solder Composition: Sn/Ag3.0/Cu0.5(Pb-Free).
Solder Temperature: 260±5℃.
Immersion Time: 10±1sec.
Adhesion of teral
electrode
High temperature
Strong bond between the pad and
the core, without come off PCB.
No case deformation or change in
appearance.
Inductance change: Within ±10%
Low temperature
No visible mechanical damage.
Inductance change: Within ±10%
Inductors shall be subjected to (260±5)℃ for (20±5)s
Soldering in the base whit 0.3mm solder.
And then aplombelectrode way plus tax 10 N for
(10±1) seconds.
Temperature: 125±2℃.
Time : 1000 hours.
Measurement at 24±4 hours after test conclusion.
Temperature: -40±2℃.
Time : 1000 hours.
Measurement at 24±4 hours after test conclusion.
The test sample shall be placed at (-55±3)℃ and
Thermal shock
Temperature
characteristic
No visible mechanical damage.
Inductance change: Within ±10%
Inductance change Pc-b,Pc-d:
Within ±20%
Static
Humidity
No visible mechanical damage.
Inductance change: Within ±10%
Life
No visible mechanical damage.
Inductance change: Within ±10%
(125±3)℃ for (30±3) , different temperature
conversion time is 2~3 utes.
The temperature cycle shall be repeated 32 cycles.
Placed at room temperature for 2 hours, within 48±4
hours of testing.
a：+20 ℃ （30~45） →
b: -40 ℃ （30~45） →
c: +20 ℃ （30~45） →
d: +125 ℃ （30~45） →
e: +20 ℃ （30~45）
Lb Lc
Ld Lc
Pc-b
100% Pc-d
100%
Lc
Lc
；
Inductors shall be subjected to (95±3)%RH .
at(60±2)℃ for (1000±4) h.
Placed at room temperature for 2 hours, within 48
hours of testing.
Inductors shall be store at (85±2)℃ for (1000±4)
hours with Irms applied.
Placed at room temperature for 2 hours, within 48
hours of testing
更 多 资 讯 ,请 点 击 长 江 微 电 官 网 more information, Please click： WWW.CJIANG.COM.CN
深圳市长江微电科技有限公司
SZCJIANGTECHNOLOGYCO.,LTD
9. Soldering Condition
(This is for recommendation, please customer perform adjustment according to actual application)
Recommend Reflow Soldering Profile：(solder : Sn96.5 / Ag3 / Cu0.5)
Profile Feature
Lead (Pb)-Free solder
Preheat：
Temperature Min (Tsmin)
150℃
Temperature Max (Tsmax)
200℃
Time (Tsmin to Tsmax ) (ts)
60 -120 seconds
Average ramp-up rate：
(Ts max to Tp)
3℃ / second max.
Time maintained above :
Temperature (TL )
217℃
Time (tL)
60-150 seconds
Peak Temperature (Tp)
260℃
Time within
+0
℃ of actual peak Temperature (tp)2
−5
10 seconds
Ramp-down Rate
6℃/second max.
Time 25℃ to Peak Temperature
8minutes max.
Allowed Re-flow times : 2 times
Remark : To avoid discoloration phenomena of chip on terminal electrodes, please use N2 Re-flow furnace .
更 多 资 讯 ,请 点 击 长 江 微 电 官 网 more information, Please click： WWW.CJIANG.COM.CN
深圳市长江微电科技有限公司
SZCJIANGTECHNOLOGYCO.,LTD
10. Packing
10.1 Dimension of plastic taping: (Unit: mm)
Series
W
±0.30
A0
±0.05
B0
+0.1/-0
D
+0.1/-0
D1
Min
E
±0.10
F
±0.10
K0
±0.05
P0
±0.10
P2
±0.10
P
±0.10
T
±0.05
Qty/Reel
100765
8.00
0.90
1.20
1.50
1.0
1.75
3.50
0.80
4.00
2.00
4.00
0.23
5K
121065
8.00
1.30
1.50
1.50
1.0
1.75
3.50
0.80
4.00
2.00
4.00
0.23
160865
8.00
1.10
1.90
1.50
1.0
1.75
3.50
0.80
4.00
2.00
4.00
0.23
160808
8.00
1.10
1.90
1.50
1.0
1.75
3.50
1.00
4.00
2.00
4.00
0.23
160810
8.00
1.10
1.90
1.50
1.0
1.75
3.50
1.20
4.00
2.00
4.00
0.23
141265
8.00
1.50
1.70
1.50
1.0
1.75
3.50
0.80
4.00
2.00
4.00
0.23
141208
8.00
1.50
1.70
1.50
1.0
1.75
3.50
1.00
4.00
2.00
4.00
0.23
201265
8.00
1.50
2.30
1.50
1.0
1.75
3.50
0.8
4.00
2.00
4.00
0.23
201208
8.00
1.50
2.30
1.50
1.0
1.75
3.50
1.00
4.00
2.00
4.00
0.23
201210
8.00
1.50
2.30
1.50
1.0
1.75
3.50
1.20
4.00
2.00
4.00
0.23
201608
8.00
1.90
2.30
1.50
1.0
1.75
3.50
1.00
4.00
2.00
4.00
0.23
201610
8.00
1.90
2.30
1.50
1.0
1.75
3.50
1.20
4.00
2.00
4.00
0.23
201612
8.00
1.90
2.30
1.50
1.0
1.75
3.50
1.40
4.00
2.00
4.00
0.23
252010
8.00
2.40
2.80
1.50
1.0
1.75
3.50
1.20
4.00
2.00
4.00
0.23
252012
8.00
2.40
2.80
1.50
1.0
1.75
3.50
1.40
4.00
2.00
4.00
0.23
322510
8.00
2.90
3.50
1.50
1.0
1.75
3.50
1.20
4.00
2.00
4.00
0.23
322512
8.00
2.90
3.50
1.50
1.0
1.75
3.50
1.40
4.00
2.00
4.00
0.23
303018
12.0
3.40
3.40
1.50
1.0
1.75
5.50
2.00
4.00
2.00
8.00
0.35
303020
12.0
3.40
3.40
1.50
1.0
1.75
5.50
2.20
4.00
2.00
8.00
0.35
3K
10.2 Dimension of Reel：(Unit: mm)
Type
A
0.5
B
0.5
C
0.5
D
1
All
178
60
12
1.5
11. Note
11.1 recommend products store in warehouse with temperature between 15 to 35℃ under humidity between 25 to 75%RH.
Even under storage conditions recommended above, solder ability of products will be degraded stored over 1 year old.
11.2 Cartons must be placed in correct direction which indicated on carton, otherwise the reel or wire will be deformed.
11.3 Storage conditions as below are inappropriate:
a. Stored in high electrostatic environment
b. Stored in direct sunshine, rain, snow or condensation.
c. Exposed to sea wind or corrosive gases, such as Cl2, H2S, NH3, SO2, NO2, etc.
11.4 The products are used in circuit board thickness greater than 1.6mm. If customers use less than the thickness of the circuit board that you
should confirm with the company, in order to recommend a more suitable product.
更 多 资 讯 ,请 点 击 长 江 微 电 官 网 more information, Please click： WWW.CJIANG.COM.CN
深圳市长江微电科技有限公司
SZCJIANGTECHNOLOGYCO.,LTD
12. Record
Version
Description
Page
Date
Amended by
Checked by
A0
First version
1~23
Nov.21.2022
Xi Rui.Niu
Dirk.Wang
1~23
Dec.14.2022
Xi Rui.Niu
Dirk.Wang
1~23
Dec.29.2022
Xi Rui.Niu
Dirk.Wang
A1
A2
newly increased： FTC303020D1R5MBCA
FTC252010S6R8MBCA FTC252010S220MBCA
FTC322510S2R2MBCA FTC201208SR47MBCD
newly increased： FTC303018D4R7MBCA
FTC322510S3R3MBCA FTC322510S4R7MBCA
. All rights reserved. Specification herein will be changed at any time without prior notice.
更 多 资 讯 ,请 点 击 长 江 微 电 官 网 more information, Please click： WWW.CJIANG.COM.CN
工商网监
湘ICP备2023018690号
