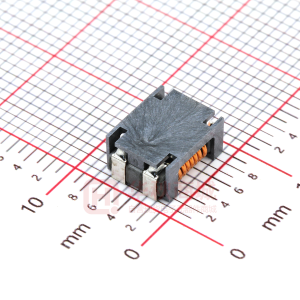

ACM90V

厂商：
TDK(东电化)
封装：
描述：
ACM90V - Common Mode Filters(SMD) For Power Line - TDK Electronics

数据手册：

下载ACM90V.pdf

立即购买

详情介绍
数据手册
价格&库存

ACM90V 数据手册

(1/2) Common Mode Filters(SMD) For Power Line ACM-V Series FEATURES • Have achieved miniaturization while keeping characteristics by adoption of exclusive square type closed magnetic cores. • Due to the low profile design, it is suitable for a surface mount. • High impedance characteristic has been achieved a superior effect for common mode noise suppression. • This products have serialized a large current product up to 8A corresponding for various DC power lines. • Operating temperature range has covered widely from –40 to +125°C. APPLICATIONS Common mode noise countermeasures for DC power lines of electronic control equipment, multi-media equipment for automotives and various electronic equipment power supply lines. PACKAGING STYLE AND QUANTITIES Packaging style Taping Type ACM70V ACM90V ACM12V Quantity 1500 pieces/reel 800 pieces/reel 500 pieces/reel Conformity to RoHS Directive PRODUCT IDENTIFICATION ACM 90V - 701 - 2PL - TL - 00 (1) (2) (3) (4) (5) (6) (1) Series name (2) Dimensional code (3) Impedance [at 100MHz] 701: 700Ω (4) Numbers of lines 2PL: 2 lines (5) Packaging style TL: ø330mm reel taping (6) TDK internal code TEMPERATURE RANGE Operating –40 to +125°C SHAPES AND DIMENSIONS/CIRCUIT DIAGRAM/RECOMMENDED PC BOARD PATTERN L 1 4 3 • No polarity c a b 1 W 4 2 2 3 Dimensions in mm Type ACM70V ACM90V ACM12V a 9.0 11.0 14.0 b 4.0 6.0 7.4 d c 1.5 1.5 2.7 d 3.0 3.5 5.2 A B A T Coplanarity: 0.1max. C D C Dimensions in mm Type ACM70V ACM90V ACM12V L 7.0±0.2 9.0±0.2 12.0±0.3 W 6.0±0.2 7.0±0.2 11.0±0.3 T 3.5max. 4.5max. 6.0max. A 1.5±0.2 1.5±0.2 2.7±0.2 B 1.5±0.2 2.0±0.2 2.5±0.2 C 1.5±0.2 1.5±0.2 2.3±0.2 D 4.0typ. 6.0typ. 7.4typ. Weight 0.35g 0.82g 2.30g • Conformity to RoHS Directive: This means that, in conformity with EU Directive 2002/95/EC, lead, cadmium, mercury, hexavalent chromium, and specific bromine-based flame retardants, PBB and PBDE, have not been used, except for exempted applications. • All specifications are subject to change without notice. 001-03 / 20061226 / e9713_acm_v.fm (2/2) ELECTRICAL CHARACTERISTICS Part No. ACM70V-701-2PL-TL00 ACM90V-701-2PL-TL00 ACM12V-701-2PL-TL00 Common mode impedance (Ω)typ.[at 100MHz] 700 700 700 DC resistance (MΩ)max. 15 10 6 Rated current Idc (A)max. 4.0 5.0 8.0 Rated voltage Edc (V)max. 80 80 80 Insulation resistance (MΩ )min. 10 10 10 TYPICAL ELECTRICAL CHARACTERISTICS IMPEDANCE vs. FREQUENCY CHARACTERISTICS ACM70V-701-2PL 10000 ACM90V-701-2PL 10000 1000 Impedance (Ω) Common mode 100 Differential mode 1000 Impedance (Ω) Common mode 100 Differential mode 10 10 1 1 10 Frequency (MHz) 100 1000 1 1 10 Frequency (MHz) 100 1000 ACM12V-701-2PL 10000 1000 Impedance (Ω) Common mode 100 Differential mode 10 1 1 10 Frequency (MHz) 100 1000 • All specifications are subject to change without notice. 001-03 / 20061226 / e9713_acm_v.fm

下载 PDF

ACM90V

1. 物料型号： - ACM70V-701-2PL-TL00 - ACM90V-701-2PL-TL00 - ACM12V-701-2PL-TL00

2. 器件简介： - TDK的ACM-V系列是用于电源线的共模滤波器，采用独家方形封闭式磁芯实现小型化同时保持特性。 - 低轮廓设计适合表面贴装。 - 高阻抗特性对共模噪声抑制效果优越。 - 产品系列包括大电流产品，最高可达8A，适用于各种直流电源线。 - 工作温度范围广泛，从-40°C至+125°C。

3. 引脚分配： - 2PL表示2线型号。

4. 参数特性： - 共模阻抗（S2）典型值在100MHz时为700Ω。 - DC电阻（M2）最大值分别为15Ω、10Ω和6Ω。 - 额定电流（Idc）最大值分别为4.0A、5.0A和8.0A。 - 额定电压（Edc）最大值为80V。 - 绝缘电阻（M）最小值为10MΩ。

5. 功能详解： - 该系列产品主要用于电子控制设备、汽车多媒体设备和各种电子设备电源线的共模噪声对策。

6. 应用信息： - 用于直流电源线的共模噪声抑制。

7. 封装信息： - Taping封装方式，具体数量为： - ACM70V：每卷1500个 - ACM90V：每卷800个 - ACM12V：每卷500个
