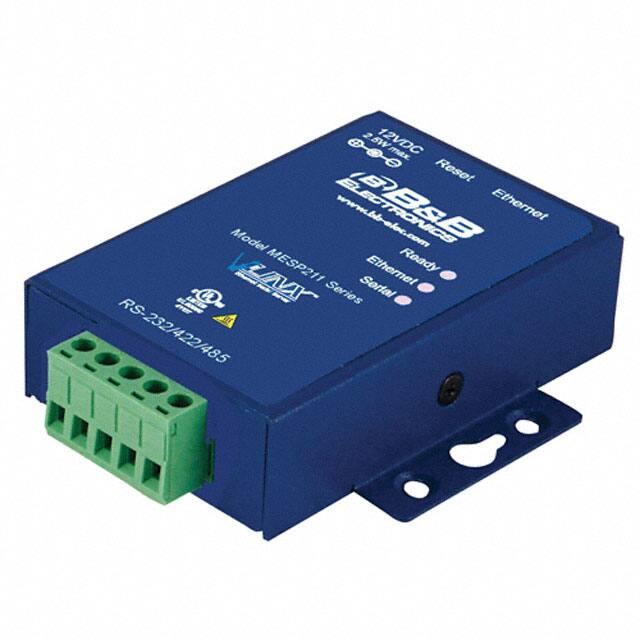

pn710-08860-05_R1_MESP211_2713ds B&B ELECTRONICS © 2013 by B&B Electronics. All rights reserved. MESP211 Vlinx ™ Ultra Compact Modbus Gateways 9 Modbus TCP Ethernet, Modbus ASCII & RTU RS-232/422/485 9 Modbus Flexibility – Serial & Ethernet, Masters & Slaves 9 View Messaging Status in Real Time 9 Wide Operating Temperature (-40 to 80C) 9 Wide Voltage input 10 to 30 VDC 9 Ultra Compact IP30 Metal Enclosure 9 Heavy industrial 61000-6-2 EMC Level 3 tested for harsh environments PRODUCT INFORMATION Vlinx™ MESP211 series Modbus Gateways connect Modbus devices to Ethernet networks and let you monitor and control your Modbus devices from anywhere on the Ethernet LAN or WAN. Supporting up to 16 masters and 32 slaves, the gateways feature an auto-detecting 10/100 Ethernet copper RJ-45 port and a serial port that supports RS-232/422/485 communications via a DB9 male or a terminal block connection. The product is built for use in industrial environments, featuring a heavy duty metal enclosure that is panel (standard) or DIN rail mountable (with optional adapters). The product is supplied with a DC power source ranging from 10 to 30VDC and features a barrel connector. Ease of Use Configuration, upgrades and monitoring of the serial server are simple, easy tasks with Vlinx Manager Software. It installs right on your PC giving you access the serial server via your desktop. Remotely manage the Modbus Gateway over a LAN or WAN via the build-in web server. This is helpful for off-site troubleshooting and can be done with a simple web browser. Specifications Power External power supply included 10 to 30 VDC Barrel connector 5.5 x 2.1mm 2.5 W Mechanical LED Indicators Serial Port, Ethernet Link, Ready LEDs Switches Reset Button Dimensions 3.1 x 0.9 x 2.0 (with ears 2.89) inches Enclosure Metal, IP 30 Environmental Operating Temperature -40 to 80°C (-40 to 176° F) Operating Humidity 10 to 95% Non-condensing MTBF 186,310 hours MTBF Calc Method Parts Count Reliability Prediction Network Serial Memory 8 KB per port Network Memory 4 KB IP Port Addresses Setting in TCP Mode 8899 10/100 Mbps Auto-detecting , 10BaseT or LAN 100BaseTX IEEE 802.3 auto detecting & auto Ethernet MDI/MDX, 10BaseT and 100Base TX Ordering Information Source Input Voltage Connector Power Consumption Model MESP211D MESP211T Serial port Serial connector Ethernet port Ethernet connector RS-232/422/485 DB9 Male 1 RS-232/422/485 Removable terminal block 1 RJ45 RJ45 MDR-40-24 DRAD35 232NM9 TB5P508SR-2PK Accessories Din Rail Mount, 24VDC, 40 W Din Rail Adapter Clip (pair) Null Modem Crossover Cable Replacement terminal block for the MESP211T www.bb-elec.com orders@bb-elec.com support@bb-elec.com International Office: 707 Dayton Road PO Box 1040 Ottawa, IL 61350 USA 815-433-5100 Fax 433-5104 European Office: Westlink Commercial Park Oranmore Co. Galway Ireland +353 91 792444 Fax +353 91 792445 Specifications RS-232 (DB9) RS-232 (Terminal Block) RS-485 2-Wire RS-422/485 4-Wire Serial Connector Data Rate Protocols IP Mode TCP/UDP UDP Connection Mode Search Diagnostics Firmware Upgrade Modbus Monitor OS Compatibility Serial Technology TD, RD, DTR, DSR, RTS, CTS, DCD, Signal Ground TD, RD, RTS, CTS, Signal Ground Data A(-), Data B(+), GND TDA(-), TDB(+), RDA(-), RDB(+), GND DB9M or Removable Terminal Blocks Up to 230.4 Kbps Protocols TCP, IPv4, UDP, ARP, HTTP 1.0, ICMP/PING, DHCP/BOOTP Static, DHCP User definable Unicast or Multicast Other MODBUS RTU Master / Slave, MODBUS ASCII Master/Slave Serial direct COM and Ethernet Auto Search or specific IP Display PC IP, ping, save test config (text readable) Firmware can be updated through the manager software The Manager Software has a Modbus Monitor feature Configuration Software XP (32/64), Vista (32/64), Windows 7 (32/64), Windows 8 (32/64), Server 2003 (32/64), Server 2008 (32/64), Server 2012 (64) Approvals / Certifications Emissions FCC Class B, CISPR Class A (EN55022) CE EN61000-6-2:2005 (Heavy Industrial) EN61000-4-2:2008 (ESD) +/-8kV Contact, +/-15kV Air EN61000-4-3:2006 (RI) 10V/m, 80-1000MHz; 3V/m, 1.3 to 2.7 GHz EN61000-4-4:2004 (EFT Burst) +/-2kV DC ports; +/-1kV signal ports EN61000-4-5:2005 (Surge) +/- 0.5 kV DC Ports, +/- 1 kV Signal Ports EN61000-4-6:2005 (CI) 10 VRMS, 0.15 to 80 MHz EN61000-4-8:2001 (Magnetic) 10A/m, 50Hz & 60Hz IEC60068-2-27 50G peak, 11ms, 3 axes Vibration IEC60068-2-6 10-500Hz, 4G, 3 axes Freefall (Drop) IEC60068-2-32 10 total drops from sides, corner and edges, 1M Shock www.bb-elec.com orders@bb-elec.com support@bb-elec.com International Office: 707 Dayton Road PO Box 1040 Ottawa, IL 61350 USA 815-433-5100 Fax 433-5104 European Office: Westlink Commercial Park Oranmore Co. Galway Ireland +353 91 792444 Fax +353 91 792445 ` www.bb-elec.com orders@bb-elec.com support@bb-elec.com International Office: 707 Dayton Road PO Box 1040 Ottawa, IL 61350 USA 815-433-5100 Fax 433-5104 European Office: Westlink Commercial Park Oranmore Co. Galway Ireland +353 91 792444 Fax +353 91 792445 Mechanical Diagram Dimensional Diagram of an MESP211 Serial Server (dimensions in inches & millimeters) www.bb-elec.com orders@bb-elec.com support@bb-elec.com International Office: 707 Dayton Road PO Box 1040 Ottawa, IL 61350 USA 815-433-5100 Fax 433-5104 European Office: Westlink Commercial Park Oranmore Co. Galway Ireland +353 91 792444 Fax +353 91 792445
