RoHS

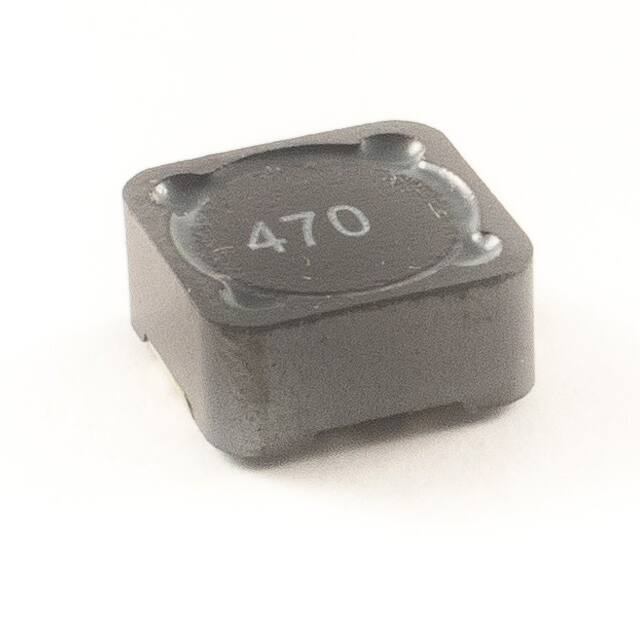

Power Chip Shielded Inductors
Dimensions:
PCSDR125
Inches
(mm)
8
8
Allied
Part
Number
Inductance Tolerance
(µH)
(%)
Test
Freq.
KHz, 0.1V
DCR
(Ω)
Max
I rms
(A)
I sat
(A)
0.0022
0.0029
0.0039
0.0035
0.0054
0.0076
17.401
15.069
12.000
13.709
11.005
9.301
32.96
23.54
20.00
18.31
14.98
12.68
0.0099
PCSDR125-R47T-RC
PCSDR125-R82T-RC
PCSDR125-1R0T-RC
PCSDR125-1R5T-RC
PCSDR125-2R2T-RC
PCSDR125-3R3T-RC
PCSDR125-3R9T-RC
0.47
0.82
1.0
1.5
2.2
3.3
3.9
30
30
30
30
30
30
30
100
100
100
100
100
100
100
PCSDR125-4R7T-RC
4.7
30
100
0.0126
7.346
7.204
10.99
9.690
PCSDR125-6R8T-RC
6.8
30
100
0.0148
6.656
8.670
PCSDR125-8R2M-RC
PCSDR125-100M-RC
8.2
20
10
100
100
0.0200
20
0.0227
5.565
5.370
7.170
PCSDR125-120M-RC
12
20
100
0.0250
4.736
6.590
PCSDR125-150M-RC
15
20
100
0.0334
4.277
5.680
PCSDR125-180M-RC
18
100
0.0373
3.896
5.320
PCSDR125-220M-RC
22
20
20
100
0.0475
3.710
4.710
PCSDR125-270M-RC
27
20
100
0.0594
3.318
4.230
PCSDR125-330M-RC
33
20
100
0.0606
3.285
3.830
PCSDR125-390M-RC
39
20
100
0.0767
2.920
3.510
PCSDR125-470M-RC
47
20
100
0.0888
2.714
3.230
PCSDR125-560M-RC
PCSDR125-680M-RC
PCSDR125-820M-RC
56
68
82
20
20
20
100
100
100
0.1062
0.1282
0.1700
2.482
2.323
2.063
2.890
2.620
2.460
PCSDR125-101M-RC
100
20
100
0.2040
1.790
2.200
PCSDR125-121M-RC
PCSDR125-151M-RC
120
150
20
20
100
100
0.2350
0.3350
1.668
2.030
1.482
1.810
PCSDR125-181M-RC
180
20
100
0.3630
1.341
1.660
PCSDR125-221M-RC
220
20
100
0.4920
1.191
PCSDR125-271M-RC
270
20
100
0.5700
1.091
1.510
1.340
PCSDR125-331M-RC
330
20
100
0.6500
1.200
PCSDR125-391M-RC
390
20
100
0.7200
1.063
0.969
PCSDR125-471M-RC
470
20
100
0.9820
0.871
1.010
PCSDR125-561M-RC
560
20
100
1.1300
0.778
0.910
PCSDR125-681M-RC
680
20
100
1.3200
0.704
0.850
PCSDR125-821M-RC
PCSDR125-102M-RC
PCSDR125-122M-RC
820
1000
1200
20
20
20
100
100
100
1.7880
2.0280
2.3300
0.605
0.568
0.530
0.770
0.700
0.630
All specifications subject to change without notice.
949-356-1780
7.850
Magnetically Shielded
High saturation current
Expanded operating temp range
Low DC Resistance
High Energy Storage
Low Energy Loss
Suitable for pick and place
Electrical
Inductance Range: .47µH to 1200µH
Tolerance: .47µH to 6.8µH ±30%,
8.2µH to 1200µH ±20%
Available in tighter tolerances
Test Frequency: 100KHz, 0.1V
Operating Temp: -55ºC ~ +125ºC
Irms: Current at which the ∆T=40ºC
Isat: Current at which the inductance
drops 35% from initial value
Test Equipment
(L): HP 4284A LCR meter or equivalent
DCR: HP 4338B Millohm meter or equivalent
IDC: 3260B WK & DC Bias 3265B WK
Physical
Packaging: 600 pieces per 13 inch reel
Marking: EIA Inductance Code.
1.110
ALLIED COMPONENTS INTERNATIONAL
REVISED15
12/11/2020
Features
•
•
•
•
•
•
•
www.alliedcomponents.com
