A Product Line of
Diodes Incorporated
AN431
ADJUSTABLE PRECISION SHUNT REGULATORS
Description
Pin Assignments
The AN431 series ICs are three-terminal adjustable shunt regulators
with guaranteed thermal stability over a full operation range. These
ICs feature sharp turn-on characteristics, low temperature coefficient
and low output impedance, which make them ideal substitutes for
Zener diodes in applications such as switching power supply, charger
and other adjustable regulators.
(Top View)
ANODE
3
The output voltage of these ICs can be set to any value between V REF
(2.5V) and the maximum cathode voltage (36V).
The AN431 precision reference is offered in two voltage tolerance:
0.5% and 1.0%.
1
2
CATHODE
REF

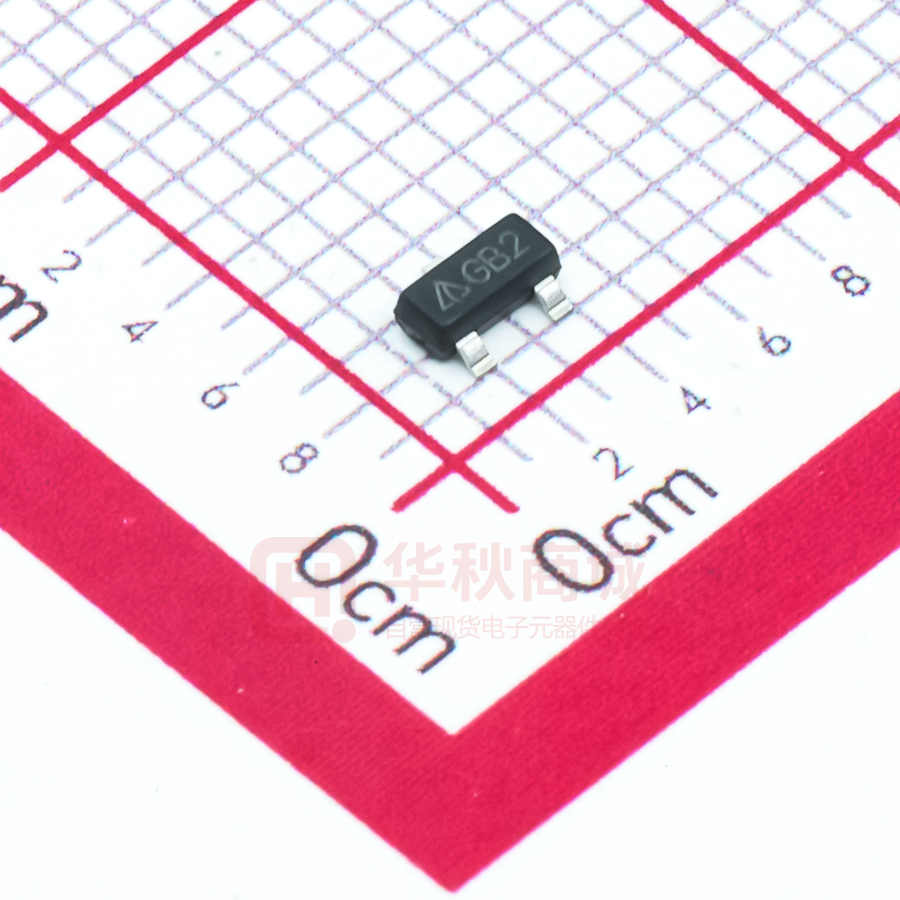

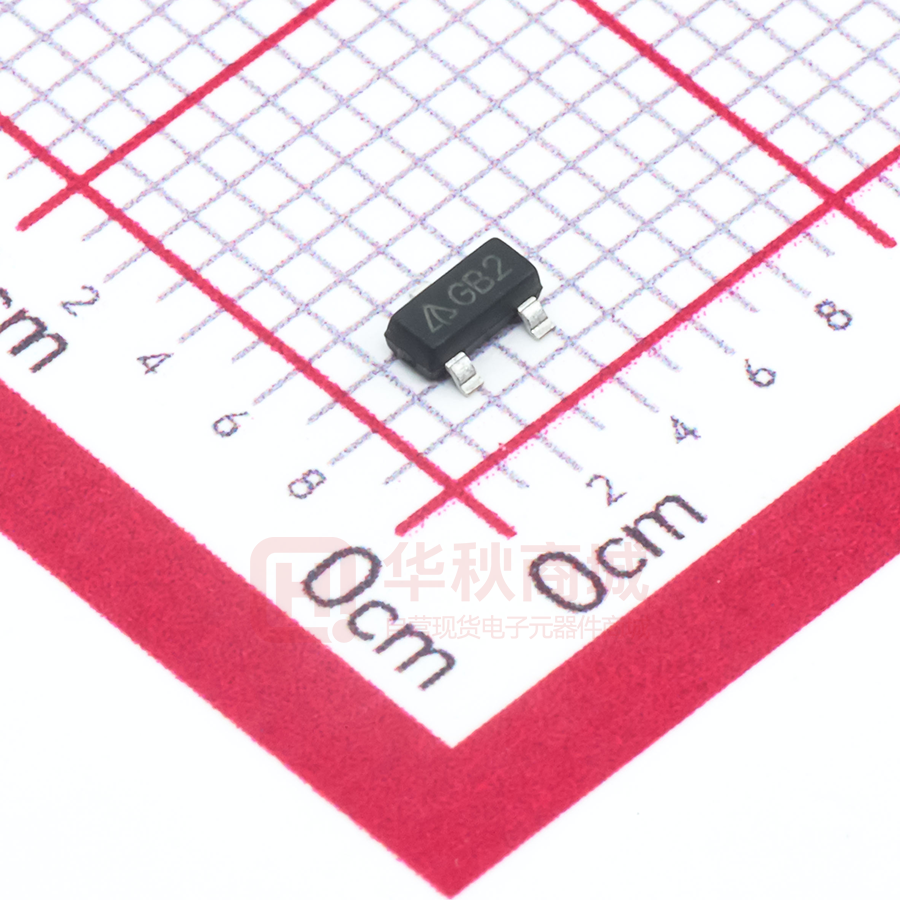

These ICs are available in SOT-23 package.
Features
SOT-23
Programmable Precise Output Voltage from 2.5V to 36V
High Stability under Capacitive Load
Low Temperature Deviation: 4.5mV Typical
Low Equivalent Full-range Temperature Coefficient with
20PPM/oC Typical
Low Dynamic Output Resistance: 0.15Ω Typical
Sink Current Capacity from 1mA to 100mA
Low Output Noise
Wide Operating Range of -40 to +125oC
Lead-Free Packages: SOT-23
Totally Lead-Free; RoHS Compliant (Notes 1 & 2)
Lead-Free Packages, Available in “Green” Molding Compound:
SOT-23
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Notes:
Applications
Charger
Voltage Adapter
Switching Power Supply
Graphic Card
Precision Voltage Reference
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain
