DMN1003UCA6
N-CHANNEL ENHANCEMENT MODE MOSFET
Product Summary
Features
BVSSS
RSS(ON) Typ
IS Max
TA = +25°C
12V
2.5mΩ @ VGS = 3.8V
23.6A
Description
This new generation MOSFET has been designed to minimize the onstate resistance (RSS(ON)) and yet maintain superior switching
performance, making it ideal for high efficiency power management
applications.
Mechanical Data
Applications
CSP with Footprint 3.54mm × 1.77mm
Height = 0.21mm for Low Profile
ESD Protection of Gate
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
For automotive applications requiring specific change
control (i.e. parts qualified to AEC-Q100/101/200, PPAP
capable, and manufactured in IATF 16949 certified facilities),
please contact us or your local Diodes representative.
https://www.diodes.com/quality/product-definitions/
Battery Management
Load Switch
Battery Protection

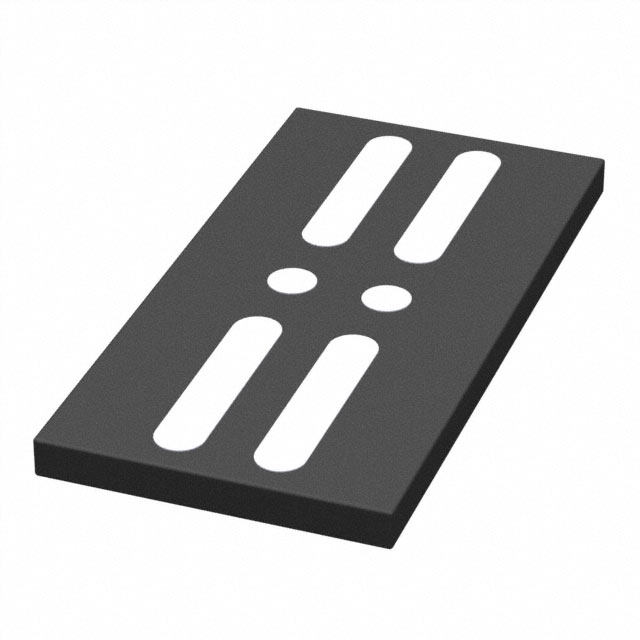

Case: X3-DSN3518-6
Terminal Connections: See Diagram Below
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Finish — NiPdAu. Solderable per MIL-STD-202,
Method 208 e4
Weight: 0.0026 grams (Approximate)
G1
1. Source 1
2. Gate 1
3. Source 1
4. Source 2
5. Gate 2
6. Source 2
ESD PROTECTED
G2
Top View
S1
S2
Equivalent Circuit
Ordering Information (Note 4)
Part Number
DMN1003UCA6-7
Notes:
Case
X3-DSN3518-6
Packaging
3000/Tape & Reel
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS), 2011/65/EU (RoHS 2) & 2015/863/EU (RoHS 3) compliant.
2. See https://www.diodes.com/quality/lead-free/ for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and
Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain
