LM27762
SNVSAF7B – AUGUST 2016 – REVISED FEBRUARY 2017
LM27762 Low-Noise Positive and Negative Output Integrated
Charge Pump Plus LDO
1 Features
3 Description
•
The LM27762 delivers very low-noise positive and
negative outputs that are adjustable between ±1.5 V
and ±5 V. Input-voltage range is from 2.7 V to 5.5 V,
and output current goes up to ±250 mA. With an
operating current of only 390 µA and 0.5-µA typical
shutdown current, the LM27762 provides ideal
performance for power amplifier and DAC bias and
other high-current, low-noise negative voltage needs.
The device provides a small solution size with few
external components.
1
•
•
•
•
•
•
•
•
•
•
•
•
Generates Low-Noise Adjustable Positive Supply
Voltage Between 1.5 V and 5 V and Negative
Supply Voltage Between –1.5 V and –5 V
Input Voltage Range 2.7 V to 5.5 V
±250-mA Output Current
Inverting Charge Pump Followed by Negative
LDO
2-MHz Low-Noise Fixed-Frequency Operation
2.5-Ω Inverter Output Impedance, VIN = 5 V
Negative LDO Dropout Voltage 30 mV at 100 mA,
VOUT = –5 V
Positive LDO with 45-mV Dropout Voltage at 100
mA, VOUT = 5 V
390-µA Quiescent Current (Typical)
Shutdown Quiescent Current to 0.5 µA (Typical)
Current Limit and Thermal Protection
Power Good Pin (Active Low)
Create a Custom Design Using the LM27762 With
the WEBENCH® Power Designer
2 Applications
•
•
•
•
•
•
Negative voltage is generated by a regulated
inverting charge pump followed by a low-noise
negative LDO. The inverting charge pump of the
LM27762 device operates at 2-MHz (typical)
switching frequency to reduce output resistance and
voltage ripple. Positive voltage is generated from the
input by a low-noise positive LDO.
Positive and negative outputs of LM27762 have
dedicated enable inputs. These outputs support
independent timing for the positive and negative rails
for specific system power-sequence needs. Enable
inputs can be also shorted together and connected to
the input voltage. The LM27762 has an optional
Power Good feature.
Device Information(1)
Hi-Fi Audio Headphone Amplifiers
Operational Amplifier Power Biasing
Powering Data Converters
Wireless Communication Systems
Interface Power Supplies
Handheld Instrumentation
PART NUMBER
LM27762
PACKAGE

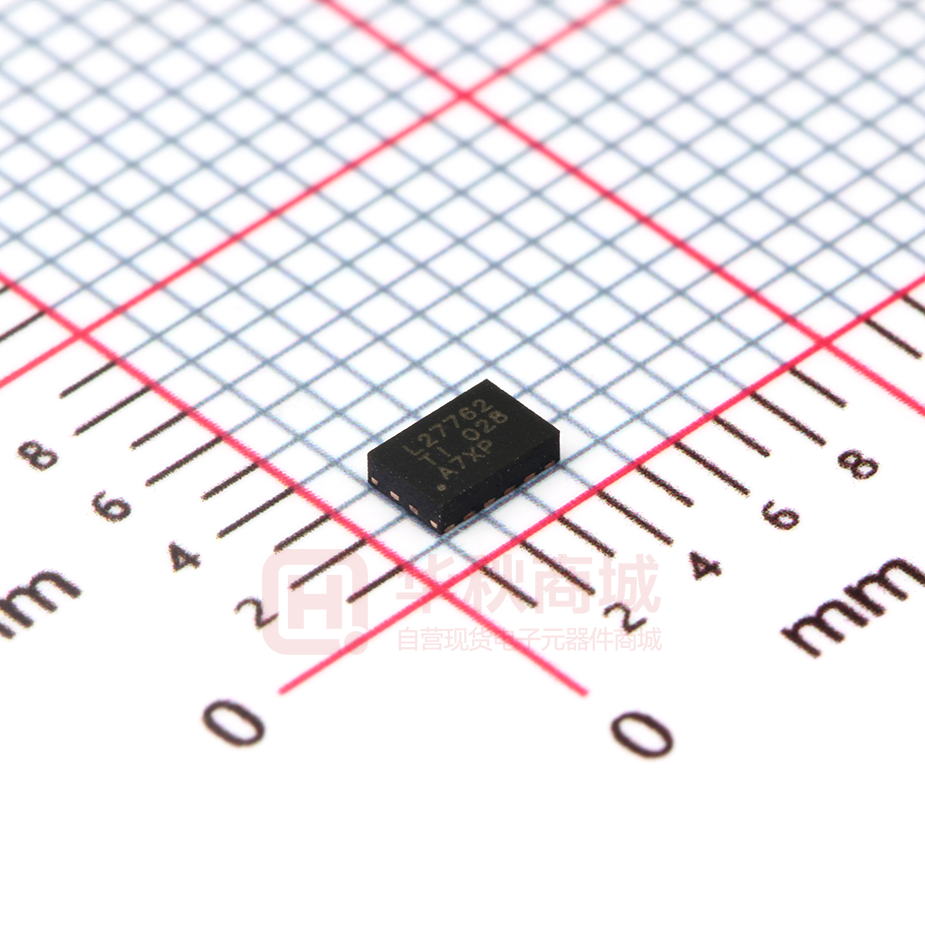

WSON (12)
BODY SIZE (NOM)
2.00 mm × 3.00 mm
(1) For all available packages, see the orderable addendum at
the end of the data sheet.
space
Simplified Schematic
2.7 V to 5.5 V
CP
VIN
1.5 V to 5 V
CVIN
CCP
OUT+
RPU
R1
PGOOD
C1-
COUT+
FB+
LM27762
R2
GND
C1
R4
C1+
COUT-
FB-
EN+
R3
OUT-
EN-
-1.5 V to -5 V
Copyright © 2016, Texas Instruments Incorporated
1
An IMPORTANT NOTICE at the end of this data sheet addresses availability, warranty, changes, use in safety-critical applications,
intellectual property matters and other important disclaimers. PRODUCTION DATA.
LM27762
SNVSAF7B – AUGUST 2016 – REVISED FEBRUARY 2017
www.ti.com
Table of Contents
1
2
3
4
5
6
7
Features ..................................................................
Applications ...........................................................
Description .............................................................
Revision History.....................................................
Pin Configuration and Functions .........................
Specifications.........................................................
1
1
1
2
3
4
6.1
6.2
6.3
6.4
6.5
6.6
4
4
4
4
5
6
Absolute Maximum Ratings ......................................
ESD Ratings..............................................................
Recommended Operating Conditions.......................
Thermal Information ..................................................
Electrical Characteristics...........................................
Typical Characteristics ..............................................
Detailed Description .............................................. 8
7.1 Overview ................................................................... 8
7.2 Functional Block Diagram ......................................... 9
7.3 Feature Description................................................. 10
7.4 Device Functional Modes........................................ 11
8
Application and Implementation ........................ 12
8.1 Application Information............................................ 12
8.2 Typical Application ................................................. 12
9 Power Supply Recommendations...................... 17
10 Layout................................................................... 17
10.1 Layout Guidelines ................................................. 17
10.2 Layout Example .................................................... 18
11 Device and Documentation Support ................. 19
11.1
11.2
11.3
11.4
11.5
11.6
Device Support......................................................
Receiving Notification of Documentation Updates
Community Resources..........................................
Trademarks ...........................................................
Electrostatic Discharge Caution ............................
Glossary ................................................................
19
19
19
19
19
19
12 Mechanical, Packaging, and Orderable
Information ........................................................... 20
4 Revision History
NOTE: Page numbers for previous revisions may differ from page numbers in the current version.
Changes from Revision A (September 2016) to Revision B
•
Page
Added added ulinks for WEBENCH ...................................................................................................................................... 1
Changes from Original (July 2016) to Revision A
Page
•
Changed "Switched Capacitor" to "Charge Pump" in title ..................................................................................................... 1
•
Changed "Generates Low-Noise Adjustable Positive and Negative Supply Voltages From ±1.5 V and ±5 V" to
"Generates Low-Noise Adjustable Positive Supply Voltages Between 1.5 V and 5 V and Negative Supply Voltages
From –1.5 V to –5 V" in Features........................................................................................................................................... 1
2
Submit Documentation Feedback
Copyright © 2016–2017, Texas Instruments Incorporated
Product Folder Links: LM27762
LM27762
www.ti.com
SNVSAF7B – AUGUST 2016 – REVISED FEBRUARY 2017
5 Pin Configuration and Functions
DSS Package
12-Pin WSON With Thermal Pad
Top View
12
2
11
MAL
P
AD
1
10
THE
R
3
4
9
5
8
6
7
Pin Functions
PIN
NAME
NUMBER
TYPE
DESCRIPTION
C1+
10
Power
Positive terminal for C1
C1–
9
Power
Negative terminal for C1
CP
5
Power
Negative unregulated output voltage
EN+
12
Input
Enable input for the positive LDO, Active high
EN–
8
Input
Enable input for the charge pump and negative LDO, Active high
FB+
2
Power
Feedback input. Connect FB+ to an external resistor divider between OUT+ and
GND. DO NOT leave unconnected.
FB–
7
Power
Feedback input. Connect FB– to an external resistor divider between OUT– and
GND. DO NOT leave unconnected.
GND
4
Ground
Ground
OUT+
11
Power
Regulated positive output voltage
OUT–
6
Power
Regulated negative output voltage
PGOOD
1
Output
Power Good flag; open drain; Logic 0 = power good, Logic 1 = power not good.
Connect to ground if not used.
VIN
3
Power
Positive power supply input
Thermal Pad
—
Ground
Ground. DO NOT leave unconnected.
Submit Documentation Feedback
Copyright © 2016–2017, Texas Instruments Incorporated
Product Folder Links: LM27762
3
LM27762
SNVSAF7B – AUGUST 2016 – REVISED FEBRUARY 2017
www.ti.com
6 Specifications
6.1 Absolute Maximum Ratings
over operating free-air temperature range (unless otherwise noted) (1) (2)
MIN
MAX
UNIT
5.8
V
VIN to GND or GND to VOUT
GND − 0.3
EN+, ENCPOUT, OUT+ and OUT- , continuous output current
VIN
V
300
mA
1
s
OUT+, OUT- short-circuit duration to GND (3)
Continuous power dissipation
(4)
Internally limited
TJMAX (4)
Operating input voltage, VIN
Operating output current, IOUT
150
°C
2.7
5.5
V
0
250
mA
Operating ambient temperature, TA
–40
85
°C
Operating junction temperature, TJ
–40
125
°C
Storage temperature, Tstg
–65
150
°C
(1)
(2)
(3)
(4)
Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device. These are stress ratings
only, which do not imply functional operation of the device at these or any other conditions beyond those indicated under Recommended
Operating Conditions. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
If Military/Aerospace specified devices are required, contact the TI Sales Office/Distributors for availability and specifications.
OUT may be shorted to GND for one second without damage. However, shorting OUT to VIN may damage the device and must be
avoided. Also, for temperatures above TA = 85°C, VOUT must not be shorted to GND or VIN or device may be damaged.
Internal thermal shutdown circuitry protects the device from damage.
6.2 ESD Ratings
VALUE
V(ESD)
(1)
(2)
Electrostatic discharge
Human-body model (HBM), per ANSI/ESDA/JEDEC JS-001 (1)
±1000
Charged-device model (CDM), per JEDEC specification JESD22-C101 (2)
±250
UNIT
V
JEDEC document JEP155 states that 500-V HBM allows safe manufacturing with a standard ESD control process.
JEDEC document JEP157 states that 250-V CDM allows safe manufacturing with a standard ESD control process.
6.3 Recommended Operating Conditions
over operating free-air temperature range (unless otherwise noted)
MIN
MAX
Operating ambient temperature, TA
–40
85
UNIT
°C
Operating junction temperature, TJ
–40
125
°C
6.4 Thermal Information
LM27762
THERMAL METRIC
(1)
DSS (WSON)
UNIT
12 PINS
RθJA
Junction-to-ambient thermal resistance
62.2
°C/W
RθJC(top)
Junction-to-case (top) thermal resistance
54.7
°C/W
RθJB
Junction-to-board thermal resistance
25.6
°C/W
ψJT
Junction-to-top characterization parameter
1.8
°C/W
ψJB
Junction-to-board characterization parameter
25.6
°C/W
RθJC(bot)
Junction-to-case (bottom) thermal resistance
9.2
°C/W
(1)
4
For more information about traditional and new thermal metrics, see Semiconductor and IC Package Thermal Metrics.
Submit Documentation Feedback
Copyright © 2016–2017, Texas Instruments Incorporated
Product Folder Links: LM27762
LM27762
www.ti.com
SNVSAF7B – AUGUST 2016 – REVISED FEBRUARY 2017
6.5 Electrical Characteristics
Typical limits apply for TA = 25°C; minimum and maximum limits apply over the full temperature range. Unless otherwise
specified VIN = 5 V, CIN = COUT+ = COUT– = 2.2 μF, C1 = 1 μF, CPOUT = 4.7 μF.
PARAMETER
TEST CONDITIONS
MIN
Open circuit, no load, EN+, EN–
connected to VIN. (1)
TYP
MAX
UNIT
IQ
Supply current
ISD
Shutdown supply current
ƒSW
Switching frequency
VIN = 3.6 V
RNEG
Output resistance to CPOUT
VIN = 5.5 V, IL = 100 mA
2.5
Ω
VLDO–
LDO dropout voltage
IL = 100 mA, VOUT– = −5 V
30
mV
PSRR
Power supply rejection ratio, OUT–
IL = 100 mA, VOUT– = −1.8 V, 10 kHz
50
dB
VN–
Output noise voltage
IL = 80 mA, 10 Hz to 100 kHz
22
µVRMS
VFB–
Feedback pin reference voltage
VOUT–
390
1.7
–1.238
µA
0.5
5
2
2.3
–1.22
µA
MHz
–1.202
V
Adjustable output voltage
5.5 V ≥ VIN ≥ 2.7 V
Load regulation
0 to 250 mA, VOUT = –1.8 V
34
µV/mA
–5
–1.5
V
Line regulation
5 V ≥ VIN ≥ 2.7 V, IL = 50 mA
1.5
mV/V
VLDO+
LDO dropout voltage
IL = 100 mA, VOUT = 5 V
45
mV
PSRR
Power supply rejection ratio, OUT+
IL = 100 mA, VOUT+ = 1.8 V, 10 kHz
43
dB
VN+
Output noise voltage
IL = 80 mA, 10 Hz to 100 kHz
22
µVRMS
VFB+
Feedback pin reference voltage
VOUT+
1.182
Adjustable output voltage
5.5 V ≥ VIN ≥ 2.7 V
Load regulation
0 to 250 mA, VOUT = 1.8 V
Line regulation
5 V ≥ VIN ≥ 2.7 V, IL = 50 mA
VIH
Enable pin input voltage high
5.5 V ≥ VIN ≥ 2.7 V
VIL
Enable pin input voltage low
5.5 V ≥ VIN ≥ 2.7 V
(1)
1.2
1.5
1.218
V
5
V
11
µV/mA
1.9
mV/V
1.2
V
0.4
V
When VIN = 5.5V charge pump may enter PWM mode in hot conditions.
Submit Documentation Feedback
Copyright © 2016–2017, Texas Instruments Incorporated
Product Folder Links: LM27762
5
LM27762
SNVSAF7B – AUGUST 2016 – REVISED FEBRUARY 2017
www.ti.com
6.6 Typical Characteristics
3
5
VOUT+
VOUT-
4
3.5
3
2.5
2
1.5
1
2.6
2.4
2.2
2
1.8
1.6
1.4
1.2
1
2.8
0.5
0
25
50
75
100 125 150 175
Output Current (mA)
VIN = 3.7 V
200
225
250
3
3.2
D014
VOUT = ±3 V
VOUT = ±3 V
Figure 1. Output Voltage Ripple vs Output Current
3.4
3.6
Input Voltage (V)
3.8
4
4.2
D022
IOUT = ±100 mA
Figure 2. Output Voltage Ripple vs Input Voltage
500
120
85°C
25°C
-40°C
VOUT+
VOUT-
100
100
80
RCP (:)
Dropout Voltage (mV)
VOUTVOUT+
2.8
Output Voltage Ripple (mV)
Output Voltage Ripple (mV)
4.5
60
10
40
20
1
0.001
0
0
25
50
75
100 125 150 175
Output Current (mA)
200
225
250
0.1
0.5
IOUT(A)
D015
D016
VIN = 5.5 V
VOUT = ± 3.3 V
Figure 4. Charge Pump Output Resistance vs Output
Current
Figure 3. LDO Dropout Voltage vs Output Current
-3.1
3.31
0 mA
50 mA
100 mA
-3.125
-3.15
0 mA
50 mA
100 mA
3.305
-3.175
Output Voltage (V)
Output Voltage (V)
0.01
-3.2
-3.225
-3.25
-3.275
-3.3
-3.325
3.3
3.295
3.29
3.285
3.28
-3.35
-3.375
3.25
3.5
3.75
4
4.25 4.5 4.75
Input Voltage (V)
5
5.25
5.5
3.275
3.25
VOUT = –3.3 V
3.75
4
4.25 4.5 4.75
Input Voltage (V)
5
5.25
5.5
D018
VOUT = 3.3 V
Figure 5. Line Regulation for OUT-
6
3.5
D017
Submit Documentation Feedback
Figure 6. Line Regulation for OUT+
Copyright © 2016–2017, Texas Instruments Incorporated
Product Folder Links: LM27762
LM27762
www.ti.com
SNVSAF7B – AUGUST 2016 – REVISED FEBRUARY 2017
Typical Characteristics (continued)
-3.29
3.35
-40 °C
+25 °C
+85 °C
-3.3
3.33
-3.32
Output Voltage (V)
Output Voltage (V)
-3.31
-40 °C
+25 °C
+85 °C
3.34
-3.33
-3.34
-3.35
-3.36
-3.37
3.32
3.31
3.3
3.29
3.28
3.27
-3.38
-3.39
3.26
-3.4
3.25
0
30
60
90
120 150 180
Output Current (mA)
VIN = 4.3 V
210
240
270
0
25
50
D019
VOUT = –3.3 V
VIN = 4.3 V
Figure 7. Load Regulation for OUT-
75
100 125 150 175
Output Current (mA)
200
225
250
D020
VOUT = 3.3 V
Figure 8. Load Regulation for OUT+
100
90
80
Efficiency (%)
70
60
50
40
30
20
VOUT = -3.3V
VOUT= -5V
10
0
0
25
50
75
100 125 150 175
Output Current (mA)
200
225
250
D021
VIN = 5.5 V
Figure 10. Start-Up
Figure 9. Efficiency for OUT–
Figure 11. Shutdown
Submit Documentation Feedback
Copyright © 2016–2017, Texas Instruments Incorporated
Product Folder Links: LM27762
7
LM27762
SNVSAF7B – AUGUST 2016 – REVISED FEBRUARY 2017
www.ti.com
7 Detailed Description
7.1 Overview
The LM27762 low-noise inverting charge pump with both positive and negative LDOs delivers very low-noise
adjustable positive and negative outputs between ±1.5 V and ±5 V. The output voltage levels of the positive and
negative LDO are independently controllable with external resistors. Input voltage range of LM27762 is from 2.7
V to 5.5 V. Five low-cost capacitors are used in this circuit to provide up to ±250 mA of output current. The
LM27762 operates at 2-MHz (typical) switching frequency to reduce output resistance and voltage ripple. With an
typical operating current of only 390 µA and 0.5-µA typical shutdown current, the LM27762 provides ideal
performance for power amplifiers and DAC bias and other high-current, low-noise negative voltage needs.
The LM27762 device has an enable input (EN+) for the positive LDO and another enable input (EN–) for the
negative charge pump and LDO. This supports independent timing for the positive and negative rails in system
power sequence. Enable inputs can be also shorted together and connected to VIN. When LDO is disabled,
output of the positive LDO has 50-kΩ pulldown to ground, and output of the negative LDO has 50-kΩ pullup to
ground. The LM27762 has power good monitoring for OUT+ and OUT– outputs. The PGOOD pin is an opendrain output and requires an external pullup resistor. When Power Good feature is not used, PGOOD pin can be
connected to ground.
8
Submit Documentation Feedback
Copyright © 2016–2017, Texas Instruments Incorporated
Product Folder Links: LM27762
LM27762
www.ti.com
SNVSAF7B – AUGUST 2016 – REVISED FEBRUARY 2017
7.2 Functional Block Diagram
Current Limit
VIN
C1+
Switch Array
Switch
Drivers
2-MHz Oscillator
C1-
CP
ENGND
Reference
LPF
ENPU
Negative
Bandgap
LPF
OUT-
FB-
LDO
Power Good
Monitoring
PGOOD
Current
Limit
EN+
LPF
EN+
PD
OUT+
Positive
Bandgap
LPF
FB+
LDO
Copyright © 2016, Texas Instruments Incorporated
Submit Documentation Feedback
Copyright © 2016–2017, Texas Instruments Incorporated
Product Folder Links: LM27762
9
LM27762
SNVSAF7B – AUGUST 2016 – REVISED FEBRUARY 2017
www.ti.com
7.3 Feature Description
7.3.1 Undervoltage Lockout
The LM27762 has an internal comparator that monitors the voltage at VIN and forces the device into shutdown if
the input voltage drops to 2.4 V. If the input voltage rises above 2.6 V, the LM27762 resumes normal operation.
7.3.2 Input Current Limit
The LM27762 contains current limit circuitry that protects the device in the event of excessive input current
and/or output shorts to ground. The charge pump and positive LDO both have 500 mA (typical) input current limit
when the output is shorted directly to ground. When the LM27762 is current limiting, power dissipation in the
device is likely to be quite high. In this event, thermal cycling is expected.
7.3.3 PFM Operation
To minimize quiescent current during light load operation, the LM27762 allows PFM or pulse-skipping operation.
By allowing the charge pump to switch less when the output current is low, the quiescent current drawn from the
power source is minimized. The frequency of pulsed operation is not limited and can drop into the sub-2-kHz
range when unloaded. As the load increases, the frequency of pulsing increases until it transitions to constant
frequency. The fundamental switching frequency in the LM27762 is 2 MHz.
7.3.4 Output Discharge
In shutdown, the LM27762 actively pulls down on the outputs (OUT+, OUT–) of the device until the output
voltage reaches GND.
7.3.5 Power Good Output (PGOOD)
The LM27762 has monitoring for the OUT+ and OUT– output voltage levels and open-drain PGOOD output.
Table 1. PGOOD (Active Low) Operation
EN+
EN–
OUT+
OUT–
PGOOD
Low
Low
Don't care
Don't care
High
High
Low
< 95% of target value
Don't care
High
High
Low
> 95% of target value
Don't care
Low
Low
High
Don't care
< 95% of target value
High
Low
High
Don't care
> 95% of target value
Low
High
High
< 95% of target value
Don't care
High
High
High
Don't care
< 95% of target value
High
High
High
> 95% of target value
> 95% of target value
Low
7.3.6 Thermal Shutdown
The LM27762 implements a thermal shutdown mechanism to protect the device from damage due to
overheating. When the junction temperature rises to 150°C (typical), the device switches into shutdown mode.
The LM27762 releases thermal shutdown when the junction temperature is reduced to 130°C (typical).
Thermal shutdown is most often triggered by self-heating, which occurs when there is excessive power
dissipation in the device and/or insufficient thermal dissipation. The LM27762 device power dissipation increases
with increased output current and input voltage. When self-heating brings on thermal shutdown, thermal cycling
is the typical result. Thermal cycling is the repeating process where the part self-heats, enters thermal shutdown
(where internal power dissipation is practically zero), cools, turns on, and then heats up again to the thermal
shutdown threshold. Thermal cycling is recognized by a pulsing output voltage and can be stopped by reducing
the internal power dissipation (reduce input voltage and/or output current) or the ambient temperature. If thermal
cycling occurs under desired operating conditions, thermal dissipation performance must be improved to
accommodate the power dissipation of the device.
10
Submit Documentation Feedback
Copyright © 2016–2017, Texas Instruments Incorporated
Product Folder Links: LM27762
LM27762
www.ti.com
SNVSAF7B – AUGUST 2016 – REVISED FEBRUARY 2017
7.4 Device Functional Modes
7.4.1 Shutdown Mode
When enable pins (EN+, EN–) are low, both positive and negative outputs of LM27762 are disabled, and the
device is in shutdown mode reducing the quiescent current to minimum level. In shutdown, the outputs of the
LM27762 are pulled to ground (internal 50 kΩ between each OUT pin and ground).
7.4.2 Enable Mode
Applying a voltage greater than 1.2 V to the EN+ pin enables the positive LDO. Applying a voltage greater than
1.2 V to the EN– pin enables the negative CP and LDO. When enabled, the positive and negative output
voltages are equal to levels set by external resistors. Care must be taken to both the positive LDO and the
inverting charge pump followed by negative LDO have enough headroom. Power Good ouput PGOOD indicates
the status of OUT+ and OUT– voltage levels.
Submit Documentation Feedback
Copyright © 2016–2017, Texas Instruments Incorporated
Product Folder Links: LM27762
11
LM27762
SNVSAF7B – AUGUST 2016 – REVISED FEBRUARY 2017
www.ti.com
8 Application and Implementation
NOTE
Information in the following applications sections is not part of the TI component
specification, and TI does not warrant its accuracy or completeness. TI’s customers are
responsible for determining suitability of components for their purposes. Customers should
validate and test their design implementation to confirm system functionality.
8.1 Application Information
The LM27762 input voltage range is from 2.7 V to 5.5 V. The positive LDO provides a positive voltage
configurable with external gain setting resistors R1, R2. The low-noise charge-pump voltage converter inverts the
input voltage V to a negative output voltage. Charge pump is followed by the negative LDO which regulates a
negative output voltage configurable with external gain setting resistors R3, R4. Output voltage range is ± 1.5 V to
± 5 V. When selecting input (VIN) and output (OUT+, OUT-) voltages ranges, headroom required by the charge
pump and LDOs must to be considered. Charge-pump minimum headroom can be estimated based on the
maximum load current and charge pump output resistance.
The device uses five low-cost capacitors to provide up to 250 mA of output current. The LM27762 operates at a
2-MHz oscillator frequency to reduce charge-pump output resistance and voltage ripple under heavy loads.
When using the optional open-drain PGOOD feature, connect a 10-kΩ pullup resistor (RPU) to VIN. Connect pin
to ground if PGOOD is not used.
8.2 Typical Application
2.7 V to 5.5 V
CP
VIN
1.5 V to 5 V
CVIN
CCP
OUT+
RPU
R1
C1-
COUT+
FB+
PGOOD
LM27762
R2
GND
C1
R4
C1+
COUT-
FB-
EN+
R3
OUT-1.5 V to -5 V
EN-
Copyright © 2016, Texas Instruments Incorporated
Figure 12. LM27762 Typical Application
12
Submit Documentation Feedback
Copyright © 2016–2017, Texas Instruments Incorporated
Product Folder Links: LM27762
LM27762
www.ti.com
SNVSAF7B – AUGUST 2016 – REVISED FEBRUARY 2017
Typical Application (continued)
8.2.1 Design Requirements
The following example describes powering an amplifier driving high impedance headphones. Input voltage is
from a smart-phone battery. Amplifier is driving 2-VRMS to 600-Ω stereo headphones.
Table 2. Application Example Design Parameters
DESIGN PARAMETER
EXAMPLE VALUE
Input voltage
3.3 V to 4.2 V
Output voltage
±3 V
Output current
10 mA (LM27762 capability 250 mA maximum)
CVIN, COUT+, COUT–
2.2 μF
CCP
4.7 μF
RPU
10 kΩ (optional, connect PGOOD pin to ground if feature is not used)
8.2.2 Detailed Design Procedure
8.2.2.1 Custom Design With WEBENCH® Tools
Click here to create a custom design using the LM27762 device with the WEBENCH® Power Designer.
1. Start by entering the input voltage (VIN), output voltage (VOUT), and output current (IOUT) requirements.
2. Optimize the design for key parameters such as efficiency, footprint, and cost using the optimizer dial.
3. Compare the generated design with other possible solutions from Texas Instruments.
The WEBENCH Power Designer provides a customized schematic along with a list of materials with real-time
pricing and component availability.
In most cases, these actions are available:
• Run electrical simulations to see important waveforms and circuit performance.
• Run thermal simulations to understand board thermal performance.
• Export customized schematic and layout into popular CAD formats.
• Print PDF reports for the design, and share the design with colleagues.
Get more information about WEBENCH tools at www.ti.com/WEBENCH.
8.2.2.2 Positive Low-Dropout Linear Regulator and OUT+ Voltage Setting
LM27762 features a low-dropout, linear positive voltage regulator (LDO). The LDO output is rated for a current of
250 mA. This LDO allows the device to provide a very low noise output, low output voltage ripple, high PSRR,
and low line or load transient response.
The positive output voltage of the LM27762 is externally configurable. The value of R1 and R2 determines the
output voltage setting. The output voltage can be calculated using Equation 1:
VOUT = 1.2 V × (R1 + R2) / R2
(1)
The value for R2 must be no less than 50 kΩ.
8.2.2.3 Charge-Pump Voltage Inverter
The main application of the LM27762 is to generate a regulated negative supply voltage. The voltage inverter
circuit uses only three external capacitors, and the LDO regulator circuit uses one additional output capacitor.
The voltage inverter portion of the LM27761 contains four large CMOS switches which are switched in sequence
to invert the input supply voltage. Energy transfer and storage are provided by external capacitors. Figure 13
shows the voltage switches S2 and S4 are open. In the second time interval, S1 and S3 are open; at the same
time, S2 and S4 are closed, and C1 is charging CCP. After a number of cycles, the voltage across CCP is pumped
into VIN. Because the anode of CCP is connected to ground, the output at the cathode of CCP equals –(VIN) when
there is no load current. When a load is added, the output voltage drop is determined by the parasitic resistance
(RDSON of the MOSFET switches and the equivalent series resistance (ESR) of the capacitors) and the charge
transfer loss between the capacitors.
Submit Documentation Feedback
Copyright © 2016–2017, Texas Instruments Incorporated
Product Folder Links: LM27762
13
LM27762
SNVSAF7B – AUGUST 2016 – REVISED FEBRUARY 2017
www.ti.com
S1
VIN
C1+
S2
GND
CIN
C1
CCPOUT
GND
S3
S4
C1-
CP
OSC.
2 MHz
+
PFM COMP
VIN
Copyright © 2016, Texas Instruments Incorporated
Figure 13. Voltage Inverting Principle
The output characteristic of this circuit can be approximated by an ideal voltage source in series with a
resistance. The voltage source equals –(VIN). The output resistance ROUT is a function of the ON resistance of
the internal MOSFET switches, the oscillator frequency, the capacitance, and the ESR of C1 and CCP. Because
the switching current charging and discharging C1 is approximately twice as the output current, the effect of the
ESR of the pumping capacitor C1 is multiplied by four in the output resistance. The charge-pump output capacitor
CCP is charging and discharging at a current approximately equal to the output current; therefore, its ESR only
counts once in the output resistance. A good approximation of charge-pump ROUT is shown in Equation 2:
ROUT = (2 × RSW) + [1 / (ƒSW × C1)] + (4 × ESRC1) + ESRCCP
where
•
RSW is the sum of the ON resistance of the internal MOSFET switches shown in Figure 13.
(2)
High capacitance and low-ESR ceramic capacitors reduce the output resistance.
8.2.2.4 Negative Low-Dropout Linear Regulator and OUT– Voltage Setting
At the output of the inverting charge-pump the LM27762 features a low-dropout, linear negative voltage regulator
(LDO). The LDO output is rated for a current of 250 mA. This negative LDO allows the device to provide a very
low noise output, low output voltage ripple, high PSRR, and low line or load transient response.
The negative output voltage of the LM27762 is externally configurable. The value of R3 and R4 determines the
output voltage setting. The output voltage can be calculated using Equation 1:
VOUT = –1.22 V × (R3 + R4) / R4
(3)
The value for R4 must be no less than 50 kΩ.
8.2.2.5 External Capacitor Selection
The LM27762 requires 5 external capacitors for proper operation. Surface-mount multi-layer ceramic capacitors
are recommended. These capacitors are small, inexpensive, and have very low ESR (≤ 15 mΩ typical). Tantalum
capacitors, OS-CON capacitors, and aluminum electrolytic capacitors generally are not recommended for use
with the LM27762 due to their high ESR compared to ceramic capacitors.
For most applications, ceramic capacitors with an X7R or X5R temperature characteristic are preferable for use
with the LM27762. These capacitors have tight capacitance tolerances (as good as ±10%) and hold their value
over temperature (X7R: ±15% over –55°C to +125°C; X5R ±15% over –55°C to +85°C).
14
Submit Documentation Feedback
Copyright © 2016–2017, Texas Instruments Incorporated
Product Folder Links: LM27762
LM27762
www.ti.com
SNVSAF7B – AUGUST 2016 – REVISED FEBRUARY 2017
Using capacitors with a Y5V or Z5U temperature characteristic is generally not recommended for the LM27762.
These capacitors typically have wide capacitance tolerance (80%, ….20%) and vary significantly over
temperature (Y5V: 22%, –82% over –30°C to +85°C range; Z5U: 22%, –56% over 10°C to 85°C range). Under
some conditions a 1-µF-rated Y5V or Z5U capacitor could have a capacitance as low as 0.1 µF. Such
detrimental deviation is likely to cause Y5V and Z5U capacitors to fail to meet the minimum capacitance
requirements of the LM27762.
Net capacitance of a ceramic capacitor decreases with increased DC bias. This degradation can result in lowerthan-expected capacitance on the input and/or output, resulting in higher ripple voltages and currents. Using
capacitors at DC bias voltages significantly below the capacitor voltage rating usually minimizes DC bias effects.
Consult capacitor manufacturers for information on capacitor DC bias characteristics.
Capacitance characteristics can vary quite dramatically with different application conditions, capacitor types, and
capacitor manufacturers. TI strongly recommends that the LM27762 circuit be evaluated thoroughly early in the
design-in process with the mass-production capacitor of choice. This helps ensure that any such variability in
capacitance does not negatively impact circuit performance.
8.2.2.5.1 Charge-Pump Output Capacitor
In typical applications, Texas Instruments recommends a 4.7-µF low-ESR ceramic charge-pump output capacitor
(CCP). Different output capacitance values can be used to reduce charge pump ripple, shrink the solution size,
and/or cut the cost of the solution. However, changing the output capacitor may also require changing the flying
capacitor or input capacitor to maintain good overall circuit performance.
In higher-current applications, a 10-µF, 10-V low-ESR ceramic output capacitor is recommended. If a small
output capacitor is used, the output ripple can become large during the transition between PFM mode and
constant switching. To prevent toggling, a 2-µF capacitance is recommended. For example, 10-µF, 10-V output
capacitor in a 0402 case size typically has only 2-µF capacitance when biased to 5 V.
8.2.2.5.2 Input Capacitor
The input capacitor (C2) is a reservoir of charge that aids in a quick transfer of charge from the supply to the
flying capacitors during the charge phase of operation. The input capacitor helps to keep the input voltage from
drooping at the start of the charge phase when the flying capacitors are connected to the input. It also filters
noise on the input pin, keeping this noise out of the sensitive internal analog circuitry that is biased off the input
line.
Input capacitance has a dominant and first-order effect on the input ripple magnitude. Increasing (decreasing) the
input capacitance results in a proportional decrease (increase) in input voltage ripple. Input voltage, output
current, and flying capacitance also affects input ripple levels to some degree.
In typical applications, a 4.7-µF low-ESR ceramic capacitor is recommended on the input. When operating near
the maximum load of 250 mA, after taking into the DC bias derating, a minimum recommended input capacitance
is 2 µF or larger. Different input capacitance values can be used to reduce ripple, shrink the solution size, and/or
cut the cost of the solution.
8.2.2.5.3 Flying Capacitor
The flying capacitor (C1) transfers charge from the input to the output. Flying capacitance can impact both output
current capability and ripple magnitudes. If flying capacitance is too small, the LM27762 may not be able to
regulate the output voltage when load currents are high. On the other hand, if the flying capacitance is too large,
the flying capacitor might overwhelm the input and charge pump output capacitors, resulting in increased input
and output ripple.
In typical high-current applications, 0.47-µF or 1-µF 10-V low-ESR ceramic capacitors are recommended for the
flying capacitors. Polarized capacitors (tantalum, aluminum, electrolytic, etc.) must not be used for the flying
capacitor, as they could become reverse-biased during LM27762 operation.
8.2.2.5.4 LDO Output Capacitor
The LDO output capacitor (COUT+, COUT-) value and the ESR affect stability, output ripple, output noise, PSRR
and transient response. The LM27762 only requires the use of a 2.2-µF ceramic output capacitor for stable
operation. For typical applications, a 2.2-µF ceramic output capacitor located close to the output is sufficient.
Submit Documentation Feedback
Copyright © 2016–2017, Texas Instruments Incorporated
Product Folder Links: LM27762
15
LM27762
SNVSAF7B – AUGUST 2016 – REVISED FEBRUARY 2017
www.ti.com
8.2.2.6 Power Dissipation
The allowed power dissipation for any package is a measure of the ability of the device to pass heat from the
junctions of the device to the heatsink and the ambient environment. Thus, the power dissipation is dependent
on the ambient temperature and the thermal resistance across the various interfaces between the die junction
and ambient air.
The maximum allowable power dissipation can be calculated by Equation 4:
PD-MAX = (TJ-MAX – TA) / RθJA
(4)
The actual power being dissipated in the device can be represented by Equation 5:
PD = PIN – POUT = VIN × (–IOUT– + IOUT+ + IQ) – (VOUT+ × IOUT+ + VOUT– × IOUT–)
(5)
Equation 4 and Equation 5 establish the relationship between the maximum power dissipation allowed due to
thermal consideration, the voltage drop across the device, and the continuous current capability of the device.
These equations must be used to determine the optimum operating conditions for the device in a given
application.
In lower power dissipation applications the maximum ambient temperature (TA-MAX) may be increased. In higher
power dissipation applications the maximum ambient temperature(TA-MAX) may have to be derated. TA-MAX can be
calculated using Equation 6:
TA-MAX = TJ-MAX-OP – (RθJA × PD-MAX)
where
•
•
•
TJ-MAX-OP = maximum operating junction temperature (125°C)
PD-MAX = the maximum allowable power dissipation
RθJA = junction-to-ambient thermal resistance of the package
(6)
Alternately, if TA-MAX cannot be derated, the power dissipation value must be reduced. This can be accomplished
by reducing the input voltage as long as the minimum VIN is not violated, or by reducing the output current, or
some combination of the two.
8.2.3 Application Curves
Refer also to Typical Characteristics
0
0
VIN=3.7V,IOUT=100mA
VIN=3.7V,IOUT=10mA
VIN=3.3V,IOUT=10mA
-5
-15
-20
-20
-30
PSRR (dB)
PSRR (dB)
-10
-10
-25
-30
-35
-40
VIN= 3.7V, IOUT=100mA
VIN= 3.3V, IOUT=100mA
VIN= 3.7V, IOUT=10mA
VIN= 3.3V, IOUT=10mA
-40
-50
-60
-45
-70
-50
-55
10
100
1000
Frequency(Hz)
10000
100000
-80
10
D023
Figure 14. PSRR for OUT-
16
100
1000
Frequency (Hz)
10000
100000
D024
Figure 15. PSRR for OUT+
Submit Documentation Feedback
Copyright © 2016–2017, Texas Instruments Incorporated
Product Folder Links: LM27762
LM27762
www.ti.com
SNVSAF7B – AUGUST 2016 – REVISED FEBRUARY 2017
9 Power Supply Recommendations
The LM27762 is designed to operate from an input voltage supply range between 2.7 V and 5.5 V. This input
supply must be well regulated and capable of supplying the required input current. If the input supply is located
far from the LM27762, additional bulk capacitance may be required in addition to the ceramic bypass capacitors.
10 Layout
10.1 Layout Guidelines
The high switching frequency and large switching currents of the LM27762 make the choice of layout important.
Use the following steps as a reference to ensure the device is stable and maintains proper LED current
regulation across its intended operating voltage and current range:
• Place CIN on the top layer (same layer as the LM27762) and as close as possible to the device. Connecting
the input capacitor through short, wide traces to both the VIN and GND pins reduces the inductive voltage
spikes that occur during switching, which can corrupt the VIN line.
• Place CCPOUT on the top layer (same layer as the LM27762) and as close as possible to the VOUT and GND
pins. The returns for both CIN and CCPOUT must come together at one point, as close as possible to the GND
pin. Connecting CCPOUT through short, wide traces reduces the series inductance on the VCPOUT and GND
pins that can corrupt the VCPOUT and GND lines and cause excessive noise in the device and surrounding
circuitry.
• Place C1 on top layer (same layer as the LM27762) and as close as possible to the device. Connect the flying
capacitor through short, wide traces to both the C1+ and C1– pins.
• Place COUT+, COUT– on the top layer (same layer as the LM27762) and as close to the respective OUT pin as
possible. For best performance the ground connection for COUT must connect back to the GND connection at
the thermal pad of the device.
• Place R1 to R4 on the top layer (same layer as LM27762) and as close as possible to the respective FB pin.
For best performance the ground connection of R2, R4 must connect back to the GND connection at the
thermal pad of the device.
Connections using long trace lengths, narrow trace widths, or connections through vias must be avoided. These
add parasitic inductance and resistance that results in inferior performance, especially during transient
conditions.
Submit Documentation Feedback
Copyright © 2016–2017, Texas Instruments Incorporated
Product Folder Links: LM27762
17
LM27762
SNVSAF7B – AUGUST 2016 – REVISED FEBRUARY 2017
www.ti.com
10.2 Layout Example
R1
Positive Rail, To Load
R2
COUT+
R3
R4
CIN
OUT-
CP
GND
VIN
FB+
PGOO
D
Thermal Pad
COUT-
Negative Rail, To Load
FB-
EN-
C1-
C1+
OUT+
EN+
C1
CCPOUT
To Supply
To GND Plane
Figure 16. LM27762 Layout Example
(Note: Pullup resistor for PGOOD not shown in example.)
18
Submit Documentation Feedback
Copyright © 2016–2017, Texas Instruments Incorporated
Product Folder Links: LM27762
LM27762
www.ti.com
SNVSAF7B – AUGUST 2016 – REVISED FEBRUARY 2017
11 Device and Documentation Support
11.1 Device Support
•
Using the LM27762EVM Evaluation Module
11.1.1 Development Support
11.1.1.1 Custom Design With WEBENCH® Tools
Click here to create a custom design using the LM27762 device with the WEBENCH® Power Designer.
1. Start by entering the input voltage (VIN), output voltage (VOUT), and output current (IOUT) requirements.
2. Optimize the design for key parameters such as efficiency, footprint, and cost using the optimizer dial.
3. Compare the generated design with other possible solutions from Texas Instruments.
The WEBENCH Power Designer provides a customized schematic along with a list of materials with real-time
pricing and component availability.
In most cases, these actions are available:
• Run electrical simulations to see important waveforms and circuit performance
• Run thermal simulations to understand board thermal performance
• Export customized schematic and layout into popular CAD formats
• Print PDF reports for the design, and share the design with colleagues
Get more information about WEBENCH tools at www.ti.com/WEBENCH.
11.2 Receiving Notification of Documentation Updates
To receive notification of documentation updates, navigate to the device product folder on ti.com. In the upper
right corner, click on Alert me to register and receive a weekly digest of any product information that has
changed. For change details, review the revision history included in any revised document.
11.3 Community Resources
The following links connect to TI community resources. Linked contents are provided "AS IS" by the respective
contributors. They do not constitute TI specifications and do not necessarily reflect TI's views; see TI's Terms of
Use.
TI E2E™ Online Community TI's Engineer-to-Engineer (E2E) Community. Created to foster collaboration
among engineers. At e2e.ti.com, you can ask questions, share knowledge, explore ideas and help
solve problems with fellow engineers.
Design Support TI's Design Support Quickly find helpful E2E forums along with design support tools and
contact information for technical support.
11.4 Trademarks
E2E is a trademark of Texas Instruments.
WEBENCH is a registered trademark of Texas Instruments.
All other trademarks are the property of their respective owners.
11.5 Electrostatic Discharge Caution
These devices have limited built-in ESD protection. The leads should be shorted together or the device placed in conductive foam
during storage or handling to prevent electrostatic damage to the MOS gates.
11.6 Glossary
SLYZ022 — TI Glossary.
This glossary lists and explains terms, acronyms, and definitions.
Submit Documentation Feedback
Copyright © 2016–2017, Texas Instruments Incorporated
Product Folder Links: LM27762
19
LM27762
SNVSAF7B – AUGUST 2016 – REVISED FEBRUARY 2017
www.ti.com
12 Mechanical, Packaging, and Orderable Information
The following pages include mechanical, packaging, and orderable information. This information is the most
current data available for the designated devices. This data is subject to change without notice and revision of
this document. For browser-based versions of this data sheet, refer to the left-hand navigation.
20
Submit Documentation Feedback
Copyright © 2016–2017, Texas Instruments Incorporated
Product Folder Links: LM27762
PACKAGE OPTION ADDENDUM
www.ti.com
6-Feb-2020
PACKAGING INFORMATION
Orderable Device
Status
(1)
Package Type Package Pins Package
Drawing
Qty
Eco Plan
Lead/Ball Finish
MSL Peak Temp
(2)
(6)
(3)
Op Temp (°C)
Device Marking
(4/5)
LM27762DSSR
ACTIVE
WSON
DSS
12
3000
Green (RoHS
& no Sb/Br)
NIPDAU
Level-2-260C-1 YEAR
-40 to 85
L27762
LM27762DSST
ACTIVE
WSON
DSS
12
250
Green (RoHS
& no Sb/Br)
NIPDAU
Level-2-260C-1 YEAR
-40 to 85
L27762
(1)
The marketing status values are defined as follows:
ACTIVE: Product device recommended for new designs.
LIFEBUY: TI has announced that the device will be discontinued, and a lifetime-buy period is in effect.
NRND: Not recommended for new designs. Device is in production to support existing customers, but TI does not recommend using this part in a new design.
PREVIEW: Device has been announced but is not in production. Samples may or may not be available.
OBSOLETE: TI has discontinued the production of the device.
(2)
RoHS: TI defines "RoHS" to mean semiconductor products that are compliant with the current EU RoHS requirements for all 10 RoHS substances, including the requirement that RoHS substance
do not exceed 0.1% by weight in homogeneous materials. Where designed to be soldered at high temperatures, "RoHS" products are suitable for use in specified lead-free processes. TI may
reference these types of products as "Pb-Free".
RoHS Exempt: TI defines "RoHS Exempt" to mean products that contain lead but are compliant with EU RoHS pursuant to a specific EU RoHS exemption.
Green: TI defines "Green" to mean the content of Chlorine (Cl) and Bromine (Br) based flame retardants meet JS709B low halogen requirements of
工商网监
湘ICP备2023018690号
