Chapter 1
SLVU923A – June 2013 – Revised November 2013
Introduction
This User’s Guide describes the evaluation module (EVM) for the TPS2592XX (TPS2592XXEVM-531).
The TPS2592XXEVM is a 4.5-V to 18-V eFuse allowing for reference-circuit evaluation of Texas
Instrument's TPS2592XX with an Integrated-Blocking FET Driver and Adjustable Current Limit.
TPS2592XX is available for 4.5-V to 18-V operation with both latching and auto-retry operation.
1.1
Features
•
•
•
•
•
•
•
1.2
TPS2592XX Features
– 4.5-V to 13-V (typical) bus operation (TPS2592Ax)
– 4.5-V to 5-V (typical) bus operation (TPS2592Bx)
– 4.5-V to 18-V (typical) bus operation (TPS2592Zx)
– Programmable current limit
– Fixed overvoltage setting (TPS2592Ax and TPS2592Bx)
– Programmable Vout slew rate
– Programmable UVLO
– Built-in thermal shutdown
– Latched-off TPS2592AL, TPS2592BL, TPS2592ZL
– Auto-retry TPS2592AA, TPS2592BA , TPS2592ZA
Onboard output-overload circuit
External blocking FET
Push button RESET signal
Copper pour with vias to the internal ground takes advantage of the PowerPAD™ Package
Onboard transorb is for overvoltage input protection
Common diode at output prevents negative spike when load is removed while powered on
Applications
•
•
•
•
Server
– Plug-in circuit boards
– Redundant array of independent disks (RAID), disk drive
Telecom
– Advanced Telecom Computing Architecture (ATCA)
– Micro-ATCA
General hot plug
Thunderbolt power bus protection
PowerPAD is a trademark of Texas Instruments.
4
Introduction
SLVU923A – June 2013 – Revised November 2013
Submit Documentation Feedback
Copyright © 2013, Texas Instruments Incorporated
Chapter 2
SLVU923A – June 2013 – Revised November 2013
Description

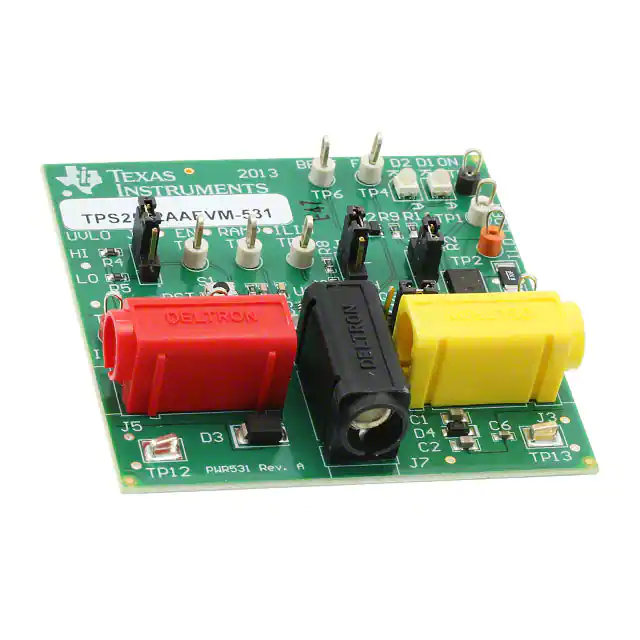

TPS2592XXEVM-531 enables full evaluation of the TPS2592XX devices. Refer to the schematic shown in
Figure 2-1. Input power is applied at J5 and J7, while J3 and J7 provides the output connection to the
load. D3 and C4 provide input protection for the TPS2592XX (U1) while the D4-C1-C2-C6 circuit provides
output protection. S1 allows U1 to be RESET or disabled. Circuit faults are observed with D2 and at TP4.
Turnon or inrush slew-rate control is enabled by installing C3 (default) and observed at TP8. The ON and
FAULT LEDs (D1 and D2 respectively) are enabled by installing a shunt on J1. TPS2592XXEVM-531
contains an output-overload circuit that enables by applying approximately 5 V between TP1 and TP3.
Table 2-1. TPS2592 Device Options
(1)
Part Number
Vin Range
UVLO / OVP
Current Limit (TYP)
Thermal Fault
TPS2592AADRC
9 V to 18 V
10.5 V / 15 V
2A
Auto-Retry
TPS2592ALDRC
9 V to 18 V
10.5 V / 15 V
2A
Latched
TPS2592BADRC
4 V to 6 V
4.5 V / 5.8 V
3A
Auto-Retry
TPS2592BLDRC
4 V to 6 V
4.5 V / 5.8 V
3A
Latched
TPS2592ZADRC
4.5 V to 18 V
(1)
4.5 V / –
2A
Auto-Retry
TPS2592ZLDRC
4.5 V to 18 V (1)
4.5 V / –
2A
Latched
The input supply voltage (including input transients) at the VIN pin should not exceed device maximum ratings as specified in the
ABSOLUTE MAXIMUM RATINGS of the TPS2592XX data sheet (SLVSC11).
NOTE: The default devices on the EVM boards are TPS2592AA and TPS2592BL, to test other
versions of the device, customers are suggested to replace with respective variants.
SLVU923A – June 2013 – Revised November 2013
Submit Documentation Feedback
Copyright © 2013, Texas Instruments Incorporated
Description
5
Schematic
2.1
www.ti.com
Schematic
The TPS2592XXEVM schematic is illustrated in Figure 2-1.
J1
PCB Number: PWR531
PCB Rev: A
ZZ1
PCB
Label Assembly Note
LOGO
This Assembly Note is for PCB labels only
Texas Instruments
ZZ2
Assembly Note
These assemblies are ESD sensitive, ESD precautions shall be observed.
ZZ3
Assembly Note
These assemblies must be clean and free from flux and all contaminants. Use of no clean flux is not acceptable.
ZZ4
Assembly Note
These assemblies must comply with workmanship standards IPC-A-610 Class 2., unless otherwise specified.
1
2
3
5,6,
7,8
TP1
P-LOAD
Q1
CSD17301Q5A
30V
R2
10.0k
LBL1
I-LOAD
R3
0.1
TP3
P-LOAD-RTN
TP9
EN
R9
24.9k
SH-J1
TP5
ILIM
TP8
RAMP
ON
D1
Green
BSS84W-7-F
TP2
PCB Label
Size: 1.25" x 0.25"
TP7
VIN
R1
100k
1,2,3
4
LED
FAULT
D2
Red
TP4
FLTb
Q2
TP6
GATE
SH-J4
SHORT BLOCK
J2
64.9k
UVLO-LO
1
R5
J5
VIN
2
15.0k
3
4
VIN=4.5V-13V
5
ILIM
EN/UVLO
BFET
VIN
OUT
VIN
VIN
OUT
OUT
1
TP11
S1
RESET
C5
1000pF
J3
OUT
9
VOUT=4.5V-13V
8
D5
1N4148W-7-F
7
1,2,3
6
C4
4.7µF
R7
10.0k
2
D3
SMBJ18A-13-F
TP10
OUT
10
R6
49.9k
C3
1000pF
IOUT=1.5A-6A
5,6,
7,8
Q3
CSD16411Q3
25V
11
IIN=1.5A-6A
dV/dT
SH-J2
1
2
3
U1
TPS2592XXDRC
4
R4
3
2
1
PAD
J4
UVLO-HI
D4
MBR130T1G
C1
1µF
C2
1µF
J6
ILIM HI
1
2
3
ILIM LO
TP12
SH-J6
C6
0.1µF
TP13
R8
100k
COMMON GROUND
J7
Figure 2-1. TPS2592XXEVM Schematic
6
Description
SLVU923A – June 2013 – Revised November 2013
Submit Documentation Feedback
Copyright © 2013, Texas Instruments Incorporated
Chapter 3
SLVU923A – June 2013 – Revised November 2013
General Configuration and Description
3.1
Physical Access
Table 3-1 lists the TPS2592XXEVM connector functionality. Table 3-2 describes the test point availability
and Table 3-3 describes the jumper functionality.
Table 3-1. Connector Functionality
(1)
Connector
Label
J5 / J7
INPUT / GND
Description
J3 / J7
OUTPUT / GND
4.5-V to 13-V (1) input to the EVM.
4.5-V to 13-V (1) output from the EVM.
4.5 V to 18 V for TPS2592Zx versions.
Table 3-2. Test Points
(1)
(2)
Test Point
Color
Label
TP7 / TP11 /
TP12
RED / BLACK /
SM (1)
Description
INPUT / GND
TP10 / TP13
RED / SM (1)
OUTPUT / GND
TP9
WHITE
EN
TP8
WHITE
RAMP
Slew rate control
TP6
WHITE
GATE
Blocking FET GATE control
TP5
WHITE
ILIM
TP1
WHITE
LDEN
Output load enable. Apply 3 to 8 V between TP1 and TP3 to enable
U1 overload.
TP3
BLACK
GND
Ground for load circuit
TP2
ORANGE
ILD
4.5-V to 13-V (2) input to the EVM.
4.5-V to 13-V (2) output from the EVM.
Active-high enables input and active-low fault output
Current limit resistor test point
Output current monitor. Load current = 10 × voltage on TP2 when the
overload circuit is enabled at TP1.
SM = Surface mount.
4.5 V to 18 V for TPS2592Zx versions.
Table 3-3. Jumpers
Jumper
Label
Description
J1
J1
Install between pins 1 and 2 to enable D1 and D2.
J2
J2
Install between pins 1 and 2 to bypass blocking FET, Q3.
J4
J4
Install between pins 1 and 2 for UVLO = 3.5 V and install between pins 2 and
3 for UVLO = 10.5 V.
J6
J6
Install between pins 1 and 2 for ILIM = 4 A and install between pins 2 and 3
for ILIM = 2.3 A.
SLVU923A – June 2013 – Revised November 2013
Submit Documentation Feedback
Copyright © 2013, Texas Instruments Incorporated
General Configuration and Description
7
Test Setup
3.2
www.ti.com
Test Setup
Figure 3-1 shows a typical test setup for TPS2592XXEVM. Connect J5 and J7 to the power supply, and
J3 and J7 to the load.
D2
J4
J1
J6
S1
TP3
J2
TP2
TP10
J3
J5
J7
7" Twisted Pair, #20AWG
Oscilloscope
TP1
TPS2592xxEVM
VIN
D1
TP13
-
+
HUB/MAU
NIC
% UTILIZATION
TAB
GD
JA
M7
GD
BNC
4Mb/s
RE
I F
KB
LC
N8
O9
ENTER
RUN
PRINT
GD
GD
HELP
GD
T2
U3
ALPHA
V0
WX
YZ
.
SHIFT
Volt meter
Figure 3-1. Typical TPS2592XXEVM Test Setup
8
General Configuration and Description
SLVU923A – June 2013 – Revised November 2013
Submit Documentation Feedback
Copyright © 2013, Texas Instruments Incorporated
Chapter 4
SLVU923A – June 2013 – Revised November 2013
EVM Assembly Drawings and Layout Guidelines
4.1
PCB Drawings
Figure 4-1, Figure 4-2, and Figure 4-3 show component placement and layout of the EVM.
Figure 4-1. Top-Side Placement
SLVU923A – June 2013 – Revised November 2013
Submit Documentation Feedback
EVM Assembly Drawings and Layout Guidelines
Copyright © 2013, Texas Instruments Incorporated
9
PCB Drawings
www.ti.com
Figure 4-2. Top-Side Routing
10
EVM Assembly Drawings and Layout Guidelines
SLVU923A – June 2013 – Revised November 2013
Submit Documentation Feedback
Copyright © 2013, Texas Instruments Incorporated
PCB Drawings
www.ti.com
Figure 4-3. Bottom-Side Routing
SLVU923A – June 2013 – Revised November 2013
Submit Documentation Feedback
EVM Assembly Drawings and Layout Guidelines
Copyright © 2013, Texas Instruments Incorporated
11
Chapter 5
SLVU923A – June 2013 – Revised November 2013
Bill of Materials
The TPS2592XXEVM bill of materials is shown in Table 5-1.
Table 5-1. TPS2592XXEVM Bill of Materials
Designator
Qty
PCB
1
Part Number
Manufacturer
PWR531
C1, C2
2
1 µF
CAP, CERM, 1 µF, 25 V, ±10%, X5R, 0805
Any
0805
08053D105KAT2A
C3, C5
2
1000 pF
AVX
CAP, CERM, 1000 pF, 100 V, ±20%, X7R, 0603
0603
06031C102MAT2A
C4
1
AVX
4.7 µF
CAP, CERM, 4.7 µF, 25 V, ±10%, X7R, 1206
1206
C3216X7R1E475K
C6
TDK
1
0.1 µF
CAP, CERM, 0.1 µF, 25 V, ±10%, X7R, 0603
0603
06033C104KAT2A
AVX
D1
1
Green
LED, Green, SMD
Power TOPLED
w/lens
LT E63C-CADB-35-L-Z
OSRAM
D2
1
Red
LED, Red, SMD
Power TOPLED
w/lens
LS E63F-DBFA-1-Z
OSRAM
D3
1
18 V
Diode, TVS, Uni, 18 V, 600 W, SMB
SMB
SMBJ18A-13-F
Diodes Inc.
D4
1
0.47 V
Diode, Schottky, 30 V, 1 A, SOD-123
SOD-123
MBR130T1G
ON Semiconductor
D5
1
1.25 V
Diode, Ultrafast, 100 V, 0.15 A, SOD-123
SOD-123
1N4148W-7-F
Diodes Inc.
J1, J2, J4, J6
4
1×3
Header, TH, 100 mm, 1 × 3, Gold plated, 230
mm above insulator
PBC03SAAN
PBC03SAAN
Sullins Connector
Solutions
J3
1
10 A
Standard Banana Jack, insulated, 10 A, yellow
571-0700
571-0700
DEM Manufacturing
J5
1
10 A
Standard Banana Jack, insulated, 10 A, red
571-0500
571-0500
DEM Manufacturing
J7
1
10 A
Standard Banana Jack, insulated, 10 A, black
571-0100
571-0100
DEM Manufacturing
LBL1
1
Thermal Transfer Printable Labels, 1.25 in (W) x
0.250 in (H) — 10,000 per roll
PCB Label 1.25 in (H)
x 0.250 in (W)
THT-13-457-10
Brady
Q1
1
30 V
MOSFET, N-CH, 30 V, 100 A, SON 5 mm ×
6mm
SON 5 mm × 6 mm
CSD17301Q5A
Texas Instruments
Q2
1
–50 V
MOSFET, P-CH, –50 V, –0.13 A, SOT-323
SOT-323
BSS84W-7-F
Diodes Inc.
Q3
1
25 V
MOSFET, N-CH, 25 V, 56 A, SON 3.3 mm × 3.3
mm
SON 3.3 mm × 3.
3mm
CSD16411Q3
Texas Instruments
R1, R8
2
100 k
RES, 100 kΩ, 1%, 0.1 W, 0603
0603
CRCW0603100KFKEA
Vishay-Dale
R2, R7
2
10 k
RES, 10 kΩ, 1%, 0.1 W, 0603
0603
CRCW060310K0FKEA
Vishay-Dale
R3
1
0.1
RES, 0.1 Ω, 1%, 0.5 W, 2010
2010
WSL2010R1000FEA
Vishay-Dale
R4
1
64.9 k
RES, 64.9 k ohm, 1%, 0.1 W, 0603
0603
CRCW060364K9FKEA
Vishay-Dale
R5
1
15 k
RES, 15 kΩ, 1%, 0.1 W, 0603
0603
CRCW060315K0FKEA
Vishay-Dale
R6
1
49.9 k
RES, 49.9 kΩ, 1%, 0.1 W, 0603
0603
CRCW060349K9FKEA
Vishay-Dale
R9
1
24.9 k
RES, 24.9 kΩ, 1%, 0.1 W, 0603
0603
CRCW060324K9FKEA
Vishay-Dale
S1
1
Switch, Push Button, SMD
2.9 mm × 2 mm × 3.
9mm SMD
SKRKAEE010
Alps
SH-J1, SH-J2, SHJ4, SH-J6
4
1×2
Shunt, 100 mm, Gold plated, Black
Shunt
969102-0000-DA
3M
TP1, TP4, TP5,
TP6, TP8, TP9
6
White
Test Point, TH, Multipurpose, White
Keystone5012
5012
Keystone
TP2
1
Orange
Test Point, TH, Multipurpose, Orange
Keystone5013
5013
Keystone
TP3, TP11
2
Black
Test Point, TH, Multipurpose, Black
Keystone5011
5011
Keystone
TP7, TP10
2
Red
Test Point, TH, Multipurpose, Red
Keystone5010
5010
Keystone
TP12, TP13
2
SMT
Test Point, SMT, Compact
Testpoint_Keystone_
Compact
5016
Keystone
U1
1
12-V eFuse with Integrated Blocking FET Driver,
Auto Retry, DRC0010A
DRC0010A
TPS2592AADRC
Texas Instruments
12
Bill of Materials
Value
Description
Package Reference
Printed Circuit Board
SLVU923A – June 2013 – Revised November 2013
Submit Documentation Feedback
Copyright © 2013, Texas Instruments Incorporated
Revision History
www.ti.com
Revision History
Changes from Original (June 2013) to A Revision ......................................................................................................... Page
•
•
•
•
•
•
•
•
•
Changed '12-V' and '12-V and 5-V' operation to '4.5-V to 18-V' in Introduction section. .......................................
Added '4.5-V to 18-V (typical) bus operation (TPS2592Zx)' in the Features section. ...........................................
Added 'TPS2592Ax and TPS2592Bx' to Fixed overvoltage setting bullet in the Features section. ...........................
Added 'TPS2592ZL' to Latched-off bullet in the Features section. ................................................................
Added 'TPS2592ZA' to Auto-retry bullet in the Features section. ..................................................................
Added 'Thunderbolt power bus protection' to Applications section. ...............................................................
Added two rows and a table note to the bottom of TPS2592 Device Options table. ............................................
Added table note to Connector Functionality table ...................................................................................
Added table note to Test Points table .................................................................................................
4
4
4
4
4
4
5
7
7
NOTE: Page numbers for previous revisions may differ from page numbers in the current version.
SLVU923A – June 2013 – Revised November 2013
Submit Documentation Feedback
Copyright © 2013, Texas Instruments Incorporated
Revision History
13
EVALUATION BOARD/KIT/MODULE (EVM) ADDITIONAL TERMS
Texas Instruments (TI) provides the enclosed Evaluation Board/Kit/Module (EVM) under the following conditions:
The user assumes all responsibility and liability for proper and safe handling of the goods. Further, the user indemnifies TI from all claims
arising from the handling or use of the goods.
Should this evaluation board/kit not meet the specifications indicated in the User’s Guide, the board/kit may be returned within 30 days from
the date of delivery for a full refund. THE FOREGOING LIMITED WARRANTY IS THE EXCLUSIVE WARRANTY MADE BY SELLER TO
BUYER AND IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESSED, IMPLIED, OR STATUTORY, INCLUDING ANY WARRANTY OF
MERCHANTABILITY OR FITNESS FOR ANY PARTICULAR PURPOSE. EXCEPT TO THE EXTENT OF THE INDEMNITY SET FORTH
ABOVE, NEITHER PARTY SHALL BE LIABLE TO THE OTHER FOR ANY INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL
DAMAGES.
Please read the User's Guide and, specifically, the Warnings and Restrictions notice in the User's Guide prior to handling the product. This
notice contains important safety information about temperatures and voltages. For additional information on TI's environmental and/or safety
programs, please visit www.ti.com/esh or contact TI.
No license is granted under any patent right or other intellectual property right of TI covering or relating to any machine, process, or
combination in which such TI products or services might be or are used. TI currently deals with a variety of customers for products, and
therefore our arrangement with the user is not exclusive. TI assumes no liability for applications assistance, customer product design,
software performance, or infringement of patents or services described herein.
REGULATORY COMPLIANCE INFORMATION
As noted in the EVM User’s Guide and/or EVM itself, this EVM and/or accompanying hardware may or may not be subject to the Federal
Communications Commission (FCC) and Industry Canada (IC) rules.
For EVMs not subject to the above rules, this evaluation board/kit/module is intended for use for ENGINEERING DEVELOPMENT,
DEMONSTRATION OR EVALUATION PURPOSES ONLY and is not considered by TI to be a finished end product fit for general consumer
use. It generates, uses, and can radiate radio frequency energy and has not been tested for compliance with the limits of computing
devices pursuant to part 15 of FCC or ICES-003 rules, which are designed to provide reasonable protection against radio frequency
interference. Operation of the equipment may cause interference with radio communications, in which case the user at his own expense will
be required to take whatever measures may be required to correct this interference.
General Statement for EVMs including a radio
User Power/Frequency Use Obligations: This radio is intended for development/professional use only in legally allocated frequency and
power limits. Any use of radio frequencies and/or power availability of this EVM and its development application(s) must comply with local
laws governing radio spectrum allocation and power limits for this evaluation module. It is the user’s sole responsibility to only operate this
radio in legally acceptable frequency space and within legally mandated power limitations. Any exceptions to this are strictly prohibited and
unauthorized by Texas Instruments unless user has obtained appropriate experimental/development licenses from local regulatory
authorities, which is responsibility of user including its acceptable authorization.
For EVMs annotated as FCC – FEDERAL COMMUNICATIONS COMMISSION Part 15 Compliant
Caution
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause
harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the
equipment.
FCC Interference Statement for Class A EVM devices
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to
cause harmful interference in which case the user will be required to correct the interference at his own expense.
FCC Interference Statement for Class B EVM devices
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
For EVMs annotated as IC – INDUSTRY CANADA Compliant
This Class A or B digital apparatus complies with Canadian ICES-003.
Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the
equipment.
Concerning EVMs including radio transmitters
This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this
device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired
operation of the device.
Concerning EVMs including detachable antennas
Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain
approved for the transmitter by Industry Canada. To reduce potential radio interference to other users, the antenna type and its gain should
be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for successful communication.
This radio transmitter has been approved by Industry Canada to operate with the antenna types listed in the user guide with the maximum
permissible gain and required antenna impedance for each antenna type indicated. Antenna types not included in this list, having a gain
greater than the maximum gain indicated for that type, are strictly prohibited for use with this device.
Cet appareil numérique de la classe A ou B est conforme à la norme NMB-003 du Canada.
Les changements ou les modifications pas expressément approuvés par la partie responsable de la conformité ont pu vider l’autorité de
l'utilisateur pour actionner l'équipement.
Concernant les EVMs avec appareils radio
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est
autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout
brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement.
Concernant les EVMs avec antennes détachables
Conformément à la réglementation d'Industrie Canada, le présent émetteur radio peut fonctionner avec une antenne d'un type et d'un gain
maximal (ou inférieur) approuvé pour l'émetteur par Industrie Canada. Dans le but de réduire les risques de brouillage radioélectrique à
l'intention des autres utilisateurs, il faut choisir le type d'antenne et son gain de sorte que la puissance isotrope rayonnée équivalente
(p.i.r.e.) ne dépasse pas l'intensité nécessaire à l'établissement d'une communication satisfaisante.
Le présent émetteur radio a été approuvé par Industrie Canada pour fonctionner avec les types d'antenne énumérés dans le manuel
d’usage et ayant un gain admissible maximal et l'impédance requise pour chaque type d'antenne. Les types d'antenne non inclus dans
cette liste, ou dont le gain est supérieur au gain maximal indiqué, sont strictement interdits pour l'exploitation de l'émetteur.
SPACER
SPACER
SPACER
SPACER
SPACER
SPACER
SPACER
SPACER
【Important Notice for Users of EVMs for RF Products in Japan】
】
This development kit is NOT certified as Confirming to Technical Regulations of Radio Law of Japan
If you use this product in Japan, you are required by Radio Law of Japan to follow the instructions below with respect to this product:
1.
2.
3.
Use this product in a shielded room or any other test facility as defined in the notification #173 issued by Ministry of Internal Affairs and
Communications on March 28, 2006, based on Sub-section 1.1 of Article 6 of the Ministry’s Rule for Enforcement of Radio Law of
Japan,
Use this product only after you obtained the license of Test Radio Station as provided in Radio Law of Japan with respect to this
product, or
Use of this product only after you obtained the Technical Regulations Conformity Certification as provided in Radio Law of Japan with
respect to this product. Also, please do not transfer this product, unless you give the same notice above to the transferee. Please note
that if you could not follow the instructions above, you will be subject to penalties of Radio Law of Japan.
Texas Instruments Japan Limited
(address) 24-1, Nishi-Shinjuku 6 chome, Shinjuku-ku, Tokyo, Japan
http://www.tij.co.jp
【無線電波を送信する製品の開発キットをお使いになる際の注意事項】
本開発キットは技術基準適合証明を受けておりません。
本製品のご使用に際しては、電波法遵守のため、以下のいずれかの措置を取っていただく必要がありますのでご注意ください。
1.
2.
3.
電波法施行規則第6条第1項第1号に基づく平成18年3月28日総務省告示第173号で定められた電波暗室等の試験設備でご使用いただく。
実験局の免許を取得後ご使用いただく。
技術基準適合証明を取得後ご使用いただく。
なお、本製品は、上記の「ご使用にあたっての注意」を譲渡先、移転先に通知しない限り、譲渡、移転できないものとします。
上記を遵守頂けない場合は、電波法の罰則が適用される可能性があることをご留意ください。
日本テキサス・インスツルメンツ株式会社
東京都新宿区西新宿6丁目24番1号
西新宿三井ビル
http://www.tij.co.jp
SPACER
SPACER
SPACER
SPACER
SPACER
SPACER
SPACER
SPACER
SPACER
SPACER
SPACER
SPACER
SPACER
SPACER
SPACER
SPACER
SPACER
EVALUATION BOARD/KIT/MODULE (EVM)
WARNINGS, RESTRICTIONS AND DISCLAIMERS
For Feasibility Evaluation Only, in Laboratory/Development Environments. Unless otherwise indicated, this EVM is not a finished
electrical equipment and not intended for consumer use. It is intended solely for use for preliminary feasibility evaluation in
laboratory/development environments by technically qualified electronics experts who are familiar with the dangers and application risks
associated with handling electrical mechanical components, systems and subsystems. It should not be used as all or part of a finished end
product.
Your Sole Responsibility and Risk. You acknowledge, represent and agree that:
1.
2.
3.
4.
You have unique knowledge concerning Federal, State and local regulatory requirements (including but not limited to Food and Drug
Administration regulations, if applicable) which relate to your products and which relate to your use (and/or that of your employees,
affiliates, contractors or designees) of the EVM for evaluation, testing and other purposes.
You have full and exclusive responsibility to assure the safety and compliance of your products with all such laws and other applicable
regulatory requirements, and also to assure the safety of any activities to be conducted by you and/or your employees, affiliates,
contractors or designees, using the EVM. Further, you are responsible to assure that any interfaces (electronic and/or mechanical)
between the EVM and any human body are designed with suitable isolation and means to safely limit accessible leakage currents to
minimize the risk of electrical shock hazard.
Since the EVM is not a completed product, it may not meet all applicable regulatory and safety compliance standards (such as UL,
CSA, VDE, CE, RoHS and WEEE) which may normally be associated with similar items. You assume full responsibility to determine
and/or assure compliance with any such standards and related certifications as may be applicable. You will employ reasonable
safeguards to ensure that your use of the EVM will not result in any property damage, injury or death, even if the EVM should fail to
perform as described or expected.
You will take care of proper disposal and recycling of the EVM’s electronic components and packing materials.
Certain Instructions. It is important to operate this EVM within TI’s recommended specifications and environmental considerations per the
user guidelines. Exceeding the specified EVM ratings (including but not limited to input and output voltage, current, power, and
environmental ranges) may cause property damage, personal injury or death. If there are questions concerning these ratings please contact
a TI field representative prior to connecting interface electronics including input power and intended loads. Any loads applied outside of the
specified output range may result in unintended and/or inaccurate operation and/or possible permanent damage to the EVM and/or
interface electronics. Please consult the EVM User's Guide prior to connecting any load to the EVM output. If there is uncertainty as to the
load specification, please contact a TI field representative. During normal operation, some circuit components may have case temperatures
greater than 60°C as long as the input and output are maintained at a normal ambient operating temperature. These components include
but are not limited to linear regulators, switching transistors, pass transistors, and current sense resistors which can be identified using the
EVM schematic located in the EVM User's Guide. When placing measurement probes near these devices during normal operation, please
be aware that these devices may be very warm to the touch. As with all electronic evaluation tools, only qualified personnel knowledgeable
in electronic measurement and diagnostics normally found in development environments should use these EVMs.
Agreement to Defend, Indemnify and Hold Harmless. You agree to defend, indemnify and hold TI, its licensors and their representatives
harmless from and against any and all claims, damages, losses, expenses, costs and liabilities (collectively, "Claims") arising out of or in
connection with any use of the EVM that is not in accordance with the terms of the agreement. This obligation shall apply whether Claims
arise under law of tort or contract or any other legal theory, and even if the EVM fails to perform as described or expected.
Safety-Critical or Life-Critical Applications. If you intend to evaluate the components for possible use in safety critical applications (such
as life support) where a failure of the TI product would reasonably be expected to cause severe personal injury or death, such as devices
which are classified as FDA Class III or similar classification, then you must specifically notify TI of such intent and enter into a separate
Assurance and Indemnity Agreement.
Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265
Copyright © 2013, Texas Instruments Incorporated
IMPORTANT NOTICE
Texas Instruments Incorporated and its subsidiaries (TI) reserve the right to make corrections, enhancements, improvements and other
changes to its semiconductor products and services per JESD46, latest issue, and to discontinue any product or service per JESD48, latest
issue. Buyers should obtain the latest relevant information before placing orders and should verify that such information is current and
complete. All semiconductor products (also referred to herein as “components”) are sold subject to TI’s terms and conditions of sale
supplied at the time of order acknowledgment.
TI warrants performance of its components to the specifications applicable at the time of sale, in accordance with the warranty in TI’s terms
and conditions of sale of semiconductor products. Testing and other quality control techniques are used to the extent TI deems necessary
to support this warranty. Except where mandated by applicable law, testing of all parameters of each component is not necessarily
performed.
TI assumes no liability for applications assistance or the design of Buyers’ products. Buyers are responsible for their products and
applications using TI components. To minimize the risks associated with Buyers’ products and applications, Buyers should provide
adequate design and operating safeguards.
TI does not warrant or represent that any license, either express or implied, is granted under any patent right, copyright, mask work right, or
other intellectual property right relating to any combination, machine, or process in which TI components or services are used. Information
published by TI regarding third-party products or services does not constitute a license to use such products or services or a warranty or
endorsement thereof. Use of such information may require a license from a third party under the patents or other intellectual property of the
third party, or a license from TI under the patents or other intellectual property of TI.
Reproduction of significant portions of TI information in TI data books or data sheets is permissible only if reproduction is without alteration
and is accompanied by all associated warranties, conditions, limitations, and notices. TI is not responsible or liable for such altered
documentation. Information of third parties may be subject to additional restrictions.
Resale of TI components or services with statements different from or beyond the parameters stated by TI for that component or service
voids all express and any implied warranties for the associated TI component or service and is an unfair and deceptive business practice.
TI is not responsible or liable for any such statements.
Buyer acknowledges and agrees that it is solely responsible for compliance with all legal, regulatory and safety-related requirements
concerning its products, and any use of TI components in its applications, notwithstanding any applications-related information or support
that may be provided by TI. Buyer represents and agrees that it has all the necessary expertise to create and implement safeguards which
anticipate dangerous consequences of failures, monitor failures and their consequences, lessen the likelihood of failures that might cause
harm and take appropriate remedial actions. Buyer will fully indemnify TI and its representatives against any damages arising out of the use
of any TI components in safety-critical applications.
In some cases, TI components may be promoted specifically to facilitate safety-related applications. With such components, TI’s goal is to
help enable customers to design and create their own end-product solutions that meet applicable functional safety standards and
requirements. Nonetheless, such components are subject to these terms.
No TI components are authorized for use in FDA Class III (or similar life-critical medical equipment) unless authorized officers of the parties
have executed a special agreement specifically governing such use.
Only those TI components which TI has specifically designated as military grade or “enhanced plastic” are designed and intended for use in
military/aerospace applications or environments. Buyer acknowledges and agrees that any military or aerospace use of TI components
which have not been so designated is solely at the Buyer's risk, and that Buyer is solely responsible for compliance with all legal and
regulatory requirements in connection with such use.
TI has specifically designated certain components as meeting ISO/TS16949 requirements, mainly for automotive use. In any case of use of
non-designated products, TI will not be responsible for any failure to meet ISO/TS16949.
Products
Applications
Audio
www.ti.com/audio
Automotive and Transportation
www.ti.com/automotive
Amplifiers
amplifier.ti.com
Communications and Telecom
www.ti.com/communications
Data Converters
dataconverter.ti.com
Computers and Peripherals
www.ti.com/computers
DLP® Products
www.dlp.com
Consumer Electronics
www.ti.com/consumer-apps
DSP
dsp.ti.com
Energy and Lighting
www.ti.com/energy
Clocks and Timers
www.ti.com/clocks
Industrial
www.ti.com/industrial
Interface
interface.ti.com
Medical
www.ti.com/medical
Logic
logic.ti.com
Security
www.ti.com/security
Power Mgmt
power.ti.com
Space, Avionics and Defense
www.ti.com/space-avionics-defense
Microcontrollers
microcontroller.ti.com
Video and Imaging
www.ti.com/video
RFID
www.ti-rfid.com
OMAP Applications Processors
www.ti.com/omap
TI E2E Community
e2e.ti.com
Wireless Connectivity
www.ti.com/wirelessconnectivity
Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265
Copyright © 2013, Texas Instruments Incorporated
