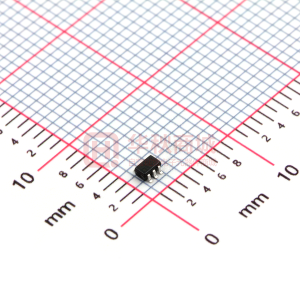

BAT54SDW

BAT54TW /ADW /CDW /SDW /BRW SURFACE MOUNT SCHOTTKY BARRIER DIODE ARRAYS NEW PRODUCT Features · · · · Low Forward Voltage Drop Fast Switching Ultra-Small Surface Mount Package PN Junction Guard Ring for Transient and ESD Protection SOT-363 A Dim A B Min 0.10 1.15 2.00 0.30 1.80 ¾ 0.90 0.25 0.10 0° Max 0.30 1.35 2.20 0.40 2.20 0.10 1.00 0.40 0.25 8° TOP VIEW BC C D F H M Mechanical Data · · · · · · · Case: SOT-363, Molded Plastic Case Material - UL Flammability Rating Classification 94V-0 Moisture sensitivity: Level 1 per J-STD-020A Terminals: Solderable per MIL-STD-202, Method 208 Orientation: See Diagrams Below Weight: 0.006 grams (approx.) Marking: See Diagrams Below & Page 2 A1 0.65 Nominal G H K J K L M a J D F L All Dimensions in mm AC 1 C2 C2 C1 A2 A2 C2 A2 AC 1 C1 C2 C1 C2 C3 C1 C1 A2 A1 A1 C2 A1 C1 AC 2 A1 A2 AC 2 A1 A2 A3 BAT54CDW* BAT54ADW* Marking: KL7 Marking: KL6 *Symmetrical configuration, no orientation indicator. BAT54SDW* Marking: KL8 BAT54BRW Marking: KLB BAT54TW Marking: KLA Maximum Ratings @ TA = 25°C unless otherwise specified Symbol VRRM VRWM VR IF IFRM @ t < 1.0s IFSM Pd RqJA Tj, TSTG Value 30 200 300 600 200 625 -65 to +125 Unit V mA mA mA mW °C/W °C Characteristic Peak Repetitive Reverse Voltage Working Peak Reverse Voltage DC Blocking Voltage Forward Continuous Current (Note 1) Repetitive Peak Forward Current (Note 1) Forward Surge Current (Note 1) Power Dissipation (Note 1) Thermal Resistance, Junction to Ambient Air (Note 1) Operating and Storage Temperature Range Electrical Characteristics Characteristic Reverse Breakdown Voltage (Note 2) @ TA = 25°C unless otherwise specified Symbol V(BR)R Min 30 Typ ¾ ¾ ¾ ¾ ¾ Max ¾ 240 320 400 500 1000 2.0 10 5.0 Unit V Test Condition IR = 100mA IF = 0.1mA 1mA IF = IF = 10mA IF = 30mA IF = 100mA VR = 25V VR = 1.0V, f = 1.0MHz IF = 10mA through IR = 10mA to IR = 1.0mA, RL = 100W Forward Voltage (Note 2) VF IR CT trr ¾ ¾ ¾ ¾ mV Reverse Leakage Current (Note 2) Total Capacitance Reverse Recovery Time Notes: mA pF ns 1. Device mounted on FR-4 PCB, 1 inch x 0.85 inch x 0.062 inch; pad layout as shown on Diodes Inc. suggested pad layout document AP02001, which can be found on our website at http://www.diodes.com/datasheets/ap02001.pdf. 2. Short duration test pulse used to minimize self-heating effect. DS30152 Rev. 7 - 2 1 of 2 BAT54TW /ADW /CDW /SDW /BRW NEW PRODUCT Ordering Information Device BAT54ADW-7 BAT54CDW-7 BAT54SDW-7 BAT54BRW-7 BAT54TW-7 Notes: (Note 3) Packaging Shipping SOT-363 3000/Tape & Reel 3. For Packaging Details, go to our website at http://www.diodes.com/datasheets/ap02007.pdf. Marking Information KXX KXX = Product Type Marking Code (See Page 1) YM = Date Code Marking Y = Year ex: N = 2002 M = Month ex: 9 = September YM YM 2002 N Date Code Key Year Code Month Code 2001 M Jan 1 2003 P March 3 Apr 4 2004 R May 5 2005 S Jun 6 Jul 7 2006 T Aug 8 2007 U Sep 9 2008 V Oct O Nov N 2009 W Dec D DS30152 Rev. 7 - 2 KXX KXX KXX = Product Type Marking Code (See Page 1) For Symmetrical Configuration, No Orientation Indicator YM = Date Code Marking Y = Year ex: N = 2002 M = Month ex: 9 = September YM Feb 2 2 of 2 BAT54TW /ADW /CDW /SDW /BRW
