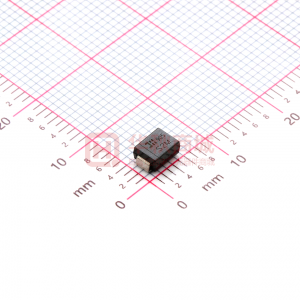

S2M

SPICE MODELS: S2A S2B S2D S2G S2J S2K S2M S2AA S2BA S2DA S2GA S2JA S2KA S2MA S2A/A - S2M/A 1.5A SURFACE MOUNT GLASS PASSIVATED RECTIFIER Features · · · · · Glass Passivated Die Construction Low Forward Voltage Drop and High Current Capability Surge Overload Rating to 50A Peak Ideally Suited for Automated Assembly Lead Free Finish/RoHS Compliant (Note 3) SMA Min 2.29 4.00 1.27 0.15 4.80 0.10 0.76 2.01 Max 2.92 4.60 1.63 0.31 5.59 0.20 1.52 2.62 SMB Min 3.30 4.06 1.96 0.15 5.00 0.10 0.76 2.00 Max 3.94 4.57 2.21 0.31 5.59 0.20 1.52 2.62 B Dim A Mechanical Data · · · · · · · · Case: SMA/SMB Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0 Moisture Sensitivity: Level 1 per J-STD-020C Terminals: Lead Free Plating (Matte Tin Finish). Solderable per MIL-STD-202, Method 208 e3 Polarity: Cathode Band or Cathode Notch Marking: Type Number, See Page 2 Ordering Information: See Page 2 Approximate Weight: SMA 0.064 grams SMB 0.093 grams A B C C D E D J G H J H G E All Dimensions in mm A Suffix Designates SMA Package No Suffix Designates SMB Package Maximum Ratings and Electrical Characteristics Single phase, half wave, 60Hz, resistive or inductive load. For capacitive load, derate current by 20%. Characteristic Peak Repetitive Reverse Voltage Working Peak Reverse Voltage DC Blocking Voltage RMS Reverse Voltage Average Rectified Output Current @ TT = 100°C Non-Repetitive Peak Forward Surge Current 8.3ms single half sine-wave superimposed on rated load Forward Voltage Peak Reverse Current at Rated DC Blocking Voltage Typical Total Capacitance (Note 1) Typical Thermal Resistance, Junction to Terminal (Note 2) Operating and Storage Temperature Range @ IF = 1.5A @TA = 25°C @TA = 125°C Symbol VRRM VRWM VR VR(RMS) I(AV) IFSM VFM IRM CT RqJT Tj, TSTG S2 A/AA 50 35 @TA = 25°C unless otherwise specified S2 B/BA 100 70 S2 D/DA 200 140 S2 G/GA 400 280 1.5 50 1.15 5.0 125 20 20 -65 to +150 S2 J/JA 600 420 S2 K/KA 800 560 S2 M/MA 1000 700 Unit V V A A V µA pF °C/W °C Notes: 1. Measured at 1.0 MHz and applied reverse voltage of 4.0V DC. 2. Thermal Resistance Junction to Terminal, unit mounted on PC board with 5.0 mm2 (0.013 mm thick) copper pads as heat sink. 3. RoHS revision 13.2.2003. Glass and High Temperature Solder Exemptions Applied, see EU Directive Annex Notes 5 and 7. DS16004 Rev. 11 - 2 1 of 3 www.diodes.com S2A/A - S2M/A ã Diodes Incorporated Ordering Information Device* S2xA-13-F S2x-13-F (Note 4) Packaging SMA SMB Shipping 5000/Tape & Reel 3000/Tape & Reel * x = Device type, e.g. S2AA-13-F (SMA package); S2A-13-F (SMB package). Notes: 4. For Packaging Details, go to our website at http://www.diodes.com/datasheets/ap02007.pdf. Marking Information YWW XXX(X) XXX = Product type marking code, ex: S2A (SMB package) XXXX = Product type marking code, ex: S2AA (SMA package) = Manufacturers’ code marking YWW = Date code marking Y = Last digit of year ex: 2 for 2002 WW = Week code 01 to 52 1.2 IF, INSTANTANEOUS FORWARD CURRENT (A) 1.5 10 IAV, AVERAGE FORWARD CURRENT (A) 1.0 0.9 0.6 0.1 0.3 Resistive or inductive load Tj = 25°C 0 0.01 0.5 0.7 0.9 1.1 1.3 1.5 20 40 60 80 100 120 140 160 TT, TERMINAL TEMPERATURE (ºC) Fig. 1 Forward Current Derating Curve VF, INSTANTANEOUS FORWARD VOLTAGE (V) Fig. 2 Typical Forward Characteristics 1000 IFSM, PEAK FORWARD SURGE CURRENT (A) 60 Single Half-Sine-Wave 50 100 40 10 Tj = 125°C 30 1.0 20 0.1 Tj = 25°C 10 0.01 0 1 10 100 0 20 40 60 80 100 120 140 NUMBER OF CYCLES AT 60 Hz Fig. 3 Forward Surge Current Derating Curve DS16004 Rev. 11 - 2 2 of 3 www.diodes.com PERCENT OF RATED PEAK REVERSE VOLTAGE (%) Fig. 4 Typical Reverse Characteristics S2A/A - S2M/A IMPORTANT NOTICE Diodes Incorporated and its subsidiaries reserve the right to make modifications, enhancements, improvements, corrections or other changes without further notice to any product herein. Diodes Incorporated does not assume any liability arising out of the application or use of any product described herein; neither does it convey any license under its patent rights, nor the rights of others. The user of products in such applications shall assume all risks of such use and will agree to hold Diodes Incorporated and all the companies whose products are represented on our website, harmless against all damages. LIFE SUPPORT Diodes Incorporated products are not authorized for use as critical components in life support devices or systems without the expressed written approval of the President of Diodes Incorporated. DS16004 Rev. 11 - 2 3 of 3 www.diodes.com S2A/A - S2M/A
