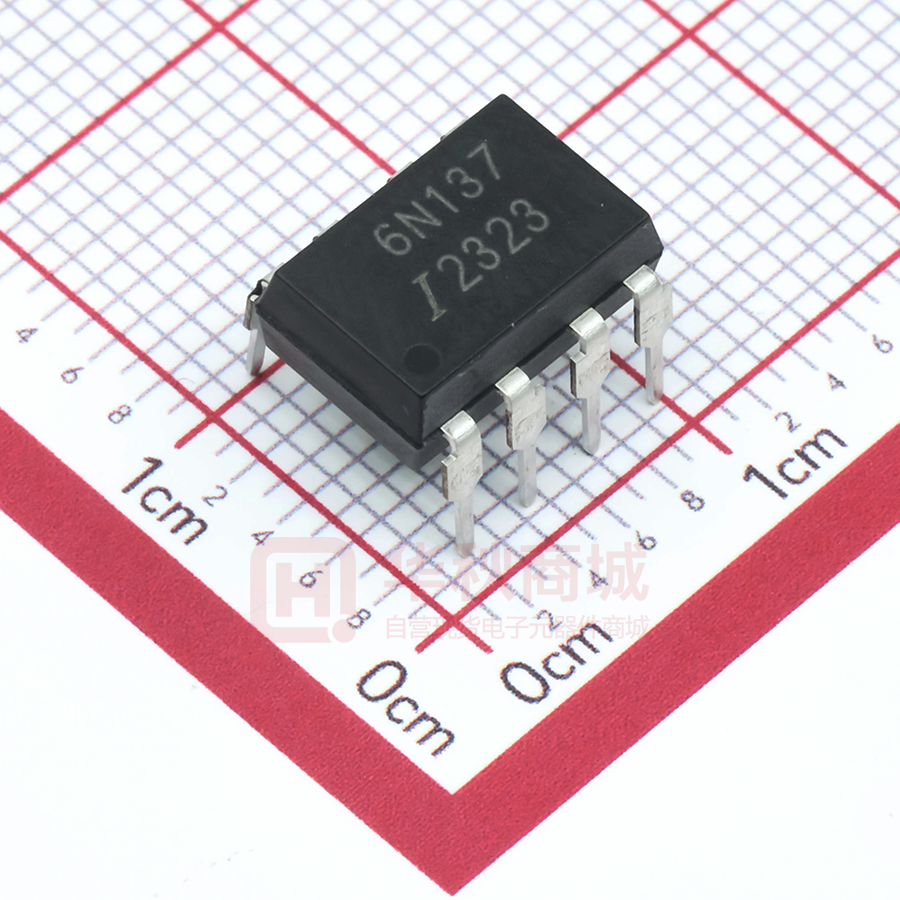

6N137

8 PIN DIP HIGH SPEED 10MBit/s LOGIC GATE PHOTOCOUPLER 6N137 EL26XX series Schematic 1 8 2 7 3 6 4 5 Features • High speed 10Mbit/s • 10kV/µs min. common mode transient immunity (EL2611) • Guaranteed performance from -40 to 85 • Logic gate output • High isolation voltage between input and output (Viso=5000 V rms ) • Pb free and RoHS compliant. • UL approved (No. 214129) • VDE approved (No. 132249) • SEMKO approved • NEMKO approved • DEMKO approved • FIMKO approved • CSA approved (No. 2037145) ℃ A 0.1µF bypass capacitor must be *3 connected between pins 8 and 5 Pin Configuration 1, No Connection 2, Anode 3, Cathode 4. No Connection 5, Gnd 6, Vout 7, VE 8, VCC Description The 6N137, EL2601 and EL2611 are consists of an infrared emitting diode optically coupled to a high speed integrated photo detector logic gate with a strobable output. It is packaged in a 8-pin DIP package and available in wide-lead spacing and SMD options. Applications • Ground loop elimination • LSTTL to TTL, LSTTL or 5 volt CMOS • Line receiver, data transmission • Data multiplexing • Switching power supplies • Pulse transformer replacement • Computer peripheral interface • High speed logic ground isolation 1 Truth Table (Positive Logic) Input H L H L H L Enable H H L L NC NC Copyright © 2010, Everlight All Rights Reserved. Release Date : May 13, 2013. Issue No: DPC-0000120 Rev.4 Output L H H H L H www.everlight.com DATASHEET 8 PIN DIP HIGH SPEED 10MBit/s LOGIC GATE PHOTOCOUPLER 6N137 EL26XX series Absolute Maximum Ratings (Ta=25℃) Parameter Symbol Rating Unit Forward current IF 50 mA Enable input voltage Not exceed VCC by more than 500mV VE 5.5 V Reverse voltage VR 5 V Power dissipation PD 100 mW Power dissipation PC 85 mW Output current IO 50 mA Output voltage VO 7.0 V Supply voltage VCC 7.0 V Output Power Dissipation PO 100 mW VISO 5000 V rms Operating temperature TOPR -40 ~ +85 °C Storage temperature TSTG -55 ~ +125 °C TSOL 260 °C Input Output Isolation voltage *1 Soldering temperature *2 Notes: *1 AC for 1 minute, R.H.= 40 ~ 60% R.H. In this test, pins 1, 2, 3 & 4 are shorted together, and pins 5, 6, 7 & 8 are shorted together. *2 For 10 seconds. 2 Copyright © 2010, Everlight All Rights Reserved. Release Date : May 13, 2013. Issue No:DPC-0000120 Rev.4 www.everlight.com DATASHEET 8 PIN DIP HIGH SPEED 10MBit/s LOGIC GATE PHOTOCOUPLER 6N137 EL26XX series Electrical Characteristics (Ta=-40 to 85°C unless specified otherwise) Input Symbol Min. Typ. Max. Unit Forward voltage VF - 1.4 1.8 V IF = 10mA Reverse voltage VR 5.0 - - V IR = 10µA ∆VF/∆TA - -1.8 - mV/°C IF =10mA CIN - 60 - pF VF=0, f=1MHz Symbol Min Typ. Max. Unit Condition ICCH - 7 10 mA IF=0mA, VE=0.5V, VCC=5.5V ICCL - 9 13 mA IF=10mA, VCC=5.5V IEH - - 0.6 -1.6 mA VE=2.0 V, VCC=5.5V IEL - - 0.8 -1.6 mA VE=0.5 V, VCC=5.5V VEH 2.0 - - V IF=10mA, VCC=5.5V VEL - - 0.8 V IF=10mA, VCC=5.5V Parameter Temperature coefficient of forward voltage Input capacitance Condition Output Parameter High level supply current Low level supply current High level enable current Low level enable current High level enable voltage Low level enable *4 voltage Transfer Characteristics (Ta=-40 to 85°C unless specified otherwise) Parameter HIGH Level Output Current LOW Level Output Current Input Threshold Current 3 Symbol Min Typ. Max. Unit IOH - 2.1 100 uA VOL - 0.35 0.6 V IFT - 2.5 5 mA Condition VCC=5.5V, VO=5.5V, IF=250µA, VE=2.0V VCC = 5.5V, IF=5mA, VE=2.0V,ICL=13mA VCC= 5.5V, VO=0.6V, VE =2.0V,IOL=13mA Copyright © 2010, Everlight All Rights Reserved. Release Date : May 13, 2013. Issue No:DPC-0000120 Rev.4 www.everlight.com DATASHEET 8 PIN DIP HIGH SPEED 10MBit/s LOGIC GATE PHOTOCOUPLER 6N137 EL26XX series Switching Characteristics (Ta=-40 to 85°C, VCC=5V, IF=7.5mA unless specified otherwise) Parameter Propagation delay time to output High 5 level* (Fig.12) Propagation delay time to output Low 6 level* (Fig.12) Pulse width distortion Symbol Min Typ. Max. Unit Condition TPHL - 35 75 ns CL = 15pF, RL=350Ω, TA=25°C TPLH - 40 75 ns CL = 15pF, RL=350Ω, TA=25°C |Tphl – Tplh| - 5 35 ns CL = 15pF, RL=350Ω tr - 40 - ns CL = 15pF, RL=350Ω tf - 10 - ns CL = 15pF, RL=350Ω 7 Output rise time* (Fig.12) 8 Output fall time* (Fig.12) Switching Characteristics (Ta=-40 to 85°C, VCC=5V, IF=7.5mA unless specified otherwise) Symbol Min Typ. Max. Unit Condition tELH - 15 - ns IF = 7.5mA , VEH=3.5V, CL = 15pF, RL=350Ω tEHL - 15 - ns IF = 7.5mA , VEH=3.5V, CL = 15pF, RL=350Ω 6N137 - - - EL2601 5,000 - - Parameter Enable Propagation Delay Time to Output 9 High Level* (Fig.13) Enable Propagation Delay Time to Output 10 Low Level* (Fig.13) Common Mode Transient Immunity at Logic *11 High Common Mode Transient Immunity at Logic *12 Low 4 V/µS CMH EL2611 10,000 - - EL2611 20,000 - - 6N137 - - - EL2601 5,000 - V/µS CML EL2611 10,000 - - EL2611 20,000 - - IF = 7.5mA , VOH=2.0V, RL=350Ω, TA=25°C VCM=10Vp-p (Fig.14) IF = 7.5mA , VOH=2.0V, RL=350Ω, TA=25°C VCM=50Vp-p (Fig.14) IF = 7.5mA , VOH=2.0V, RL=350Ω, TA=25°C VCM=400Vp-p (Fig.14) IF = 7.5mA , VOH=2.0V, RL=350Ω, TA=25°C VCM=400Vp-p (Fig.15) IF = 0mA , VOL=0.8V, RL=350Ω, TA=25°C VCM=10Vp-p (Fig.14) IF = 0mA , VOL=0.8V, RL=350Ω, TA=25°C VCM=50Vp-p (Fig.14) IF = 0mA , VOL=0.8V, RL=350Ω, TA=25°C VCM=400Vp-p (Fig.14) IF = 7.5mA , VOH=2.0V, RL=350Ω, TA=25°C VCM=400Vp-p (Fig.15) Copyright © 2010, Everlight All Rights Reserved. Release Date : May 13, 2013. Issue No:DPC-0000120 Rev.4 www.everlight.com DATASHEET 8 PIN DIP HIGH SPEED 10MBit/s LOGIC GATE PHOTOCOUPLER 6N137 EL26XX series Typical Electro-Optical Characteristics Curves 5 Copyright © 2010, Everlight All Rights Reserved. Release Date : May 13, 2013. Issue No:DPC-0000120 Rev.4 www.everlight.com DATASHEET 8 PIN DIP HIGH SPEED 10MBit/s LOGIC GATE PHOTOCOUPLER 6N137 EL26XX series 6 Copyright © 2010, Everlight All Rights Reserved. Release Date : May 13, 2013. Issue No:DPC-0000120 Rev.4 www.everlight.com DATASHEET 8 PIN DIP HIGH SPEED 10MBit/s LOGIC GATE PHOTOCOUPLER 6N137 EL26XX series Fig. 12 Test circuit and waveforms for tPHL, tPLH, tr, and tf Ω IF=7.5mA IF=3.75mA Input (IF) tPHL tPLH Output (Vo) 1.5V 90% Ω Output (Vo) 10% tf tr Fig. 13 Test circuit and waveform for tEHLand tELH Ω 3.0V Input (VE) 1.5V tEHL tELH Output (Vo) 1.5V 7 Copyright © 2010, Everlight All Rights Reserved. Release Date : May 13, 2013. Issue No:DPC-0000120 Rev.4 www.everlight.com DATASHEET 8 PIN DIP HIGH SPEED 10MBit/s LOGIC GATE PHOTOCOUPLER 6N137 EL26XX series Fig. 14 Test circuit Common mode Transient Immunity Ω Peak VCM 0V 5V Vo CMH Switching Pos. (A), IF=0 VO(Min) VO(Max) Switching Pos. (B), IF=7.5mA VCM CML 0.5V Fig. 15 Recommended drive circuit for EL2611 families for high-CMR μ 8 Ω Copyright © 2010, Everlight All Rights Reserved. Release Date : May 13, 2013. Issue No:DPC-0000120 Rev.4 www.everlight.com DATASHEET 8 PIN DIP HIGH SPEED 10MBit/s LOGIC GATE PHOTOCOUPLER 6N137 EL26XX series Note *3 The VCC supply must be bypassed by a 0.1µF capacitor or larger. This can be either a ceramic or solid tantalum capacitor with good high frequency characteristic and should be connected as close as possible to the package VCC and GND pins *4. Enable Input – No pull up resistor required as the device has an internal pull up resistor. Propagation delay is measured from the 3.75mA level on the HIGH to LOW transition of the input current *5. tPLH pulse to the 1.5 V level on the LOW to HIGH transition of the output voltage pulse. *6. tPHL Propagation delay is measured from the 3.75mA level on the LOW to HIGH transition of the input current pulse to the 1.5 V level on the HIGH to LOW transition of the output voltage pulse. *7. tr Rise time is measured from the 90% to the 10% levels on the LOW to HIGH transition of the output pulse. *8. tf Fall time is measured from the 10% to the 90% levels on the HIGH to LOW transition of the output pulse. Enable input propagation delay is measured from the 1.5V level on the HIGH to LOW transition of the *9. tELH input voltage pulse to the 1.5V level on the LOW to HIGH transition of the output voltage pulse. *10. tEHL Enable input propagation delay is measured from the 1.5V level on the LOW to HIGH transition of the input voltage pulse to the 1.5V level on the HIGH to LOW transition of the output voltage pulse. *11 CMH– The maximum tolerable rate of rise of the common mode voltage to ensure the output will remain in the HIGH state (i.e., VOUT > 2.0V). *12 CML– The maximum tolerable rate of rise of the common mode voltage to ensure the output will remain in the LOW output state (i.e., VOUT < 0.8V). – – – – – – Order Information Part Number 6N137Y(Z)-V or EL26XXY(Z)-V Note X Y Z V 9 = (01 or 11) for EL26 part no. = Lead form option (S, S1, M or none) = Tape and reel option (TA, TB or none). = VDE (optional) Option None Description Packing quantity Standard DIP-8 45 units per tube M Wide lead bend (0.4 inch spacing) 45 units per tube S (TA) Surface mount lead form + TA tape & reel option 1000 units per reel S (TB) Surface mount lead form + TB tape & reel option 1000 units per reel S1 (TA) Surface mount lead form (low profile) + TA tape & reel option 1000 units per reel S1 (TB) Surface mount lead form (low profile) + TB tape & reel option 1000 units per reel Copyright © 2010, Everlight All Rights Reserved. Release Date : May 13, 2013. Issue No:DPC-0000120 Rev.4 www.everlight.com DATASHEET 8 PIN DIP HIGH SPEED 10MBit/s LOGIC GATE PHOTOCOUPLER 6N137 EL26XX series Package Dimension (Dimensions in mm) Standard DIP Type Option M Type 10 Copyright © 2010, Everlight All Rights Reserved. Release Date : May 13, 2013. Issue No:DPC-0000120 Rev.4 www.everlight.com DATASHEET 8 PIN DIP HIGH SPEED 10MBit/s LOGIC GATE PHOTOCOUPLER 6N137 EL26XX series Option S Type Option S1 Type 11 Copyright © 2010, Everlight All Rights Reserved. Release Date : May 13, 2013. Issue No:DPC-0000120 Rev.4 www.everlight.com DATASHEET 8 PIN DIP HIGH SPEED 10MBit/s LOGIC GATE PHOTOCOUPLER 6N137 EL26XX series Recommended pad layout for surface mount leadform Device Marking EL 6N137 YWWV Notes EL 6N137 Y WW V 12 denotes EVERLIGHT denotes Device Number denotes 1 digit Year code denotes 2 digit Week code denotes VDE (optional) Copyright © 2010, Everlight All Rights Reserved. Release Date : May 13, 2013. Issue No:DPC-0000120 Rev.4 www.everlight.com DATASHEET 8 PIN DIP HIGH SPEED 10MBit/s LOGIC GATE PHOTOCOUPLER 6N137 EL26XX series Tape & Reel Packing Specifications Option TB Option TA Direction of feed from reel Direction of feed from reel Tape dimension 13 Dimension No. A B Do D1 E F Dimension(mm) 10.4±0.1 10.0±0.1 1.5+0.1/-0 1.5±0.25/-0 1.75±0.1 7.5±0.1 Dimension No. Po P1 P2 t W K Dimension(mm) 4.0±0.1 12.0±0.1 2.0±0.05 0.4±0.05 16.0±0.3/ 4.5±0.1 Copyright © 2010, Everlight All Rights Reserved. Release Date : May 13, 2013. Issue No:DPC-0000120 Rev.4 www.everlight.com DATASHEET 8 PIN DIP HIGH SPEED 10MBit/s LOGIC GATE PHOTOCOUPLER 6N137 EL26XX series Precautions for Use 1. Soldering Condition 1.1 (A) Maximum Body Case Temperature Profile for evaluation of Reflow Profile Note: Reference: IPC/JEDEC J-STD-020D Preheat Temperature min (Tsmin) 150 °C Temperature max (Tsmax) 200°C Time (Tsmin to Tsmax) (ts) Average ramp-up rate (Tsmax to Tp) 60-120 seconds 3 °C/second max Other Liquidus Temperature (TL) 217 °C Time above Liquidus Temperature (t L) 60-100 sec Peak Temperature (TP) 260°C Time within 5 °C of Actual Peak Temperature: TP - 5°C 30 s Ramp- Down Rate from Peak Temperature 6°C /second max. Time 25°C to peak temperature Reflow times 8 minutes max. 3 times 14 Copyright © 2010, Everlight All Rights Reserved. Release Date : May 13, 2013. Issue No:DPC-0000120 Rev.4 www.everlight.com DATASHEET 8 PIN DIP HIGH SPEED 10MBit/s LOGIC GATE PHOTOCOUPLER 6N137 EL26XX series DISCLAIMER 1. Above specification may be changed without notice. EVERLIGHT will reserve authority on material change for above specification. 2. When using this product, please observe the absolute maximum ratings and the instructions for using outlined in these specification sheets. EVERLIGHT assumes no responsibility for any damage resulting from use of the product which does not comply with the absolute maximum ratings and the instructions included in these specification sheets. 3. These specification sheets include materials protected under copyright of EVERLIGHT corporation. Please don’t reproduce or cause anyone to reproduce them without EVERLIGHT’s consent. 15 Copyright © 2010, Everlight All Rights Reserved. Release Date : May 13, 2013. Issue No:DPC-0000120 Rev.4 www.everlight.com
