HE400 P.C.B. Mount Features and Benefits
Features
Benefits
Applications
• Multi-pole configuration (up to
6 normally open contacts)
• Combination normally
open/normally closed option
• Available with 5V, 12V or 24V
coil options as standard
• Magnetic shield option
• Lengthways coil option
• In line pins
• Fully encapsulated
• One relay, many contacts
reducing space and cost without
compromising
• Lower power coil consumption
than competing
electromechanical
• Hermetically sealed switching
contact is immune to the effects
of its environment
•
•
•
•
•
Security
Telecoms
Instrumentation
Process
Industrial
DIMENSIONS (in) mm
Figure 2 HE400
Figure 1 HE400
Table 1
Relay Type
Case Size, Max.
HE400
Plastic or Metal Case

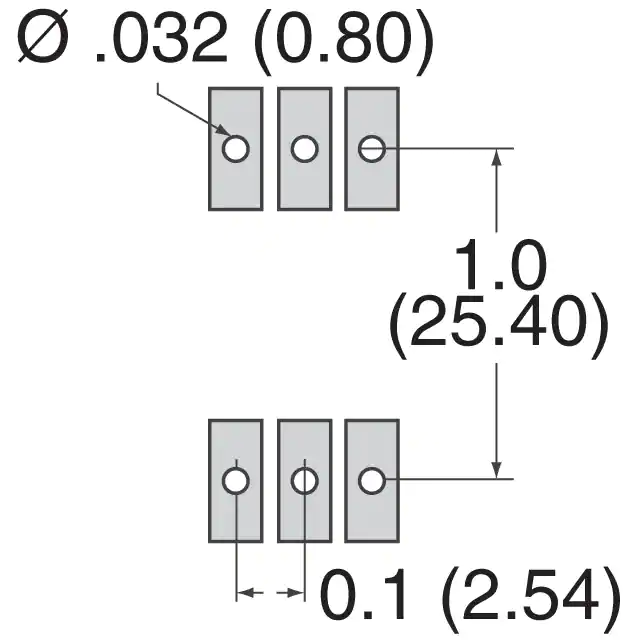

HE400 PCB LAYOUT
All
h
All
l
1
w
2
w
3
w
(.354) 9
(1.182) 30
(.394) 10
(.493) 12,5
(.591) 15
(Bottom View)
SINGLE POLE
MULTIPLE POLE
(.100) 2,54
TYP
(1.000) 25,40
Ø (.032) 0,80 HOLE
ORDERING INFORMATION
PART NUMBER
HE4X
X
X
XX X
X
Model Number
HE42 - Standard
HE45 - High Voltage
Coil Termination
0 - End Coil
3 - Lengthwise
Number of Contacts
1,2,3,4,5,6 (5,6 Form A only)
Case Option
5 - Plastic case
9 - Metal case
Standard Coil
Contact Type
05 - 5 Volt
A - Form A (SPST-NO)
12 - 12 Volt
C - Form C (SPDT-CO)
24 - 24 Volt
EXAMPLE: The HE421A0550 is a 1 Form A relay with a 5 Volt coil, plastic case and end
coil termination.
See next page for: Electrical and Operating Characteristics Description and Coil Characteristics
Hamlin USA
Hamlin UK
Hamlin Germany
Hamectrol France
Tel:
Tel:
Tel:
Tel:
+1 920 648 3000 • Fax: +1 920 648 3001 • Email: sales.us@hamlin.com
+44 (0)1379 649700 • Fax: +44 (0)1379 649702 • Email: sales.uk@hamlin.com
+49 (0) 6181 953660 • Fax: +49 (0) 6181 9536666 • Email: sales.de@hamlin.com
+33 (0) 1 4687 0202 • Fax: +33 (0) 1 4686 6786 • Email: sales.fr@hamlin.com
48
ISSUE No: 4 DATE: 1/5/3
Table 2
HE400 Series
Electrical and Operating Characteristics
Column Number
Contact Type
@ 25˚C.
1
Form A
Standard
2
Form C
Standard
HE400
HE400
3
Form A
High
Voltage
HE400
Watt - max.
Vdc - max.
A - max.
A - max.
10
200
0.5
1.2
5
175
0.25
1.5
10
300
0.5
1.5
Relay Types
CONTACT RATINGS
Contact Hamlin
for specific
load/life details.
Power, Switching
Voltage, Switching
Current, Switching
Current, Carry
VOLTAGE
HOLD-OFF
Across Open Contacts
Contacts to Coil
Between Isolated Terminals
Plastic case
Metal Case
Vdc - min.
Vac - min.
250
1500
200
1500
450
1500
Vac - min.
Vac - min.
1500
1000
1500
1000
1500
1000
RESISTANCE
Contact, Initial
Insulation:Across Open Contacts
Between Isolated Terminals
Ω - max.
Ω - min.
Ω - min.
0.150
1010
1010
0.150
109
1010
0.150
1010
1010
TIMING
Operate Time
Release Time
ms - max.
ms - max.
1.0
1.0
3.0
3.0
1.0
1.0
ENVIRONMENTAL
Temperature, Operating
Temperature, Storage
Vibration Resistance
°C
°C
G - max.
10-2000 Hz.
G - max.
11 ms, 1⁄2 sine
-40 to +85
-40 to +105
20
-40 to +85
-40 to +105
20
-20 to +85
-40 to +105
20
50
50
50
Shock Resistance
Table 3
Contact Form
& Type
1A
SPST-NO
HE400 Series Miniature Relay
Electrical &
Dimensions
Operating
Case Size
Characteristics
Coil Characteristics @ 25˚C.
Part Number
Plastic Case
See Note 1
Nominal
Coil Voltage
Vdc
Coil
Resistance
±10% Ohms
Must
Operate
Vdc
Must
Release
Vdc
Maximum Top View 2,54 mm, 0.1 in. Grid
Coil Voltage
Dot on Case: Pin 1
Vdc
Numbers not printed on case.
See Table 2
Column 1
See Table 1
Column 1
HE421A0550
HE421A1250
HE421A2450
5
12
24
240
960
3840
3.75
8.5
18.0
0.4
1.0
2.0
11
27
54
See Table 2
Column 1
See Table 1
Column 2
HE422A0550
HE422A1250
HE422A2450
5
12
24
145
575
2300
3.75
8.5
18.0
0.4
1.0
2.0
9
22
43
1A
SPST-NO
High Voltage
See Table 2
Column 3
See Table 1
Column 1
HE451A0550
HE451A1250
HE451A2450
5
12
24
240
960
3840
3.75
8.5
18.0
0.4
1.0
2.0
11
27
54
2A
DPST-NO
High Voltage
See Table 2
Column 3
See Table 1
Column 2
HE452A0550
HE452A1250
HE452A2450
5
12
24
145
575
2300
3.75
8.5
18.0
0.4
1.0
2.0
9
22
43
See Table 2
Column 2
See Table 1
Column 1
HE421C0550
HE421C1250
HE421C2450
5
12
24
240
960
3840
3.75
8.5
18.0
0.4
1.0
2.0
11
27
54
See Table 2
Column 2
See Table 1
Column 3
HE422C0550
HE422C1250
HE422C2450
5
12
24
105
415
1660
3.75
8.5
18.0
0.4
1.0
2.0
8
22
43
2A
DPST-NO
1C
SPDT-CO
2C
DPDT-CO
Notes: 1) Part numbers shown are for plastic case. For metal
case option, replace last two digits 50 with 90.
2) The relays shown to the right are available on a
build to order basis. Contact Hamlin for details.
3) Special requirements such as side coil termination,
coil resistance and contact configuration are
available. Contact Hamlin for details.
Type
3A
4A
5A
6A
3C
4C
HE42
HE45
+
+
+
+
+
+
+
+
+
-
+
-
