Inchange Semiconductor
Product Specification
Silicon NPN Power Transistors
2SD880
DESCRIPTION ·With TO-220C package ·Complement to type 2SB834 ·Low collector saturation voltage APPLICATIONS ·Designed for use in audio frequency power amplifier applications
PINNING PIN 1 2 3 Base Collector;connected to mounting base Emitter DESCRIPTION
·
Absolute maximum ratings(Ta=25℃)
SYMBOL VCBO VCEO VEBO IC ICM IB
B
PARAMETER Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector current Collector current-Peak Base current Collector dissipation Junction temperature Storage temperature TC=25℃ Open emitter Open base
CONDITIONS
VALUE 60 60 7 3 6 0.5 30 150 -50~150
UNIT V V V A A A W ℃ ℃
Open collector
PC Tj Tstg
THERMAL CHARACTERISTICS
SYMBOL Rθjc CHARACTERISTICS Thermal resistance junction to case MAX 4.16 UNIT ℃/W
Inchange Semiconductor
Product Specification
Silicon NPN Power Transistors
CHARACTERISTICS
Tj=25℃ unless otherwise specified SYMBOL V(BR)CEO V(BR)EBO VCEsat VBE ICBO IEBO hFE fT PARAMETER Collector-emitter breakdown voltage Emitter-base breakdown voltage Collector-emitter saturation voltage Base-emitter on voltage Collector cut-off current Emitter cut-off current DC current gain Transition frequency CONDITIONS IC=50mA ;IB=0 IE=1mA ;IC=0 IC=3A; IB=0.3A IC=0.5A ; VCE=5V VCB=60V; IE=0 VEB=7V; IC=0 IC=0.5A ; VCE=5V IC=0.5A ; VCE=5V;f=1MHz 60 3 MIN 60 7 TYP.
2SD880
MAX
UNIT V V
1.0 1.0 100 100 300
V V μA μA
MHz
Switching times ton ts tf Turn-on time Storage time Fall time IC=10IB1=-10IB2=2A VCC=30V PW=30μs 1.2 2.0 1.1 μs μs μs
hFE Classifications O 60-120 Y 100-200 GR 150-300
2
Inchange Semiconductor
Product Specification
Silicon NPN Power Transistors
PACKAGE OUTLINE
2SD880

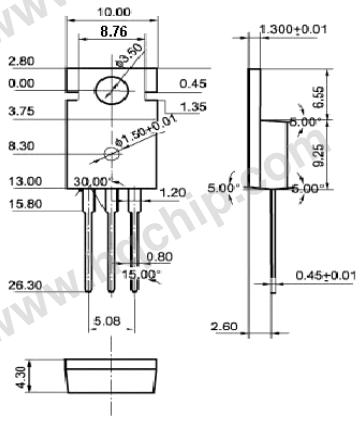

Fig.2 Outline dimensions (unindicated tolerance:±0.10mm)
3
